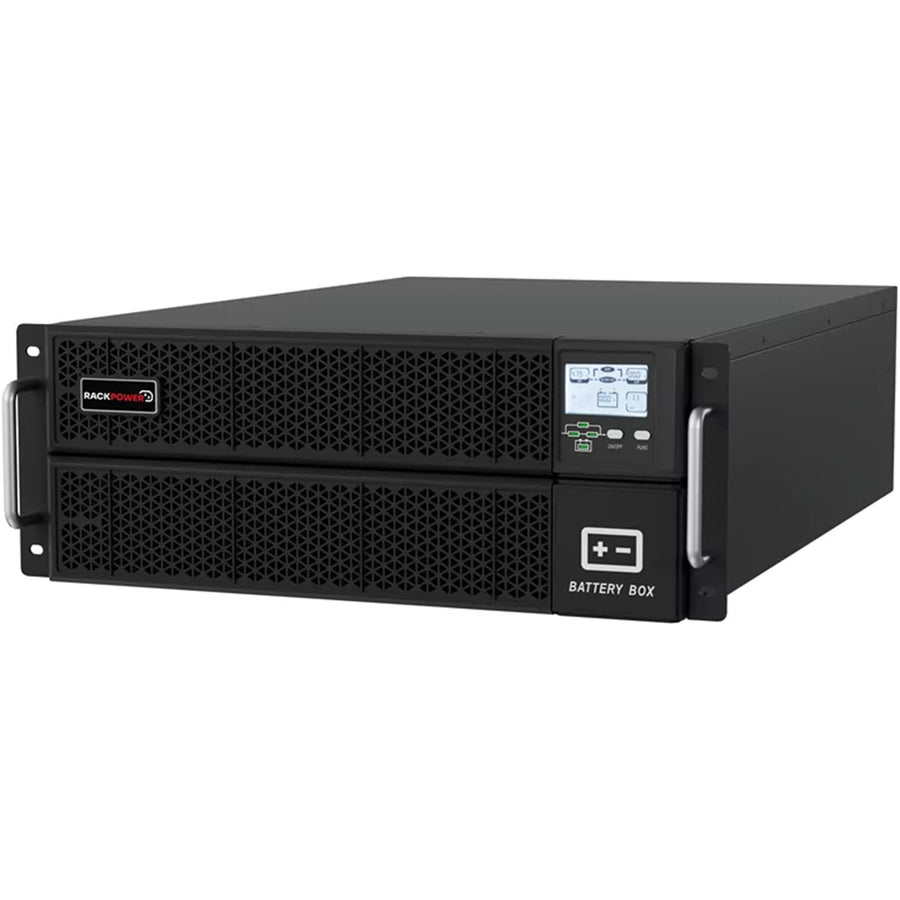

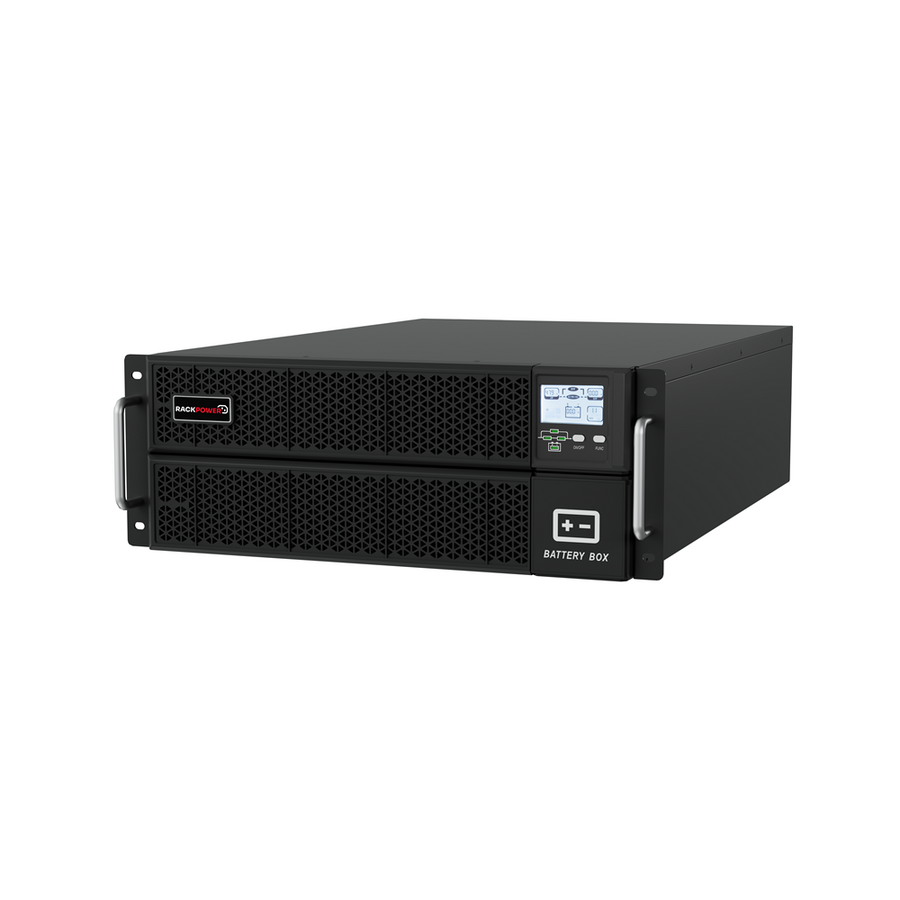

RackPower 6kVA/6kW Rack-Mounted Online UPS, 4RU, Single Phase 230V/50Hz. Includes16x 9Ah/12V Batteries.
Features
RackPower 6kVA Rack-Mounted UPS Systems | True Online Double Conversion | Single Phase | 6000VA/6000W
RackPower's 6kVA and 10kVA UPS units are designed for high-demand enterprise-grade environments where uptime, efficiency, and intelligent power management are essential. Built on true online double-conversion architecture, these systems deliver continuous, clean sinewave power with zero transfer time, protecting critical infrastructure from voltage fluctuations, surges, and outages. With a true power factor of 1.0, industry-leading 95% online efficiency, and advanced battery intelligence, these UPS systems offer maximum usable power, lower operating costs, and longer battery life.
Key Features & Benefits
- True Output Power Factor of 1.0 - Delivers full rated power-6000W from 6kVA and 10000W from 10kVA-ensuring no compromise on capacity.
- High Online Efficiency - Up to 95% - Outperforms typical models (92-94%) to reduce energy waste, minimize heat, and cut electricity costs.
- Intelligent Battery Management - Extends battery life through smart charging algorithms, temperature compensation, and real-time diagnostics.
- Self-Aging Function - Enables automated battery testing without external loads-saving energy and simplifying maintenance routines.
- Wide Input Voltage Range - Operates reliably in unstable power conditions without switching to battery-preserving battery health.
- Advanced LCD Display - Provides real-time system monitoring and control with an intuitive interface and function buttons.
- ICP (Isolation Cabin Protection) - Shields sensitive components from dust and humidity, enhancing reliability in challenging environments.
- 2-Year Warranty - Backed by RackPower's comprehensive support and service commitment.
Ideal Industries & Applications - 6kVA & 10kVA Online UPS Systems
- Server Rooms & Enterprise Data Centres
- Network Operations Centres (NOCs) & Telecommunications
- Security & Access Control Systems
- Industrial Automation & Manufacturing
- Healthcare & Medical Facilities
- Education & Research Institutions
- Financial Services & Banking
- Government & Emergency Services
- Broadcast & Media Production
- Retail Chains & Warehousing
Specifications
Technical Specifications
| Model | USS006BR |
|---|---|
| Rate power | 6kVA/6kW |
| Cold start | Default output 50/60Hz |
| Input voltage range | 110-288VAC; 100% load @ >176VAC; 90% load @ >154VAC; 75% load @ >132VAC; 50% load @ >110VAC |
| Input power factor | >=0.99 |
| Frequency range | 40-70Hz |
| Output Frequency | 50/60Hz, self adaption |
| Output power factor | 1.0 |
| Output - Rated voltage | 220/230/240VAC, 200/208VAC (PF=0.9) |
| Output - Load response | <=5% (0% - 100% - 0%) |
| Output - Recovery time | <=40ms (0% - 100% - 0%) |
| Output THDu | <=1%, linear load; <=5%, non-linear load according to IEC62040-3 |
| Transfer time - main to BAT | 0ms |
| Transfer time - INV to BYP | 0ms |
| Crest factor | 3:1 |
| Efficiency - normal mode | Max 96% |
| Efficiency - ECO mode | 98% |
| Noise (1 meter) | 58dB |
| Overload (normal mode) | 110%: 10mins; 125%: 1mins; 150%: 30 seconds |
| Battery-Type | 12VDC/9Ah |
| Battery - Quantity | 16 |
| Battery - Rate voltage | 192VDC (default), settable |
| Battery-Max charging | 1A |
| Efficiency - normal mode | Max 95% |
| Noise (1 meter) | <56dB |
| Overload - Normal mode | 105%-110%: 10mins, 111%-125%: 1min, 126%~150%: 30 seconds |
| Overload - ECO mode | <125%: long time, 126%~130%: 5 mins; 131%-150%: 1 min, >150%: 200ms |
| Communication | EPO, RS232, RS485 |
| Option | SNMP card, AS400,USB, Parrallel kit, 12A charger, Air filter |
| Dimension (WxDxH) | 440x660x172 mm |
| Weight | 62.5 kg |
| Compliance | EN IEC 62040-1:2019, EN IEC 62040-2:2018, EN IEC 61000-3:2019 |
| Brand | RackPower |
|---|---|
| Product Type | Networking > Racks & Cabinets |
| Weight | 62.5 kg |
