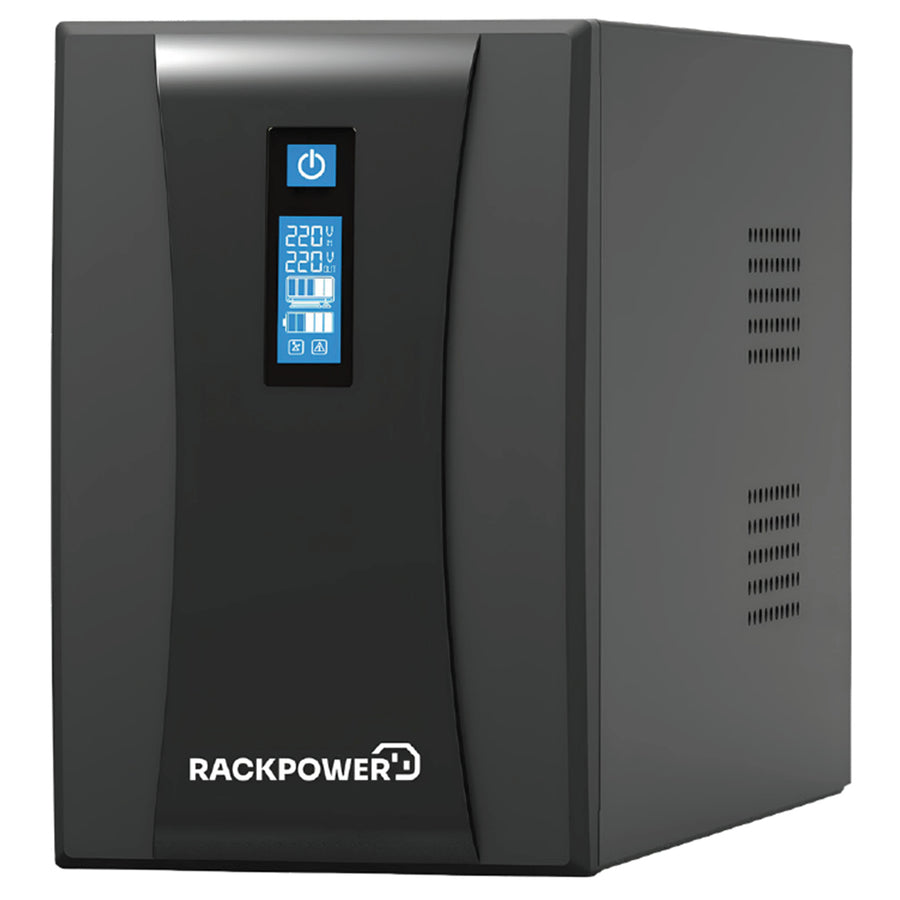

RackPower UPSL1200 - 1200VA Tower Line Interactive UPS, Single Phase 230V/50Hz. NZ 3 Pin outlets. 12V 9Ah Battery
RackPower UPSL1200 - 1200VA Tower Line Interactive UPS, Single Phase 230V/50Hz. NZ 3 Pin outlets. 12V 9Ah Battery
Features
RackPower 1200VA Line Interactive UPS Systems
RackPower's 1200VA Line Interactive UPS units are designed to deliver dependable backup power and voltage stabilisation for home and light commercial environments where continuity is critical. Featuring Automatic Voltage Regulation (AVR), these UPS systems correct incoming voltage fluctuations without switching to battery, ensuring stable output power while extending battery life through reduced cycling.
With silent operation, wide input voltage tolerance, and intelligent charging and restart functions, the 1200VA UPS is an ideal solution for protecting sensitive equipment and keeping essential systems running during mains disturbances and outages.
Characteristics

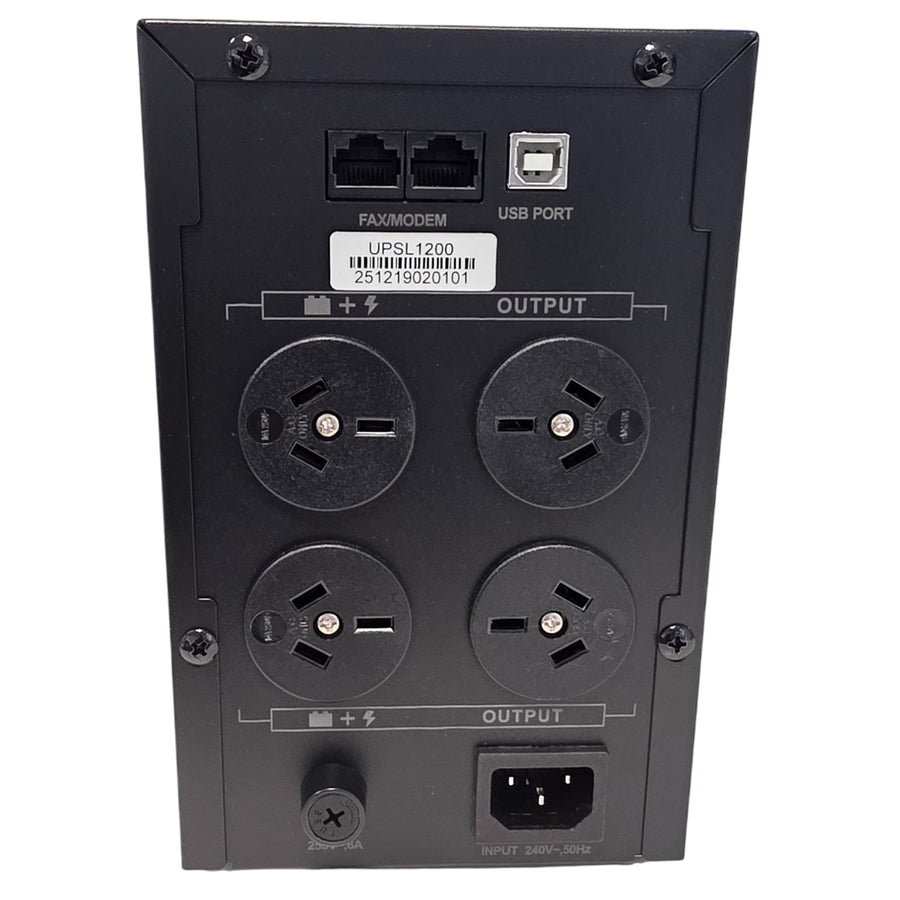

- 4 x 3-pin outlets AU/NZ
- Automatic voltage regulation (AVR)
- Silent operation
- Overload and short circuit protection
- Battery low voltage protection
- Wide input voltage range
- Auto restarts when AC recovers
- Automatic off-line charging
- LED display
- USB communication with web software
- Maintenance-free battery
- PWM and advanced MOSFET components for stable performance
Applications
- Home office, workstations, security and CCTV, point of sale systems and home theatre.
Specifications
Technical Specifications
| Capacity | 1200VA/720W |
|---|---|
| Input voltage | 220/230/240Vac |
| Input voltage range | 145-290Vac |
| Frequency range | 45-65Hz |
| Output voltage | 220/230/240Vac |
| Output voltage range | 200-255Vac |
| Output frequency | 60 ±0.5Hz or 50 ±0.5Hz (Auto sensing) |
| Output waveform | PWM (Batt. mode) |
| Output transfer time | Typical 2-6ms, 10ms max |
| Battery capacity | 12V/9AH |
| Battery backup time | 13 minutes (50% load) |
| Battery quantity | 2pcs |
| Battery charging period | 4-6 hours to recover to 90% capacity |
| Full protection | Low voltage, overload and short circuit protection |
| Net weight | 9.5kg |
| Dimensions (WxDxH)mm | 330 × 122 × 192 |
| Operating environment | Temperature 0°C-40°C, Humidity 20%-90% |
| Noise level | ≤40dB (1m) |
| LCD Display | Input voltage, output voltage, load level, battery capacity, UPS fault |
| Communication | USB communication with web management software |
| Compliance | EN 62040-1: 2008+A1:2013, Low Voltage Directive 2014 / 35 / EU, CE |
