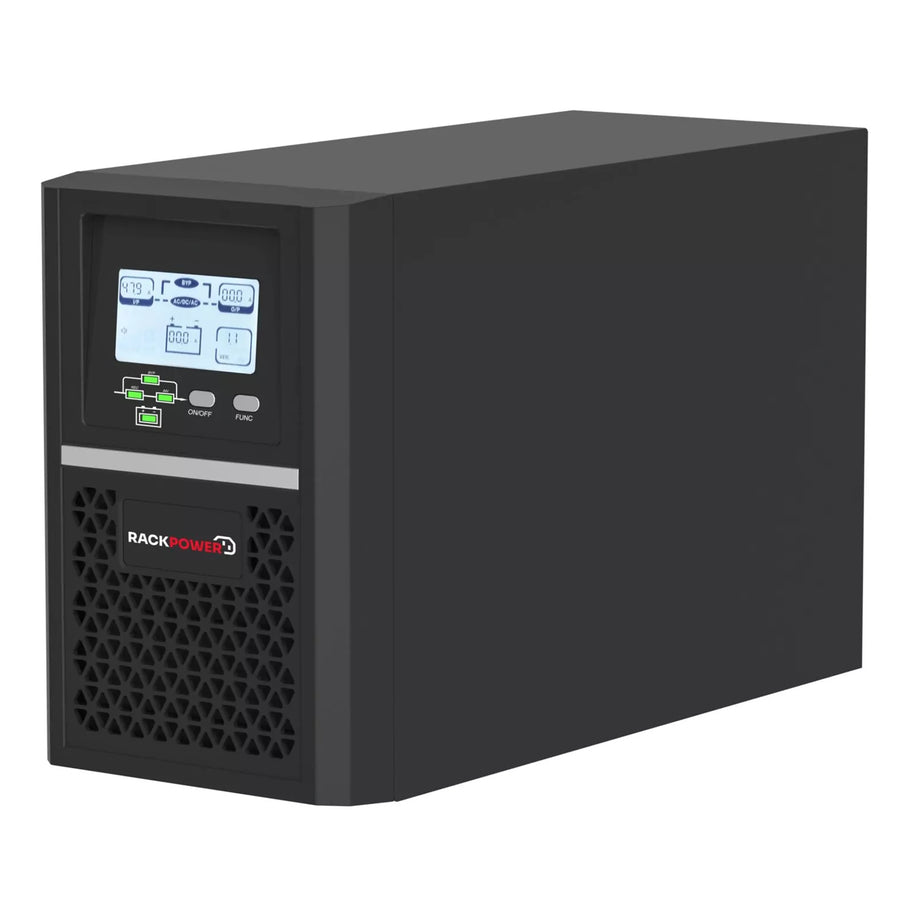

RackPower USS001B UPS 1000VA/1000W Tower Double Conversion True Online PF=1.0 - 96% Power Efficiency - USS001B

SKU: USS001B ● In Stock
$924.29
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

RackPower USS001B UPS 1000VA/1000W Tower Double Conversion True Online PF=1.0 - 96% Power Efficiency - USS001B

Specifications

Technical Specifications

Model USS001B
Rate power 1kVA/1kW
Cold start Default output 50/60Hz
Input voltage range 110-300VAC; 100% load @ 176 VAC-276 VAC, 100%-50% power derating @ 110VAC-176VAC, 50% load @ 276VAC-300VAC
Input power factor >=0.99
Frequency range 50/60+5Hz (default), ±3Hz/±10Hz (settable)

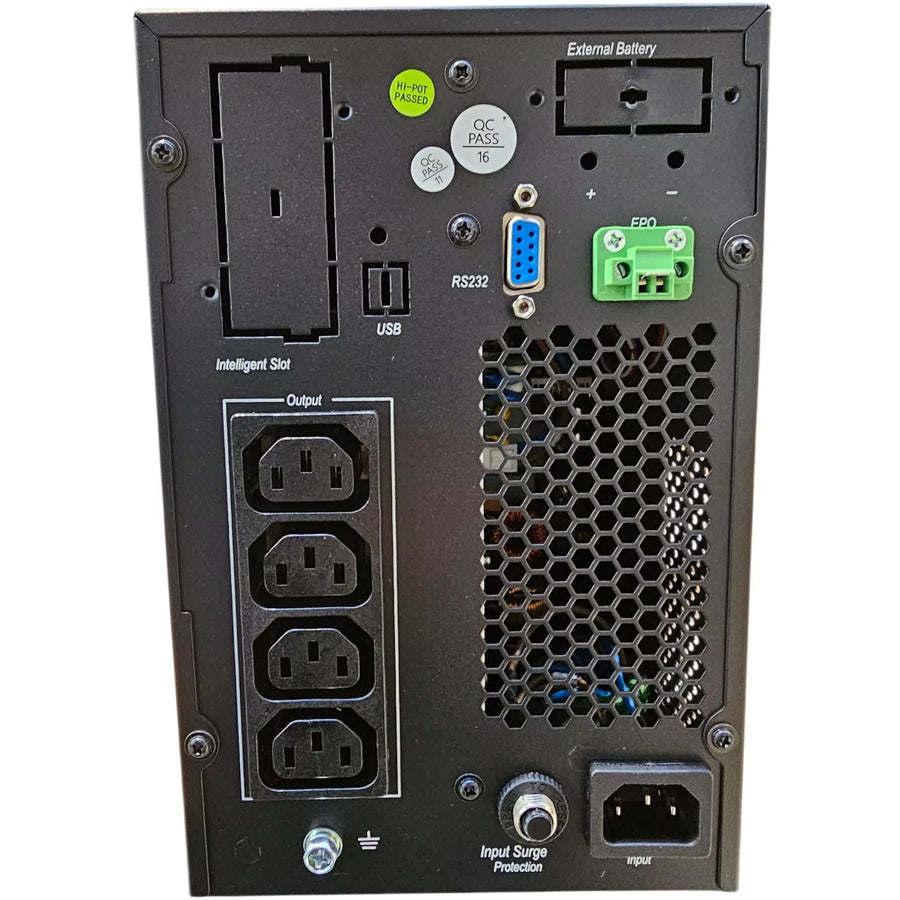

Input Socket IEC input 10A
Output Socket 4 x IEC C13 10A
Output power factor 1.0
Output - Rate voltage 220/230/240VAC, 200/208VAC (PF=0.9)
Output - Load response <=5% (0%-100%-0%)
Output - Recovery Time <=40ms (0%-100%-0%)
Output THDu <=2%, Linear load; <=5% non-linear load according to IEC62040-3
Transfer time Main to BAT 0
Transfer time INV to BYP 4ms
Crest factor 3:1
Efficiency (normal mode) Max 96%
Noise (1 meter) 43dB @ <60% load 47dB @ >60%load
Overload - Normal 102%-110%: 30mins, 110%-125%: 10mins, 125%~150%: 30 seconds
Overload - Battery mode 102% ~110%: 1min, 110%~125%: 10 seconds, 125% ~150%: 5 seconds
Overload - Bypass mode <130%: long time, 130% ~150%: 10mins, 150%-180%: 5 seconds
Battery-Type 12VDC/9Ah
Battery - Quantity 3
Battery-Max charging 1A
Battery - Rate voltage 36VDC
Standard EPO, RS232
Option SNMP card, AS400, USB, RS485, BMS by dry contact, Air filter
Dimension (WxDxH) 144x355x226 mm
Weight 10.5 kg
Compliance EN IEC 62040-1:2019, EN IEC 62040-2:2018, EN IEC 61000-3:2019
Warranty 12 months
