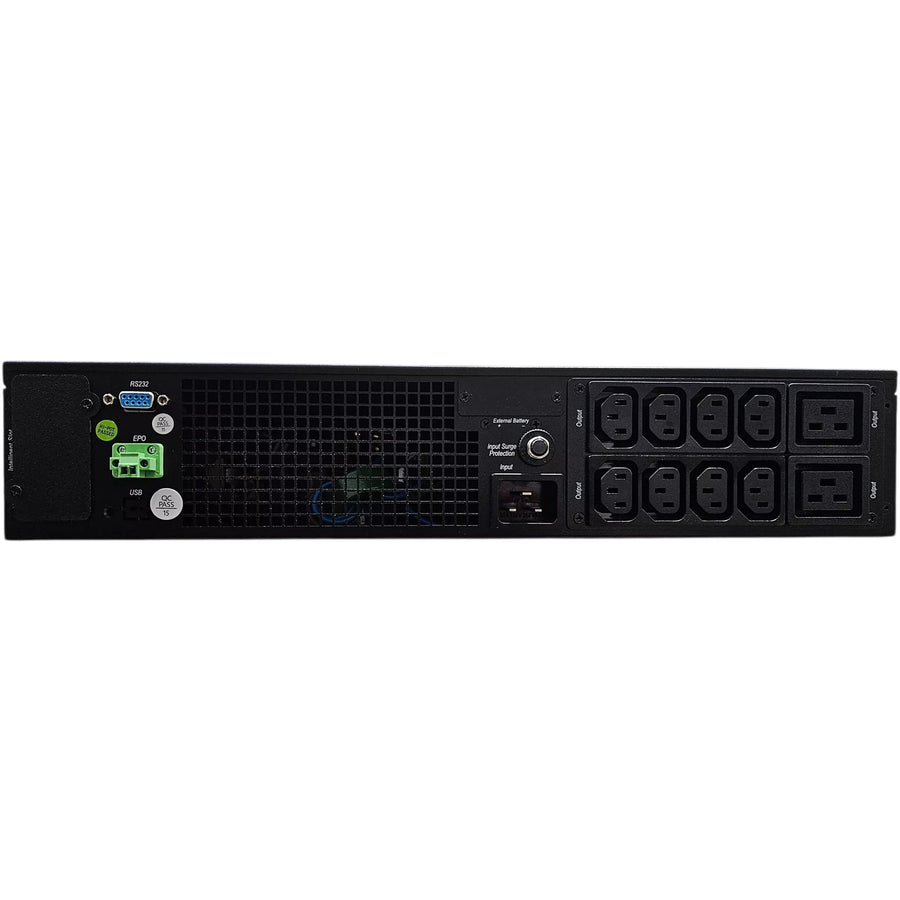

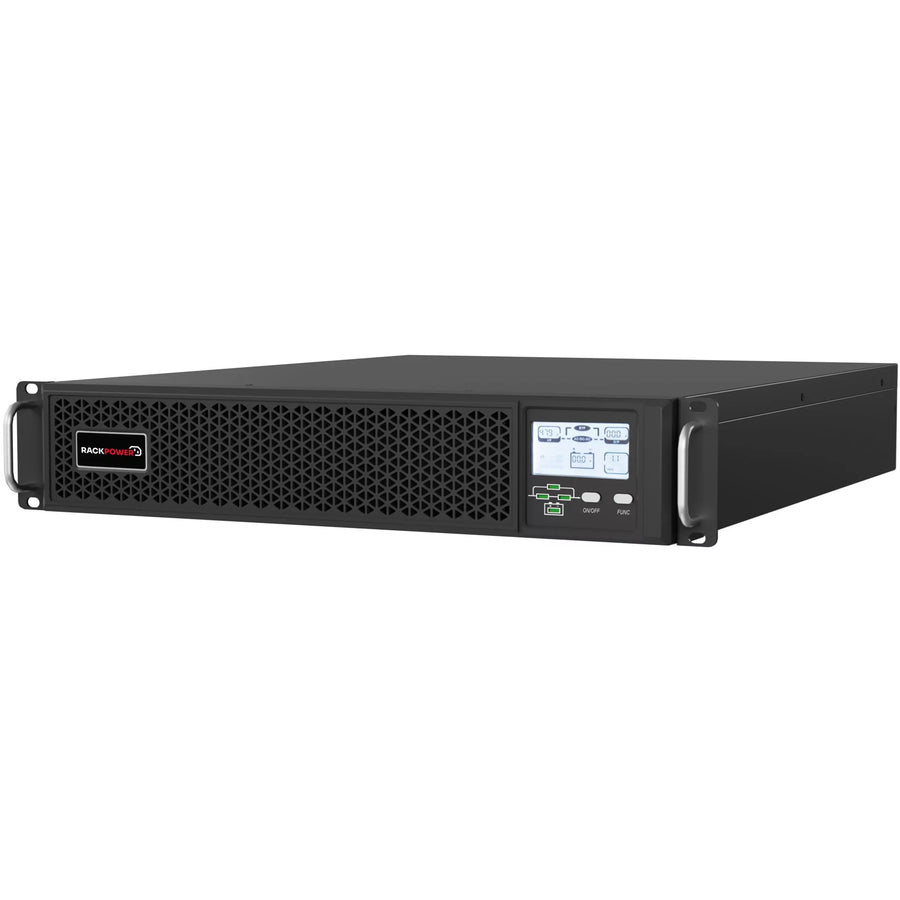

RackPower USS003BR - 3 kVA/kW Rack-Mounted Online UPS, 2RU, Single Phase 230V/50Hz. Includes 6x 9Ah/12V Batteries.
RackPower USS003BR - 3 kVA/kW Rack-Mounted Online UPS, 2RU, Single Phase 230V/50Hz. Includes 6x 9Ah/12V Batteries.
Features
RackPower 3kVA Rack-Mounted UPS Systems | True Online Double Conversion | Single Phase | 3000VA/3000W
RackPower's 1-3kVA UPS units are designed for high-demand environments where uptime, efficiency, and intelligent power management are essential. Built on true online double-conversion architecture, these systems deliver continuous, clean sinewave power with zero transfer time, protecting critical infrastructure from voltage fluctuations, surges, and outages. With a true power factor of 1.0, industry-leading 96% online efficiency, and advanced battery intelligence, these UPS systems offer maximum usable power, lower operating costs, and longer battery life.
Key Features & Benefits
- True Output Power Factor of 1.0 - Delivers the full ratable power of the UPS ensuring no compromise on capacity.
- High Online Efficiency - Up to 96% - Outperforms competitor models (typically 87-94%) to reduce energy waste, minimize heat, and cut electricity costs.
- Wide Input Voltage Range - Operates reliably in unstable power conditions without switching to battery-preserving battery health.
- Advanced LCD Display - Provides real-time system monitoring and control with an intuitive interface and function buttons.
- ICP (Isolation Cabin Protection) - Shields sensitive components from dust and humidity, enhancing reliability in challenging environments.
- 2-Year Warranty - Backed by RackPower's comprehensive support and service commitment.
Ideal Industries & Applications
- Server Rooms & Data Centres
- Data & Communications Infrastructure
- Security & Access Control Systems
- Industrial Automation & Control
- Healthcare & Laboratory Equipment
- Retail & Point of Sale Systems
Specifications
Technical Specifications
| Model | USS003BR |
|---|---|
| Rate power | 3kVA/3kW |
| Cold start | Default output 50/60Hz |
| Input voltage range | 110-300VAC; 100% load @ 176 VAC-276 VAC, 100%-50% power derating @ 110VAC-176VAC, 50% load @ 276VAC-300VAC |
| Input power factor | >=0.99 |
| Frequency range | 50/60+5Hz (default), ±3Hz/±10Hz (settable) |
| Input Socket | IEC input 16A |
| Output Socket | 8 x IEC C13 16A2 x IEC C19 16A |
| Output power factor | 1.0 |
| Output - Rate voltage | 220/230/240VAC, 200/208VAC (PF=0.9) |
| Output - Load response | <=5% (0%-100%-0%) |
| Output - Recovery Time | <=40ms (0%-100%-0%) |
| Output THDu | <=2%, Linear load; <=5% non-linear load according to IEC62040-3 |
| Transfer time Main to BAT | 0 |
| Transfer time INV to BYP | 4ms |
| Crest factor | 3:1 |
| Efficiency (normal mode) | Max 96% |
| Noise (1 meter) | <50dB @ <60% load<55dB @ >60%load |
| Overload - Normal | 102%-110%: 30mins, 110%-125%: 10mins, 125%~150%: 30 seconds |
| Overload - Battery mode | 102% ~110%: 1min, 110%~125%: 10 seconds, 125% ~150%: 5 seconds |
| Overload - Bypass mode | <130%: long time, 130% ~150%: 10mins, 150%-180%: 5 seconds |
| Battery-Type | 12VDC/9Ah |
| Battery - Quantity | 6 |
| Battery-Max charging | 1A |
| Battery - Rate voltage | 72VDC |
| Standard | EPO, RS232 |
| Option | SNMP card, AS400, USB, RS485, BMS by dry contact, Air filter |
| Dimension (WxDxH) | 440x580x86 mm |
| Weight | 28 kg |
| Compliance | EN IEC 62040-1:2019, EN IEC 62040-2:2018, EN IEC 61000-3:2019 |
