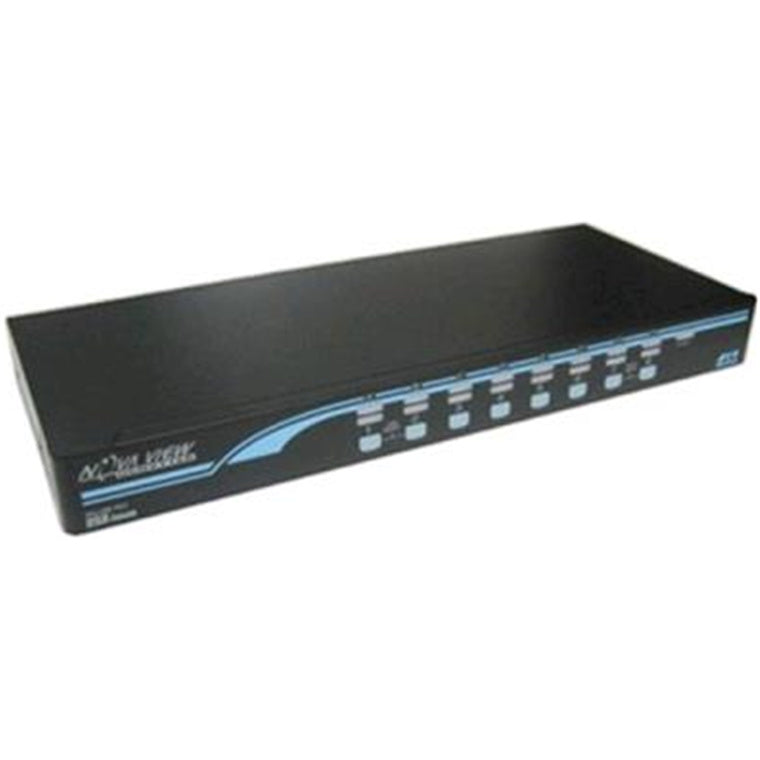

REXTRON UCNV116D - 1-16 USB/PS2 Hybrid KVM Switch w/ USB Console Ports. Includes 12x 1.8m & 4x 3m USB
Features
REXTRON 1-16 USB/PS2 Hybrid KVM Switch with USB Console Ports. Includes 12x 1.8m & 4x 3m USB, 2-in-1 Cables. **PS2 Cables Sold Separately
- Cascade configuration expands system capability up to 136 servers
- 1RU height form factor saves rack space
- Supports video resolution 1929x1440
- Unique cables for secure connection
- Auto-scan function automatically selects computers sequentially
- Supports Microsoft IntelliMouse (Pro)
- Assigns computers unique and meaningful names
- Identifies and selects computers by the names
- Programmable scan filters unused computers
- Stores system settings and name entries to non-volatile memory
- Password security locks computer from unauthorised access
- Gains complete control with easy-to-use OSD interface
- Hotkey functions allow easy computer access
- Keyboard states automatically saved & restored when switching computers
- Operating system independent and transparent to all applications
- Plug n play system configuration
- Keyboard and mouse can be hot plugged at any time
- DDC2B compatible
- The optional multimedia module supports microphones and stereo speakers
Specifications
Technical Specifications
| Number of Console Ports | 1 |
|---|---|
| Number of Computer Ports | 16 |
| Number of Cascade Control PCs | 136 |
| Control Buttons on Front Panel | 8 |
| Applicable to computer | PS/2 PC, USB PC, USB-Sun, USB-Mac |
| On-Screen Display (OSD) | Yes |
| Plug-n-Play | Yes |
| Hotkey Control | Yes |
| Computer Name Entry | 14-Character |
| Auto-Scan Interval | 3, 8,15, 30 Seconds |
| Programmable Scan Pattern | Yes |
| Security Control | 4-Character Password Per Computer |
| Cable Type | 1-to-3 (PS/2) or 1-to-2 (USB) CableMax 30M (100ft) at CONSOLEMax 30M (100ft) at PC ports for PS/2 computerMax 5M at PC ports for USB computer |
| Video Resolution | 1920 x 1440, DDC2B |
| Computer Connectors | HDB15 Female (Grey) x 16 for PS/2 + USB Interface |
| Console Connectors (Keyboard / Mouse / Monitor) | USB mouse x 1USB keyboard x 1 (also for keyboard with mouse)Mini-Din connector of Y-adapter x 1 (for PS/2 mouse and PS/2 keyboard)HDB15 monitor female x 1 |
| Size | 1U |
| Power Consumption (Max.) | 9V DC, 500mA |
| Dimensions H x W x D (mm) | 44 x 438 x 180 |
| Brand | REXTRON |
|---|---|
| Product Type | PC Peripherals > KVM Switches & Cables |
| Weight | 12.245 kg |
| Warranty |
|---|
