RF VENUE
RF VENUE COMBINE4 - 4CH IN-EAR MONITOR RF ANTENNA COMBINER
$2,751.11
Free shipping over $299
Genuine product
7-day returns
RF VENUE COMBINE4 - 4CH IN-EAR MONITOR RF ANTENNA COMBINER
Features

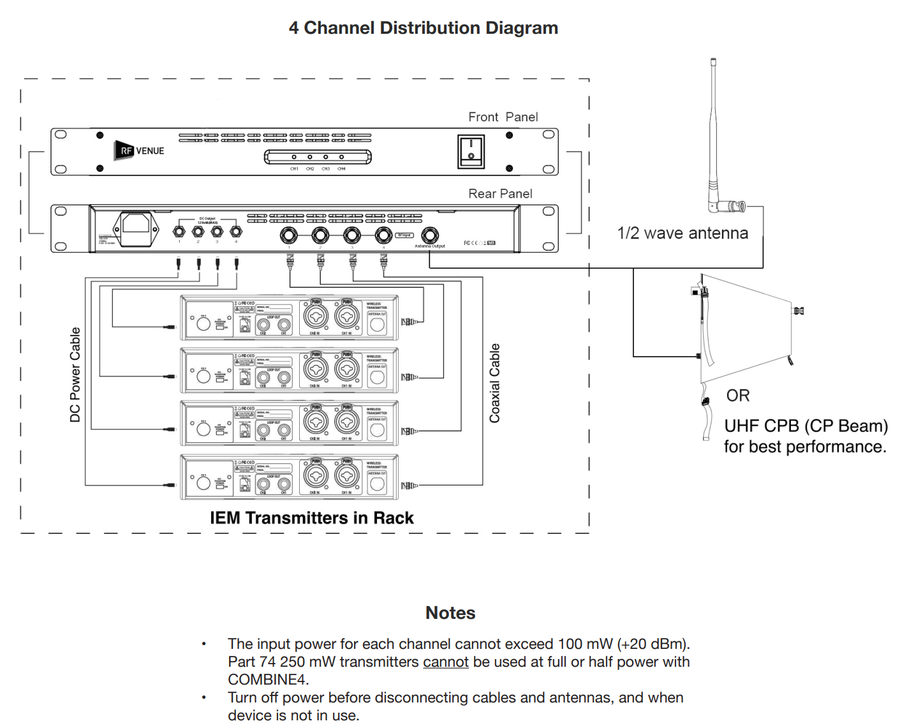

The COMBINE4 IEM transmitter combiner brings together up to four in-ear monitor transmitter signals into a single rear panel mounted antenna connector.
Any brand IEM may be used, as well as any type of directional antenna. It also provides DC power to up to four IEM transmitters to reduce cable clutter and wall warts.
IEM transmitter combination is important for multi-channel systems to minimize intermodulation products arising from multiple adjacent transmitters interfering with one another.
Specifications
Technical Specifications
| Brand | RF VENUE |
|---|---|
| Manufacturer Part Number | COMBINE4 |
| Frequency range | 470-960 MHz |
| Input connectors | 4X BNC |
| Full system gain | 0 dB (±2 dB) |
| Maximum RF input power | +20 dBm (100 mW) |
| LED indicator (input signal threshold) | > +5 dBm [Threshold power] |
| Power consumption | 60 W |

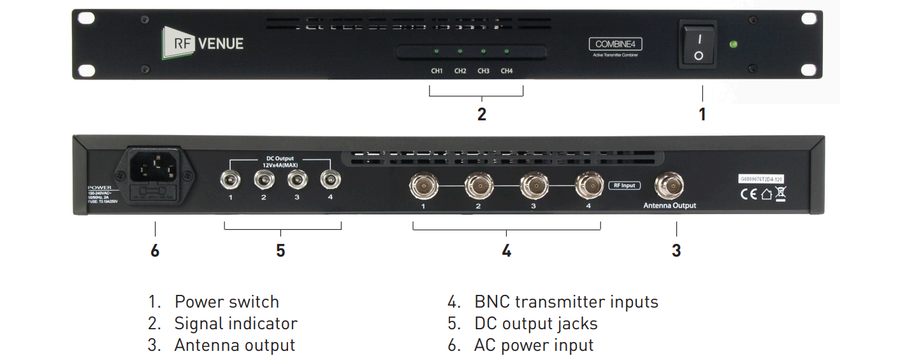

| I / O | 4X RF inputs. 1 antenna out. 4 DC outputs |
| Input AC voltage | 100-240 VAC, 50/60 Hz, Max 2A |
| Output DC voltage | +12 V. 1 A max (4 outputs total 48 W) |
| Output DC connectors | 5.5mm OD, 2.1mm ID |
| Dimensions | 480(W) x 45(H) x 260(D) mm |
| Weight | 2.3 kg |
🚚 7-Day Returns Policy
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | RF VENUE |
|---|---|
| Product Type | B2B - Networking & Routing |
| Weight | 1.646 kg |
Shipping Information
- Free NZ-wide shipping on orders over $299
- Standard delivery 2–5 business days
- Rural delivery may take an additional 1–2 days
- Same-day dispatch for orders placed before 2pm (weekdays)
Returns Policy
- 7-day returns on unused items in original packaging
- Faulty or damaged products covered under warranty
- Contact our support team to initiate a return
