RF VENUE D-OMNI - DIVERSITY OMNI ANTENNA
RF VENUE D-OMNI - DIVERSITY OMNI ANTENNA
Features

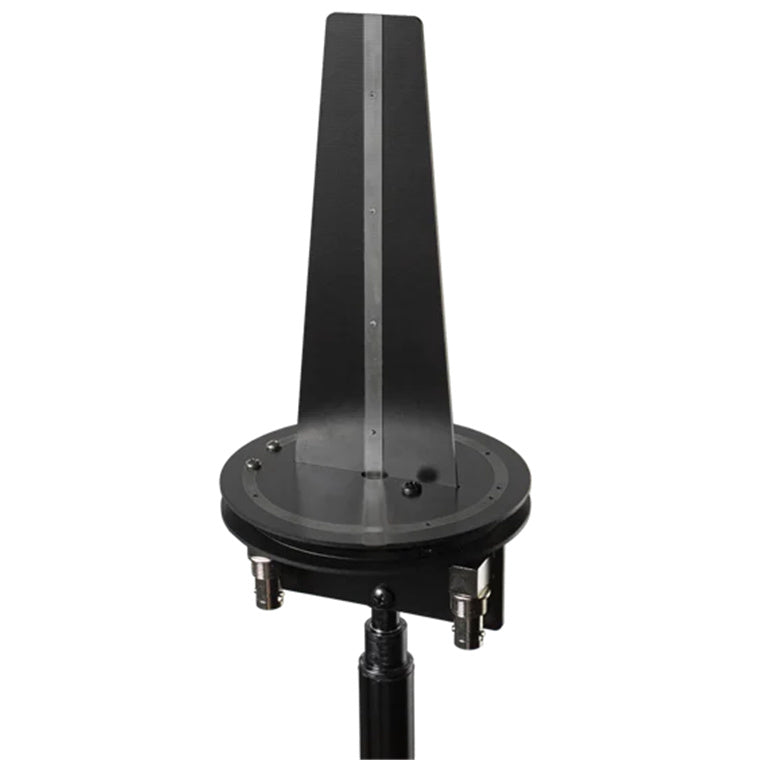

Building on the success of the highly acclaimed Diversity Fin® Antenna, the Diversity Omni Antenna is an all-new antenna system designed for omnidirectional coverage of wireless microphones. The Diversity Omni features two antennas on a single stand, capturing both vertically and horizontally polarized signals and eliminates the most common signal dropouts in a compact size.
Single Antenna: Replaces two separate antennas, offering greater flexibility in placement.

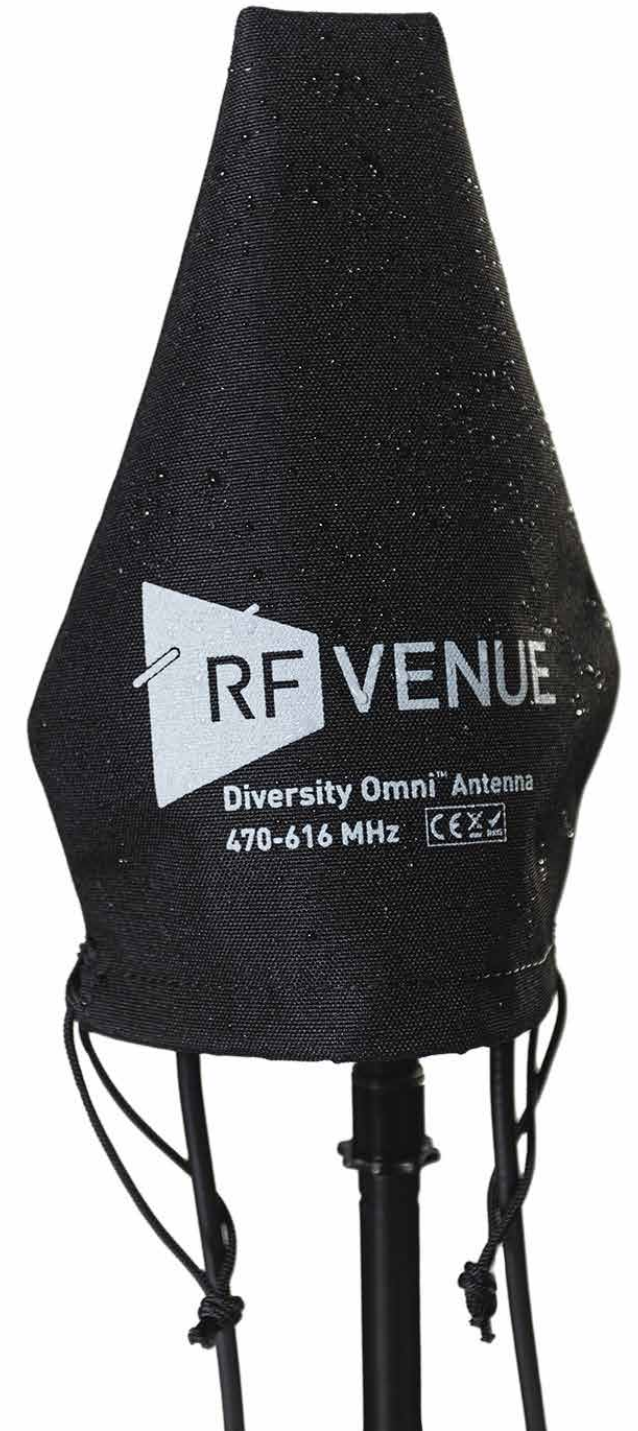

Weather Resistant: Suitable for outdoor mounting with simple protection.
Multi-Zone Coverage: Ideal for wireless microphones moving between rooms or wide areas.
Constant Signal: Eliminates signal dropouts due to microphone orientation.
Superior Coverage: Outperforms two traditional omni antennas.
Cost-Effective: Reduces installation time and costs.
No External Power: Works with all wireless brands and frequencies.
Compact Design: Features two antennas on a single stand.
Product Setup
To connect the Diversity Omni Antenna to a wireless microphone system, simply connect both the A and B antenna inputs from an antenna distribution system like the RF Venue DISTRO4 or DISTRO9 HDR and position the antenna where coverage is desired.
Specifications
Technical Specifications
| Length | 105mm / 4.2" |
|---|---|
| Height | 204mm / 8" |
| Weight | 187g / 0.5lb |
| Mount threads | 1/4-20, 3/8-16, 5/8-27 |
| Operating temperature | -23-54°C / -9-130°F |
| Colour | Black and Gold |
| Connector(s) | (2) BNC female |
| Operating frequency | 470-616 MHz*(usable range 470-698 MHz where permitted) |
| Bandwidth | 146 MHz |
| Average return loss (Vertical) | -10.5 dB |
| Average return loss (Horizontal) | -8.3 dB |
| Impedance | 50 Ohm |
| Beam width | 360° azimuth |
| F/B ratio | 0 dB |
| F/S ratio | 0 dB |
| Gain | +2 dBd @ 500MHz |
| Contains | Diversity Omni AntennaStand mountWeather resistant cover |
