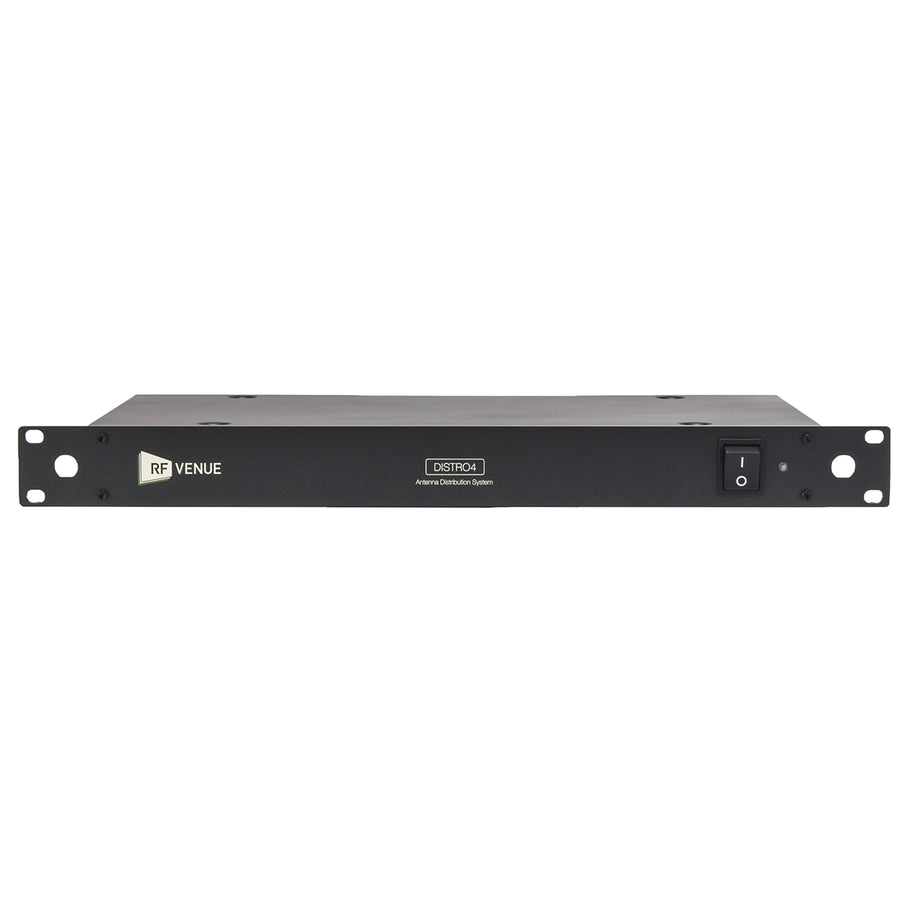

RF VENUE DISTRO4 - ANTENNA DISTRIBUTION SYSTEM W/ CASCADE
RF VENUE DISTRO4 - ANTENNA DISTRIBUTION SYSTEM W/ CASCADE
Features
DISTRO4™ With Cascade Antenna Distribution System With Cascade
DISTRO4 distributes diversity RF and DC power across four wireless microphone receivers of any brand. A true "distribution amplifier," DISTRO4 splits signals from two antennas (or one Diversity Fin) connected to the rear panel and amplifies them before delivering the signals to multiple receivers in a rack. An additional cascade port is included for daisy chaining multiple units together to accommodate up to 16 receivers per antenna pair.
DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4.
Share one set of antennas: Reduce IMD and crosstalk caused by using antennas for each receiver
Efficient: Supports up to 5 Receivers including 12VDC Power
Compatible: Works with all manufacturers receivers
Product Setup
DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4. Included Accessories: (1) AC cable, (4) DC cables, (10) BNC jumpers
*Please note - 4 DC ports are provided for powering receivers, for a fifth receiver, an external power supply is required.
Specifications
Technical Specifications
| Frequency range | 470-952 MHz |
|---|---|
| RF output level (gain) | 3 dB (±2 dB) |
| Cascade output level | 0 dB ~ +2 dB |
| Output connection isolation | >= 25 dB |
| Third order intercept point | 24 dBm |
| Impedance | 50ohm |
| Power consumption | 60 W |
| Input AC voltage | 100~240 V switching |
| DC over coax (to external antennas) | 12-14 VDC |
| Output DC voltage (to receiver jacks) | +12 V |
| Output DC connectors | 5.5mm OD, 2.1mm ID |
| Dimensions (W x H x D) | 480 x 45 x 250 mm |
| Weight | 2.15 kg |
