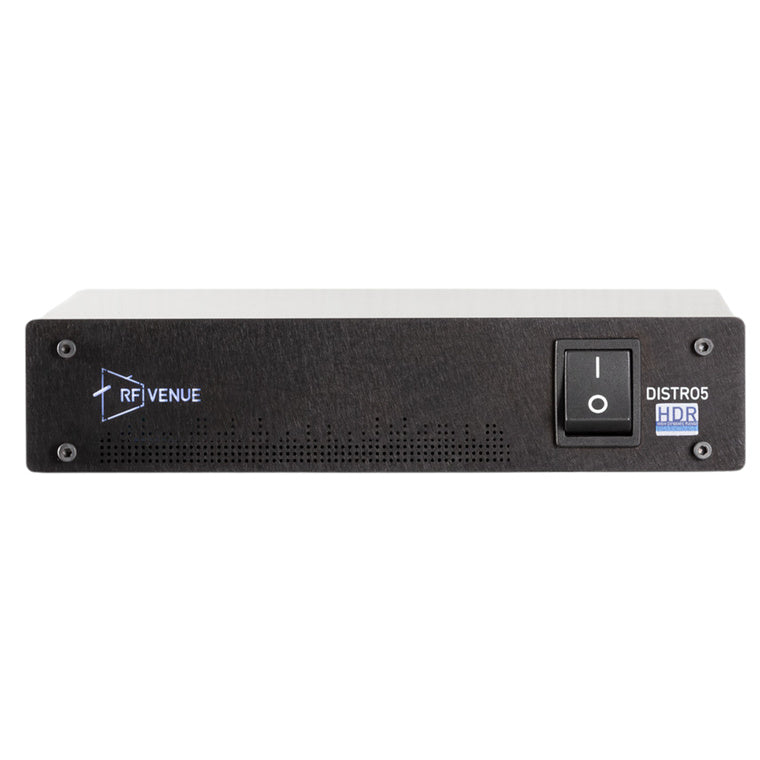

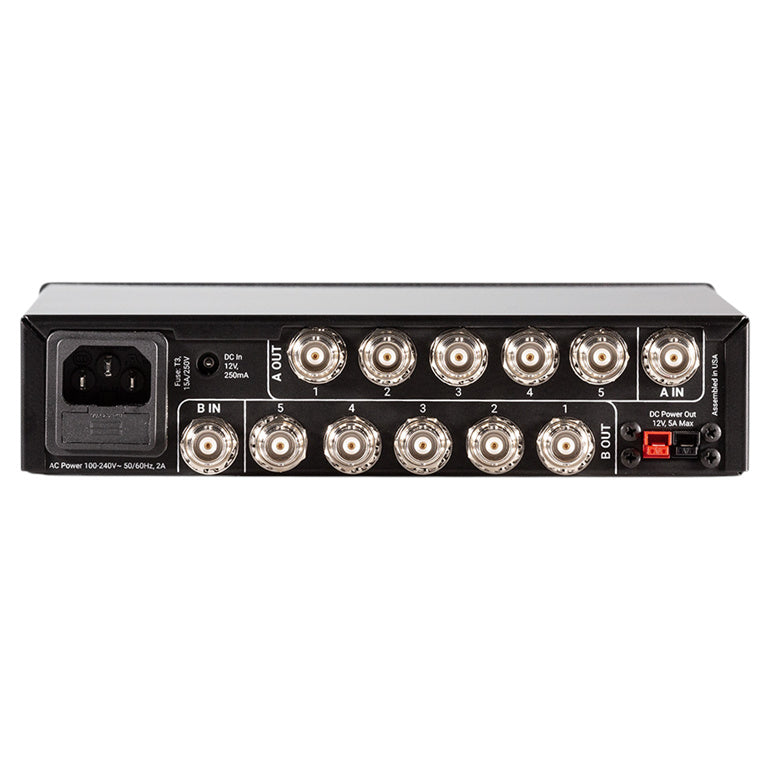

RF VENUE DISTRO5HDR - 5CH RF ANTENNA AND POWER DISTRIBUTION SYSTEM

The DISTRO5 HDR is part of RF Venue's new High Dynamic Range (HDR) Series, delivering reliable, high-performance RF distribution for all wireless microphone systems operating across the 470-698 MHz band. Building on the proven success of the DISTRO4, the DISTRO5 HDR provides enhanced RF performance in a compact half-rack form factor, making it the ideal solution for both fixed and mobile production environments.

Multiple DISTRO5 HDR units can be cascaded together using the included joining plate hardware and premium interconnect cable packages (available separately as bundles). This allows users to expand their wireless systems efficiently while maintaining reliable RF signal integrity.

Beyond antenna distribution, the DISTRO5 HDR doubles as a power distribution system, capable of supplying up to 5 amps of 12V DC power to five wireless microphone receivers or other compatible rack devices. By consolidating power delivery, it helps eliminate messy wall warts and separate power distribution units, simplifying system design and reducing rack clutter.

For mobile or location-based applications, the DISTRO5 HDR is battery-ready, supporting DC battery input and delivering a full 5A 12V DC power output for complete flexibility on the go.

- Higher performance distribution in 1/2 rack space
- Powers up to five wireless receivers or other compatible 12V DC devices.
- Increased mic reliability and lower noise floor allowing more open channels
- Highly expandable can increase to 9 channels in one RU and up to 25 channels
- Provides 12V DC, 5 Amps power distribution for wireless mic receivers or other rack equipment
- 12V DC input for battery power operation in mobile cart applications
