RF

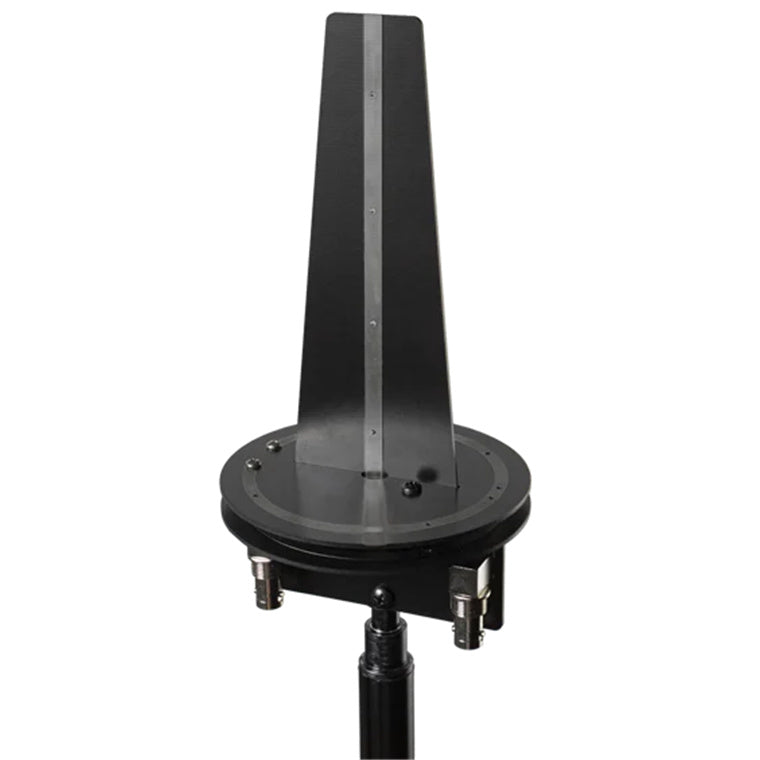

RF VENUE Diversity Omni Antenna
$1,920.00
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
RF VENUE Diversity Omni Antenna
Specifications
Technical Specifications
| Length | 105mm / 4.2" |
|---|---|
| Height | 204mm / 8" |
| Weight | 187g / 0.5lb |
| Mount threads | 1/4-20, 3/8-16, 5/8-27 |
| Operating temperature | -23-54°C / -9-130°F |
| Colour | Black and Gold |
| Connector(s) | (2) BNC female |
| Operating frequency | 470-616 MHz* (usable range 470-698 MHz where permitted) |
| Bandwidth | 146 MHz |
| Average return loss (Vertical) | -10.5 dB |
| Average return loss (Horizontal) | -8.3 dB |
| Impedance | 50 Ohm |
| Beam width | 360° azimuth |
| F/B ratio | 0 dB |
| F/S ratio | 0 dB |
| Gain | +2 dBd @ 500MHz |
| Contains | Diversity Omni Antenna Stand mount Weather resistant cover |
| Warranty | 12 months |
| Brand | RF |
|---|---|
| Product Type | Pro Audio |
| Weight | 2.0 kg |
| Warranty |
|---|
