Shireen

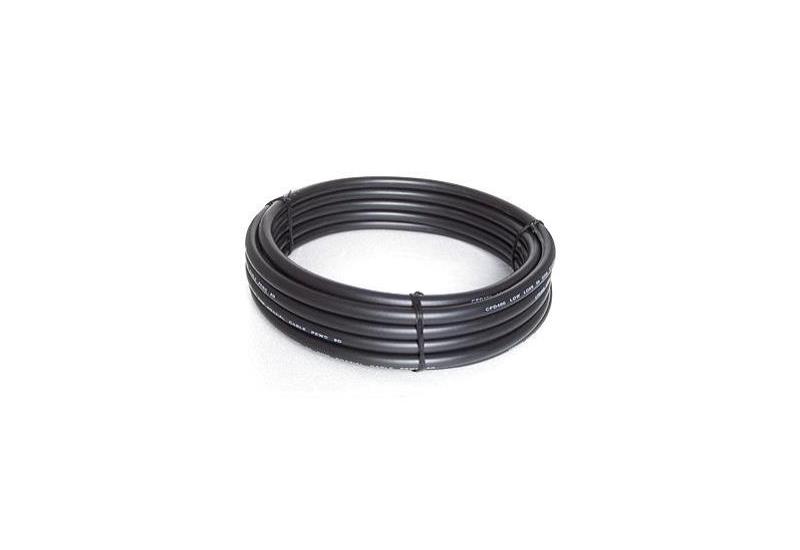

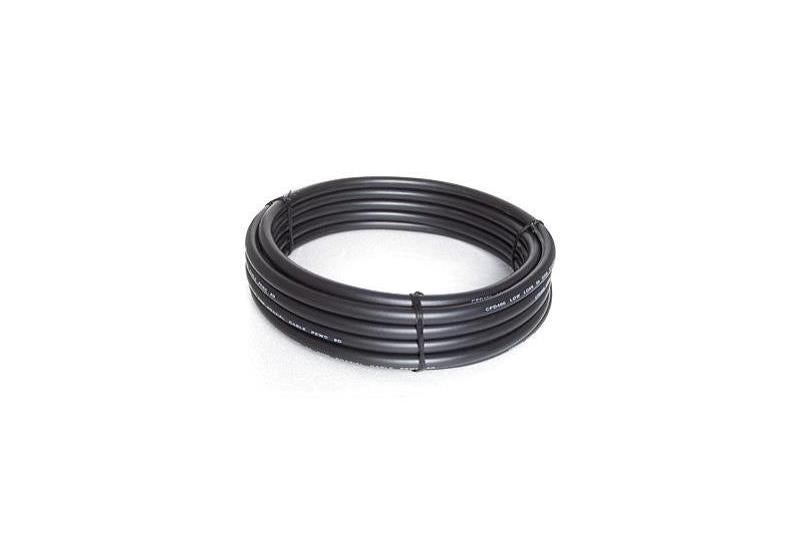

RFC240m - Shireen Inc RFC240 Cable 50 Ohm Coax Cable Per Metre
$11.63
Free shipping over $299
Genuine product
7-day returns
RFC240m
RFC240m - Shireen Inc RFC240 Cable 50 Ohm Coax Cable Per Metre
Description
Shireen Inc RFC240 Cable 50 Ohm Coax Cable Per Metre. Shireen’s latest RFC 240 low loss cables that offer excellent characteristics that meet or exceed the specs of alternatives from Times Microwave, Commscope, Andrew and Belden
Features
- Applications include: Mobile Antennas, GPS, WLL, WLAN, LMR, WISP, SCADA, WiMax.
Specifications
| Details | |
|---|---|
| Manufacturer's Product Code | RFC240-1000 |
| Impedance | 50 Ohm |
| Outer Jacket Dia (+/-0.10mm) | 6.10 |
| Centre Conductor Dia.(+/-0.02mm) | 1.42 |
| Insulation Dia.(+/-0.10mm) | 3.81 |
| Peak Power rating | 5.60 Kw |
| Dielectric Strength | 1600 VAC |
| Voltage Withstand | 1500 VDC |
| Max. Pulling Tension | 372 N |
| Min. Bending Radius | 19.1 mm |
| Admissible Ambient Temperature | -40 to +85 degC |
| Brand | Shireen |
|---|---|
| Product Type | Cables & Connectivity |
| Weight | 0.5 kg |
