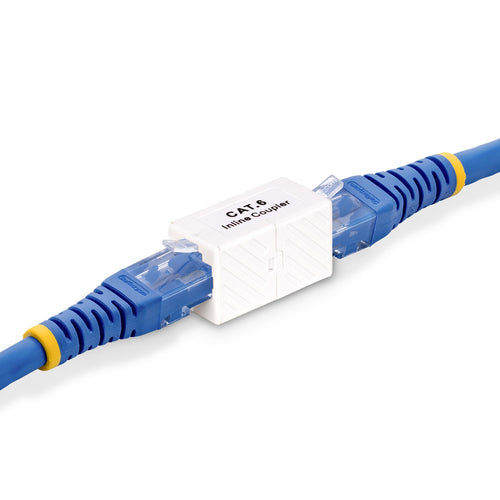

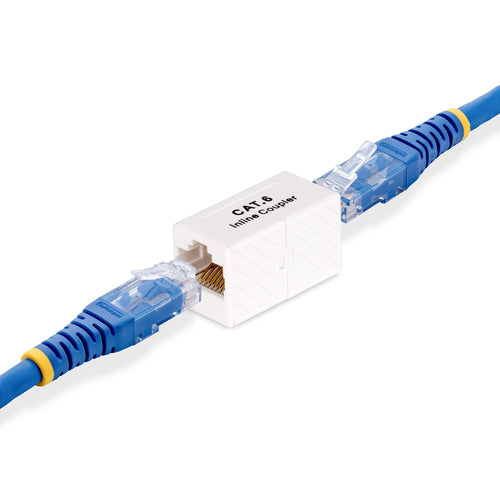

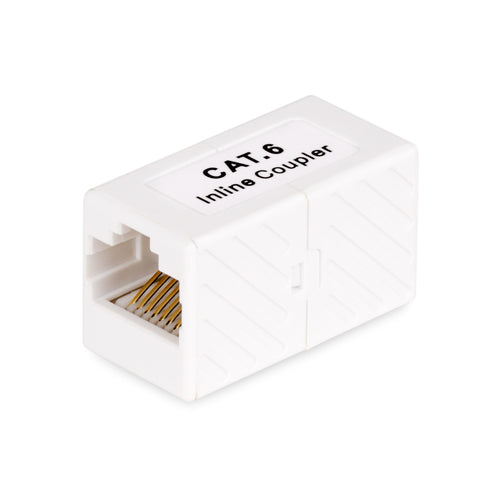

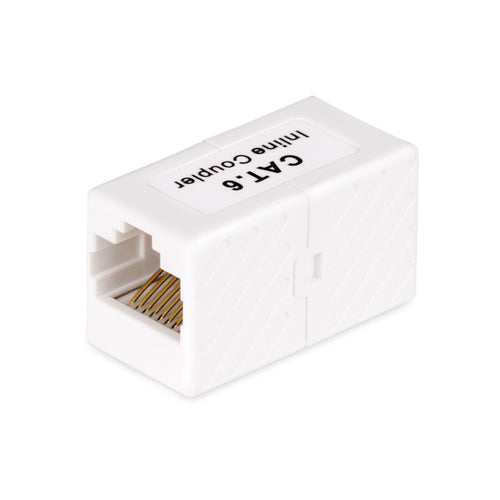

StarTech.com IN-CAT6-COUPLER-U5 - RJ45 INLINE CAT6 COUPLER 5-PACK F/F
You May Also Like
IPL-UTP6-GY-0.5 - 0.5 Metre Cat6 UTP Indoor Ethernet Cable - Grey
IPL-UTP6-GY-0.3 - 0.3 Metre Cat6 UTP Indoor Ethernet Cable - Grey
Features
RJ45 Coupler 5-Pack, Inline Cat6 Coupler, Female to Female (F/F) T568B Connector, Unshielded Ethernet Cable Extension
- CONVENIENT 5-PACK: The RJ45 Coupler features a compact design with straight-through T568B pinouts; Available in a 5-pack for IT professionals managing multiple setups in offices, server rooms, and LANs; Connect two Cat6 cables in tight spaces
- ROBUST CONSTRUCTION: Cat6 Ethernet Coupler with durable polycarbonate housing enhances wear protection in tough environments; Female RJ45 contacts made from gold-plated phosphor bronze for improved conductivity and corrosion resistance
- RELIABLE DATA TRANSMISSION: Supports 10Gbps, 1Gbps, and 10/100 Ethernet speeds with PoE for versatile and reliable transfer rates between devices; Insertion Loss margin of 35.4dB with 17.5dB Headroom exceeds TIA-568-C.2 standards
- COMPATIBILITY: Compatible with Cat 6 and Cat 5/5e cables, 10/100/1000 and 2.5G/5G/10G networks; Compatible Standards: 10BASE-T/100BASE-TX/100BASE-T4/1000BASE-T, 2.5GBASE-T/5GBASE-T, ATM-25/ATM-51/ATM-155, TR-16 Active/Passive, TR-4, 100VG-AnyLan
- QUICK INSTALLATION: Simple plug-and-play design requires no tools for quick and hassle-free setup; No additional software or configuration required; This RJ45 Coupler 5-Pack is available as a single SKU (IN-CAT6-COUPLER-U1)
The RJ45 Coupler 5-Pack is a convenient solution for multiple installations. Connect two Cat 6 cables to extend a network connection. The female to female Ethernet coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Wide Compatibility
The Cat6 Coupler facilitates 10Gbps, 1Gbps, and 10/100 speeds and is compatible with common networking standards including 10/100/1000BASE-T, and advanced protocols such as 2.5GBASE-T/5GBASE-T
Durable Construction
The RJ45 Coupler features a durable polycarbonate housing and gold-plated phosphor bronze RJ45 contacts for dependable, long-lasting performance and reliability.
Specifications
Technical Specifications
| Connector A | 1 - RJ-45 |
|---|---|
| Connector B | 1 - RJ-45 |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 15%-65% |
| Active or Passive Adapter | Passive |
| Ports | 2 |
| Number of Conductors | 8P8C |
| Wiring Standard | TIA/EIA-T568B |
| Industry Standards | IEEE 802.3 10/100/1000BASE-TIEEE 802.3bz 2.5GBASE-TIEEE 802.3bz 5GBASE-TIEEE 802.3ae 10GBASE-T |
| Package Height | 0.7 in [1.9 cm] |
| Package Length | 3.6 in [9.1 cm] |
| Shipping (Package) Weight | 0.8 oz [24.0 g] |
| Package Width | 3.5 in [8.9 cm] |
| MTBF | Tested to 750 connector mating cycles |
| Color | White |
| Product Height | 0.7 in [1.7 cm] |
| Product Length | 1.2 in [3.0 cm] |
| Weight of Product | 0.7 oz [20.0 g] |
| Product Width | 0.6 in [1.5 cm] |
| Material | Polycarbonate |
| Included in Package | 5 - RJ45 Modular Inline Coupler Unshielded |
| Brand | StarTech.com |
|---|---|
| Product Type | Networking > Network Cables |
| Weight | 0.011 kg |
| Warranty |
|---|
