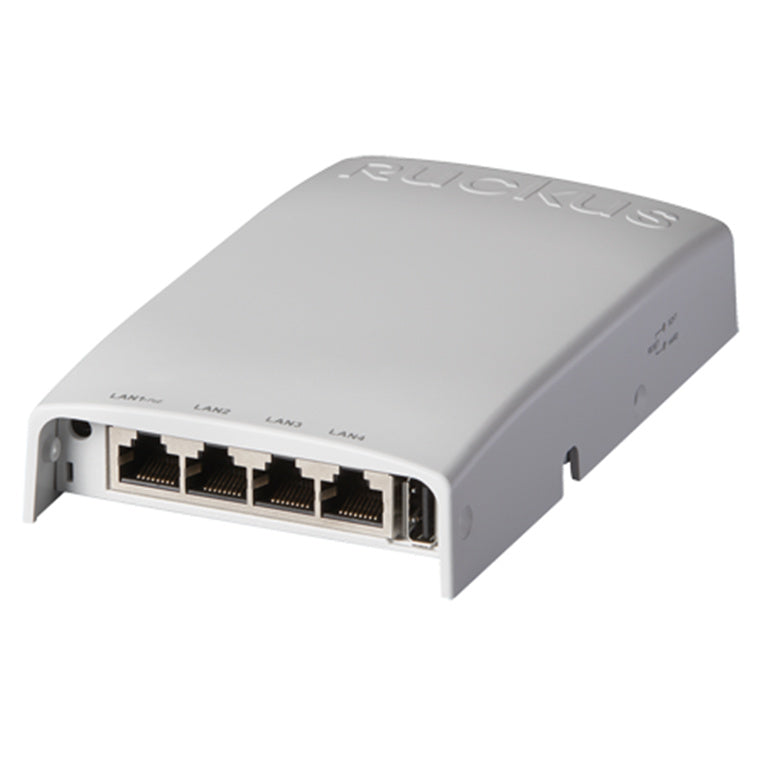

901-H510-WW00 - RUCKUS H510 dual-band 802.11ax Wireless Access Point
Features
ZONEFLEX 802.11AC DUAL-BAND CONCURRENT 2.4 GHZ & 5 GHZ ACCESS PORTS POE IN POE OUT (ONE PORT) USB PORT. DOES NOT INCLUDE DC POWER SUPPLY.
High Performance 802.11ac Wave 2 Integrated Wired/wireless Wall Switch
The ZoneFlex H510 is the industry's first Wave 2 802.11ac wired and wireless wall switch using Ruckus' patented BeamFlex+ adaptive antenna technology to deliver high-speed 802.11ac Wi-Fi in an ultra-sleek, low-profile design that can be discretely installed over a standard electrical junction box. Ideal for offering converged services in hotel guest rooms, student residences, and multi-dwelling units, the ZoneFlex H510 provides an easy way to offer multiple connections in a single room without multiple cables.
The ZoneFlex H510 supports Multi-User MIMO (MU-MIMO) as a Wave 2 solution and can increase network throughput by transmitting to two Wave 2 clients at the same instant in time. This efficient utilization of the Wi-Fi channel boosts performance for Wave 2 clients but also frees up airtime for all clients, which means even non-Wave 2 clients see a performance benefit.
The "mobile device ready" ZoneFlex H510 with BeamFlex+ adapts in real time to client device location and physical orientation, delivering consistent Wi-Fi performance. The BeamFlex+ adaptive antenna system of the ZoneFlex H510 is optimized to deliver best-in-class Wi-Fi coverage and performance in hotel guest rooms and MDU residences.
Equipped with four Ethernet ports for in-room access, the ZoneFlex H510 can be used to connect a range of wired network devices such as IPTV set top boxes, IP telephones, or networked minibars while simultaneously providing dual band 802.11ac wireless LAN coverage. An IEEE 802.3af-compliant Power-over-Ethernet (PoE) port on the H510 allows devices such as IP telephones to be powered directly from the wall switch. The H510 itself may be powered via standard PoE or a DC power adapter.
The ZoneFlex H510 offers maximum flexibility and future-proofed utility. It is designed to securely support future add-on radio modules for wireless connectivity beyond best-in-class Wi-Fi. The cable pathways at the rear, support legacy cabling such as RG6 or CAT3/CAT5. Existing services such as video and voice over Ethernet can co-exist within the same junction box, reducing both installation time and construction costs. The H510 can be deployed as a standalone device or centrally managed by SmartZone, ZoneDirector, or FlexMaster management platforms.
Specifications
Technical Specifications
| Power | POE 802.3af/802.3at48VDC input |
|---|---|
| Physical Size | 90 mm x 145 mm x 29 mm |
| Weight | 230 g292 g with bracket |
| Physical Ports | 4 10/100/1000 Mbps Base-T 802.3, 802.3u, RJ-45 Ethernet access ports.1 10/100/1000 Mpbs Base-T 802.3, 802.3u, 802.3ab, 802.3af (802.3at class 4) PoE input, RJ-45USB 2.0 |
| Mounting Options | Electrical wallbox; Standard US and EU single gang wall jackOptional bracket for offset & wall mount |
| Environmental Conditions | Operating Temperature: 32°F (0°C) - 104°F (40°C)Operating Humidity: 15% - 95% non-condensing |
| Power Draw | Idle: 6.5 WTypical: 7.3 WPeak, no PoE out load: 9.2WMax load on PoE out:4W with 802.3af for PoE12.95W with 802.3at PoE in |
| Brand | RUCKUS |
|---|---|
| Product Type | Networking > Wireless Access Points > Indoor Access Points |
| Weight | 1.5 kg |
| Warranty |
|---|
