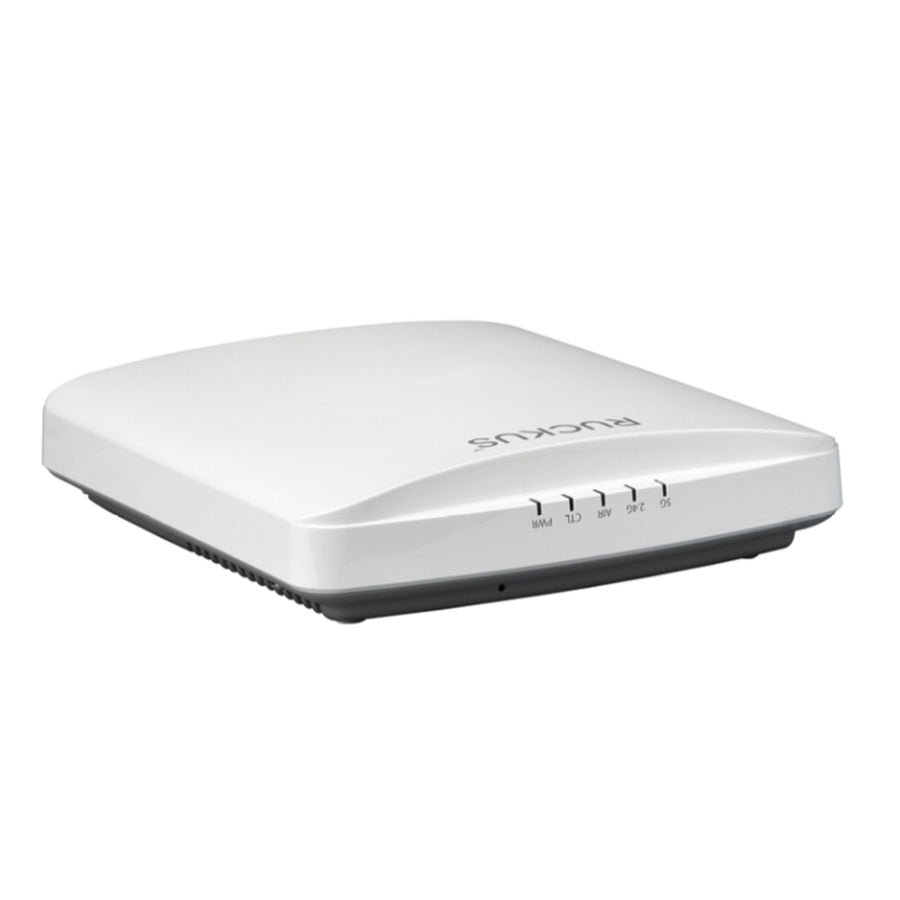

RUCKUS R550 dual-band 802.11ax 2x2:2 Wireless AP
Features
Stunning Wi-Fi performance
Mitigate interference and extend coverage with patented BeamFlex+™ adaptive antenna technology utilizing several directional antenna patterns.
Serve more devices
Connect more devices simultaneously with four MUMIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing device performance.
Converged Access Point
Allows customers to eliminate siloed networks and unify WiFi and non-WiFi wireless technologies into one single network by using built-in BLE and Zigbee, and also expand to any future wireless technologies through the USB port.
Automate optimal throughput
ChannelFly dynamic channel technology uses machine learning to automatically fnd the least congested channels. You always get the highest throughput the band can support.
Better mesh networking
Reduce expensive cabling, and complex mesh confgurations by checking a box with SmartMesh wireless meshing technology to dynamically createself-forming, self-healing mesh networks.
Specifications
Technical Specifications
| Antenna Gain | Up to 3 dBi |
|---|---|
| Antenna Patterns, per band | 64 |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 512 |
| Controller Support | Cloud | SmartZone | Standalone | ZoneDirector |
| Ethernet Ports | 2 x 1GbE |
| IoT Ready | Yes |
| PD-MRC | Yes |
| PHY Rate at 2.4 GHz, maximum | 574 Mb/s |
| PHY Rate at 5 GHz, maximum | 1200 Mb/s |
| Radio Chains:Streams | 2x2:2 (5 GHz/2.4 GHz) |
| Rx Sensitivity at 2.4 GHz | -97 dBm |
| Rx Sensitivity at 5 GHz | -97 dBm |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Venue Type | Education | Hospitality | Offices | Retail |
| Venue Sub-Type | Classroom | Hallway | Office Space |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac/ax |
| Wi-Fi Interface Standard at 2.4 GHz | 802.11ax |
| Wi-Fi Interface Standard at 5 GHz | 802.11ax |
| Operating Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Brand | RUCKUS |
|---|---|
| Product Type | Networking > Wireless Access Points > Indoor Access Points |
| Weight | 1.5 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
