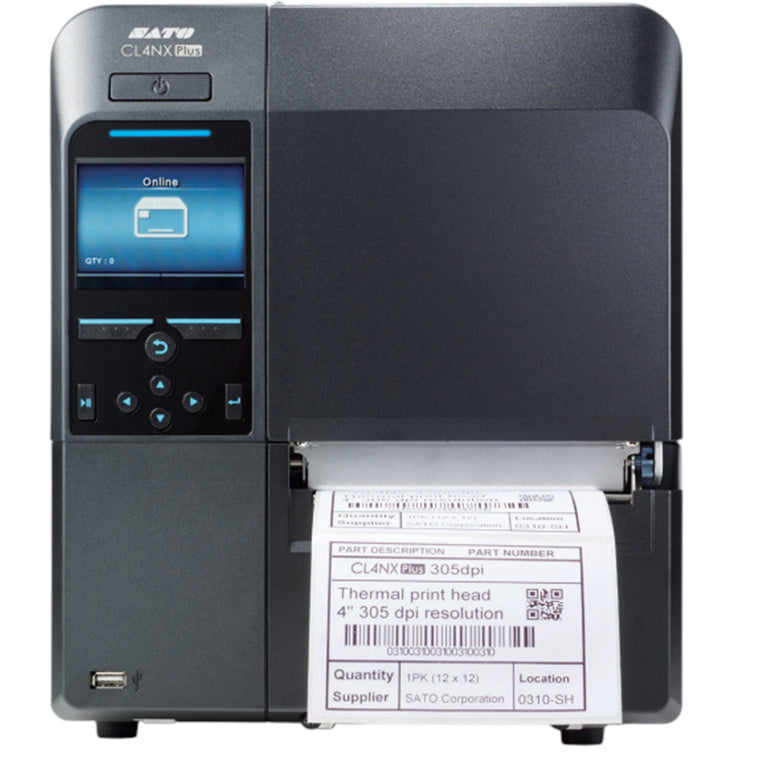

SATO CL412NX Plus TT WIFI Printer 305dpi
Features
Accurate & Eicient Performance
Enhanced print precision and accuracy makes CL4NX Plus ideal for micro label applications such as lot tracing of small electronic components.
High print speed of 14ips even at 305dpi enables high quality printing at fast speed.
UHF and HF RFID options support a wide variety of tags. New SATO RF Analyze enables reading and encoding of UHF RFID labels automatically for fast, stable encoding.
Intuitive Operation
LED indicator and colour display alert operator to printer status. Guidance videos speed up error resolution & printer maintenance.
Full operational control of print, application, I/F and system settings via front panel display.
Customisable GUI content and security-enabled menu access let administrators personalise operator experience.
Sustainable Innovation
Linerless labels use less resources, enable greater productivity (more labels per roll) and reduce logistics and storage expenses (smaller roll sizes).
Use Energy Star certied CL4NX Plus to save energy costs without compromising any functionality.
Functional Design, Durable Body
All-round metal casing, die-cast aluminium frame and print and ribbon mechanisms enhance printer durability and stability.
Easy setup and maintenance with field installable parts, snap-in print head and tool-less platen replacement minimise downtime.
PureLineTM platen roller provides visual indicator of wear as a means of proactive maintenance.
Application Enabled Printing (AEP)
AEP is a powerful onboard printing intelligence that enables user to simplify label printing operations such as direct connectivity to peripheral devices such as barcode readers and weight scales for data input.
Installation and maintenance costs are reduced as AEP enables printer to connect directly with database and print without the need of a PC.
Specifications
Technical Specifications
| Printing Method | Direct Thermal/Thermal Transfer |
|---|---|
| Print Mode | Continuous, Tear-off, Cutter, Dispenser, Linerless |
| Print Resolution | 12 dots/mm (305dpi) |
| Max. Print Speed | 14ips (355mm/sec) |
| Max. Print Area | Width: 104mm (4.09")Length: 1500mm (59.05") |
| Processor | Dual CPU & Dual OS: CPU1: 800MHz for Linux OS, CPU2: 800MHz for ITRON OS |
| Printer Memory | CPU1: 2GB ROM, 256MB RAM, CPU2: 4MB ROM, 64MB RAM |
| Sensor Type | I-mark Sensor (Reflective ), Label Gap Sensor (Transmissive) |
| Media Type | Roll or Fan-fold Die Cut Labels, Plain Paper Face Stock, Synthetics and Continuous Stock |
| Media Thickness | 0.060 -0.268mm (0.0024" -0.011") |
| Label Shape | Diameter:Maximum 265mm (10.43")Core diameter: 076mm (3.0"), 0101mm (4.0")Wind Direction:Face In / Face Out. No Setting Change Required |
| Label Size (Without Liner) | ContinuousWidth: 22-128mm (0.87" - 5.04")Length: 6-1497mm (0.24" - 58.94")Tear-Off/CutterWidth: 22-128mm (0.87" - 5.04")Length: 17-1497mm (0.67" - 58.94")DispenserWidth: 22-128mm (0.87" - 5.04")Length: 10-397mm (0.39" - 15.63")LinerlessWidth: 60-118mm (2.36" - 4.65")Length: 30-120mm (1.18" - 4.72") |
| Ribbon | SizeMax. Length: 600m (1968.5'). 450m (1476.4") when Ribbon Width is 39.5mm (1.55")Max. Roll Diameter: 90mm (3.5"), Ribbon Width: 39.5mm (1.55") to 128mm (5.04")OtherCore Diameter: 25.4mm (1"), Wind Direction : Face In/ Face Out, No Setting Change Required |
| Internal Fonts | Standard Bitmap: U, S, M, WB, WL, XS, XU, XM, XB, XL, X20, X21, X22, X23, X24, OCR-A, OCR-BScalable Fonts: 30 SATO Fonts, 2 Outline FontsEncoding: Major Latin and Pan-European Code Pages (WGL4), GB18030 (Simplified), KSX1001 (Korean), BIG5 (Traditional), JIS, SHIFT-JIS, UTF-8 and UTF-16BE |
| Barcode | Linear: UPC-A/UPC-E, JAN/EAN-13/8, CODE39, CODE93, CODE128, GS1-128(UCC/EAN128), CODABAR(NW-7), ITF, Industrial 2 of 5, Matrix 2 of 5, MSI, POSTNET, UPC Add-on Code, BOOKLAND, USPS Code, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked2D Symbologies: QR Code, Micro QR Code, PDF417, Micro PDF, Maxi Code, GS1 Data Matrix, Data Matrix (ECC200), Aztec Code, GS1QR Code and Composite Symbologies |
| Print Direction | Character Data Rotation: 0°, 90°, 180°, 270° |
| User Downloadable Fonts, Graphics or Formats | Maximum 100MB |
| Standard Interfaces | USB 2.0 (Type A & B), Ethernet (IPv4/v6), RS232C, IEEE1284, EXT, Bluetooth Ver. 3.0, NFC |
| Optional Interfaces | Wireless LAN, WiFi Certified, Wifi Direct, IEEE 802.11 a/b/g/n Dual Band (2.4GHz, 5GHz) |
| Remote Access | SNMP Ver.3, HTTPs |
| Power Requirements | AC100V~ AC240V±10%, 50/60 Hz, Auto-ranging Power Supply |
| Environment | Operating: 0-40°C/30-80% RH (without condensation)Operating Linerless: 5-35°C/30-75% RH (without condensation)Storage: -20-60°C/30-90% RH (without condensation) |
| Dimensions | 271mm (10.67") x 457mm (18.00") x 321mm (12.64") |
| Weight | 15.1kg (33.28 lbs) |
| Display Panel | TFT Full Color LCD, 3.5"(320 x 240 RGB) |
| Brand | SATO |
|---|---|
| Product Type | Networking > Wireless Access Points |
| Weight | 0.5 kg |
