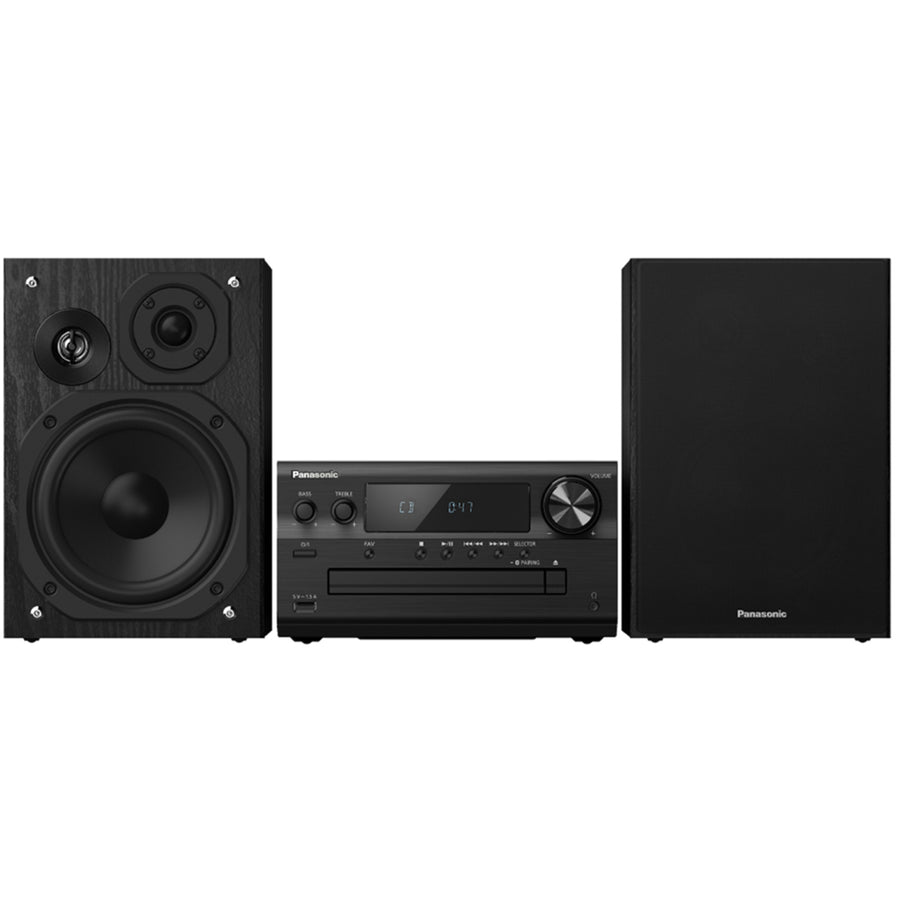

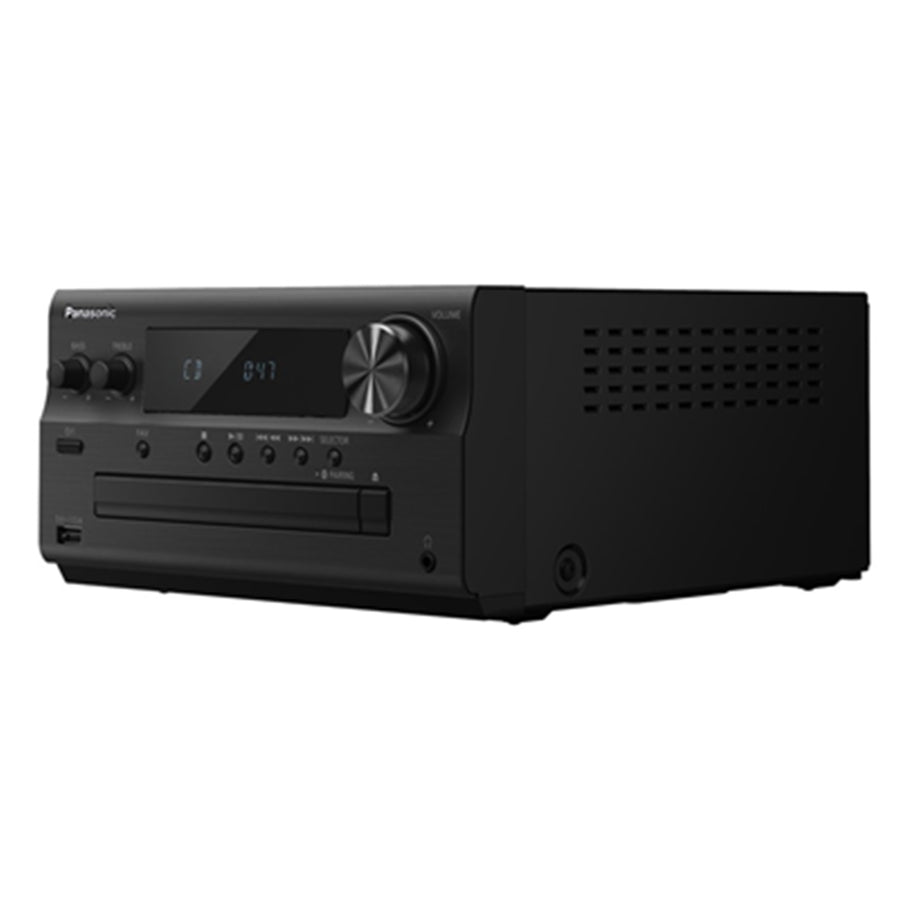

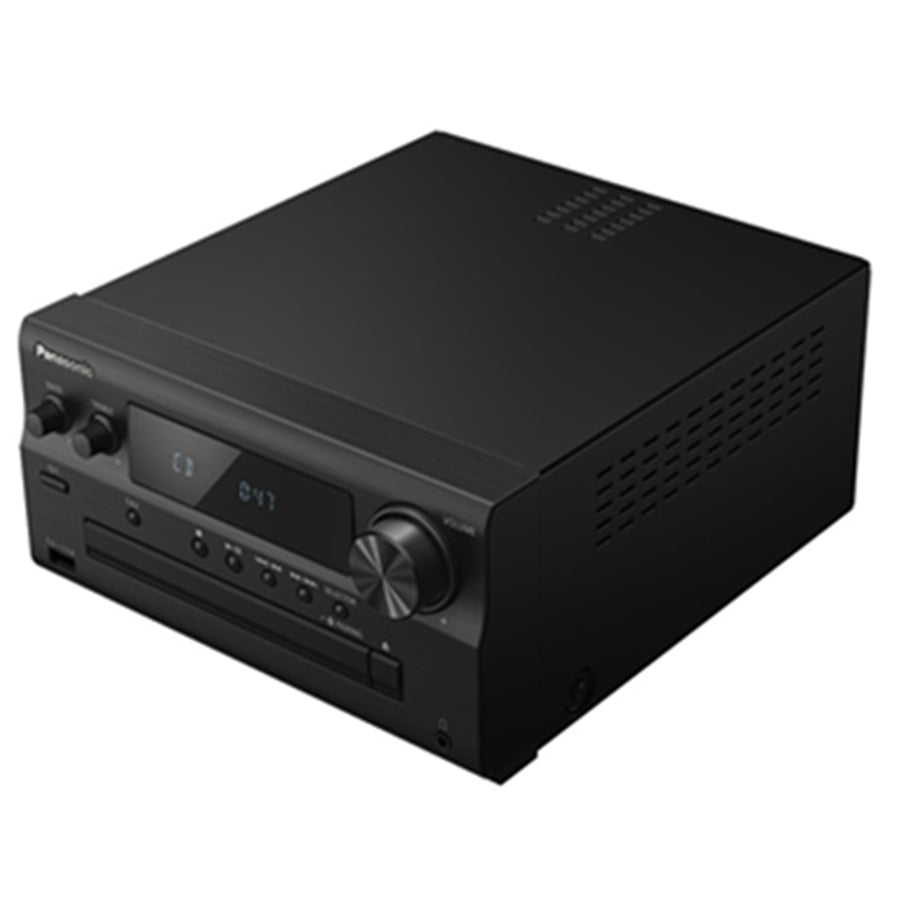

SC-PMX802GNK - MICRO SYSTEM WITH WIFI STREAMING
SC-PMX802GNK - MICRO SYSTEM WITH WIFI STREAMING
Features
Audiophile Hi-Fi Sound System with Wide Variety of Streaming Services
Our premium system featuring a Technics JENO Engine Hi-Res amplifier to play Hi-Res music from USB or via Chromecast built-in™ or AirPlay 2 also covers CD and DAB.
*Chromecast built-in is a trademark of Google LLC.
*AirPlay is a trademark of Apple Inc.

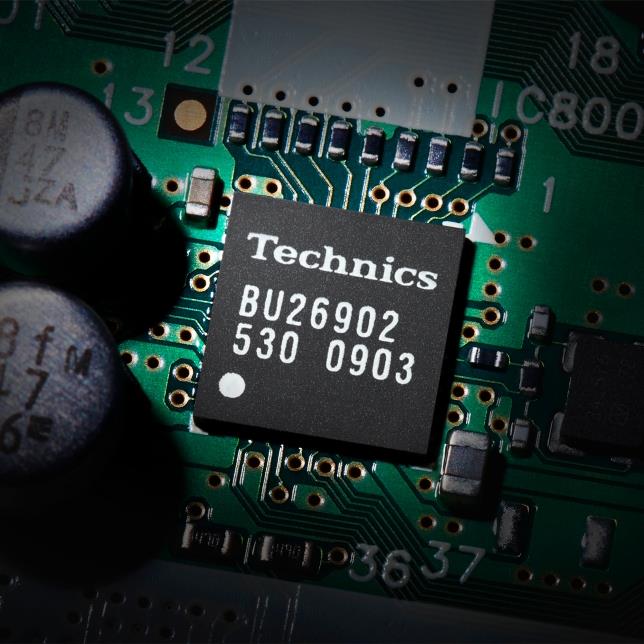

Features Unique Technics Hi-Fi Technology for Premium Sound
PMX802 features the acclaimed JENO Engine amplifier from Hi-Fi specialists Technics. It places the system firmly at the top of our range, with outstanding sonic performance and Hi-Res audio capability. Music sounds as it should, with the nuance and emotion intended by the artists.
High Performance Audio Parts
To get the best sound quality from today's Hi-Res audio formats, you need to use the best-quality components. PMX802 is built with high performance parts and sophisticated materials inside and out to deliver exceptional Hi-Res music.
Versatile Network Audio Player with Hi-Res Capability
With Chromecast built-in, AirPlay 2 and Bluetooth®, PMX802 has streaming covered - making it a versatile network player, for accessing Spotify playlists, podcasts, and internet radio. Chromecast built-in is compatible with many Hi-Res audio services including Tidal*, to experience music as never before.
*Subscription required
Clear and Dynamic Sound - Beautifully Realised

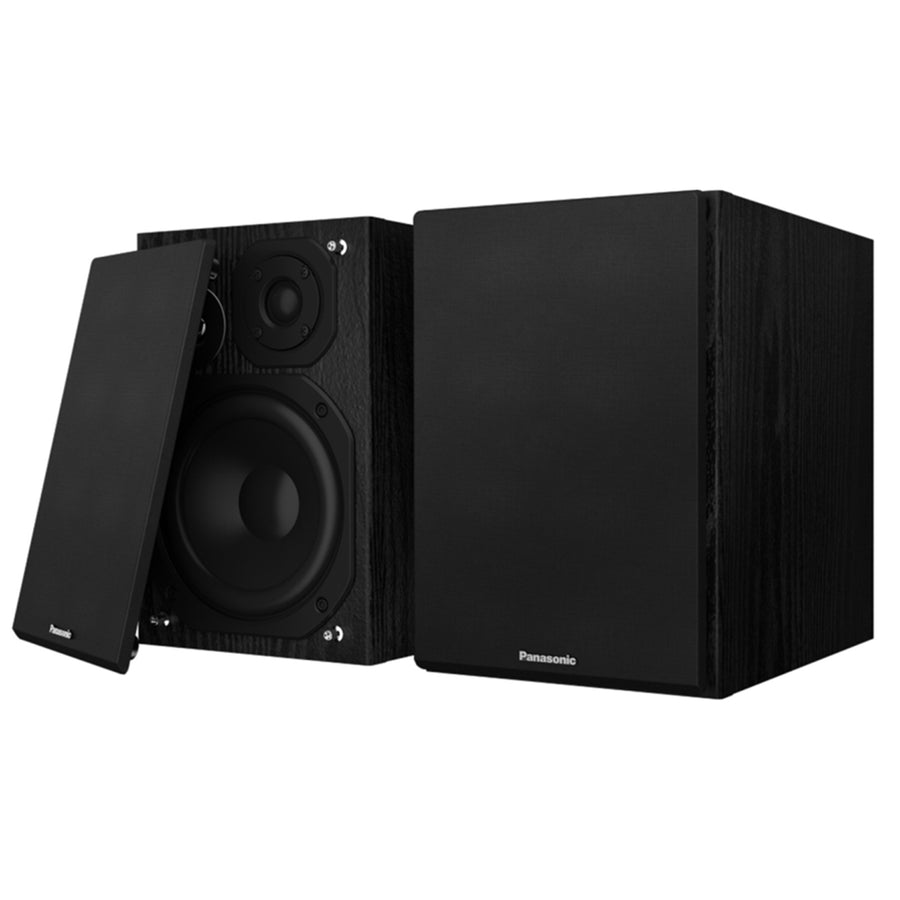

PMX802's expressive, dynamic sound is perfectly suited to Hi-Res audio. The system's 3-way speakers feature silk dome tweeters - capable of reaching frequencies as high as 50kHz. The speakers' wooden cabinet is finished with a beautiful black wooden finish on the front face - so they look as good as they sound.
Hear Your CD Collection as Never Before
As a system capable of playing Hi-Res music, PMX802 has some sophisticated audio circuitry. CD High-Res Re-master does just that - it takes CD tracks and helps them sound better. Similar processing re-masters music streamed by Bluetooth® and MP3 tracks on USB.
AUX-IN Auto Play for TV Sound Perfection
PMX802 has both Optical and AUX Input terminals for TV connection. AUX-IN Auto Play function means the Hi-Fi system automatically starts when the TV is switched on. This adds to your convenience, because the TV's remote control can be used to adjust the system's volume.
Specifications
Technical Specifications
| Amp Type | 2ch Amp (JENO Engine) |
|---|---|
| RMS Output Power | Total RMS Stereo Mode Power120WFront Speaker (Left / Right)60W + 60W (1 kHz, THD 10%, 3O) |
| Type | 3 Way, 3 Speaker System |
| Speaker Unit (Woofer) | Bamboo Charcoal PP 14 cm |
| Speaker Unit (Tweeter) | Silk Dome Tweeter 1.9 cm |
| Speaker Unit (Sup. Tweeter) | Piezo Tweeter 1.5cm |
| Bass Expand | Bass Reflex Port |
| Playback Disc *1 | CD-R / RW |
| Format | CD-DA / MP3 |
| Internal Memory | - |
| Playback | Yes *2 |
| USB Standard | USB 2.0 High-speed |
| Playback Format | DSDYes (2.8MHz, 5.6MHz)WAV, AIFFYes (up to 192kHz / 24bit)FLACYes (up to 192kHz / 24bit)AACYes (up to 48kHz / 320kbps)MP3Yes (up to 48kHz/320kbps) |
| Battery Charge | Other portable device (1.5 A) |
| USB-DAC function | Playback FormatDSD(2.8MHz, 5.6MHz)WAV, AIFF: up to 192k / 24bitFLAC: up to 192kHz /24bitMP3: up to 48kHz / 320kbpsPlayer Application (Windows / Mac OS)Yes |
| Station Presets | FM30 Stations (87.5~108MHz (50K step))DAB Plus20 Stations (174.928~239.2MHz) |
| Radio Data System | Yes |
| Auto Tuning | Yes |
| Auto Preset | Yes |
| Antenna Terminal | 75 ohm unbalanced |
| Bluetooth® | VersionVer.4.2ClassClass 2FunctionWireless audio playback / Remote controlCodecSBC / AACConnectivityMulti-Pairing (MAX 8 Devices)Bluetooth StandbyYes |
| Wi-Fi | Wi-Fi *3YesWLAN StandardIEEE802.11a/b/g/n/acFrequency Range2.4GHz band / 5GHz bandDLNAYes |
| AirPlay | Yes (AirPlay 2) *4 |
| Chromecast built-in | Chromecast built-in Multi-room = Party Mode / Speaker groupingYesChromecast built-in Multi-zoneYesChromecast built-in Stereo Pair-Chromecast built-in Wireless surround- |
| works with the Google Assistant | Yes |
| works with Alexa | - |
| StreamUnlimited | SDKYesMulti-room = Party Mode-Multi-zoneYesRe-transmission-Stereo Pair- |
| Favourite Button | Main UnitFAVRemoteFAV, 1-9 |
| AUX-In Auto Play | Yes (for 3.5mm Stereo mini input) |
| NFC | - |
| Smartphone App | Panasonic Music Control App *5Yes (iOS / Android) |
| Online Music Services | Spotify ConnectYesAirableYes (Internet Radio, Podcasts, TIDAL, Deezer) |
| Super Sound EQ, Super Bass Sound | D.Bass |
| EQ | Preset EQ4 PresetManual EQBass / Treble (±4) |
| Surround | Yes |
| Karaoke | - |
| My Sound Setting | - |
| Clear-mode Dialog | - |
| XBS Master | - |
| High-Res AUDIO | Yes |
| Re-Master | CD High-Res Re-MasterYesBluetooth Re-MasterYesMP3 Re-MasterYesUSB Re-Master-Streaming Re-Master- |
| USB Port | USB Type-A x1 / USB Type-B x1 |

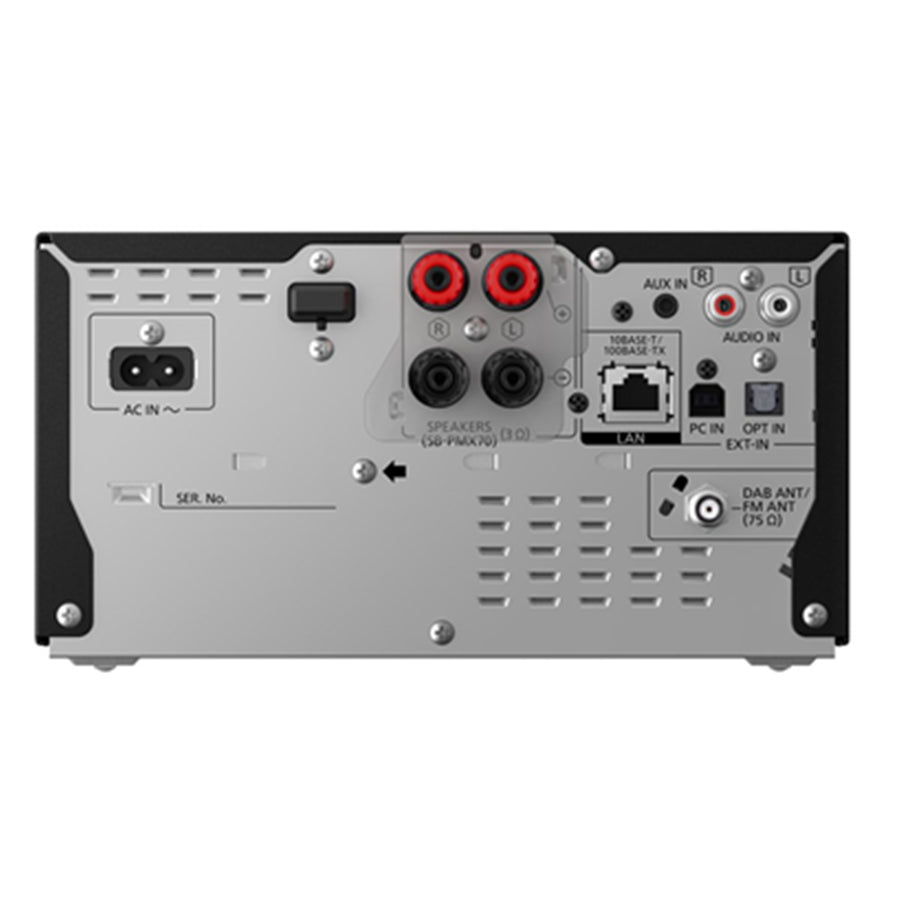

| Audio IN | RCA Pin Jack (AUDIO IN) / 3.5 mm Stereo mini (AUX IN) / Opt-In (for LPCM) |
| Audio OUT | Phones (3.5 mm) |
| Mic Jack | - |
| Speaker Terminal | Screw Type |
| LAN | Yes |
| Power Supply | AC 220 - 240 V, 50 Hz |
| Power Consumption *6 | Normal Use43 WNetwork Standby Off0.4 WNetwork Standby2 W |
| Display Type | FL (Union Jack) |
| Language Indication | Alphabet |
| Dimmer | Yes |
| Auto OFF | Yes |
| Timer | SleepYesClockYesPlay TimerYesRec Timer- |
| Main Unit (W x H x D) | 211 x 114 x 267 mm |
| Speaker Unit (W x H x D) | 161 x 238 x 262 mm |
| Main Unit | 2.9 kg |
| Speaker Unit | 2.6 kg |
| Colour | Black |
| Remote Control | Yes |
| Dry Batteries for Remote Control | Yes |
| AC Cord | Yes (1.5 m) |
| Speaker Cable | Yes (1.2m, AWG22, White) |
| Operating Instruction | Yes |
| Quick Start Guide | Yes |
| Note: | *1 Playability may vary depending on the contents, discs and quality of the recording.*2 Only a USB flash drive. Playback is not possible from a portable device (Apple, Android, etc.) using a USB extension cable.*3 The WLAN feature of this product shall exclusively be used inside buildings.*4 iOS 11.4 or later is required.*5 Download on the App Store. Download on Google Play™.*6 Specifications are subject to change without notice. All numbers given here are approximate. |
