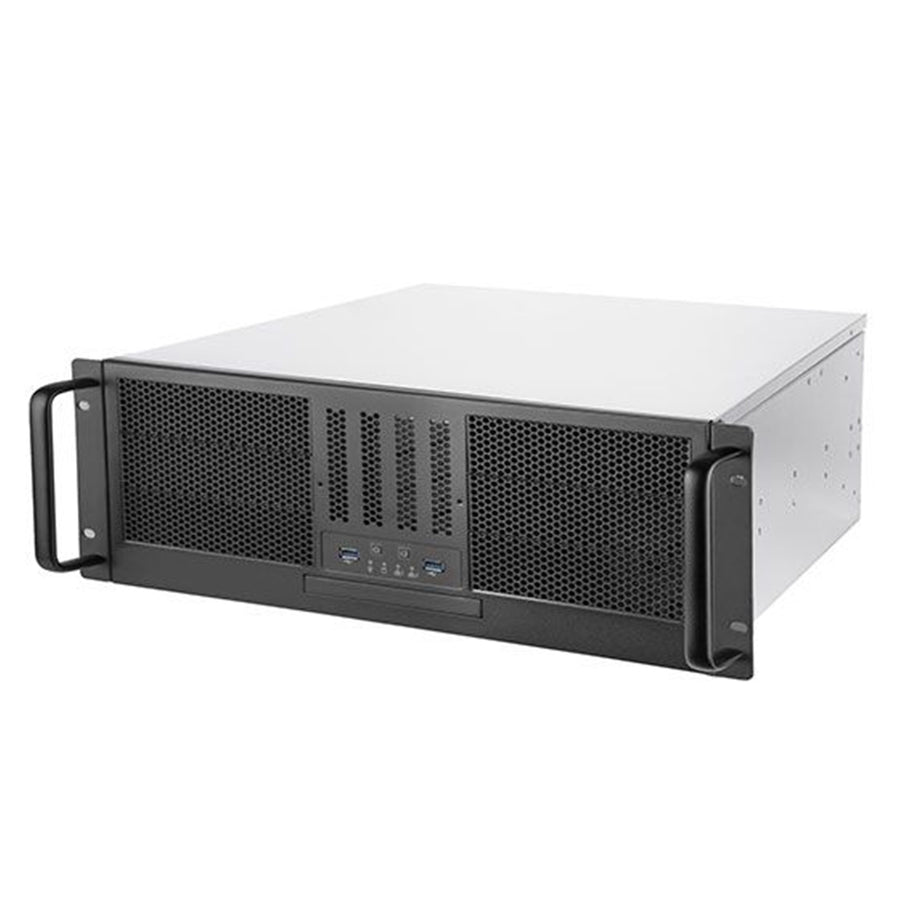

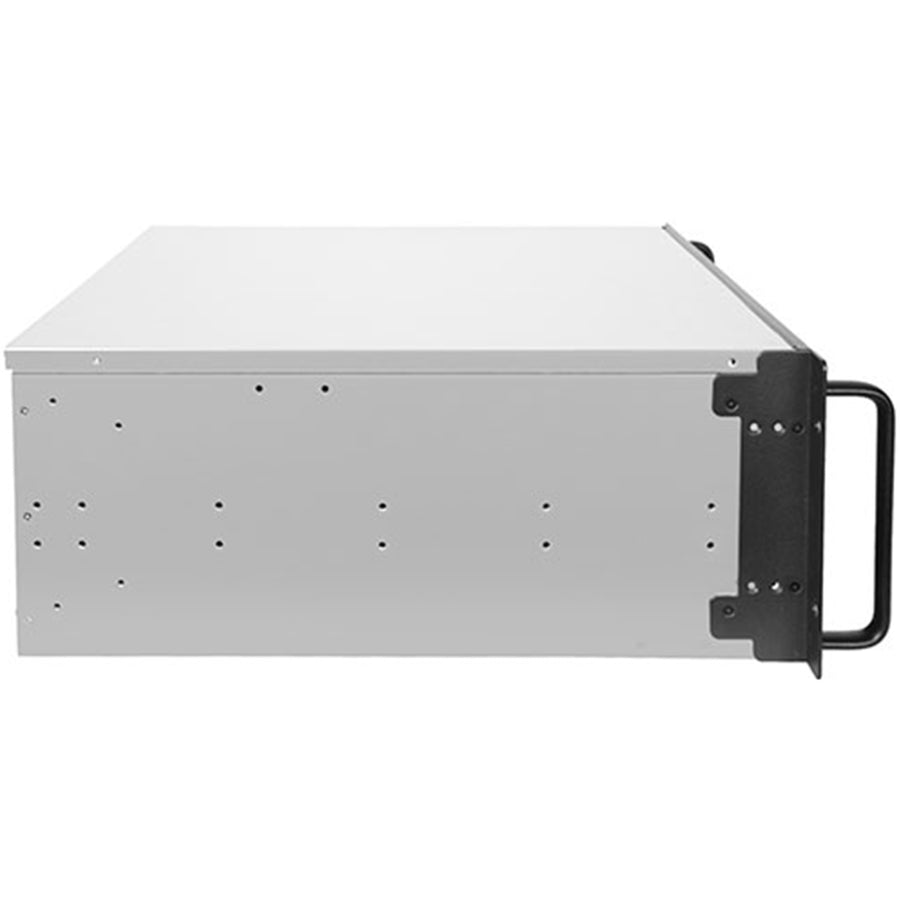

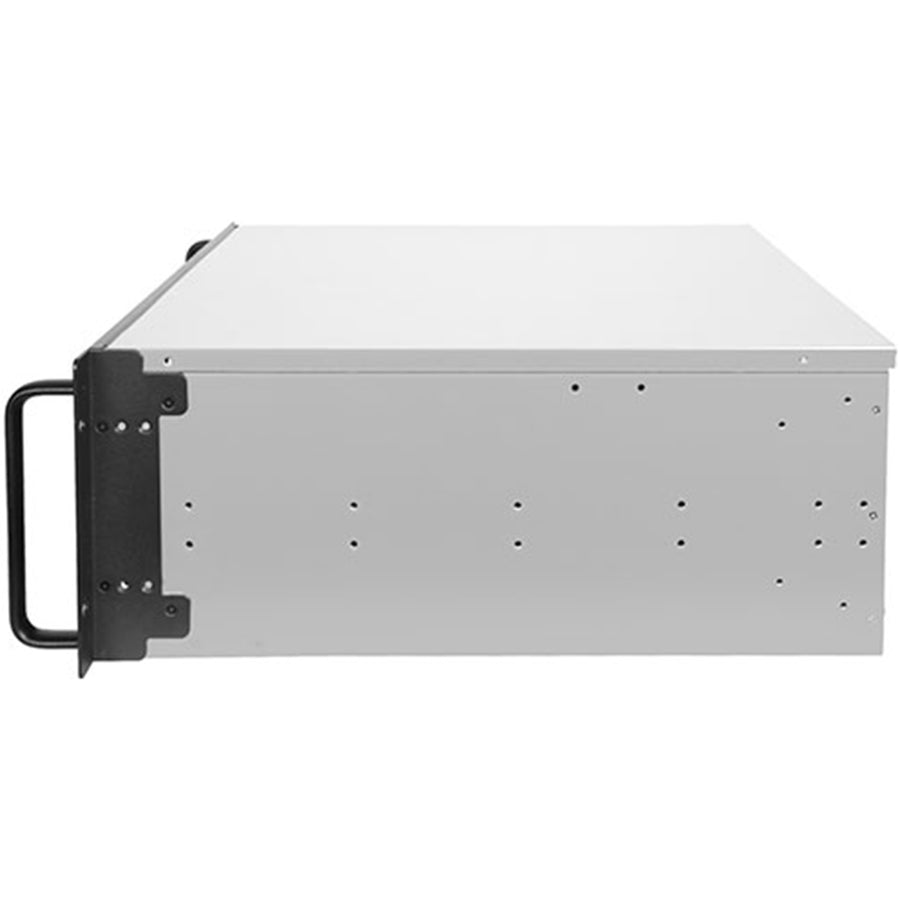

Silverstone SST-RM41-506 4U Case with Support up to SSI-CEB MBD
Features
RM41-506
4U 6-bay 5.25" rackmount server chassis
- Supports up to SSI-CEB motherboard
- Supports Standard profile PCI / PCIe x 7 slots
- Six 5.25" drive bays for flexible 5.25" device installation
- 5Gbps Super Speed USB 3.1 Gen 1 interface, backward compatible with USB 2.0 / 1.1
- Mounting holes ready for quick rail slide installation (rail slide sold separately)

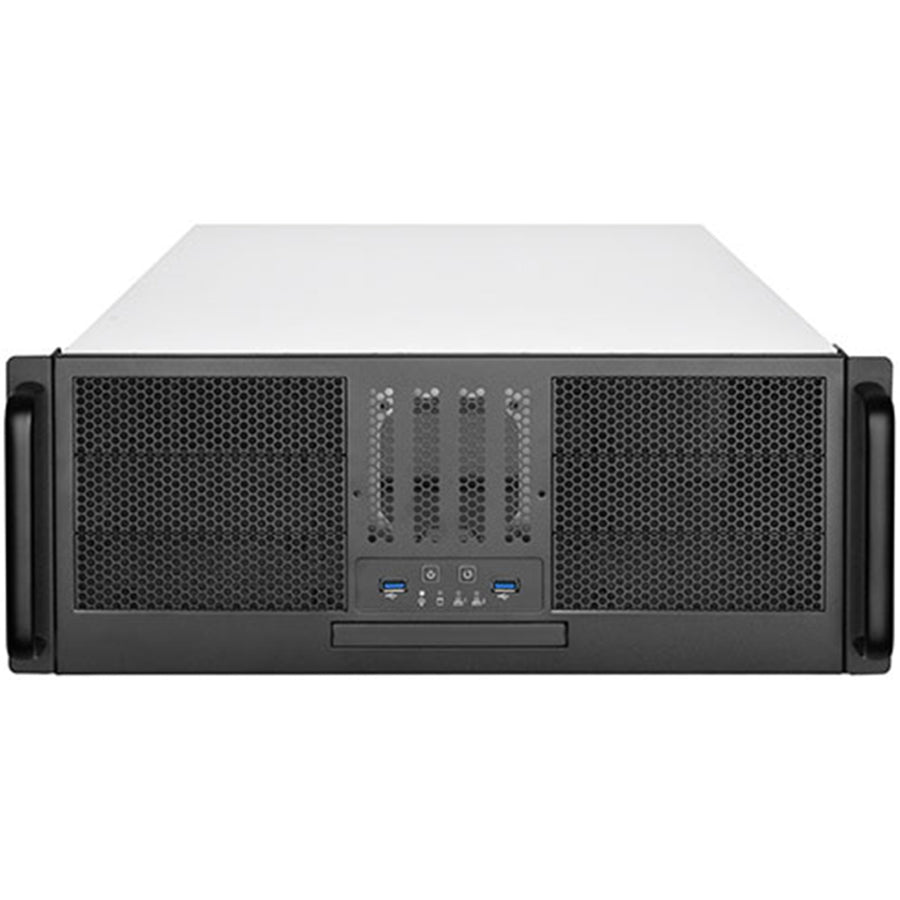

Distinctive exterior
Distinctive front panel features a handle design allowing for easy accessibility to the internal components, along with two USB 3.0 data transfer ports
Storage device performance
Supports optional 5.25" storage devices: FS204, FP510, FS305, FS305-12G
Storage bays
Offers users a wide range of hard drive options including support for 5.25"/3.5"/2.5" hard drives and slim optical drives
Internal configurations
Cooling capabilities

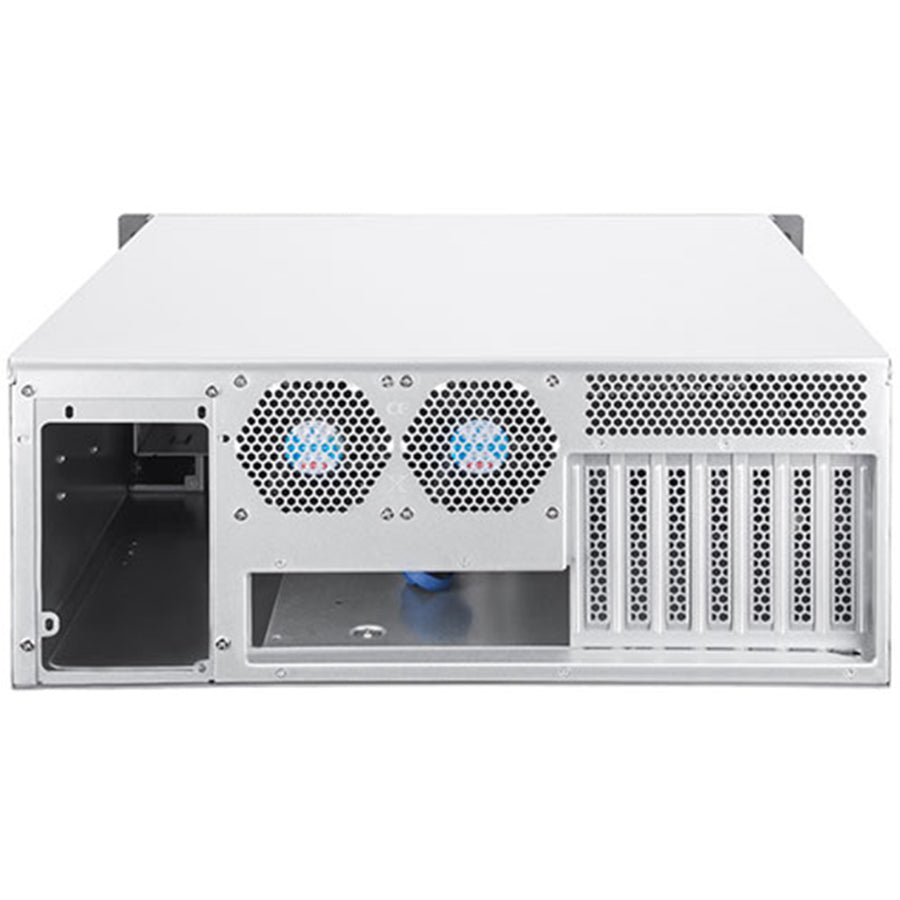

Utilizing the typical front-to-back directional airflow, RM41-506 comes pre-installed with two 80mm PWM fans for exhaust, designed to achieve a rapid heat dissipation effect that does not easily accumulate hot air inside
Sliding rail compatibility
Reserved mounting holes for sliding rails which can be easily installed. Can be used with the RMS06-22 rail
Specifications
Technical Specifications
| Model No. | SST-RM41-506 |
|---|---|
| Chassis form factor | 4U |
| Motherboard | CEB (12" x 10.5"), ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") |
| Material | SGCC |
| Main metal thickness | 1.2mm |
| Drive Bay | External5.25" drive bay x 6Internal4 x 3.5"2 x 2.5" (up to 15mm)1 x 2.5" (up to 15mm) or slim optical (12.7mm) |
| Power Supply | PS2 / ATX / Mini Redundant (supports up to 200mm) |
| Cooling system | Front80 x 25mm fan x 1(fan not included)Rear80 x 25mm fan x 2 |
| Limitation of CPU cooler | 148mm |
| Expansion card | Length w/ 5.25" drive cage: 278mmLength w/o 5.25" drive cage: 426mm |
| Expansion Slot | Standard profile PCI / PCIe x 7 |
| Front I/O Port | USB 3.1 Gen1 Type-A x 2 |
| Front buttons | Power On / Off, system reset |
| Indicators | Power status x 1, HDD activity x 1, LAN activity x 2 |
| Dimension | 430mm (W) x 176mm (H) x 446mm (D) |
| Net Weight | 9.7 kg |
| Brand | Silverstone |
|---|---|
| Product Type | PC Parts |
