Yealink CS10 Low-Profile 2-Way Coaxial Ceiling Loudspeaker
Features
Practical and Aesthetic Integration

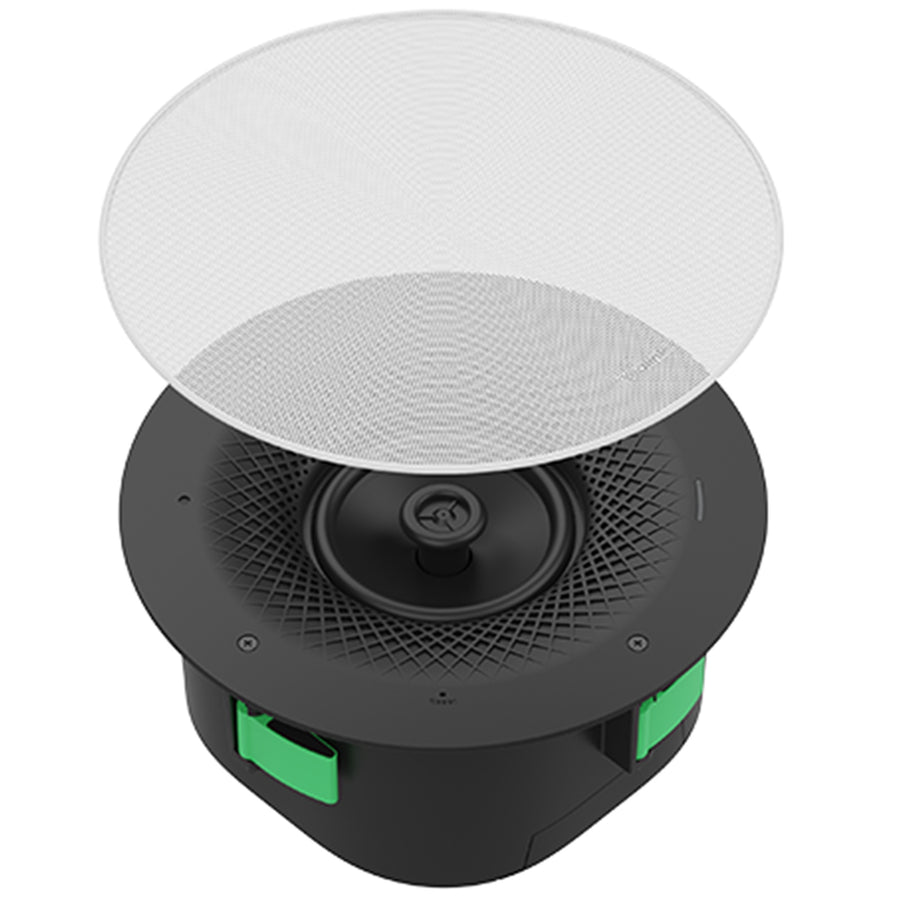

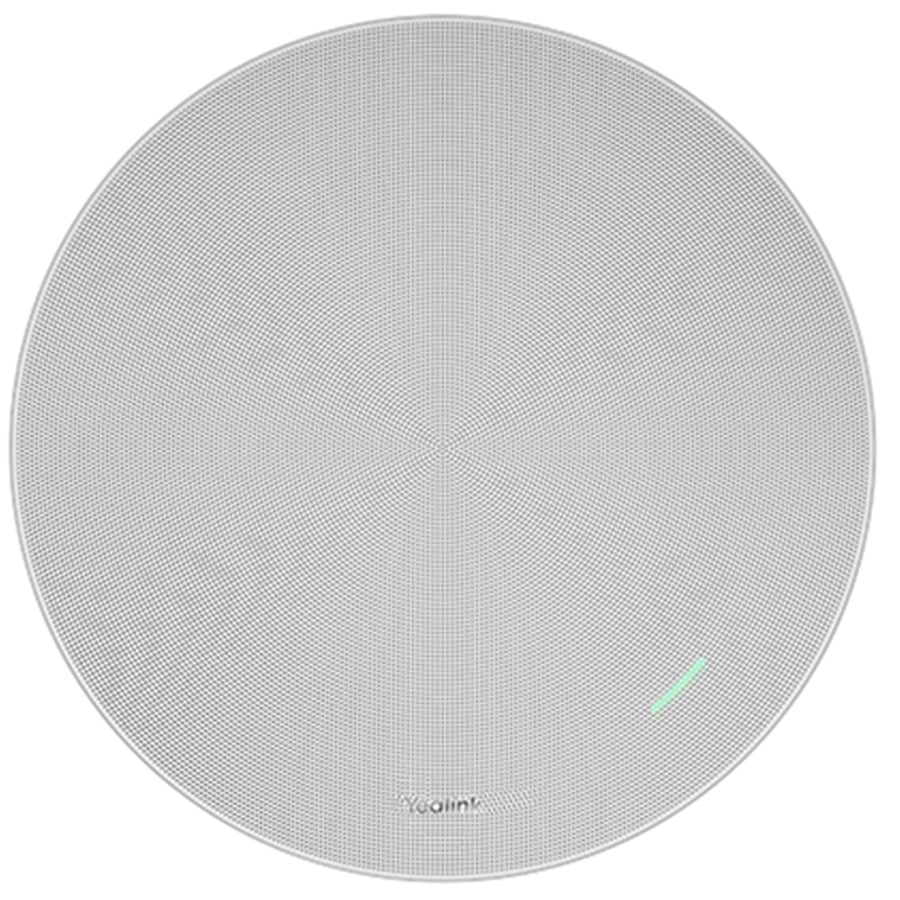

The Yealink CS10, available in black and white, features a low-profile (120mm depth) 2-way coaxial design and a removable magnetic suction mesh cover*. The CS10 blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms.
Specially Designed for Conference Space
The CS10 boasts impressive acoustic parameters, which ensures an unparalleled level of sonic excellence, while its EQ calibration is specifically tailored to accentuate the utmost quality of human vocals. It seamlessly combines active speaker functionality with an integrated DAC and PoE technology, allowing for swift digital signal processing from the network for a hassle-free setup and minimal latency.
Video Conferencing Perfected
CS10 was tuned the sound profile for video conference first. It emphasized the mid-range of frequency response that improves sound performance in human voice.
Versatile Adaptability
Yealink CS10 provides flexible indoor installation solutions, ensuring compatibility with various ceiling types.
Specifications
Technical Specifications
| Package Content | CS10 SpeakerWhite Mesh Cover (Black Optional)Quick Start GuideAssembly Fixing BracketDust CoverDeployment Instruction TemplateBracing BridgeDust Cover Screw × 6 (M3 × 4CMHOZN3) |
|---|---|
| Frequency Response (-6dB) | 100-20kHz |
| Maximum SPL | Continuous: 99dB @20W 1mSensitivity: 88dB @1m 1W |
| LF | 5.7 inch (145 mm) woofer |
| HF | 1.1 inch (28 mm) tweeter |
| Nominal Impedance | 8O |
| Nominal Coverage Angle | 120 |
| Size | - 294 × H125.8mm (with cover mesh)- 287.2 × H125mm (without cover mesh) |
| Weight | - 2808g (without cover mesh);- 207g (Cover mesh) |
| Product Color | white/black |
| Cover Mesh Color | white/black |
| Product Materials | - Cover Mesh: PC/ABS Welded SPCC- Main Body Shell: PA (Polyamide) with 15% GF- Bottom Shell: aluminum alloy- Cover Plate: PC/ABS and SGCC |
| Operating Temperature | 0-50°C |
| Storage Temperature | 0-50°C |
| Operating Humidity | 5%~90% |
| Rated Power | 24W (20W typical power) |
| Power Supply | PoE+ (IEEE 802.3at class 4) |
| Interface | 1 × RJ-45 |
| Brand | Yealink |
|---|---|
| Product Type | UC & Video Conferencing > Video Conferencing |
| Weight | 2.472 kg |
| Warranty |
|---|
