Omada

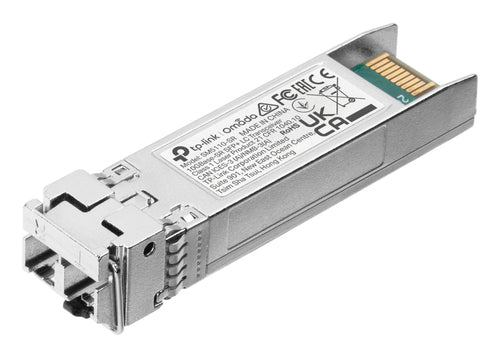

SM5110-SR - Omada SM5110-SR Multi-Mode 10GBase-SR SFP+ LC Transceiver
$51.30
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
10GBase-SR SFP+ LC Transceiver
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
- Multi-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Works with Devices with 10G SFP+ Interfaces
10GbE Fiber Connection without Speed Loss, up to 300 m Transmission Distance
High Reliability with Reliable Quality
TP-Link SFP+ Module: Ultra-Fast and Reliable Fiber Connections
Specifications
Technical Specifications
| DDM | Yes |
|---|---|
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Dimensions (W*D*H) | 2.4*0.6*0.5 in (61.3*14.5*12.2 mm) |
| Standards and Protocols | IEEE 802.3ae, TCP/IP, SFF-8472 |
| Wave Length | 850nm |
| Power Supply | 3.3V |
| Fiber Type | 50/125um or 62.5/125um Multi-mode |
| Max. Cable Length | 300m (OM3) |
| Data Rate | 10Gbps |
| Port Type | LC/UPC |
| Safety & Emission | FCC, CE |
| Operating Temperature: | 0-70 ℃ (32-158 ℉) |
| Storage Temperature: | -40-80 ℃ (-40-176 ℉) |
| Operating Humidity: | 10-90% RH non-condensing |
| Storage Humidity: | 5-90% RH non-condensing |
| Package Contents | 10G SFP+ Module TL-SM5110-SRInstallation Guide |
| Brand | Omada |
|---|---|
| Product Type | Networking > Fiber Connectivity > SFP Modules |
| Weight | 0.5 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
