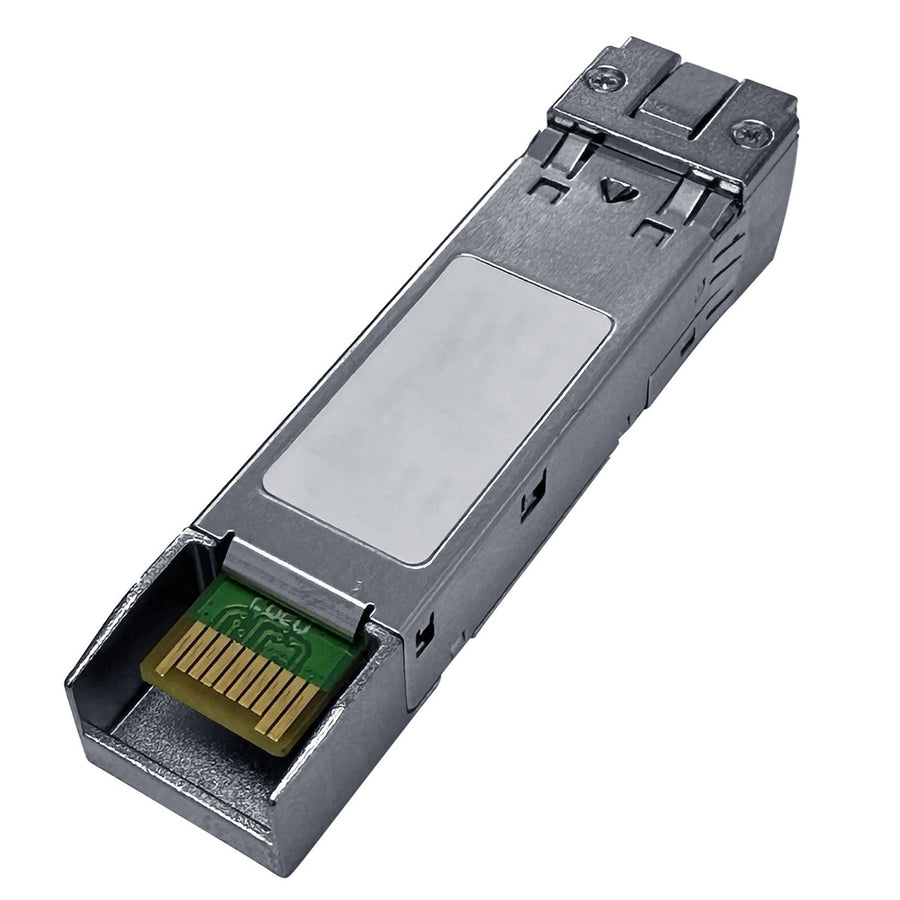

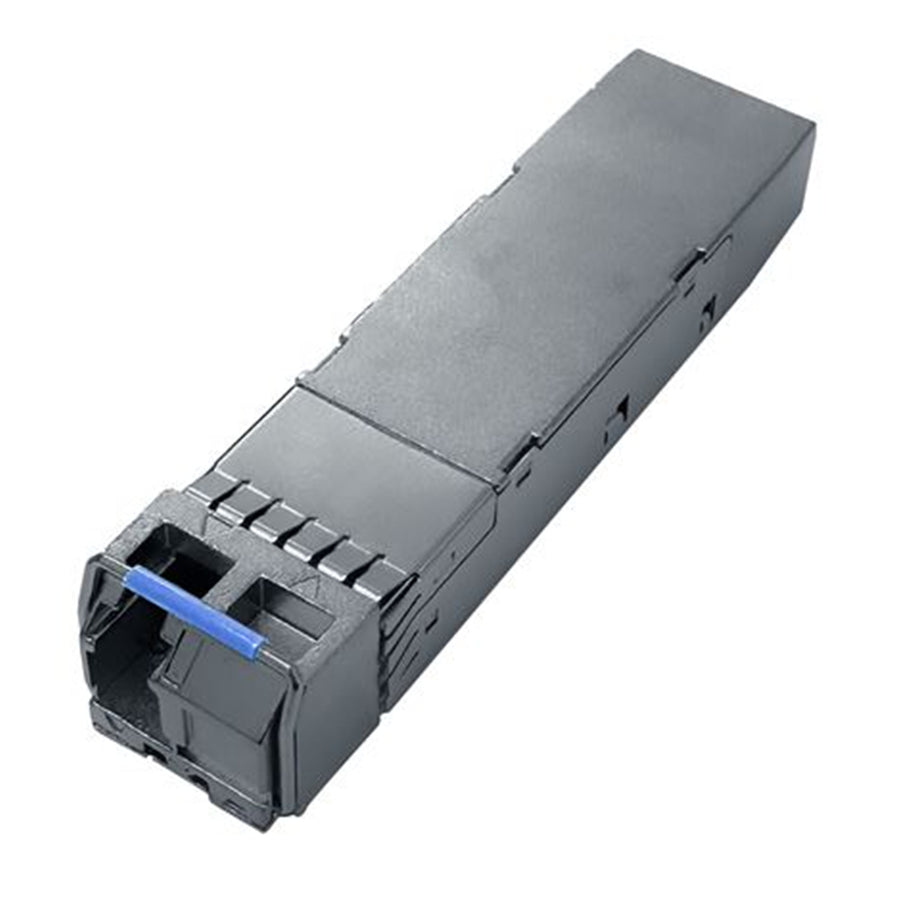

SMARTOPTICS SOSFP1G-BX10D35 - 1.25G SFP BiDi LC Simplex Transceiver Module for SingleMode. Dual Wave length

The SO-SFP-1000BASE-BX10D is a bi-directional transceiver solution operating directly on a single-fiber without the need for a separate optical filter. This is achieved by having two transceivers that inject different wavelengths into the same single-fiber.

The solution thus consists of two transceivers; SO-SFP-1000BASE-BX10D-35 and SO-SFP-1000BASE-BX10D-53, operating at 1310nm and 1550nm respectively.

- Single-fiber bi-directional communication using dual wavelengths (1310nm / 1550nm)
- Supports 1G Ethernet (GbE) and 1G Fiber Channel (FC)
- Typical reach up to 10 km over single-mode fiber
- Industrial-grade temperature versions: -40°C to +85°C
- Low power consumption: <1.0 W
- Digital diagnostics via SFF-8472 interface
- Transmitter wavelength range: 1270-1350nm or 1500-1580nm
- Receiver sensitivity: down to -21 dBm

Efficient Single-Fiber Bi-Directional SFP Solution

The SO-SFP-1000BASE-BX10D uses dual wavelengths for bi-directional communication over a single-mode fiber. This efficient approach simplifies cabling, reduces cost, and eliminates the need for separate optical filters. The system works in pairs, each using 1310nm or 1550nm for transmit/receive.

Broad Compatibility and Multi-Protocol Support

Supporting both 1G Ethernet (GbE) and 1G Fiber Channel (FC) services, these modules are suited for a variety of enterprise and data center interconnects. With a typical reach of up to 10km, they provide the performance needed for metropolitan and campus-wide networks.

Robust Industrial-Grade Operation

Available in versions rated for industrial temperature ranges (-40°C to +85°C), the SO-SFP-1000BASE-BX10D ensures reliable performance even in harsh environments. Low power consumption (<1.0W) and support for digital diagnostics via SFF-8472 interface make these modules easy to monitor and manage.

Flexible Transmitter and Receiver Design

Transmitter wavelengths range from 1270-1350nm or 1500-1580nm, with receiver sensitivity down to -21.0dBm, covering various network scenarios. The use of single LC connectors further simplifies installation and maintenance. Standard MSA compliance ensures wide integration across platforms.

Certified and Reliable Network Performance

Compliant with global standards including EMC, UL, FCC, RoHS, and TUV, these SFP BiDi modules guarantee network stability and regulatory safety. The 12dB power budget and 10km typical reach offer both reach and efficiency. It is the dependable choice for modern single-fiber optical networks.
