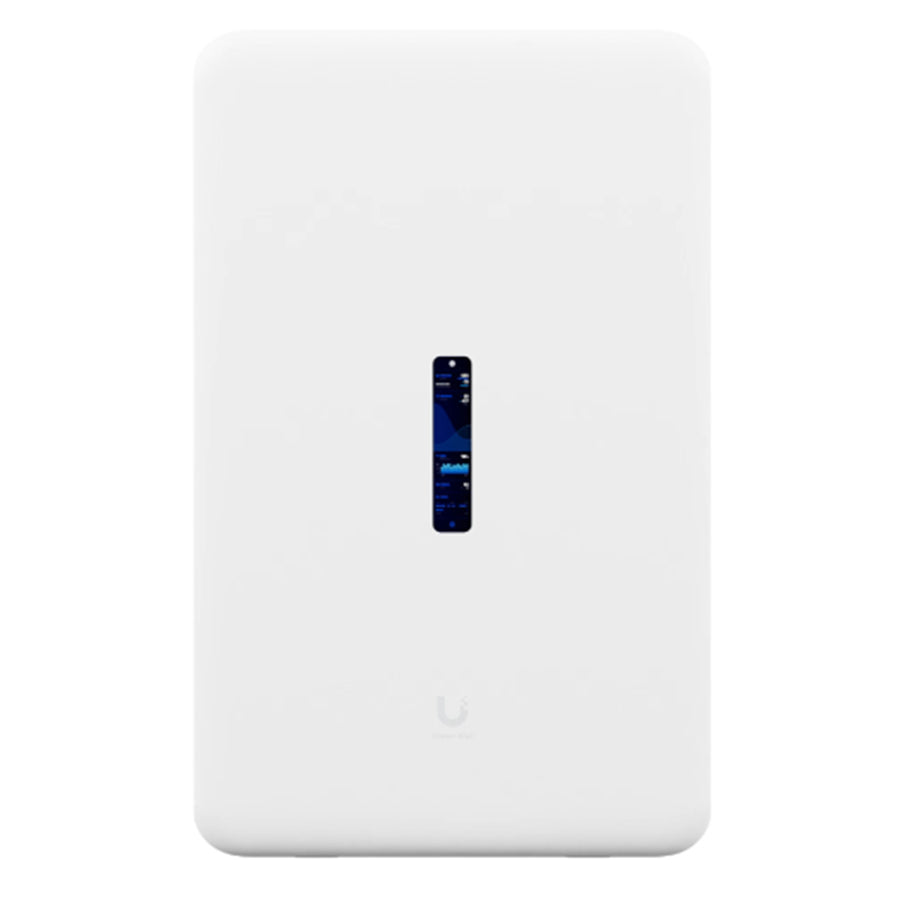

Ubiquiti UniFi (UDW) Dream Wall 10G Cloud Gateway with NVR
Ubiquiti

Ubiquiti UniFi (UDW) Dream Wall 10G Cloud Gateway with NVR

SKU: UDW ● In Stock
$2,281.73$2,375.37
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

All-in-one internet gateway, WiFi access point, and UniFi Console with an abundance of PoE ports.

- Integrated Enterprise WiFi6 (4x4 MIMO)

- Full UniFi OS and UniFi application support

- 3.5+ Gbps routing

- (1) 10G SFP+, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports

- (1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports

- 4.7" touchscreen for management

- Integrated 128 GB SSD & pre-installed 512 GB microSD card

Specifications

Technical Specifications

Dimensions 549 x 342 x 62 mm (21.6 x 13.5 x 2.4")
Weight 8.6 kg (19 lb)
Enclosure materials Polycarbonate, galvanized steel, aluminum alloy
Mount material Stainless steel
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory 4 GB DDR4
On-board storage 16 GB eMMC
Integrated 128 GB SSDPre-installed 512 GB microSD cardExpansion slot Micro SD memory card**Requires a memory card with at least 128 GB of storage.
Management interface EthernetBluetoothWiFi
Networking interface (17) LAN: GbE RJ45 ports(1) WAN: 2.5 GbE RJ45 port
SFP+ interface (1) LAN: 10G SFP+ port(1) WAN: 10G SFP+ port
PoE interface (4) PoE (Pair A 1, 2+; 3, 6-)(4) PoE+ (Pair A 1, 2+; 3, 6-)(4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Power method Universal AC input 100-240V AC, 7A Max., 50/60Hz
Power supply (2) Hot-Swappable AC/DC 550W PSU*
Max. power consumption 532W
Max. PoE wattage per port by PSE PoE: 15.4WPoE+: 30WPoE++: 60W
Voltage range PoE mode PoE: 44-57VPoE+/PoE++: 50-57V
Max. TX power2.4 GHz5 GHz 23 dBm26 dBm
MIMO2.4 GHz5 GHz 2 x 24 x 4
Throughput rate2.4 GHz5 GHz 300 Mbps2.4 Gbps
Antenna gain2.4 GHz5 GHz 5.9 dBi6 dBi
ESD/EMP protection Air: ± 8kV, contact: ± 4kV
LCM display (1) 4.7" touchscreen
Button Factory reset
Mounting Wall mount (included)
Operating temperature -10 to 40° C (14 to 104° F)
Operating humidity 5 to 95% noncondensing
WiFi standards 802.11a/b/gWiFi 4/WiFi 5/WiFi 6
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Ethernet White: link/activity
SFP+ White: link/activity
PSU Blue: readyAmber: failure
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
