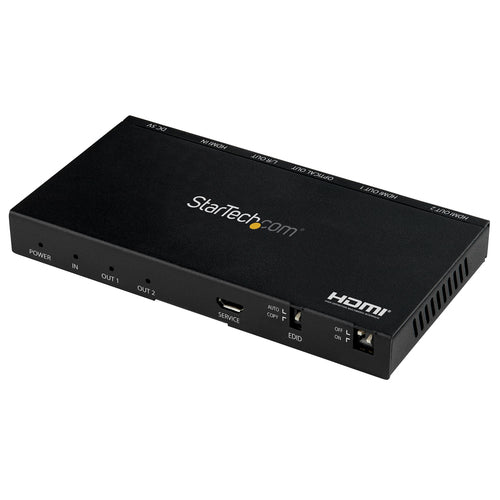

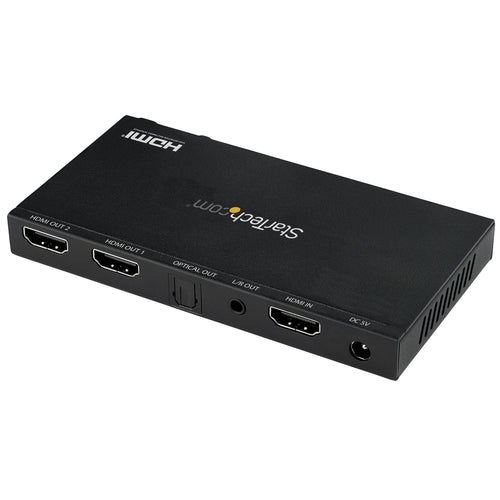

StarTech.com ST122HD20S - Splitter - HDMI Splitter 2 port - 4k60Hz
Features
This 2-port HDMI splitter lets you connect your HDMI video source to two HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.
Supports True 4K at 60Hz
This 2 way HDMI splitter offers full support for your HDMI 2.0b equipment, including true 4K resolution at 60Hz. For smoother video and color transitions, the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color.
Widely Compatible
The HDMI 2.0 splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz, 1080p and 720p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application. With the built-in scaling function, the HDMI 1 in 2 out splitter can output to two displays at different resolutions simultaneously.
Specifications
Technical Specifications
| 1 - Connector A | HDMI (19 pin) |
|---|---|
| 2 - Connector B | HDMI (19 pin) |
| 1 - Connector B | Toslink (SPDIF, Optical)3.5 mm Mini-Jack (3 Position) |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20-90% RH |
| AV Input | HDMI - 2.0 |
| Ports | 2 |
| AV Output | HDMI - 2.0 |
| Audio | Yes |
| Industry Standards | HDMI 2.0b |
| Indicators | 1 - LED Indicators |
| Power LED | Input LED |
| 2 - LED Indicators | Output LEDs |
| Package Height | 2.7 in [69 mm] |
| Package Length | 8.0 in [20.2 cm] |
| Shipping (Package) Weight | 13.8 oz [392 g] |
| Package Width | 4.5 in [11.4 cm] |
| Video Revision | HDMI 2.0b |
| Maximum Data Transfer Rate | 18 Gbps |
| Maximum Cable Length | 16.4 ft [5 m] |
| Maximum Digital Resolutions | 3840x2160 (4K) @ 60Hz3840x2160 (4K) @ 30Hz1920x1080 (1080p)1280x720 (720p) |
| Wide Screen Supported | Yes |
| Audio Specifications | 7.1 surround sound |
| Color | Black |
| Product Height | 0.4 in [11 mm] |
| Product Length | 4.7 in [12.0 cm] |
| Weight of Product | 6.0 oz [170 g] |
| Product Width | 2.5 in [63 mm] |
| Material | Steel |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Output Voltage | 5V DC |
| Output Current | 1A |
| Power Consumption (In Watts) | 5W |

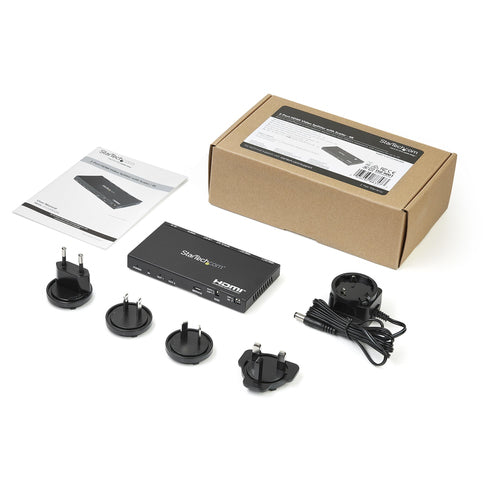

| 1 - Included in Package | HDMI video splitterUniversal Power Adapter (NA, EU, UK, ANZ)Instruction Manual |
| Brand | StarTech.com |
|---|---|
| Product Type | TV & Home Theatre > AV Splitters & Switches |
| Weight | 0.136 kg |
| Warranty |
|---|
