SST-AT650R-BF - Silverstone AT650R-BF 650W ATX 88/89/86 MEPS PSU 3yr wty
SST-AT650R-BF - Silverstone AT650R-BF 650W ATX 88/89/86 MEPS PSU 3yr wty
Features

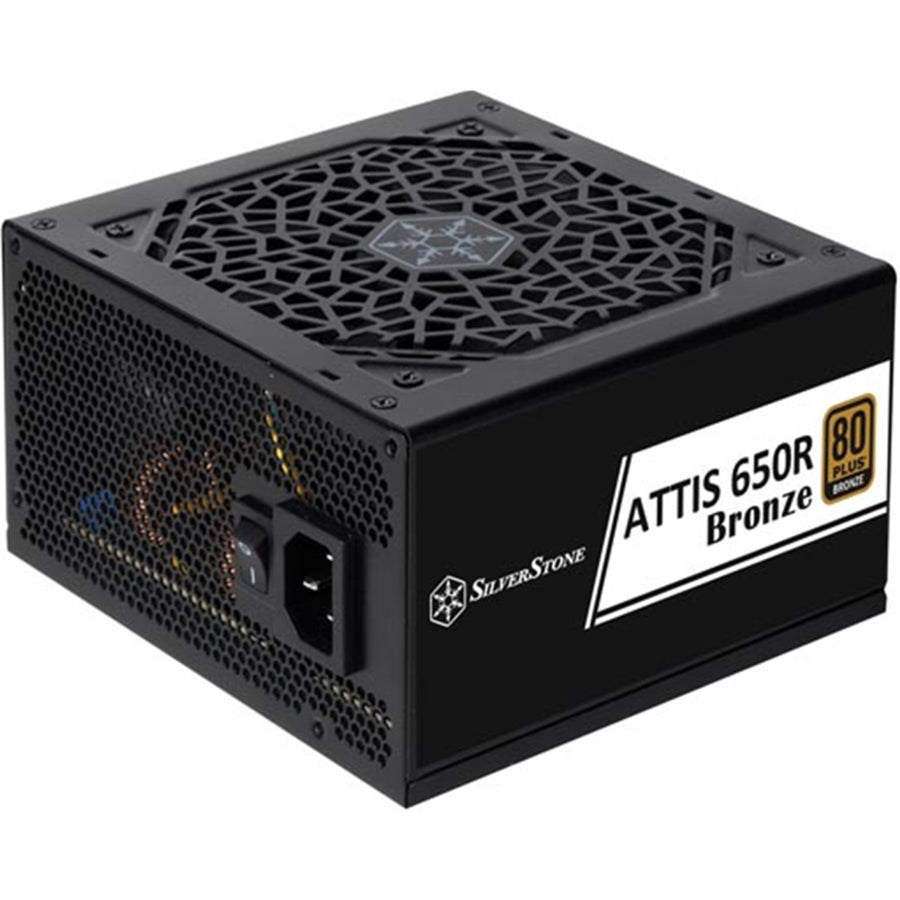

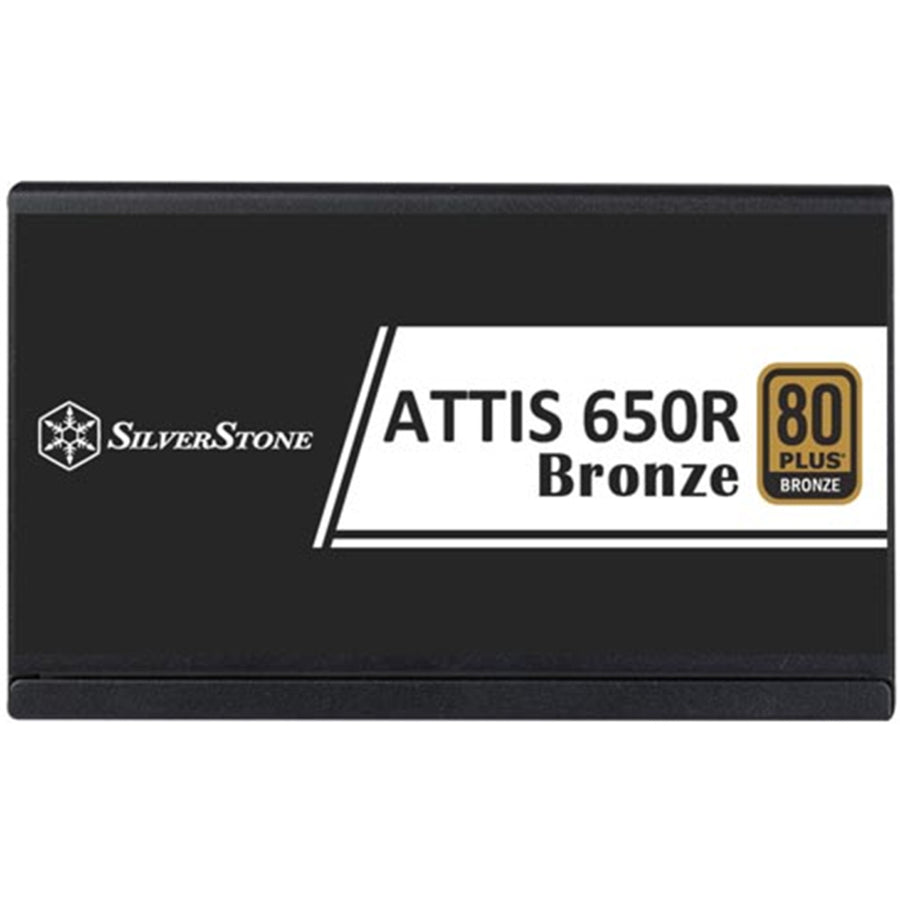

ATTIS 650R Bronze
80 PLUS Bronze 650W ATX 3.1 ATX Power Supply
- Compliant with ATX 3.1 standards and supports up to 2X power excursion
- High efficiency with 80 PLUS Bronze certification
- 24/7 continuous power output with 50C operating temperature
- Japanese primary capacitor
- Silent running 120mm fan with 18 dBA minimum
- Multiple protection circuitry
- Flat cable design
- Active PFC+Double forward+DC to DC Design

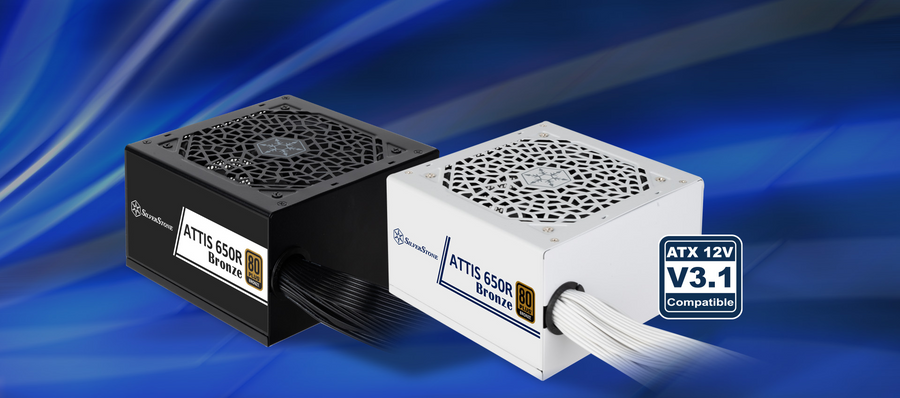

Compliant with ATX 3.1 standards and supports up to 2X power excursion

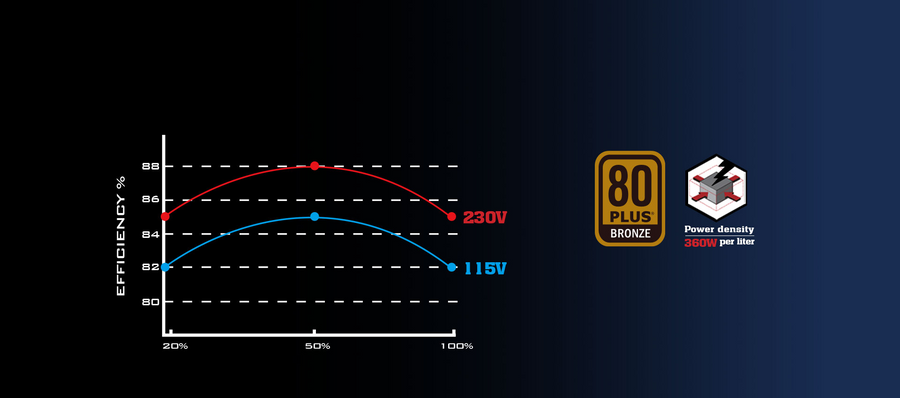

Bronze Efficiency Certified
Designed for 80 Plus Bronze level efficiency to minimize heat while considerably reducing electricity consumption.

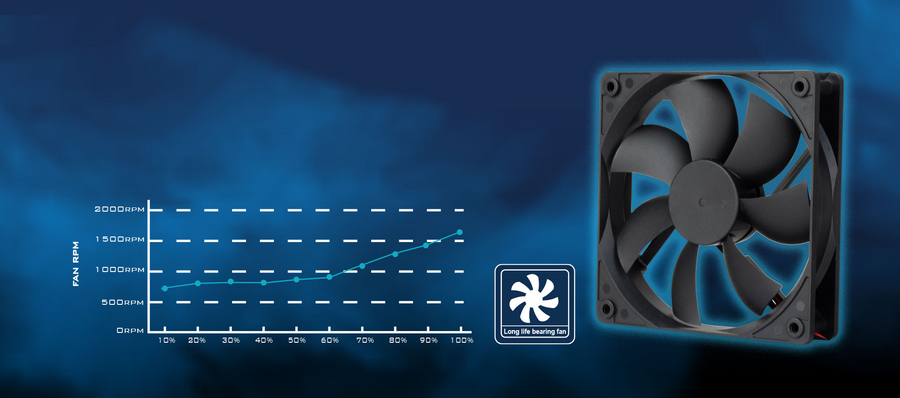

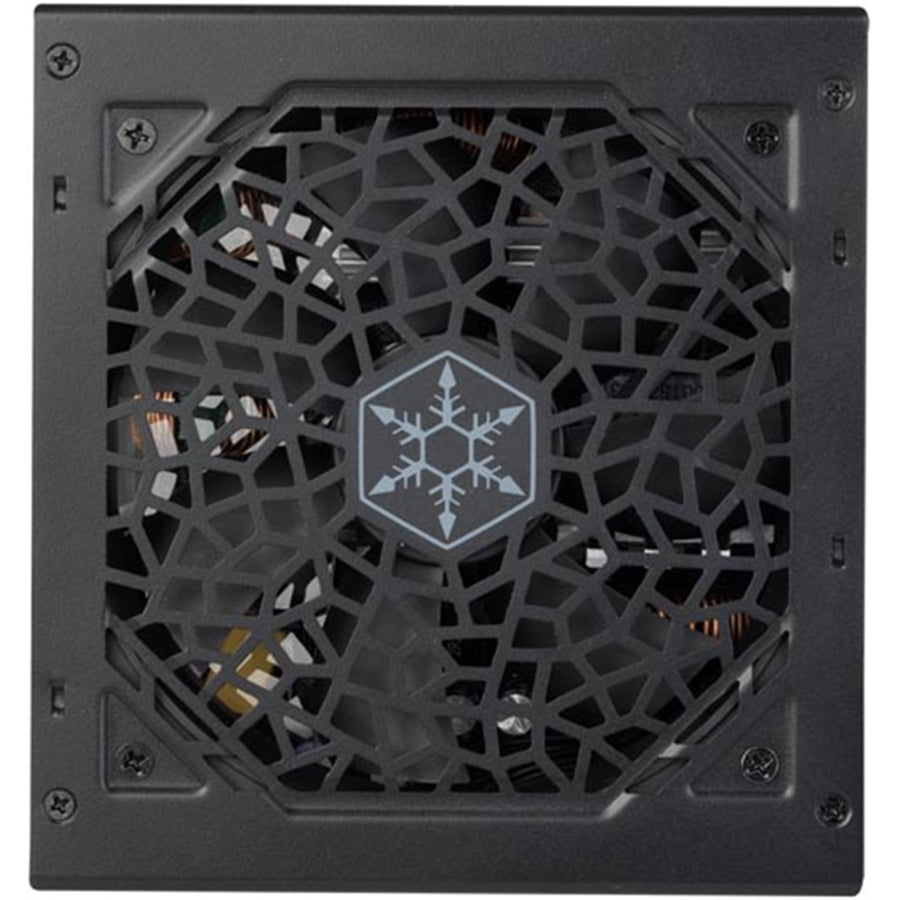

High Reliability Cooling Fan

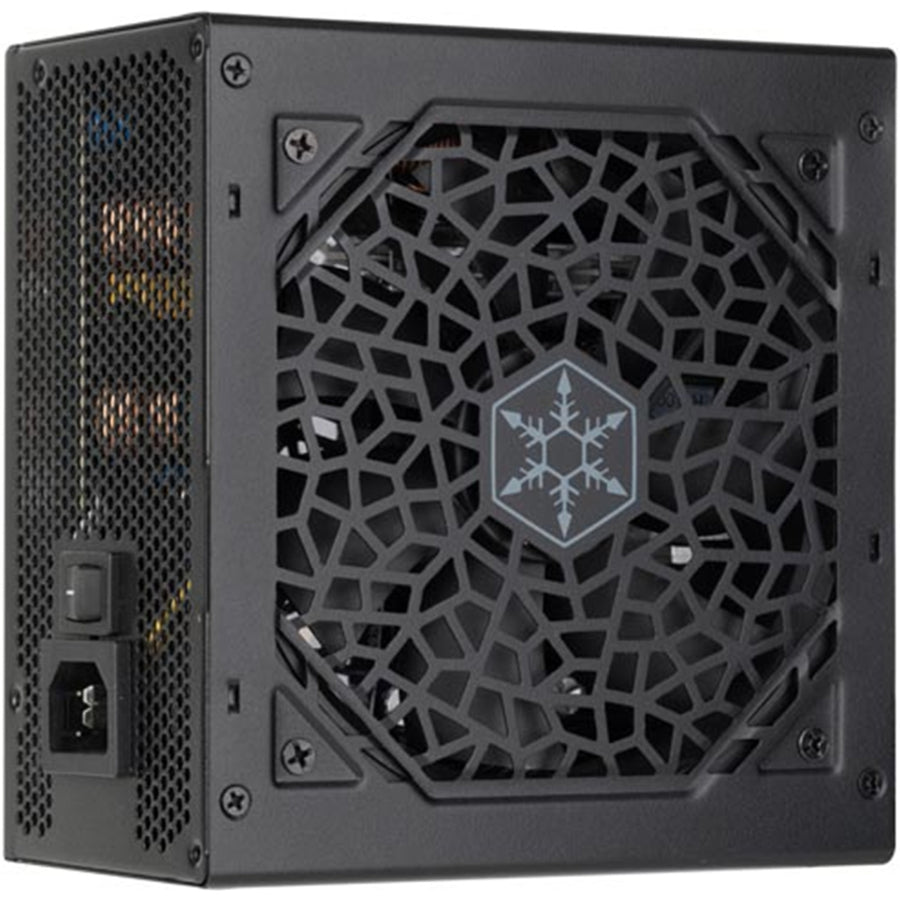

The cooling is entrusted to a 120mm fan that offers exceptional airflow and low operational-induced noise level.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
Flat cables have much greater flexibility to allow for tighter folding and management of cables
Advanced protections for safety and security
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection

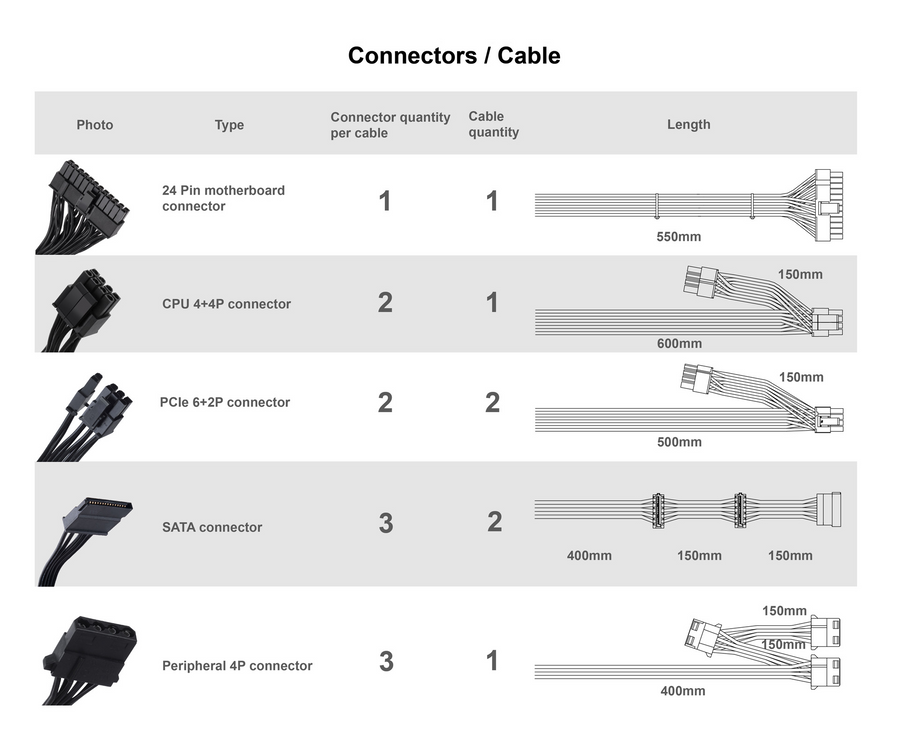

Connectors / Cable
Specifications
Technical Specifications

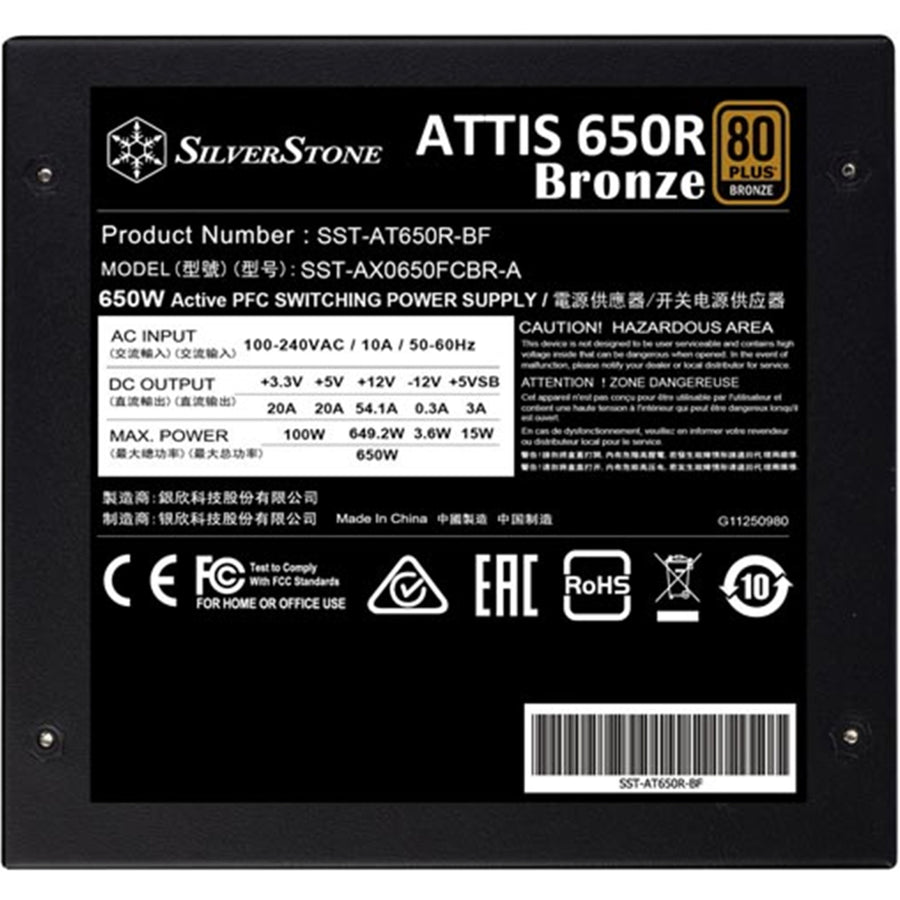

| Product No. | SST-AT650R-BF (Black) |
|---|---|
| Model (safety certification) | SST-AX0650FCBR-A |
| Color | SST-AT650R-BF: Black (lead-free paint) |
| Max. DC Output | 650W |
| Combined +3.3V & +5V | 100W |
| Combined +12V | 649.2W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | 82% ~ 85% (at 20% ~ 100% loading) |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 50°C |
| Protection | Over Power ProtectionOver Voltage ProtectionShort Circuit ProtectionUnder Voltage Protection |
| Connectors | 1 x 24 / 20-Pin motherboard connector2 x 4-Pin + 4-Pin ATX 12V connectors4 x 8 / 6-Pin PCIe connectors6 x SATA connectors3 x 4-Pin Peripheral connector |
| Cooling System | Silent 120mm fan |
| Noise Level | 18 dBA minimum |
| Certification | 80 PLUS Bronze |
| Form factor | ATX (PS2) |
| Dimension | 150mm (W) × 86mm (H) × 140mm (D)5.91" (W) x 3.39" (H) x 5.5" (D) |
| Weight | 1.52 kg |
