SST-AT750R-BF - Silverstone AT750R-BF 750W ATX 80plus Bronze PSU 3yr wty
SST-AT750R-BF - Silverstone AT750R-BF 750W ATX 80plus Bronze PSU 3yr wty
Features

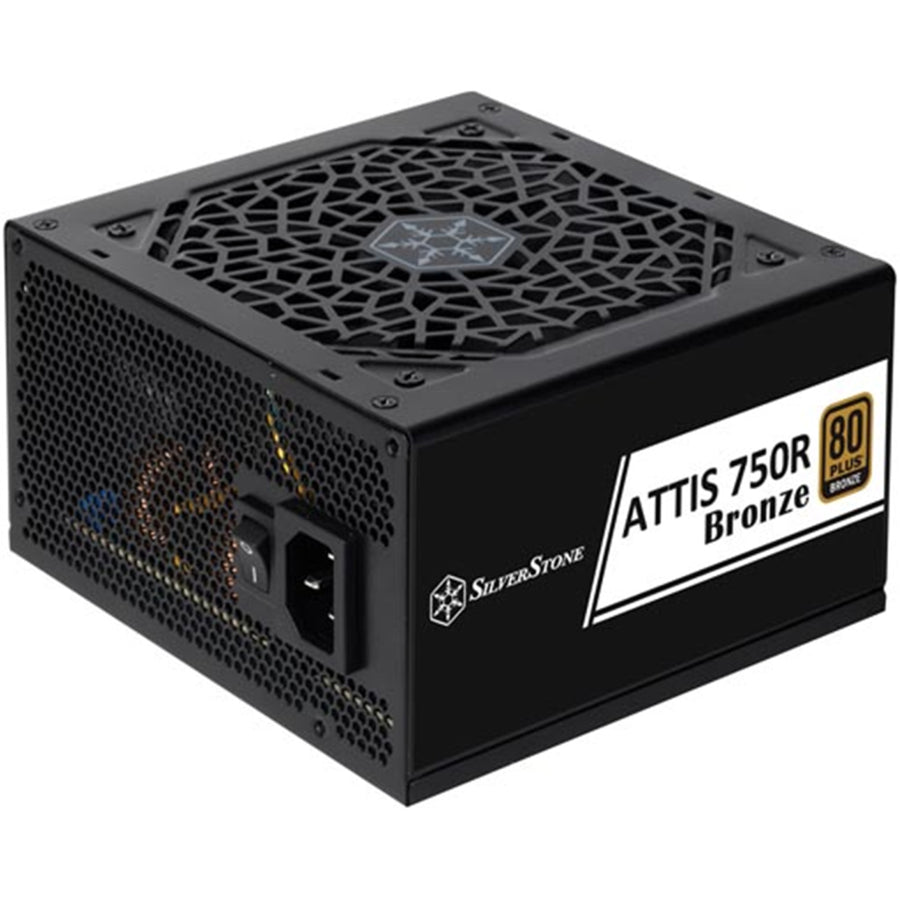

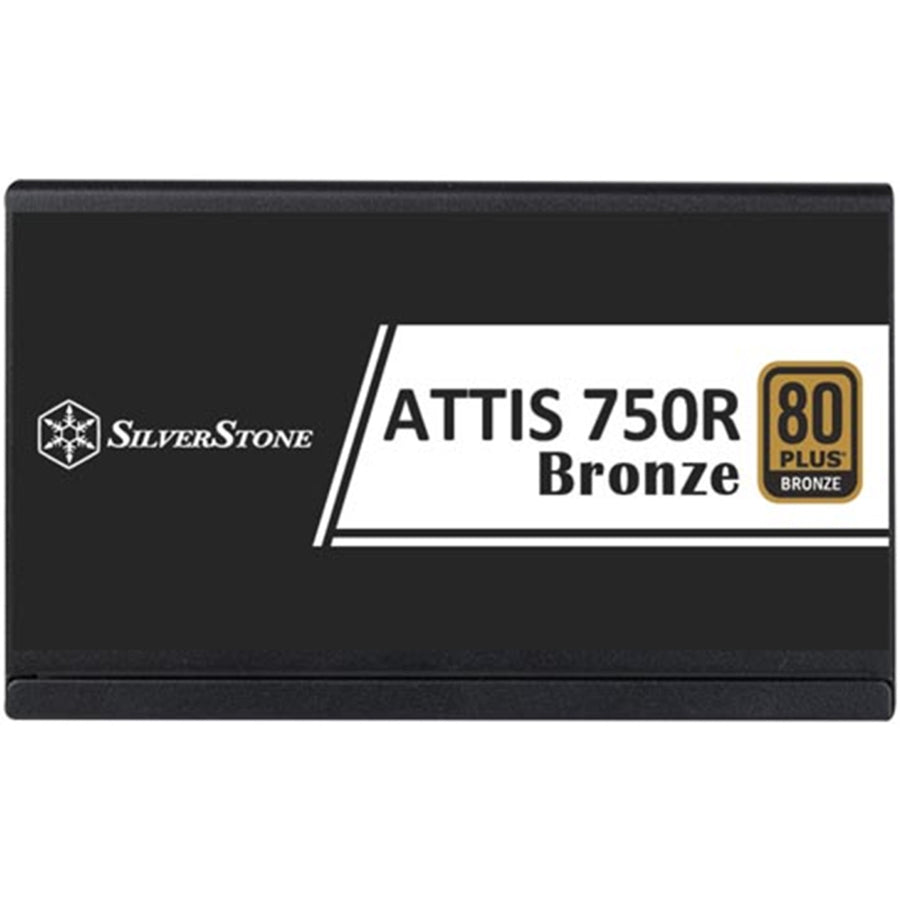

ATTIS 750R Bronze
80 PLUS Bronze 750W ATX 3.1 ATX Power Supply
- Compliant with ATX 3.1 standards and supports up to 2X power excursion
- High efficiency with 80 PLUS Bronze certification
- 24/7 continuous power output with 50C operating temperature
- Japanese primary capacitor
- Silent running 120mm fan with 18 dBA minimum
- Multiple protection circuitry
- All black flat cables
- Active PFC+Double forward+DC to DC Design

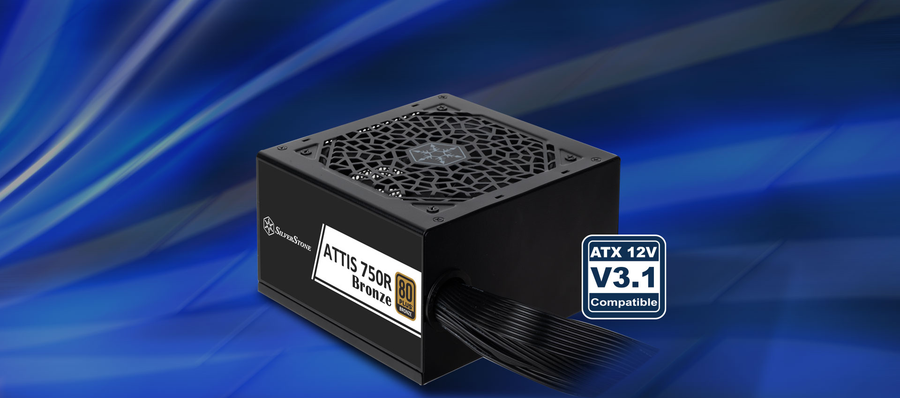

Compliant with ATX 3.1 standards and supports up to 2X power excursion

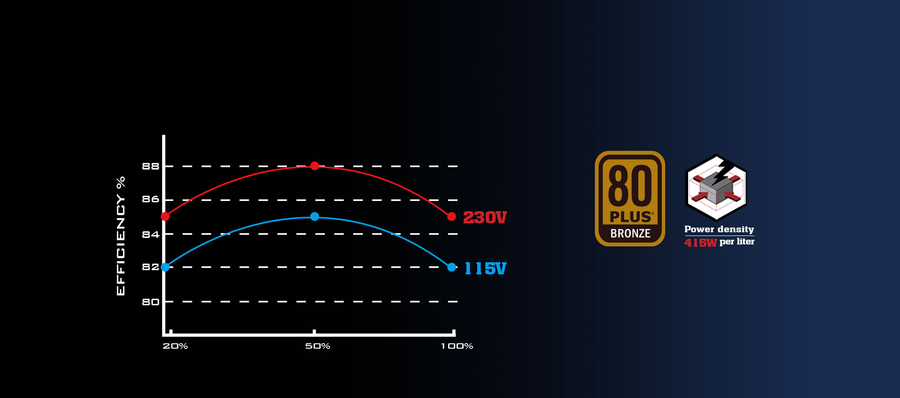

Bronze Efficiency Certified
Designed for 80 Plus Bronze level efficiency to minimize heat while considerably reducing electricity consumption.

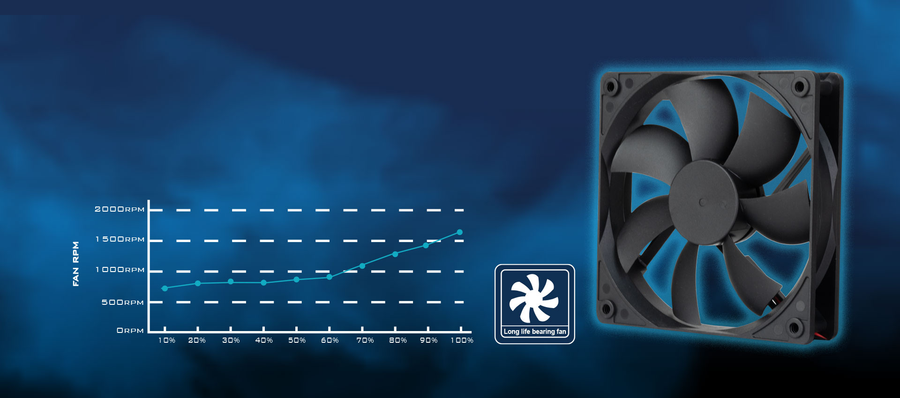

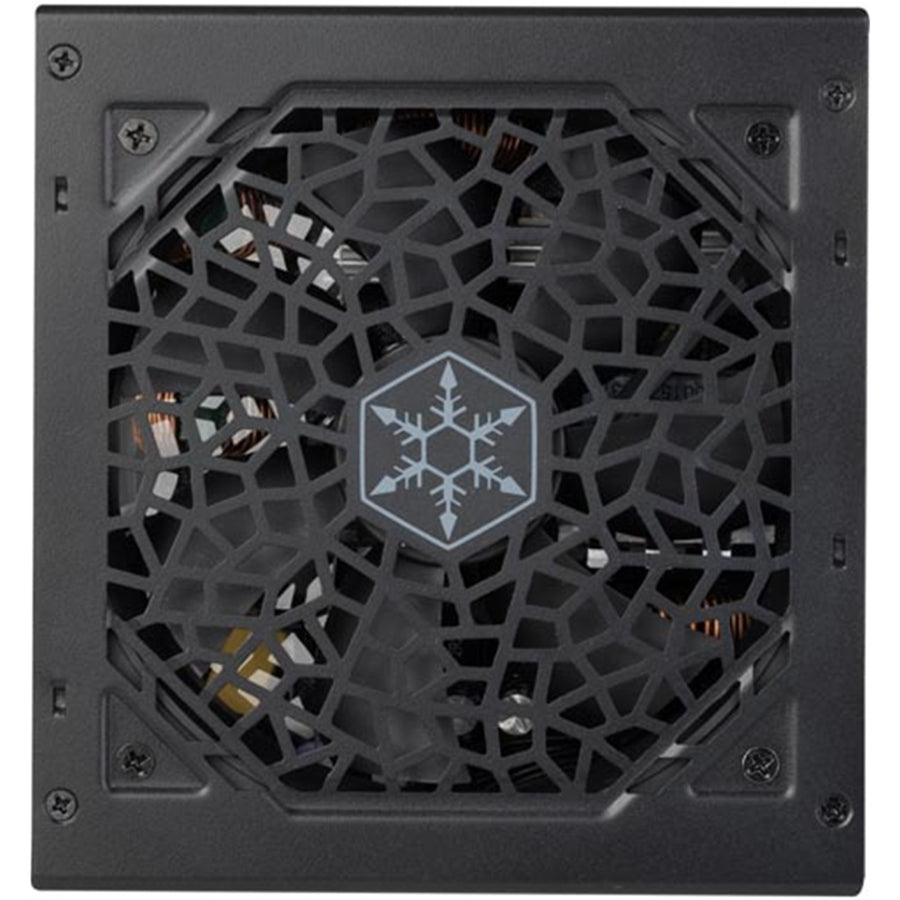

High Reliability Cooling Fan
The cooling is entrusted to a 120mm fan that offers exceptional airflow and low operational-induced noise level.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
Flat cables have much greater flexibility to allow for tighter folding and management of cables
Advanced protections for safety and security
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Product Specifications
Specifications
Technical Specifications
| Product No. | SST-AT750R-BF |
|---|---|
| Model (safety certification) | SST-AX0750FCBR-A |
| Color | Black (lead-free paint) |
| Max. DC Output | 750W |
| Load Range | Output +3.3V +5V +12V +5VSB -12VMax.(Amps) 20A 20A 62.5A 3A 0.3AMin.(Amps) 0A 0A 0A 0A 0ARange (%) ±5% ±5% +5~-7% ±5% ±10%Line Reg.(%) ±1% ±1% ±1% ±1% ±1%Ripple(mVp-p) 50mV 50mV 120mV 50mV 50mV |
| Combined +3.3V & +5V | 100W |
| Combined +12V | 750W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | 82% ~ 85% (at 20% ~ 100% loading) |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 50°C |
| Protection | Over Power ProtectionOver Voltage ProtectionShort Circuit ProtectionUnder Voltage Protection |

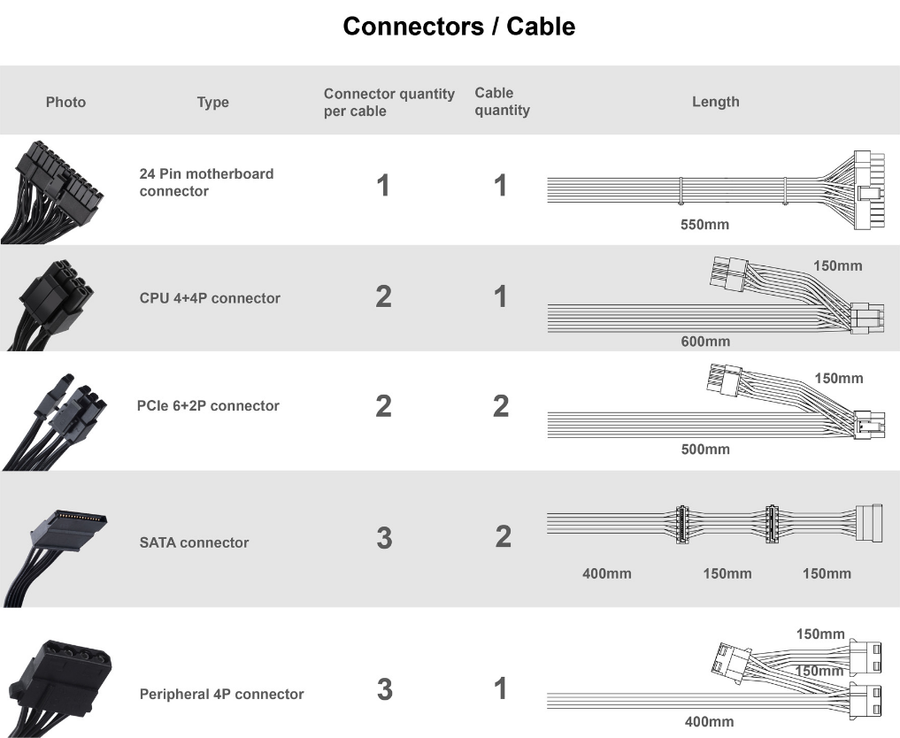

| Connectors | 1 x 24 / 20-Pin motherboard connector2 x 4-Pin + 4-Pin ATX 12V connector4 x 8 / 6-Pin PCIe connector6 x SATA connectors3 x 4-Pin Peripheral connector |
| Cooling System | Silent 120mm fan |
| Noise Level | 18 dBA minimum |
| Certification | 80 PLUS Bronze |
| Form factor | ATX (PS2) |
| Dimension | 150mm (W) × 86mm (H) × 140mm (D) |
| Weight | 1.54 kg |
