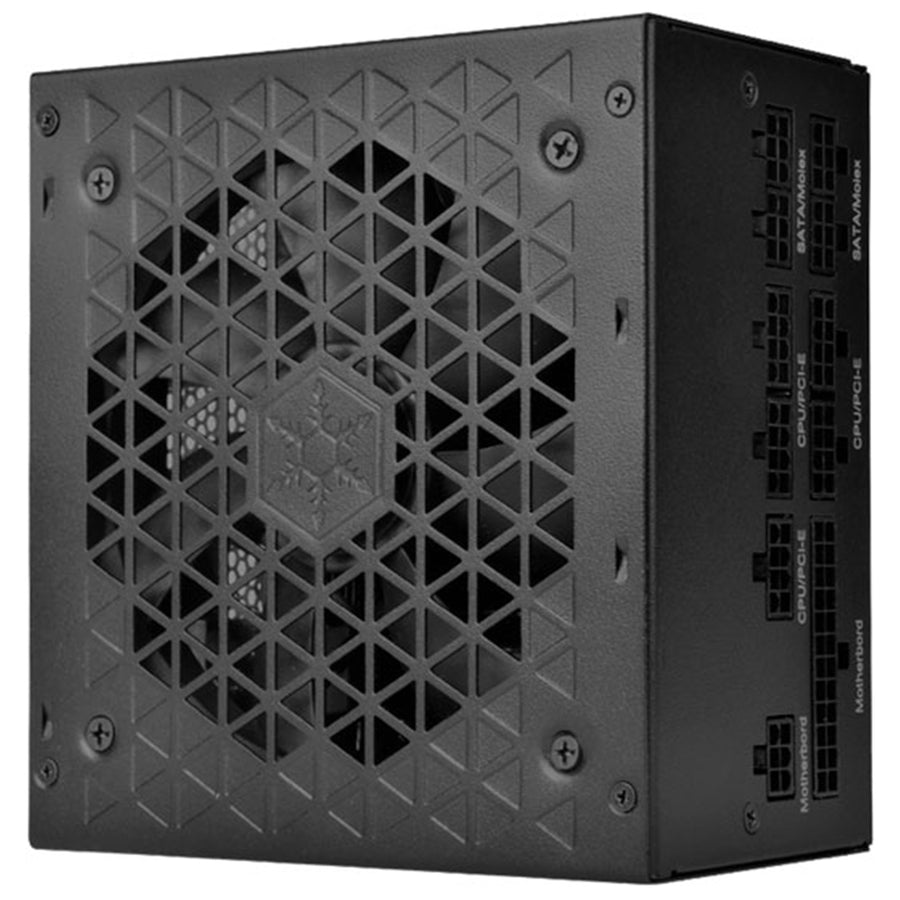

SST-DA650-G - Silverstone DA650-G Gold 650W Modular ATX PSU 3yr wty
SST-DA650-G - Silverstone DA650-G Gold 650W Modular ATX PSU 3yr wty
Features

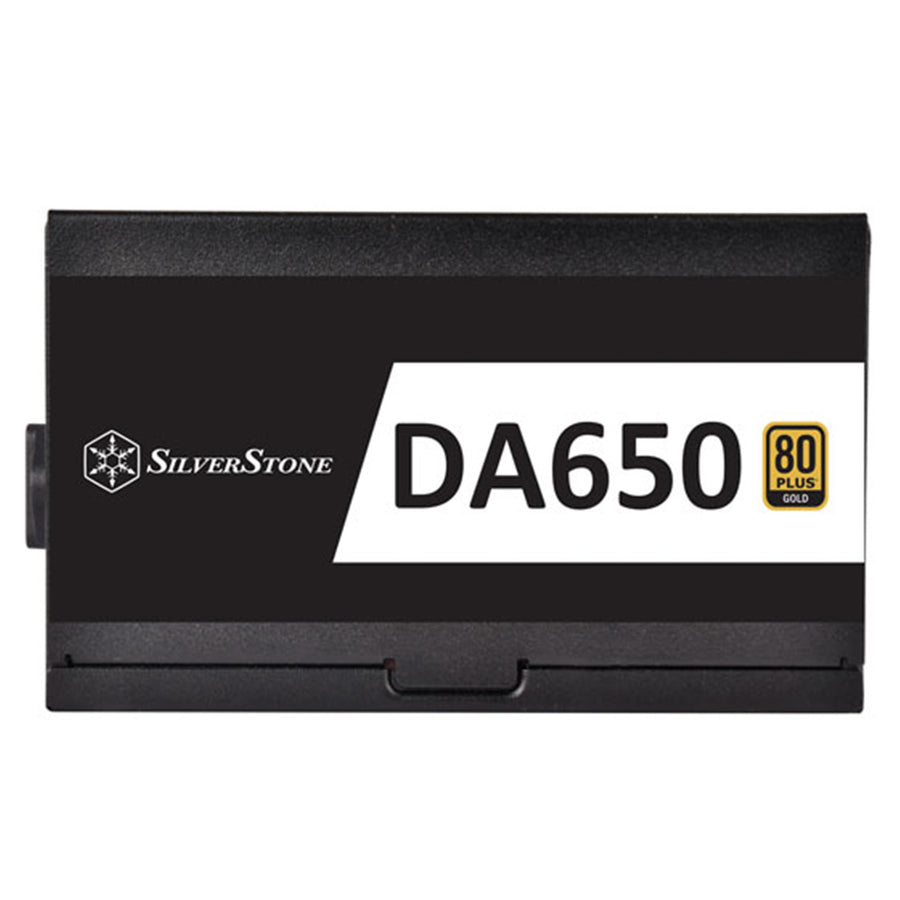

DA650 Gold
80 PLUS Gold 650W fully modular ATX power supply
- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 40? operating temperature
- Class-leading single +12V rail
- Silent running 120mm FDB fan with 18 dBA minimum
- Japanese electrolytic capacitors
- Specially designed cover increases effectiveness of residual heat dissipation
- Compact design with a 140mm depth for easy integration
- Strict ±3% voltage regulation and low ripple & noise

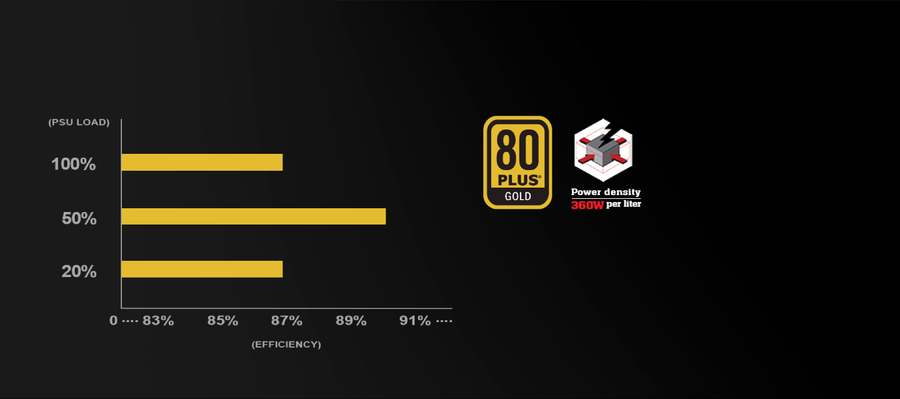

Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity

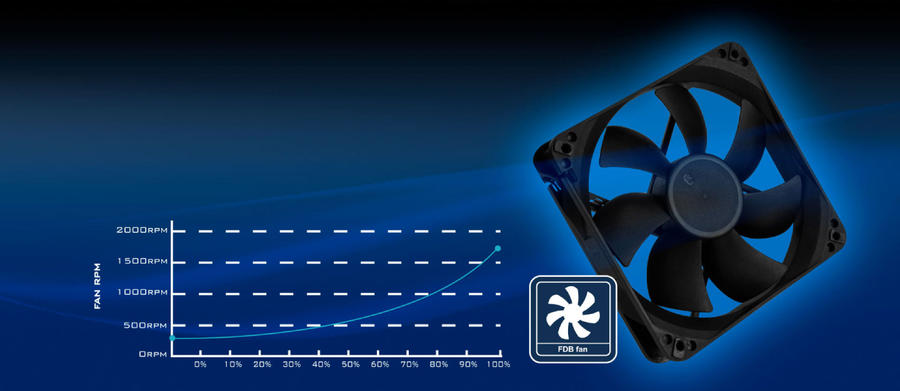

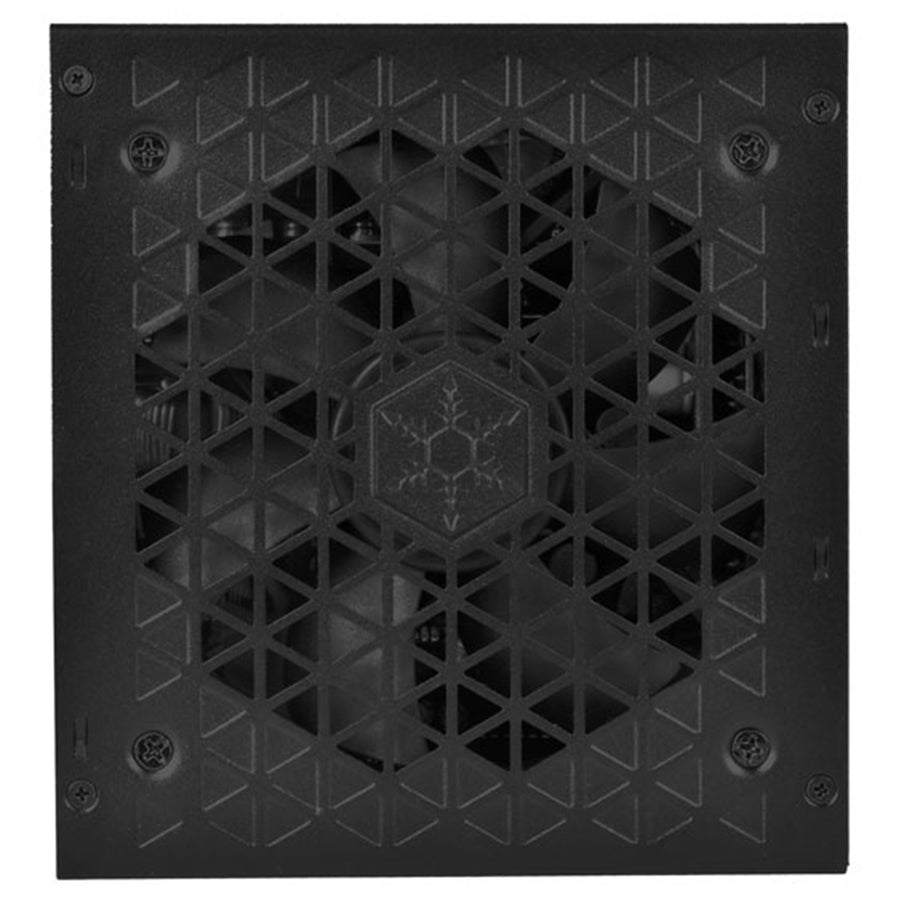

Built-in 120 mm fan has excellent airflow and low noise, perfect for quiet home or office use
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking

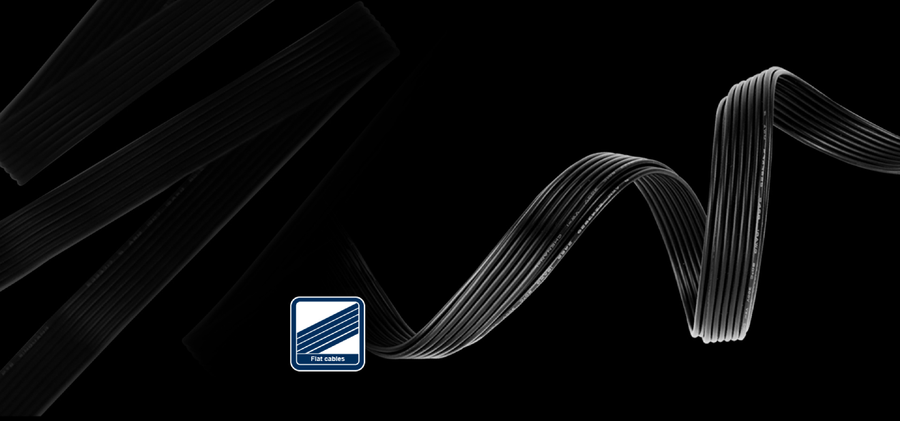

Flat cables have much greater flexibility to allow for tighter folding and management of cables

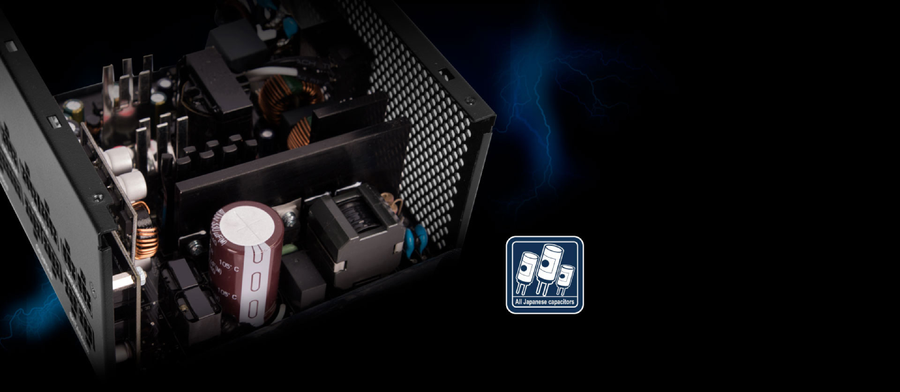

Japanese electrolytic capacitors
Specially designed cover designed to effectively dissipate the residual heat
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Over temperature protection

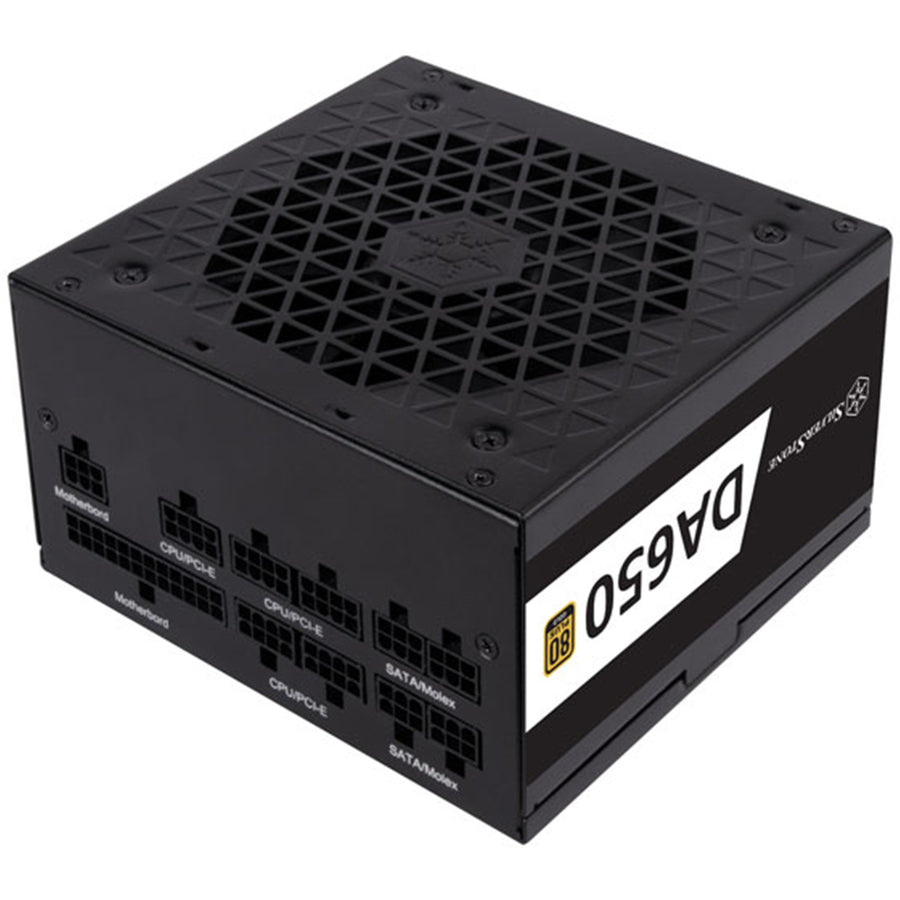

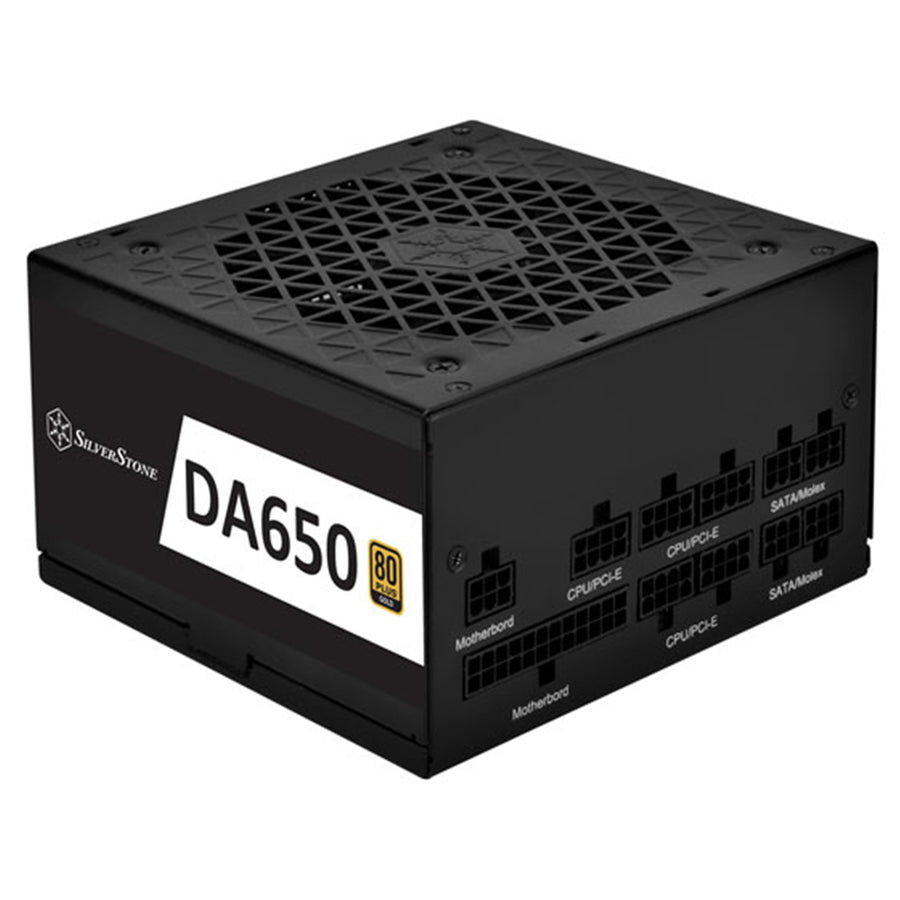

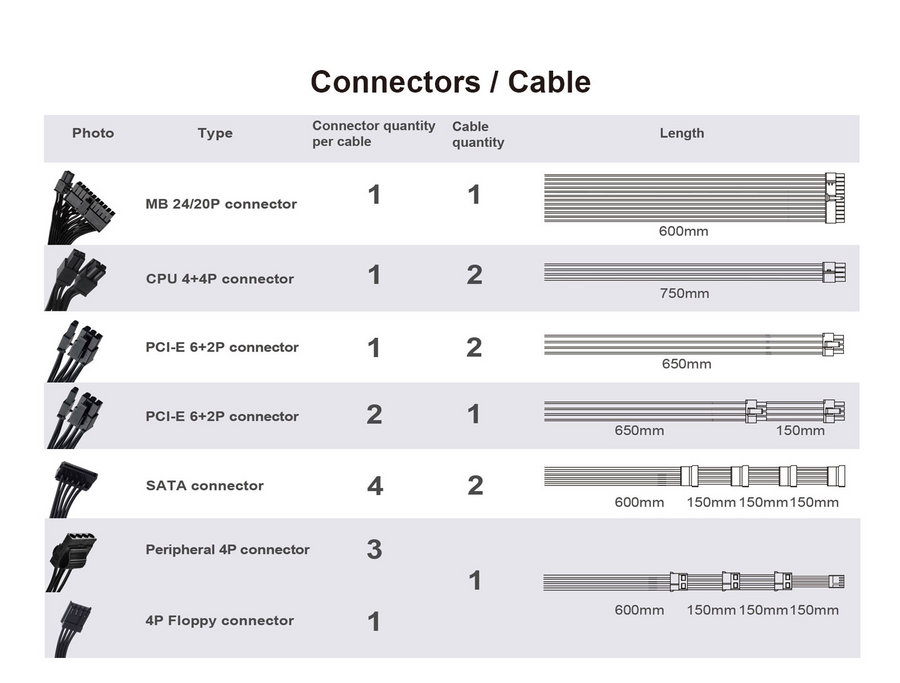

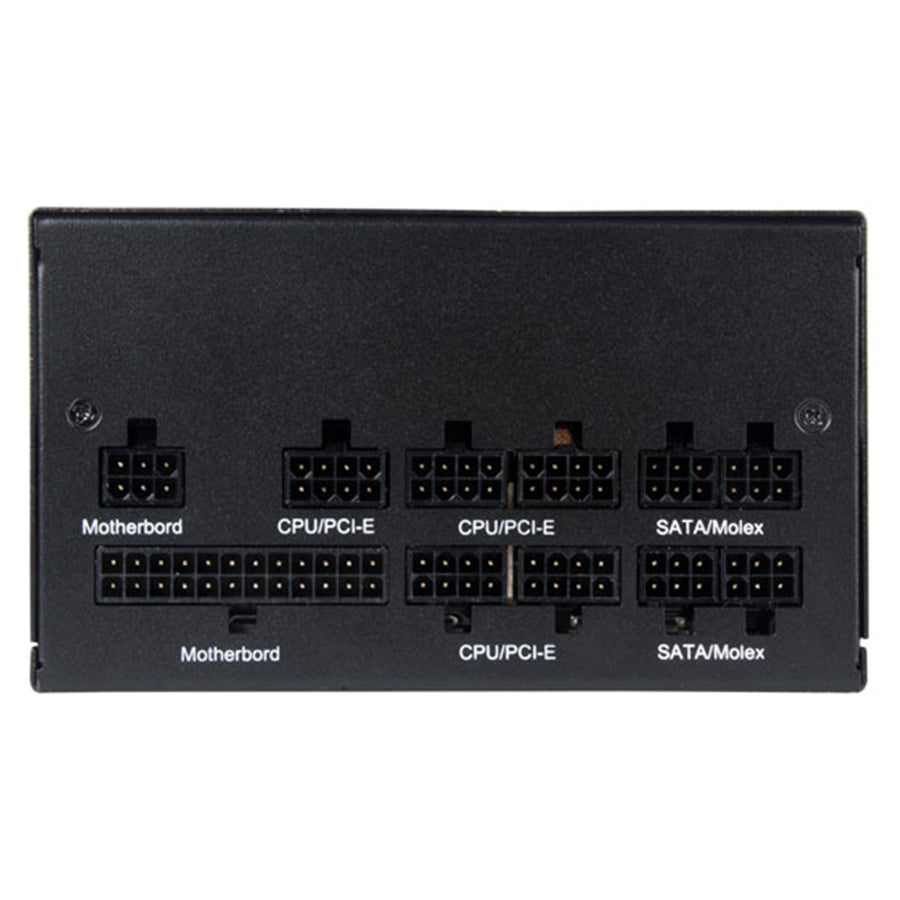

Connectors / Cable
Specifications
Technical Specifications
| Product No. | SST-DA650-G |
|---|---|
| Model (safety certification) | SST-AX0650MCGD-A |
| Color | black (lead-free paint) |
| Max. DC Output | 650W |
| Power density | 360W per liter |
| Load Range | Output +3.3V +5V +12V +5VSB -12VMax.(Amps) 20A 20A 54A 2.5A 0.3APeak (Amps) / / / / 3.0AMin.(Amps) 0A 0A 0A 0A 0ARange (%) ±3% ±3% ±3% ±3% ±10%Line Reg.(%) ±1% ±1% ±1% ±1% ±1%Ripple(mVp-p) 30mV 30mV 40mV 30mV 40mV |
| Combined +3.3V & +5V | 100W |
| Combined +12V | 648W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | 87% ~ 90% (at 20% ~ 100% loading) |
| MTBF | 100,000 hours |
| Operating temperature | 0 ~ 40°C |
| Protection | Over current protectionOver power protectionOver voltage protectionShort circuit protectionOver temperature protection |

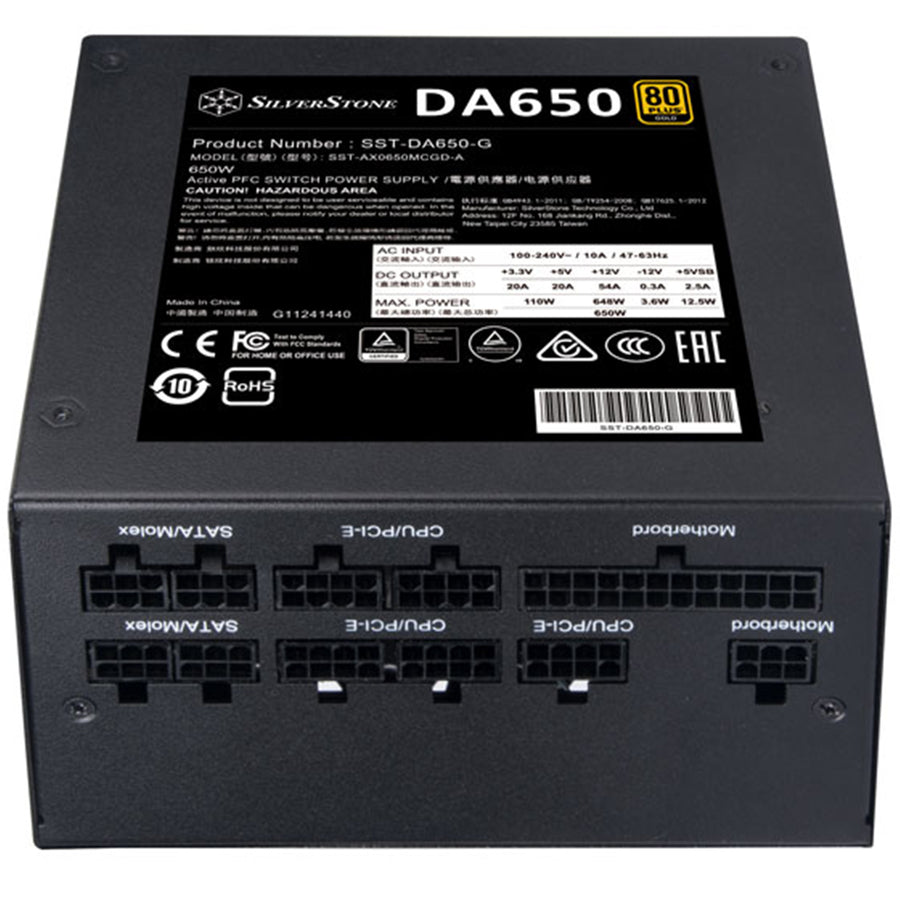

| Connectors | 1 x 24 / 20-Pin motherboard connector (600mm)2 x 8 / 4-Pin EPS / ATX 12V connector ("750mm" x 2)2 x 8 / 6-Pin PCIe connector ("650mm" x 2)2 x 8 / 6-Pin PCIe connector ("650mm / 150mm")8 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 2)3 x 4-Pin Peripheral connector + 1 x 4-Pin Floppy adapter connector (600mm / 150mm / 150mm / 150mm) |
| Cooling System | Silent 120mm FDB fan |
| Noise Level | 18 dBA minimum |
| Certification | 80 PLUS Gold |
| Form factor | ATX (PS2) |
| Dimension | 150mm (W) x 86mm (H) x 140mm (D) |
| Weight | 1.42 kg |
