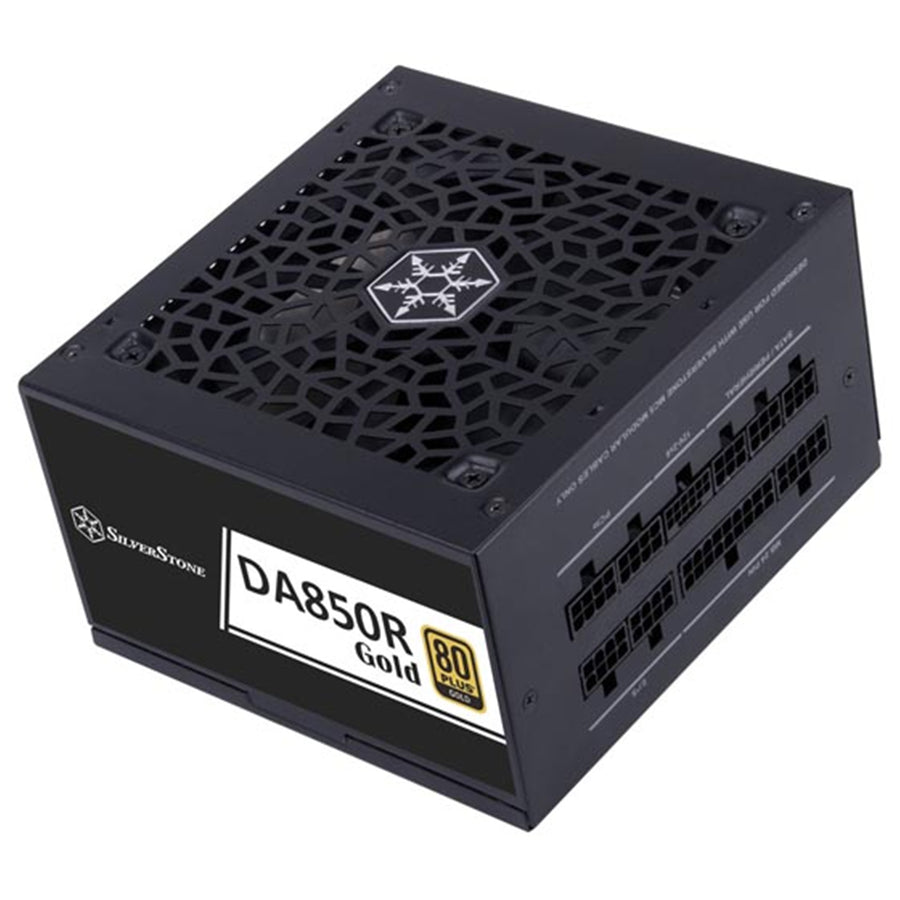

SST-DA850R-GMA - Silverstone DA850-GMA Decathlon Gold Gen5 850W Modular ATX PSU 5yr wty
SST-DA850R-GMA - Silverstone DA850-GMA Decathlon Gold Gen5 850W Modular ATX PSU 5yr wty
Features

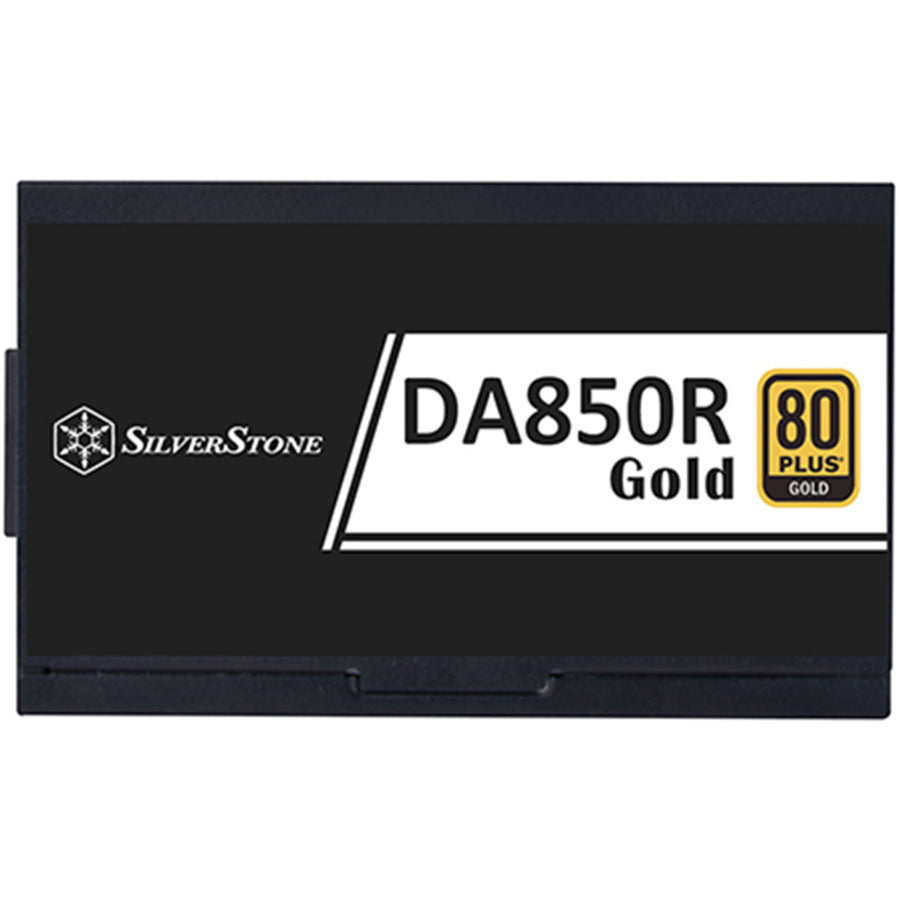

DA850R Gold
80 PLUS Gold 850W ATX 3.0 & PCIe 5.0 Fully Modular Power Supply
- 80 PLUS Gold efficiency certification
- Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel ATX 3.0 specification standard
- Latest PCIe Gen 5 standard to support up to 2X power excursion
- 24/7 continuous power output with 50C operating temperature
- Silent running 120mm fan with advanced semi-fanless operation
- Compact design with a 140mm depth for easy integration

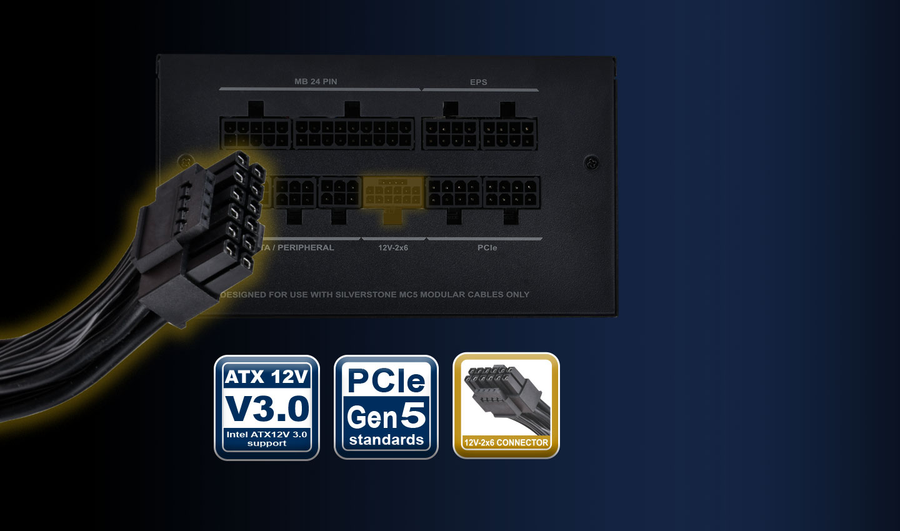

12V-2x6 PCIe connector supports ATX 3.0 specifications
The 12+4 pin (12V-2x6) design is capable of withstanding power failure caused by a running graphics card's instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems

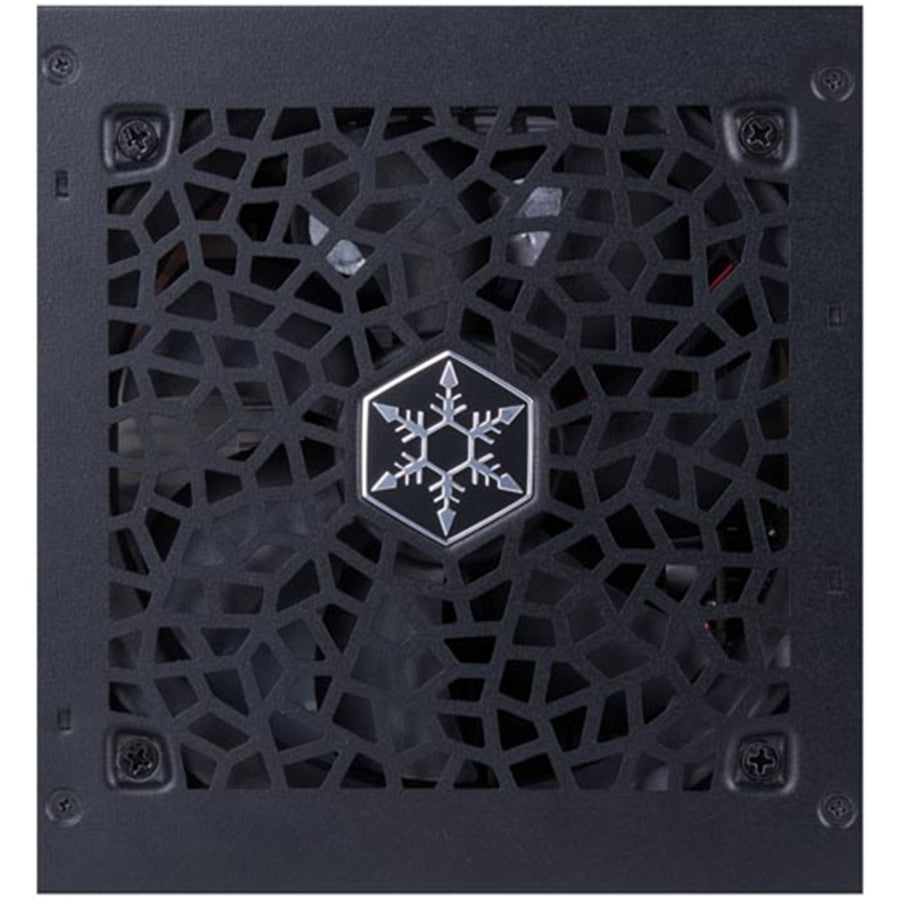

Specially designed cover designed to effectively dissipate the residual heat
Flat cables have much greater flexibility to allow for tighter folding and management of cables

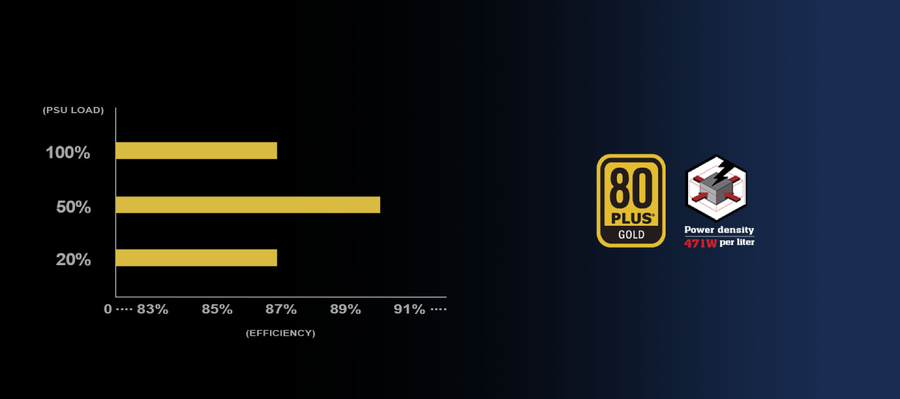

Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity

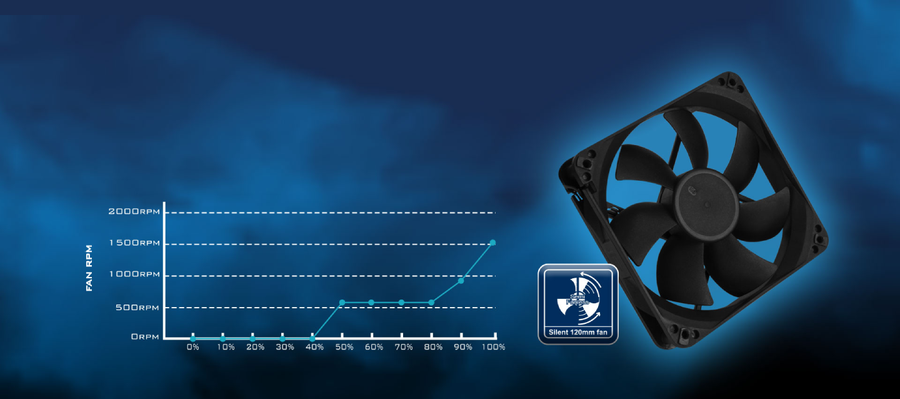

Silent running 120mm fan with advanced semi-fanless operation
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection
Specifications
Technical Specifications

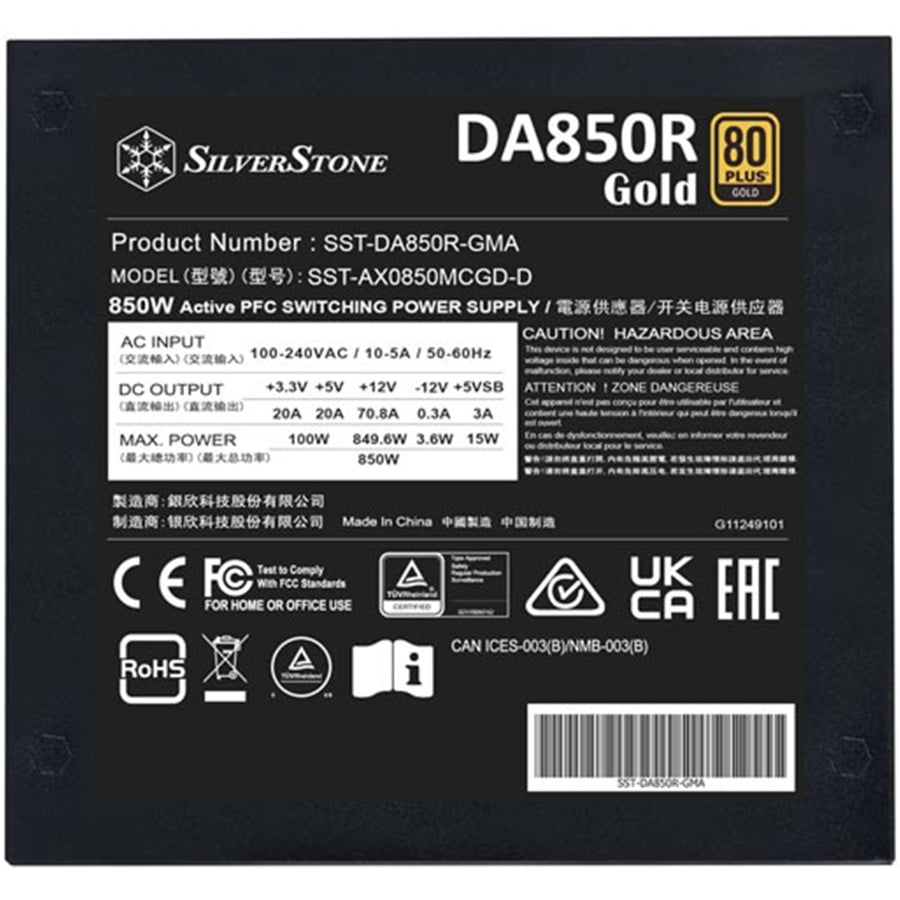

| Product No. | SST-DA850R-GMA (Black) |
|---|---|
| Model (safety certification) | SST-AX0850MCGD-D |
| Color | Black (lead-free paint) |
| Max. DC Output | 850W |
| Power density | 471W/L |
| Load Range | Output +3.3V +5V +12V +5VSB -12VMax.(Amps) 20A 20A 70.8A 3A 0.3AMin.(Amps) 0A 0A 0A 0A 0ARange (%) ±3% ±3% +5%-7% ±5% ±8%Line Reg.(%) ±1% ±1% ±1% ±1% ±1%Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV |
| Combined +3.3V & +5V | 100W |
| Combined +12V | 850W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | =87% & <89% |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 50°C |
| Protection | Over Current ProtectionOver Power ProtectionOver Voltage ProtectionShort Circuit ProtectionOver Temperature ProtectionUnder Voltage Protection |

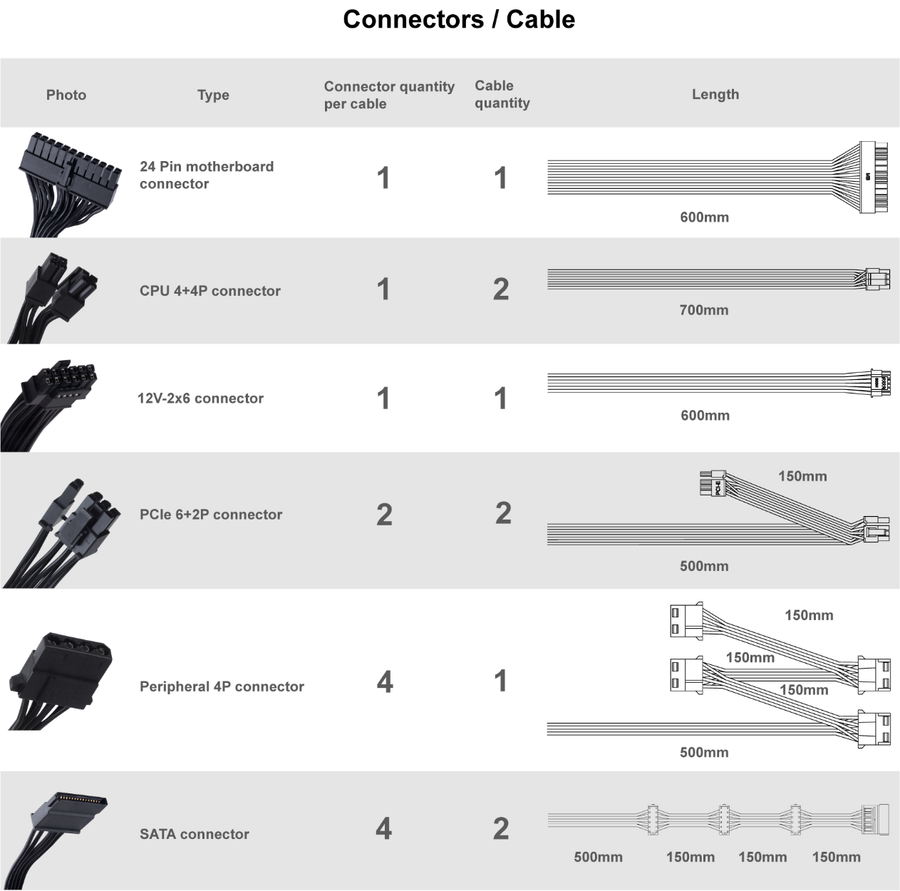

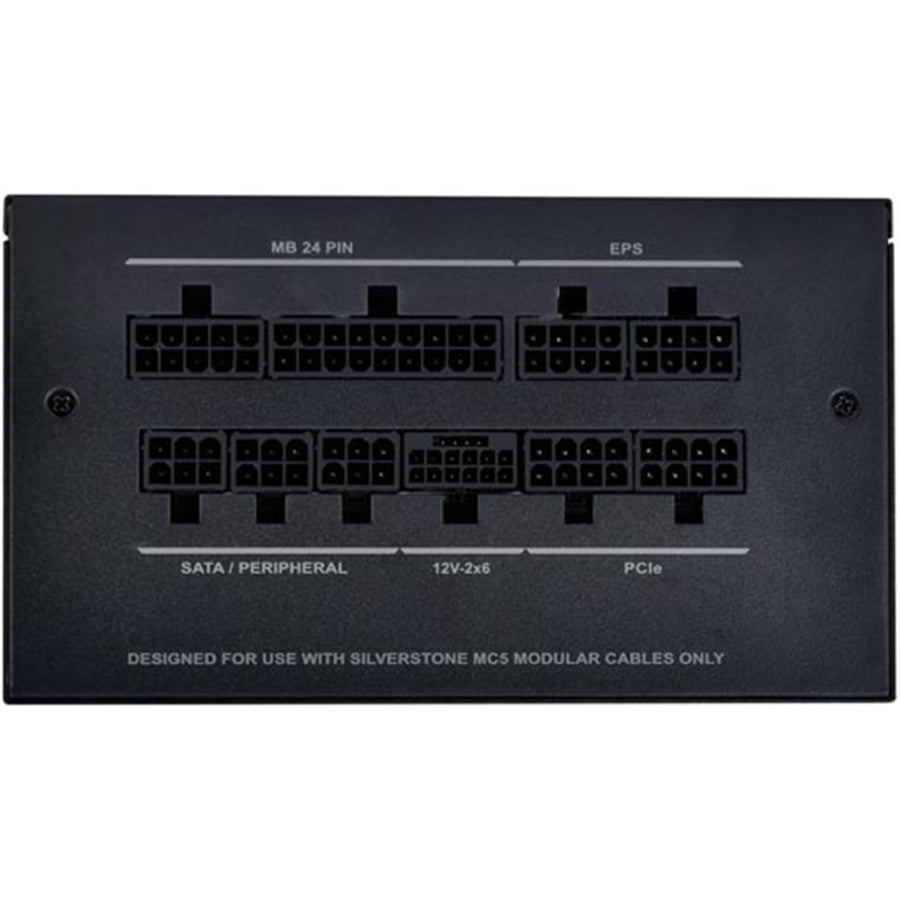

| Connectors | 1 x 24 / 20-Pin motherboard connector2 x 8 / 4-Pin EPS / ATX 12V connector4 x 8 / 6-Pin PCIe connectors1 x 12V-2x6 connector8 x SATA connectors4 x 4-Pin Peripheral connector* DA850R-GMA/ DA850R-GMA-WWW is not compatible with PP05-E and PP06 cables. |
| Cooling System | Silent 120mm fan |
| Noise Level | 0 dBA minimum |
| Certification | 80 PLUS Gold |
| Form factor | ATX (PS2) |
| Dimension | 150mm (W) × 86mm (H) × 140mm (D)5.91" (W) x 3.39" (H) x 5.51" (D) |
| Weight | 2.13 kg |
