Features

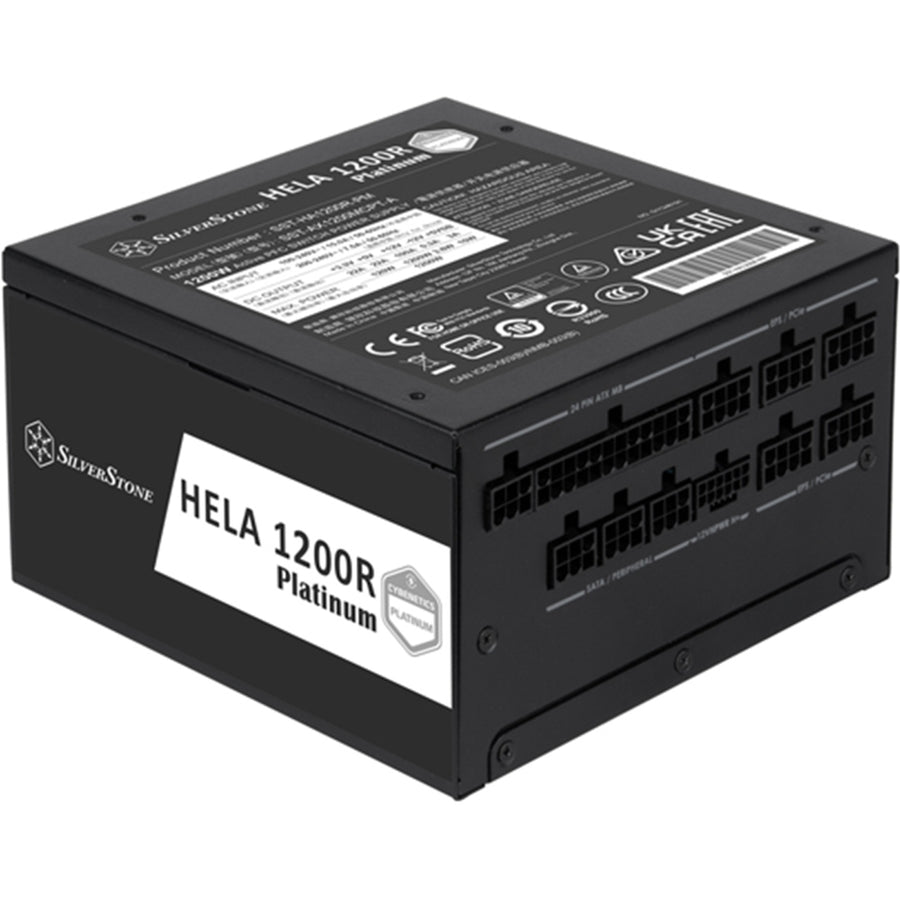

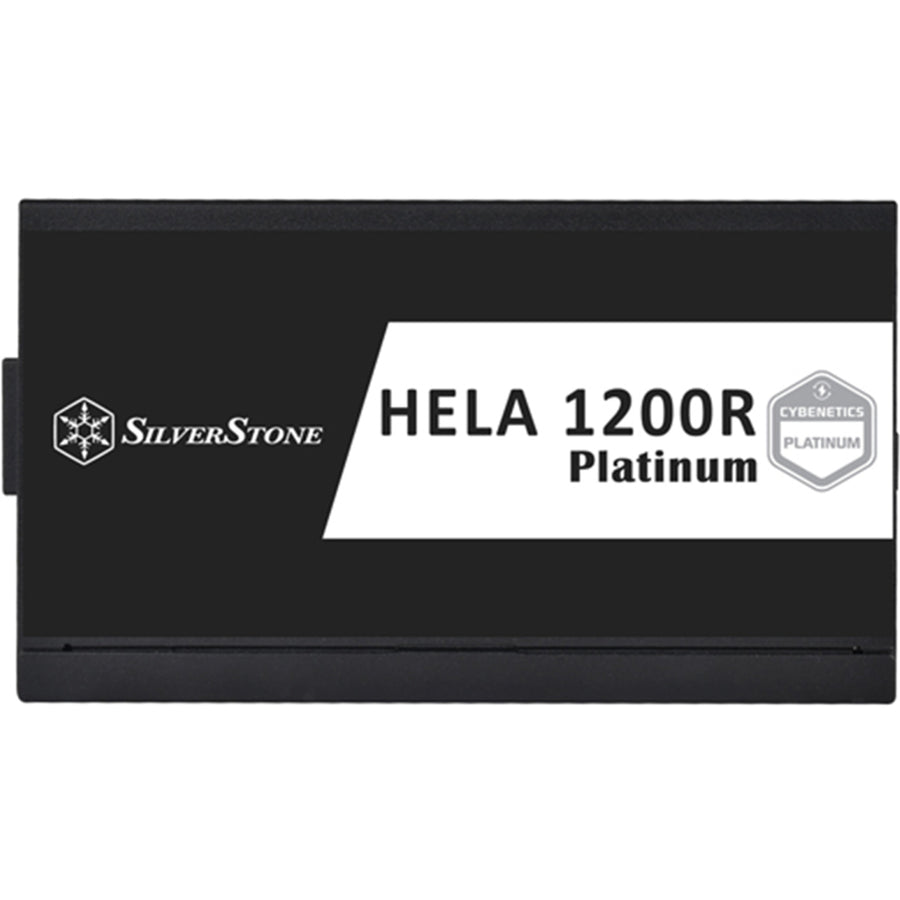

HELA 1200R Platinum
Cybenetics Platinum 1200W ATX 3.0 & PCIe 5.0 Fully Modular ATX Power Supply
- Equipped with Gen5 12VHPWR PCIe connector, meeting Intel ATX 3.0 specification standard
- Cybenetics Platinum efficiency certification
- 24/7 continuous power output with 50C operating temperature
- Fully Modular design
- All Japanese electrolytic capacitors

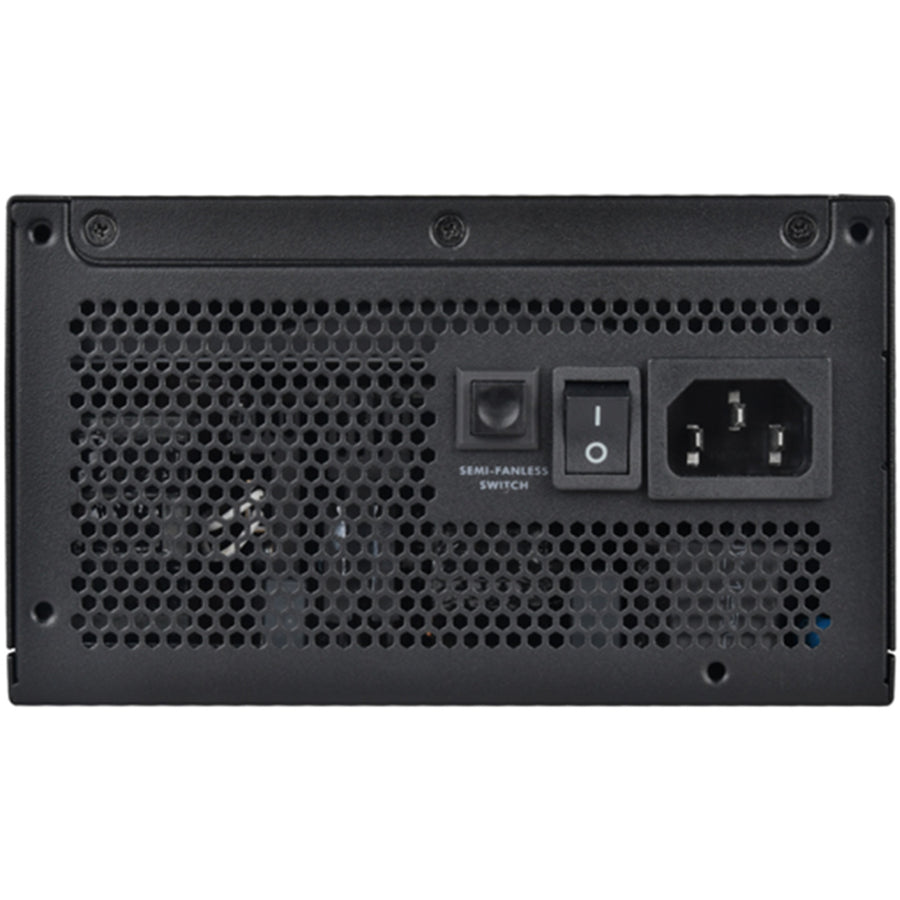

- Ultra silent 135mm FDB fan with semi-fanless function

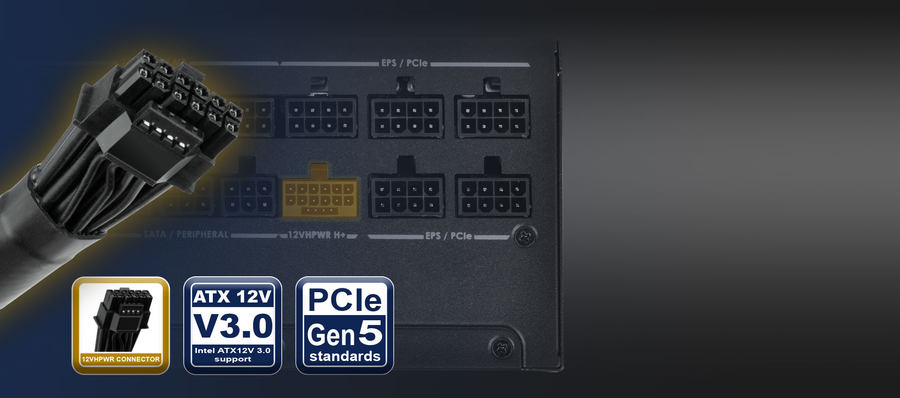

12VHPWR PCIe connector supports ATX 3.0 specifications
The 12+4 pin (12VHPWR) design is capable of withstanding power failure caused by a running graphics card's instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems

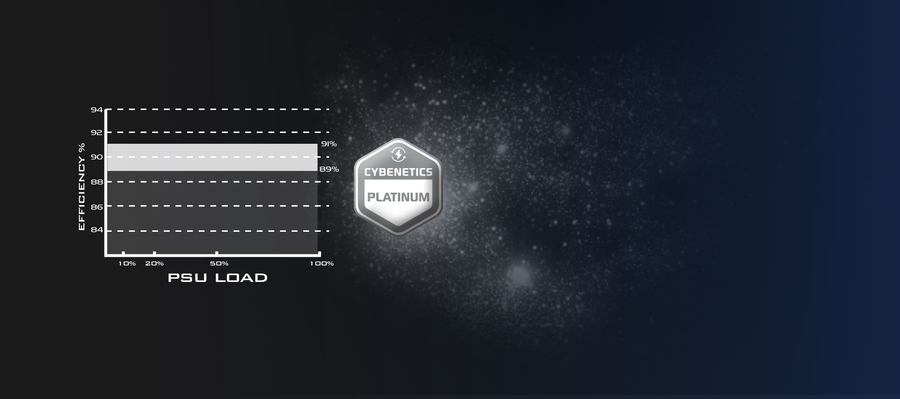

Cybenetics Platinum Certified
Designed for Cybenetics Platinum level of efficiency to reduce wasted heat and save on electricity

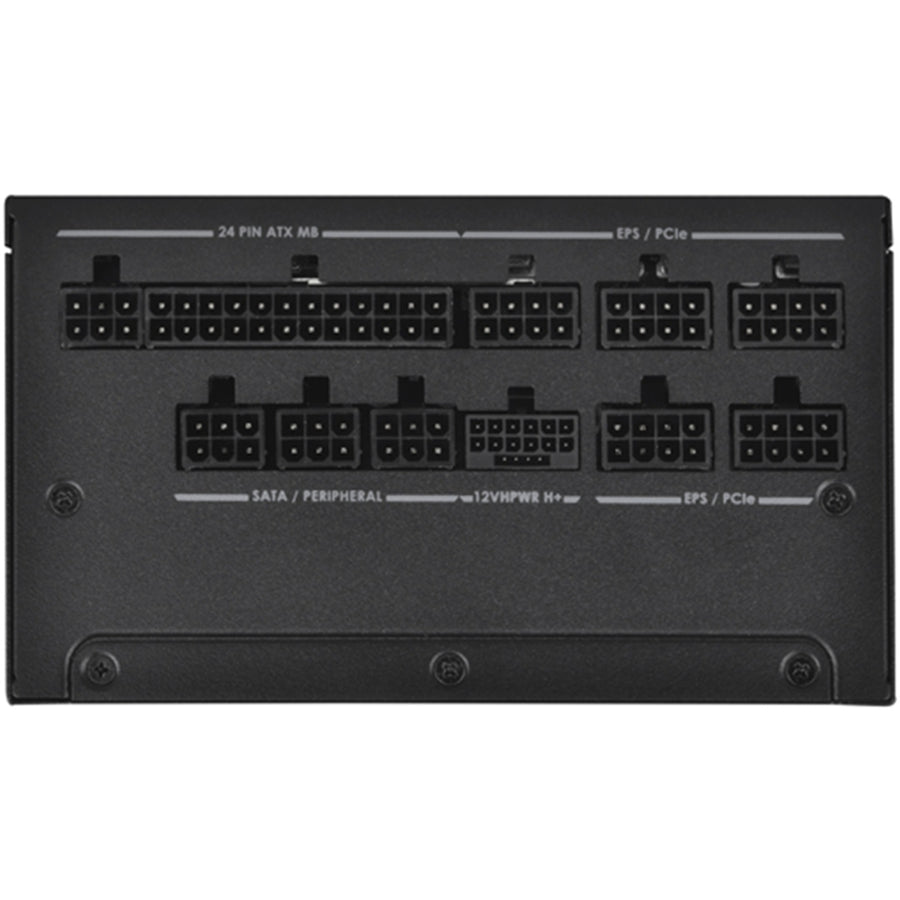

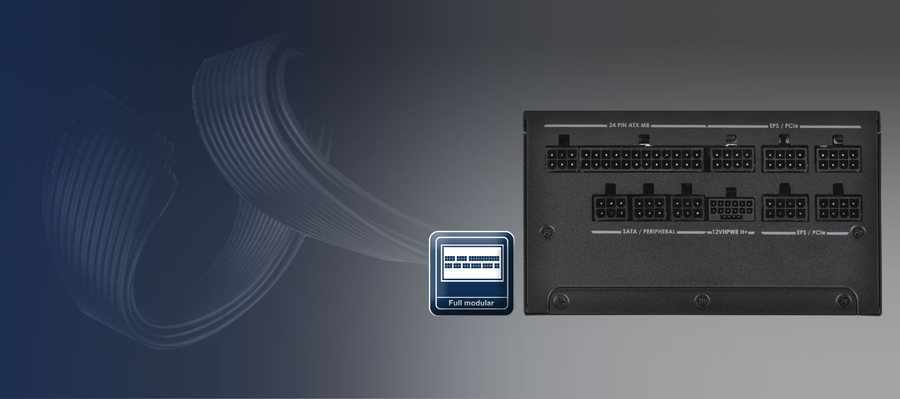

Fully modular design with universal EPS / PCIe connector interface
Flat cables have much greater flexibility to allow for tighter folding and management of cable

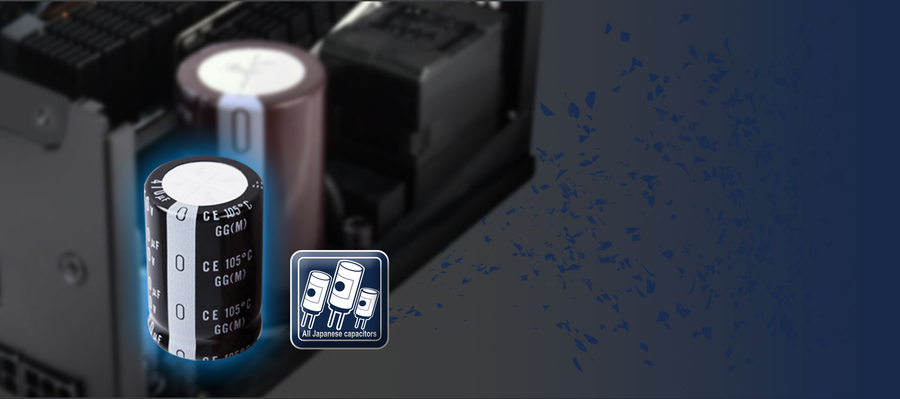

All Japanese electrolytic capacitors
Ensure reliable power and extended life span

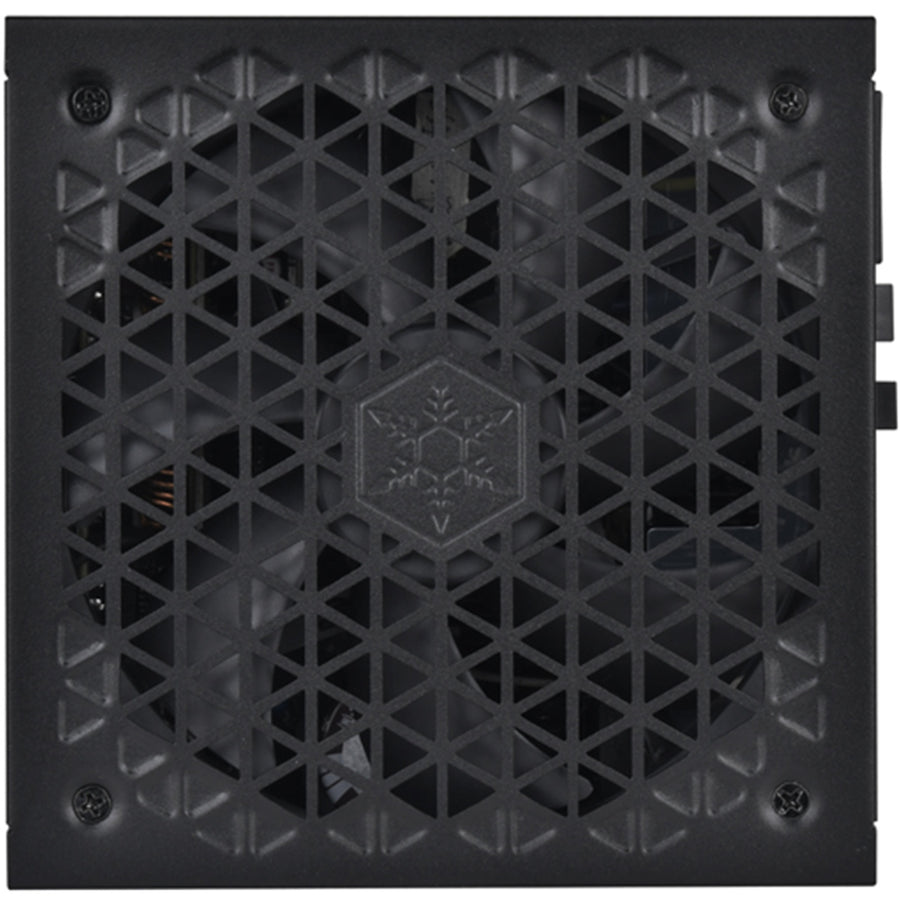

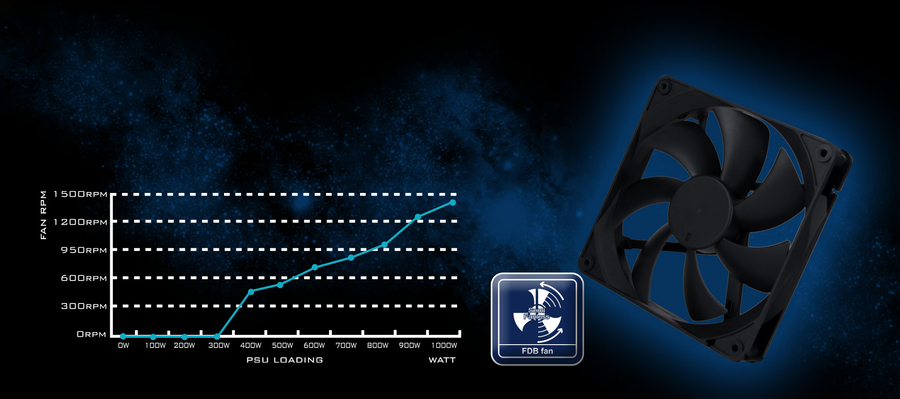

Silent 135mm FDB fan
Built-in 135 mm fan has excellent airflow and low noise, perfect for quiet home or office us
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection

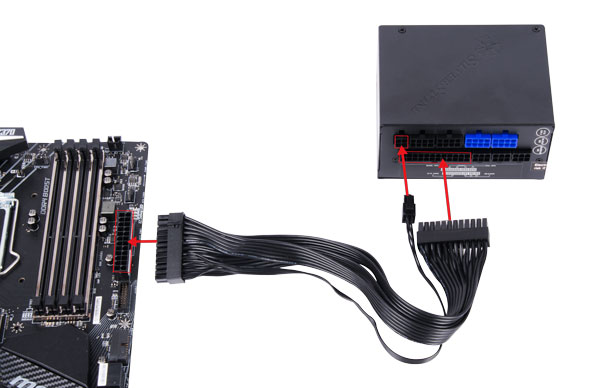

This PSU's motherboard connector includes a 6pin sense wire that needs to be connected to the PSU's modular interface as shown. Sense wire helps improve PSU's regulation performance by around 1%-2%.
Specifications
Technical Specifications
| Product No. | SST-HA1200R-PM |
|---|---|
| Model (safety certification) | SST-AX1200MCPT-A |
| Color | Black (lead-free paint) |
| Max. DC Output | 1200W |
| Power density | 620W per liter |

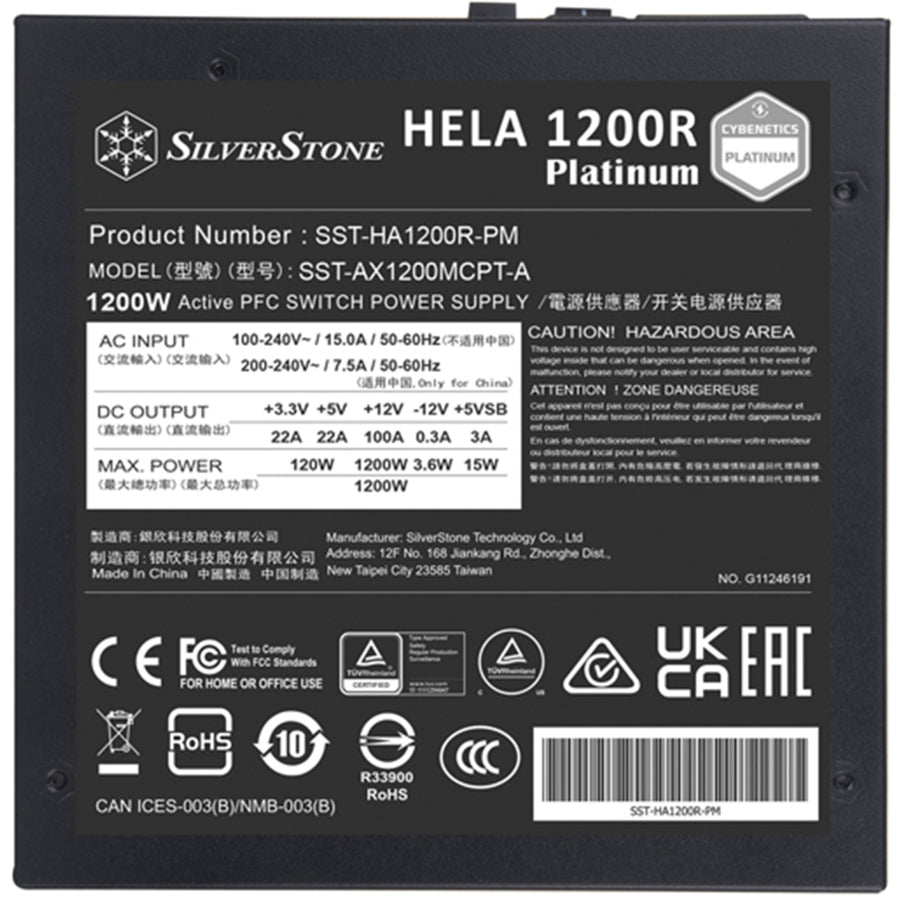

| Load Range | Output +3.3V +5V +12V +5VSB -12VMax.(Amps) 22A 22A 100A 2.5A 0.3AMin.(Amps) 0A 0A 0A 0A 0ARange (%) ±3% ±3% +5/-7% ±5% ±5%Line Reg.(%) ±1% ±1% ±1% ±1% ±1%Ripple(mVp-p) 30mV 30mV 70mV 40mV 40mV |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 1200W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | =87% & <89% overall efficiency |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 50°C |
| Protection | Over Current ProtectionOver Power ProtectionOver Voltage ProtectionShort Circuit ProtectionUnder Voltage ProtectionOver Temperature ProtectionNo load operation |

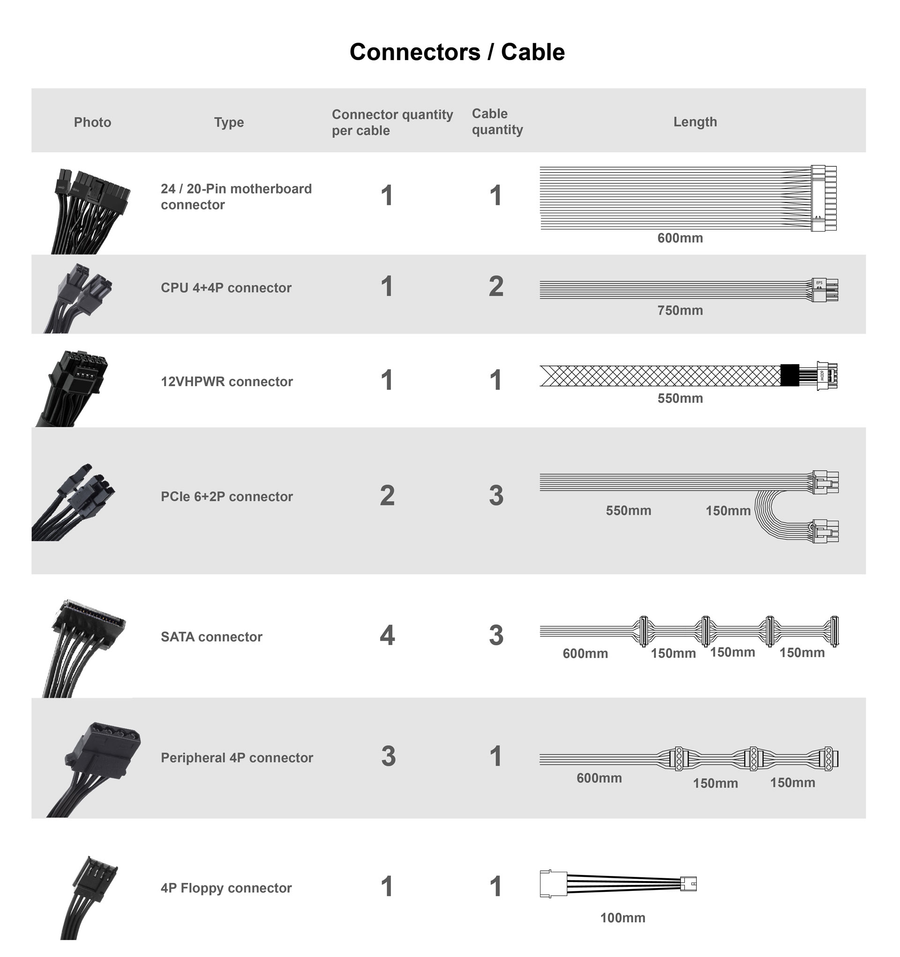

| Connectors | 1 x 24 / 20-Pin motherboard connector2 x 8 / 4-Pin EPS / ATX 12V connector6 x 8 / 6-Pin PCIe connectors1 x 12+4-Pin 12VHPWR connector12 x SATA connectors3 x 4-Pin Peripheral connector1 x 4-Pin Floppy connector |
| Cooling System | Silent 135mm FDB fan |
| Noise Level | 0 dBA minimum |
| Certification | Cybenetics Platinum |
| Form factor | ATX (PS2) |
| Dimension | 150mm (W) × 86mm (H) × 150mm (D)5.91" (W) x 3.39" (H) x 5.91" (D) |
| Weight | 2.9 kg |
