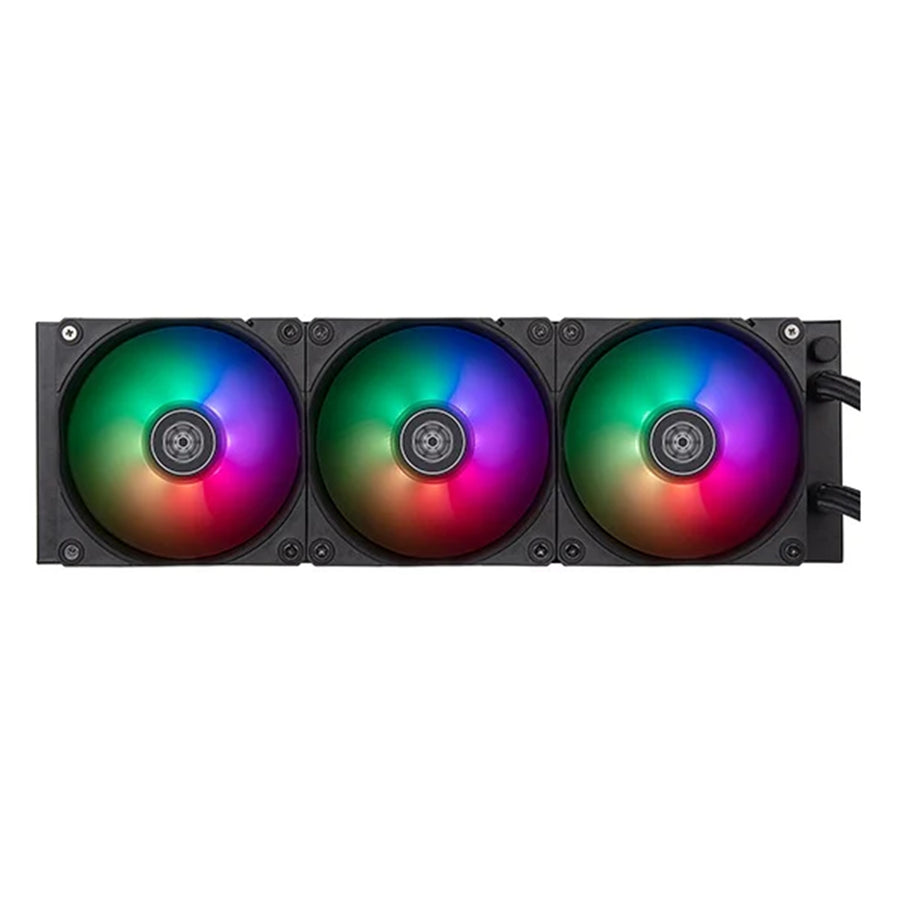

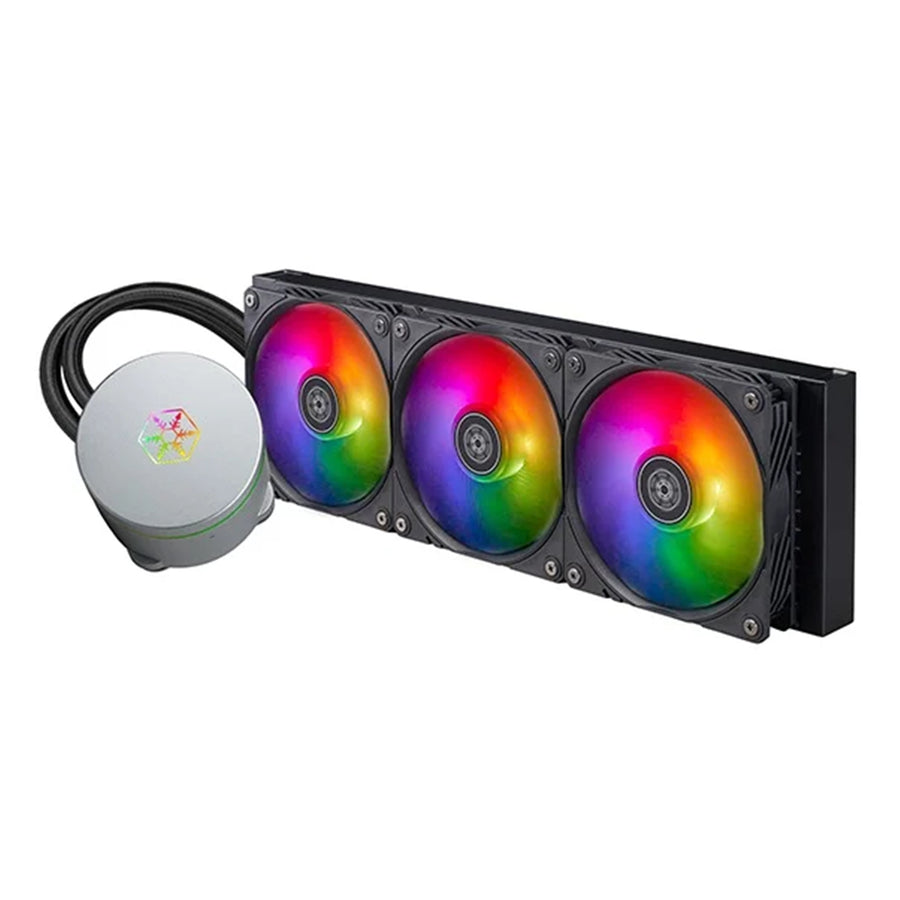

SST-IM360-ARGB - SilverStone IM360-ARGB IceMyst Liquid Cooler - Triple Fan 3yr wty
SST-IM360-ARGB - SilverStone IM360-ARGB IceMyst Liquid Cooler - Triple Fan 3yr wty
Features

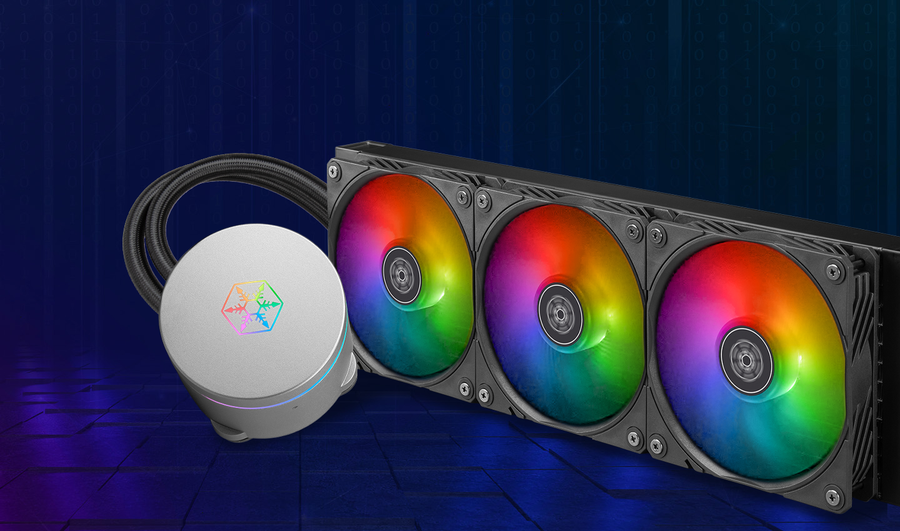

IceMyst 360
Premium All-In-One liquid cooler with ARGB lighting
- SilverStone's newly designed expandable water block features a seamless 360° rotatable top cover
- Modular cabling design greatly simplifies connection and management of cables
- Slight-convexed copper baseplate ensures firm contact with the processor
- Radiator-optimized cooling fans with tremendous airflow and static pressure figures
- Three-phase, six-pole motor design
- ARGB controller included with 10 lighting modes, along with adjustable brightness and color-changing speed

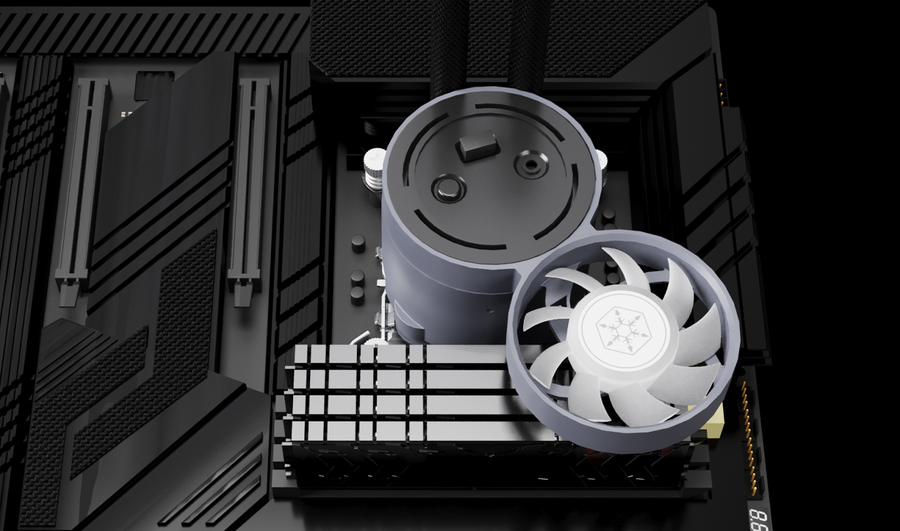

SilverStone's next-generation All-In-One water block
Unlike other AIOs on the market, where the water block acts solely as a housing for the pump, SilverStone's newly designed water block allows for the direct mounting of IMF70 ARGB fans on top of the pump housing while also being 360° rotatable. This innovation enables you to dedicate a single IMF70 ARGB exclusively to a specific hotspot on the motherboard.
Aesthetically pleasing lighting effects
IceMyst series features integrated ARGB lighting effects on the water block and fans, providing tasteful internal system lighting.

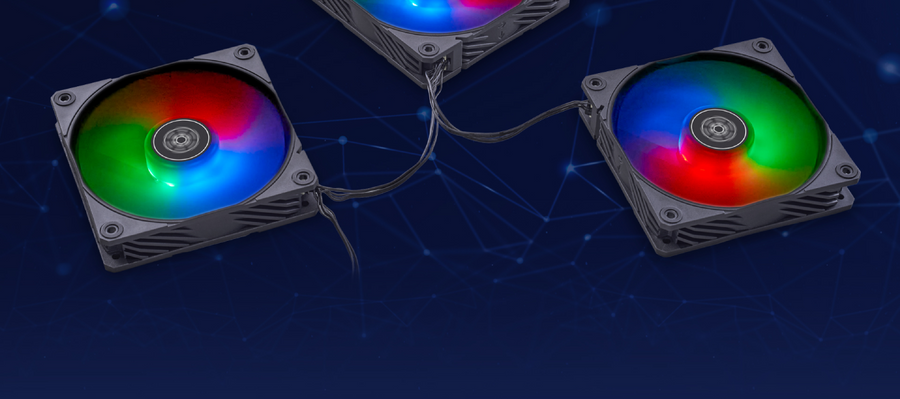

Straightforward connection / effortless cable management
Instead of connecting multiple fans to a fan hub, IceMyst series fans are designed with perfectly measured daisy-chain cables. This design allows for PWM and ARGB synchronization from one header to multiple fans, eliminating the need for long cable management routings.

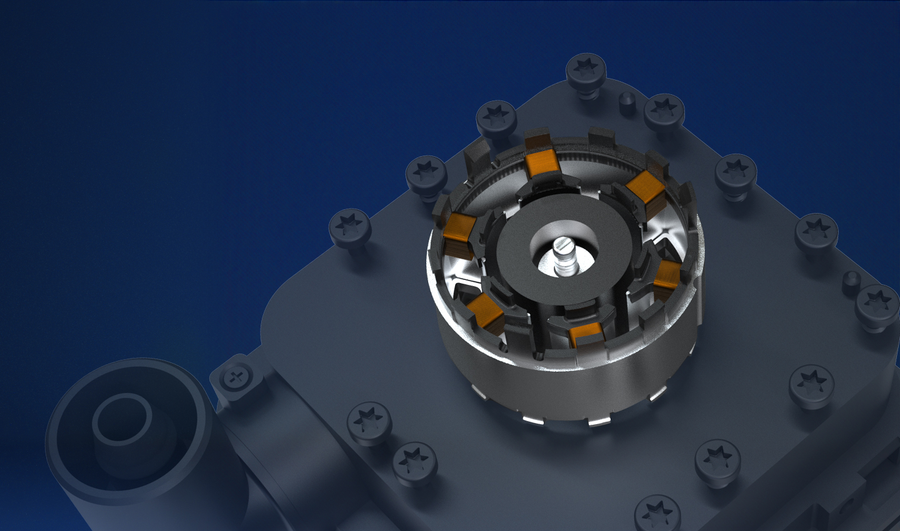

High-reliability pump
The pump motor utilizes a three-phase, six-pole design for smoother and quieter operation compared to the more common single-phase, four-pole design. Additionally, this design enhances energy efficiency.

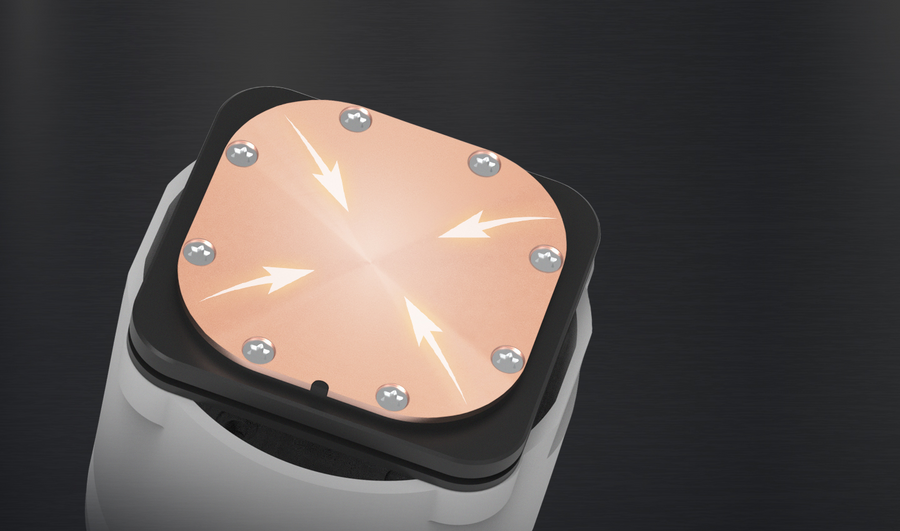

Slight-convexed copper baseplate ensures firm contact with the processor
Specifications
Technical Specifications
| Model No. | SST-IM360-ARGB |
|---|---|
| Application | Intel LGA 115X/1200/1700/1851/2011/2066AMD socket AM5/AM4 |
| Dimension | 73mm (W) x 70mm (H) x 84mm (D)2.87" (W) x 2.76" (H) x 3.31" (D) |
| Material | Copper base with plastic body |
| Motor speed | 3,100 ±10% RPM |
| Rated Voltage | 12V |
| Rated Current | 0.38A |
| Connectors | 2510 - 3 pin |
| Dimension | 120mm (W) x 28mm (H) x 396mm (D)4.72" (W) x 1.1" (H) x 15.6" (D) |
| Material | Aluminum |
| Length | 460mm |
| Material | Rubber |
| Dimension | 120mm (W) x 25mm (H) x 120mm (D)4.72" (W) x 0.98" (H) x 4.72" (D) |
| Speed | 500 ~ 2,200 RPM |
| Noise level | 12.1 ~ 33.1 dBA |
| Rated Voltage | 12V |
| Max airflow | 75.74 CFM |
| Max air pressure | 3.4mmH2O |
| Connector | 4 pin PWM & 4-1 pin ARGB (5V LED) |
| Remark | * Please ensure that the control box and the RGB port on the motherboard you wish to connect are compatible with the RGB port definition of the IM360-ARGB. An incorrect connection may result in malfunctions or damage. |
