StarTech.com 4 Port Industrial USB 3.0 Hub - Metal
You May Also Like
SATECHI Aluminium Pro Power Delivery Hub with Ethernet for USB-C - Space Gray
Features
Increase USB scalability in industrial environments, product and repair labs, conference rooms or office workstations, using this 4-Port Industrial USB Hub.
Functional in Harsh Environments
This industrial USB hub delivers reliable performance in harsh environments with its heavy-duty, metal housing.
Perfect for factory environments, the rugged hub features ESD/surge protection to each USB port, which aids in preventing damage to any connected devices.
Mount to a Wall, Desk or DIN-Rail

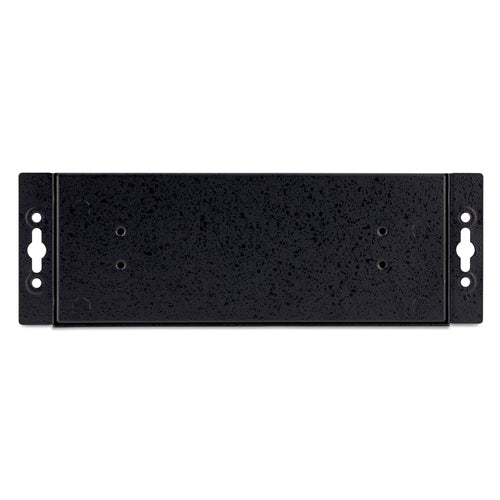

Install the hub where it's best suited for your application. Securely mount the hub to a variety of surfaces, including a wall, desk, or rack, using the built-in mounting brackets and included hardware.
Connect and Charge USB Devices

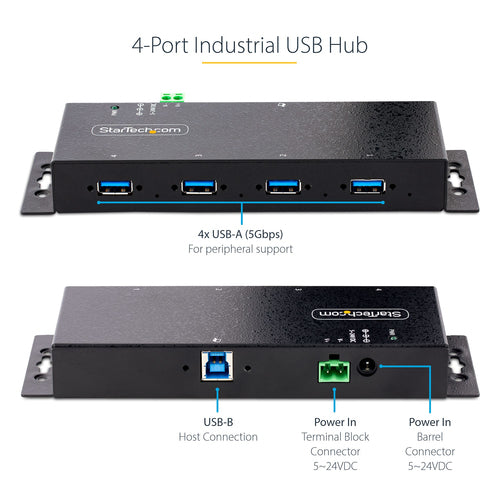

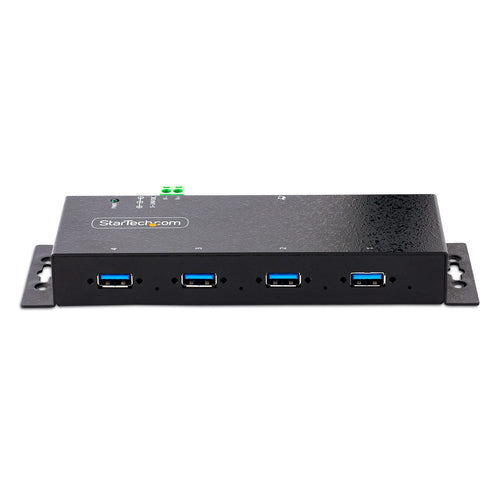

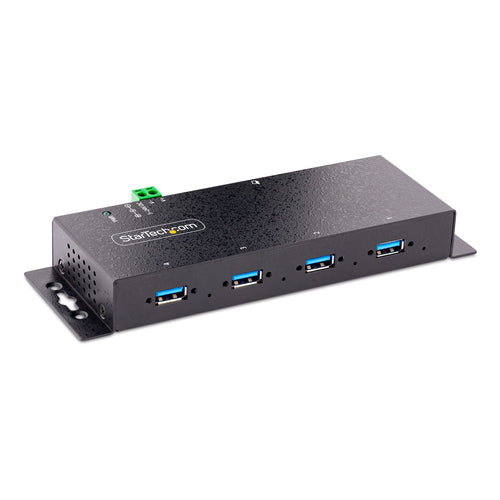

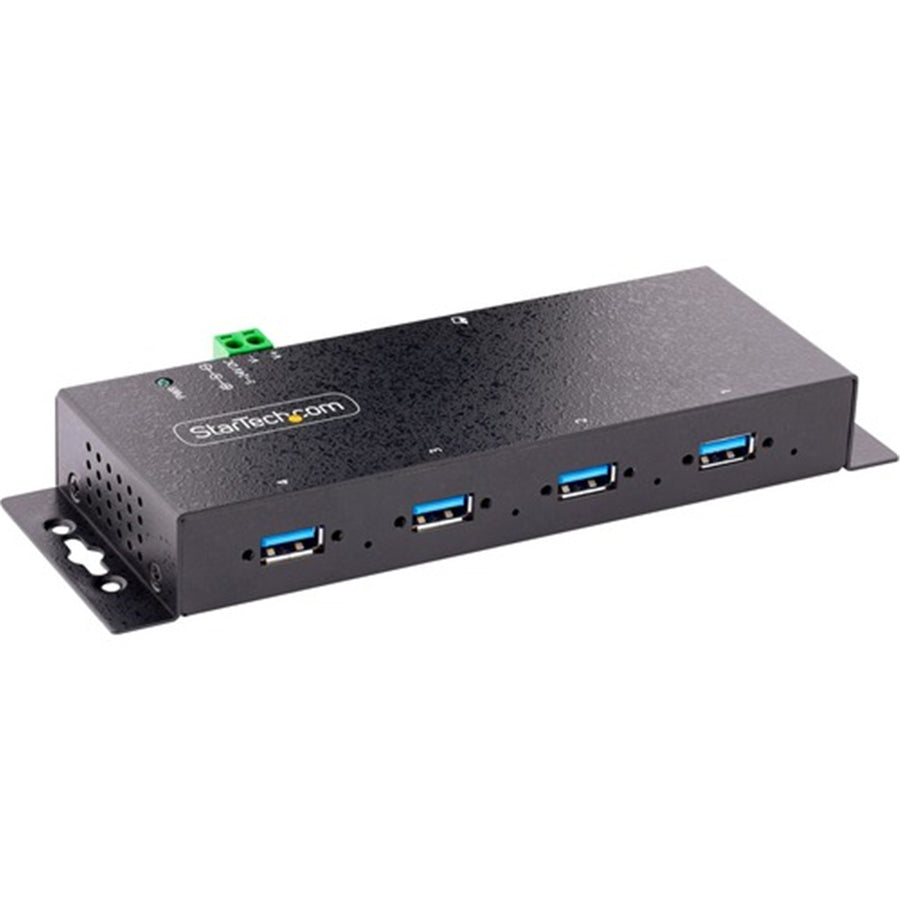

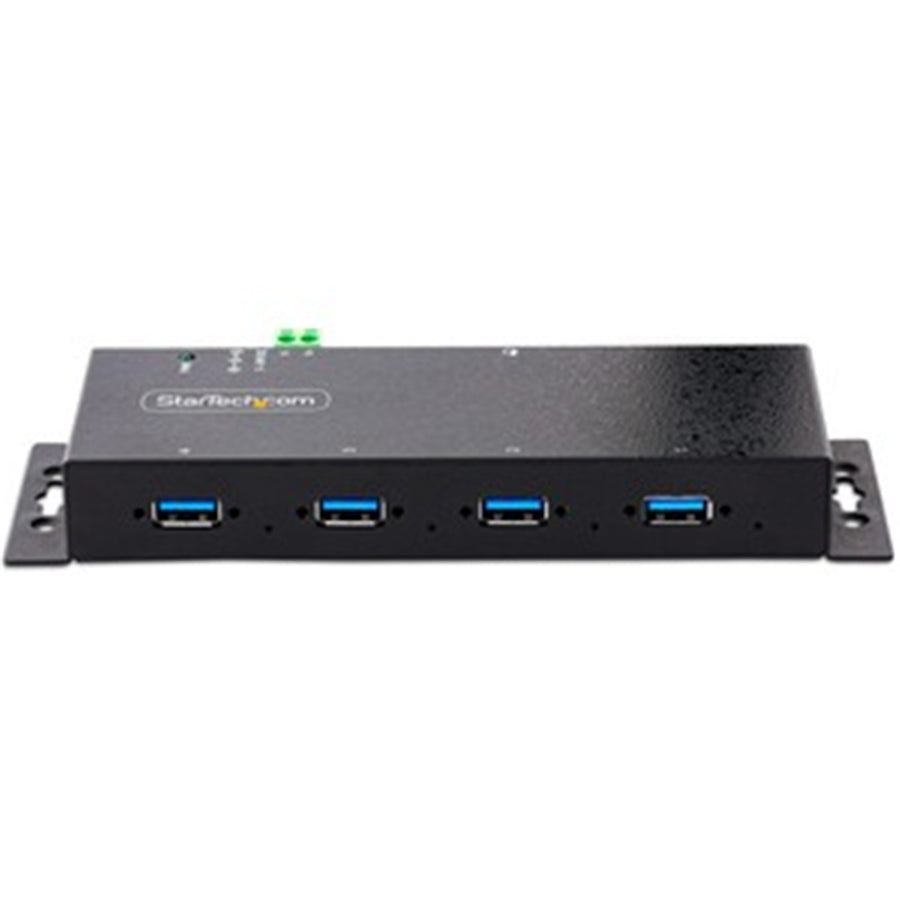

This robust heavy-duty USB 3.0 hub offers four connection ports for connecting USB devices/peripherals.

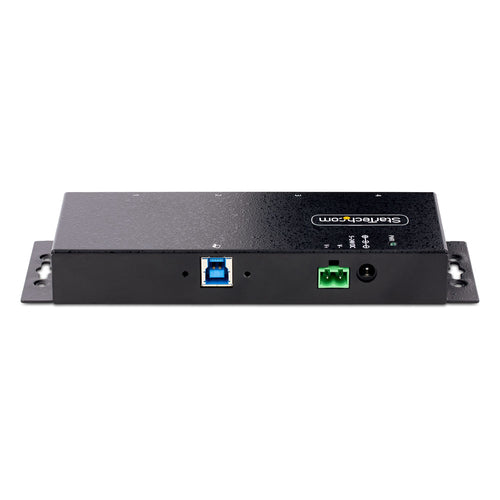

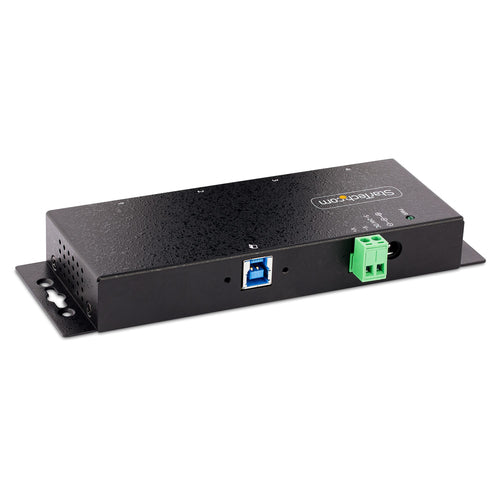

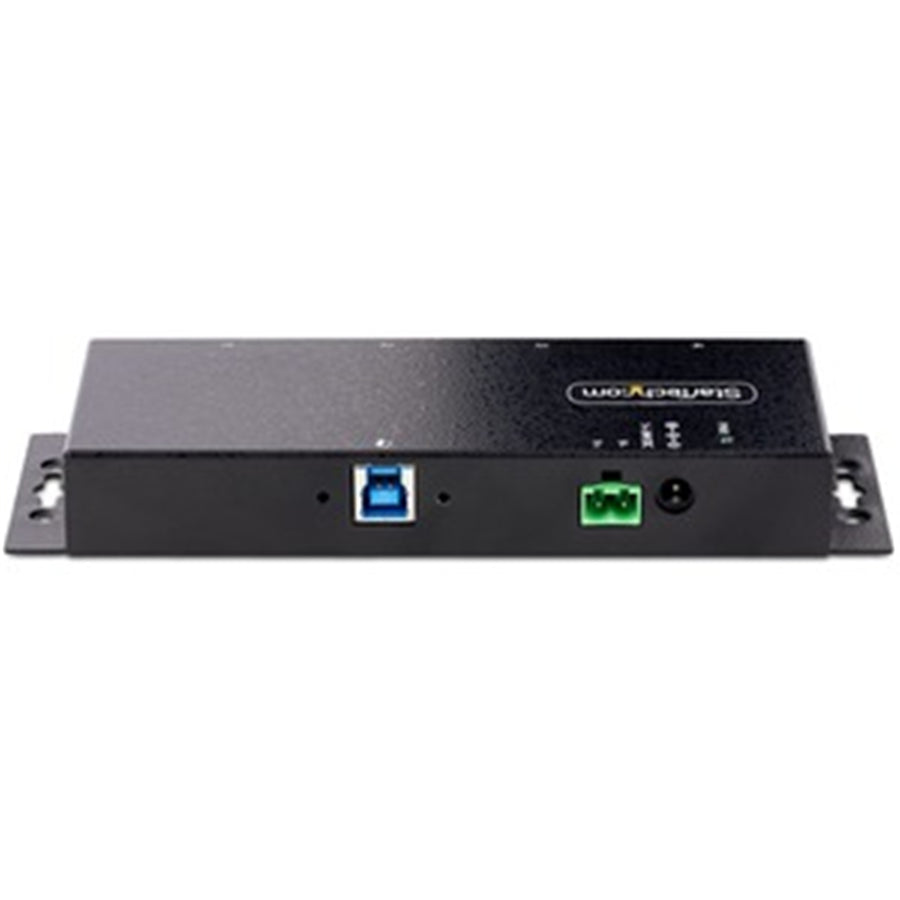

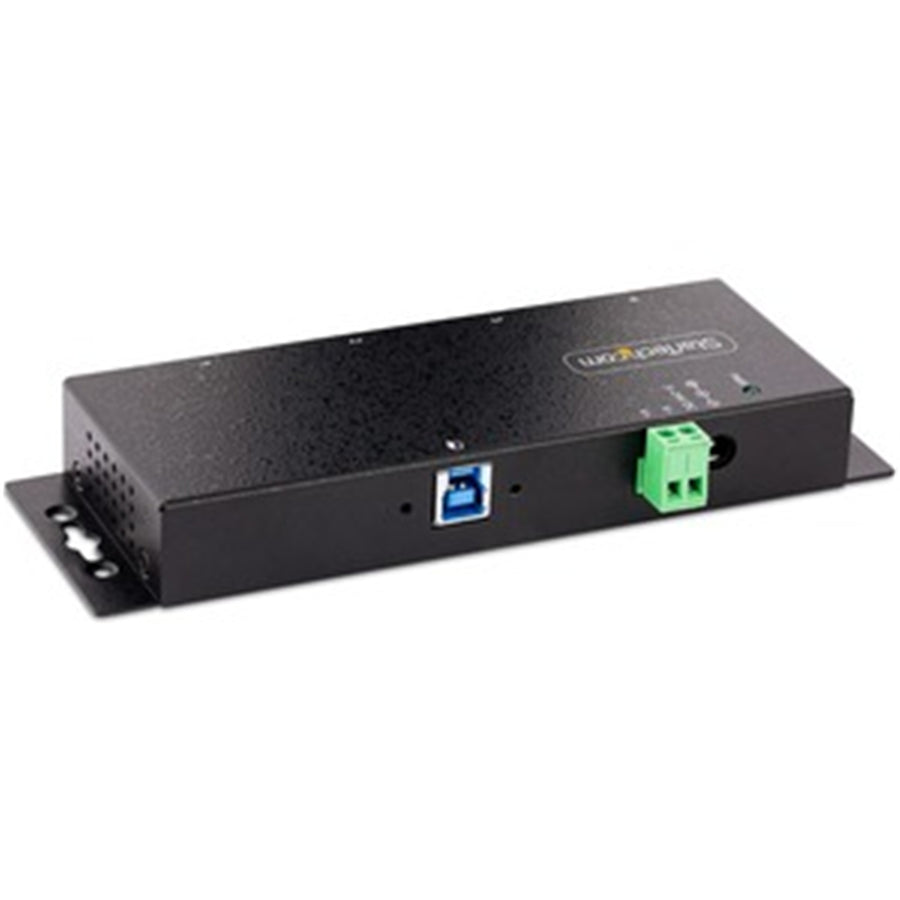

The industrial USB hub supports 5-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input options.
- 4-PORT INDUSTRIAL USB HUB: USB 3.2 Gen 1 expansion hub w/metal enclosure for durability in harsh environments; Provides 4 USB 3.0 Type-A Downstream Facing Ports (DFP); 5Gbps shared; 6ft A-B host cable; USB Event Monitoring utility (available for download)
- ESD PROTECTION: Heavy duty USB hub w/ level 4 electrostatic discharge protection; 15kV air/8kV contact (twice the level of consumer grade hubs) provides increased reliability and longevity; Competitor hubs without adequate ESD protection may fail

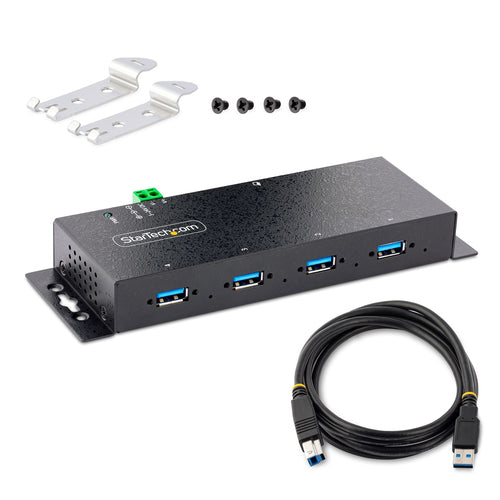

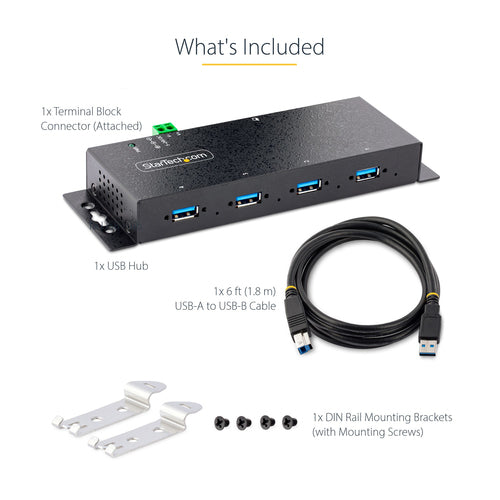

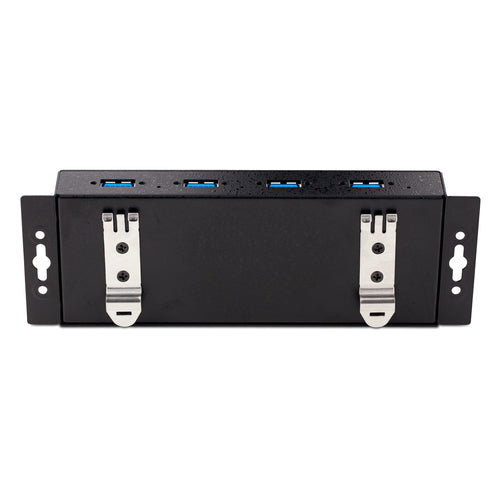

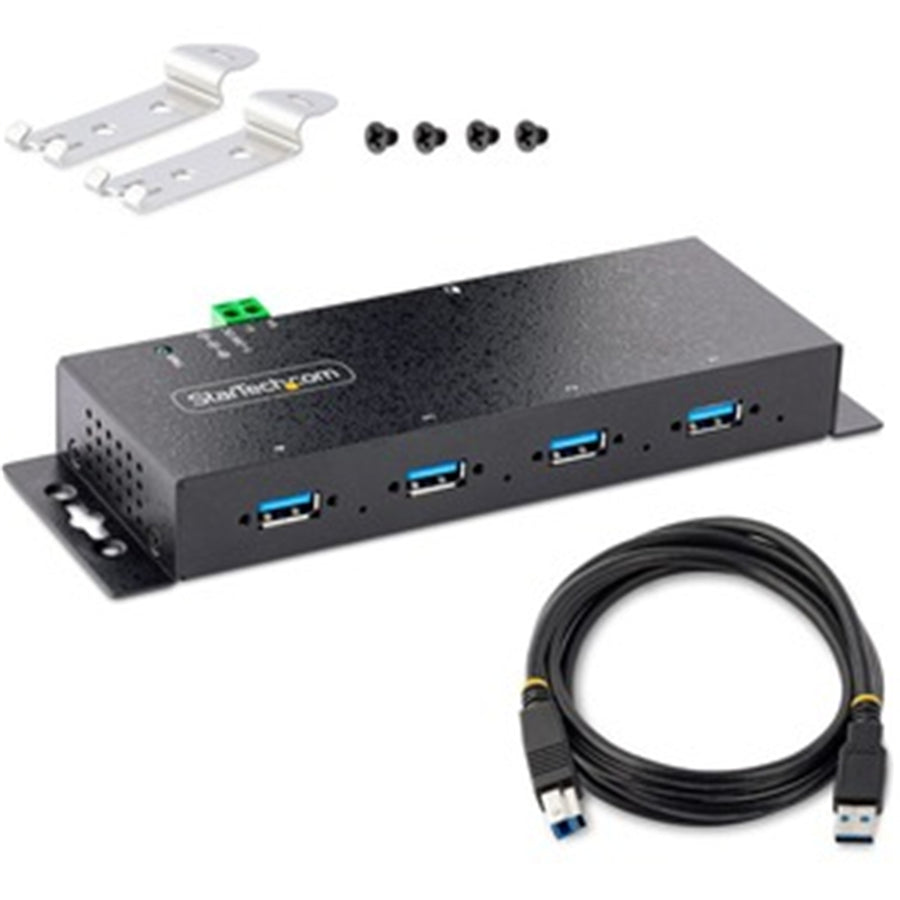

- FLEXIBLE MOUNTING OPTIONS: Built-in mounting brackets for wall or desk installation; DIN rail mounting hardware included; Screw-lock connectors on host and device ports to ensure a reliable and secure connection
- POWER OPTIONS: Rugged multiport hub is powered by either the DC barrel connection or terminal block using a 5 to 24V DC source (DC source not incl.); Optional power adapter available ITB20D3250 (sold separately) to power the hub via 2-wire terminal block
- POWER & CHARGE: When connected to a power source, the mountable port expander hub supports BC 1.2 charging; Each port supports 12W (2.4A); Overcurrent protection protects connected devices from overdrawing power
Specifications
Technical Specifications
| External Ports | 1 - Barrel Power Connector (Size M, OD:5.50, ID: 2.10)1 - Terminal Block (2 Wire)4 - USB Type-A (9 pin, 5 Gbps)1 - USB 3.2 Type-B (9 pin, Gen 1, 5Gbps) |
|---|---|
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
| Storage Temperature | -4°F to 167°F (-20°C to 75°C) |
| Humidity | 5% - 95% RH |
| USB-C Device Port(s) | No |
| USB-C Host Connection | No |
| Fast-Charge Port(s) | No |
| Ports | 4 |
| Interface | USB 3.2 Gen 1 (5Gbps) |
| Bus Type | USB 3.2 Gen 1 (5Gbps) |
| Chipset ID | VIA/VLI - VL817-Q7 |
| LED Indicators | 4 - USB Device Connection (Green)1 - Power (Green) |
| Package Length | 8,4 in [21,3 cm] |
| Package Width | 5,9 in [14,9 cm] |
| Package Height | 2,0 in [5,1 cm] |
| Shipping (Package) Weight | 1,1 lb [0,5 kg] |
| Package Quantity | 1 |
| Maximum Data Transfer Rate | 5 Gbps |
| Type and Rate | USB 3.2 Gen 1 - 5 Gbit/s |
| ESD Protection | +/-8kV (Contact)+/-15kV (Air) |
| MTBF | 243,753 Hours |
| Color | Black |
| Form Factor | Industrial |

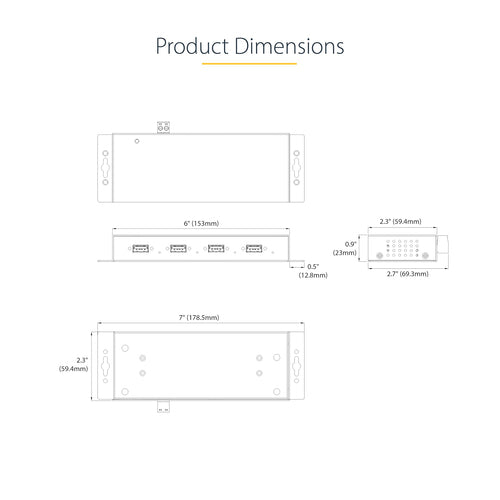

| Product Length | 7,0 in [17,8 cm] |
| Product Width | 2,3 in [5,9 cm] |
| Product Height | 0,9 in [2,3 cm] |
| Weight of Product | 9,9 oz [280,0 g] |
| Material | Steel |
| Cable Length | 6,0 ft [1,8 m] |
| Power Source | Not Included (DC/Terminal Block) |
| Plug Type | M |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > USB Hubs |
| Weight | 0.227 kg |
| Warranty |
|---|
