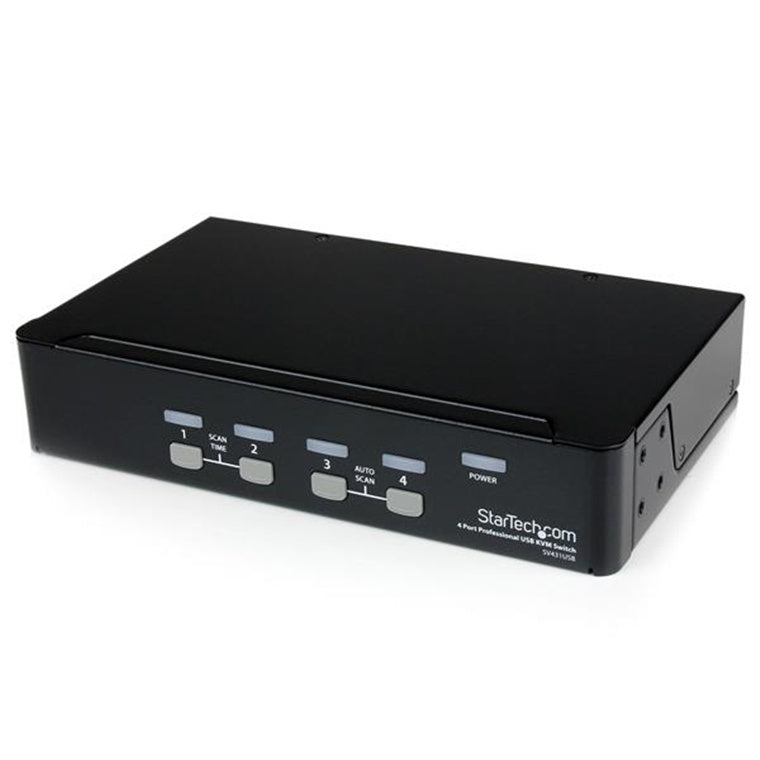

StarTech.com 4 Port VGA USB KVM Switch with Hub
StarTech.com 4 Port VGA USB KVM Switch with Hub
Overview
Control up to 4 PC or Mac® computers from a single keyboard, mouse and monitor and share any USB device between all connected computers<br/><br/>The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).<br/><br/>The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.<br/><br/>Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.<br/><br/>A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.<br/><br/>This product is TAA compliant and backed by a Startech.com 3 year warranty with free lifetime technical support.<br/><br/>Rackmount your KVM switch<br/><br/>If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
- Supports hot-plug and disconnect – computers can be added or removed without the need to reboot other connected systems
- Front panel push-buttons for quick and easy switching
- High 1920x1440 resolution capability
- OS independent - No driver or software installation required
- USB 2.0 hub for peripheral sharing
- USB self-power operation
Technical Specifications
| Number of computers controlled | 4 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Console ports | USB A,VGA (D-Sub) |
| Console USB ports quantity | 4 |
| Audio connections | N |
| DC-in jack | Y |
| Maximum resolution | 1920 x 1440 |
| Scan interval | 3,8,15,30 |
| Daisy chain | N |
| Number of users | 1 |
| Rack mounting | Y |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Steel |
| Maximum cable length | 5 |
| Hot keys | N |
| Mean time between failures (MTBF) | 82506 |
| Certification | CE, FCC, REACH, TAA, cUR |
| Built-in display | N |
| On Screen Display (OSD) | N |
| Input voltage | 110-240 |
| Input current | 0.4 |
| Output voltage | 5 |
| Output current | 2 |
| Power plug type | Type N |
| Compliance certificates | RoHS |
| Width | 130 |
| Depth | 220 |
| Height | 44 |
| Weight | 988 |
| Package width | 195 |
| Package depth | 296 |
| Package height | 74 |
| Package weight | 1300 |
| Manual | Y |
| Rubber feet | Y |
| IP control | N |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 455 |
| Master (outer) case length | 415 |
| Master (outer) case height | 330 |
| Products per master (outer) case | 12 |
