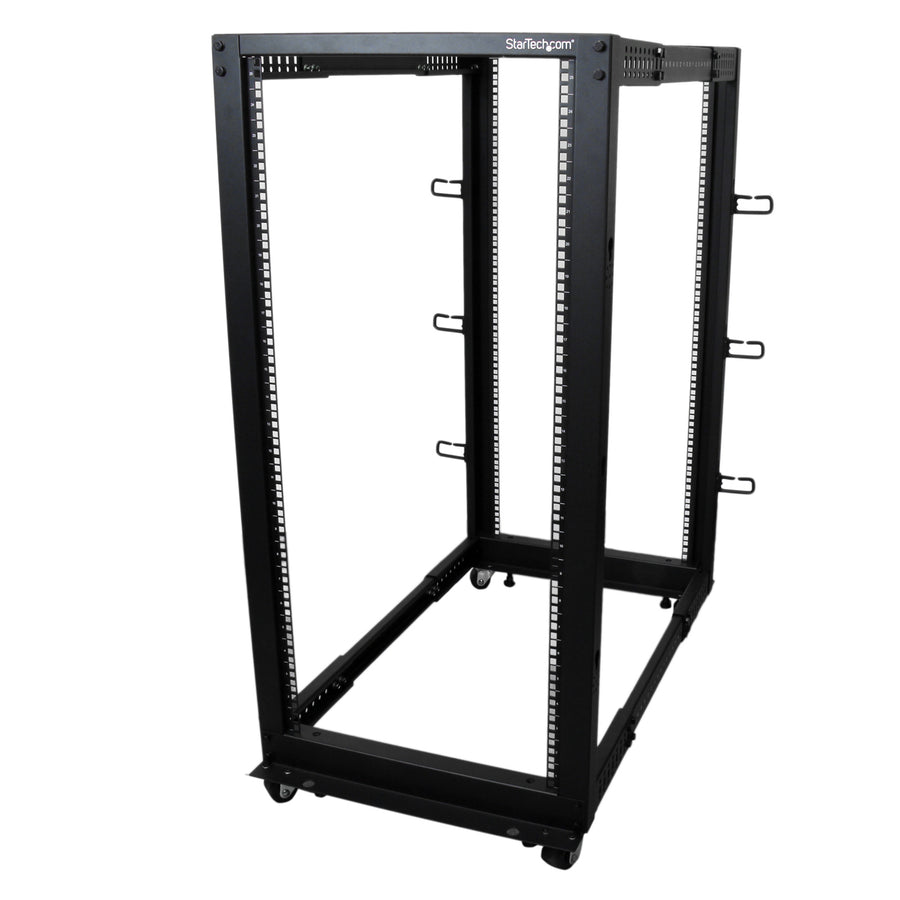

StarTech.com 4POSTRACK25U 25U Open Frame Server Rack - 4 Post Adjustable Depth (56 to 102cm) Network Equipment Rack w/ Casters/ Levelers/ Cable Management
Features
The 4POSTRACK25U 25U Server Rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack. Designed with ease of use in mind, this 25U rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40in) that make it easy to adapt the rack to fit your equipment.
This durable 4-post rack supports a static loading capacity of up to 1200lbs (544kg), and offers compliance with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 41494) for a universal design that's compatible with most rack equipment. For a complete server storage solution that saves you time and hassle, the rack includes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securely fastening the rack to the floor if needed, providing you with additional stability to better suit your server environment.

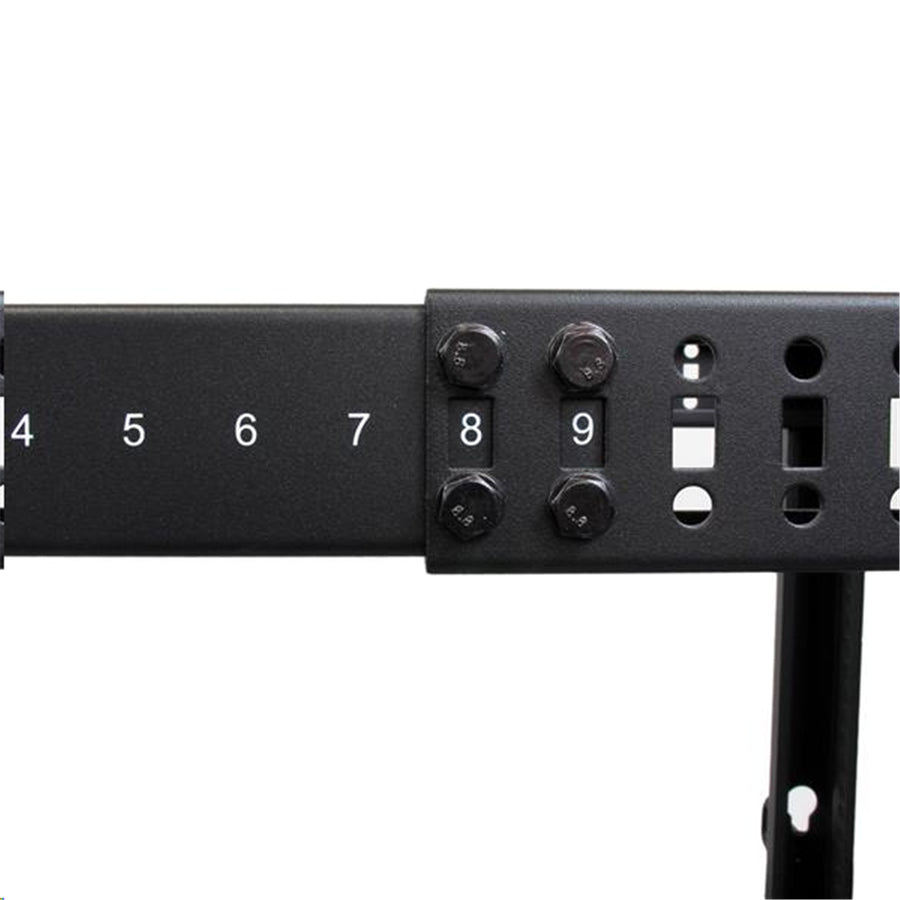

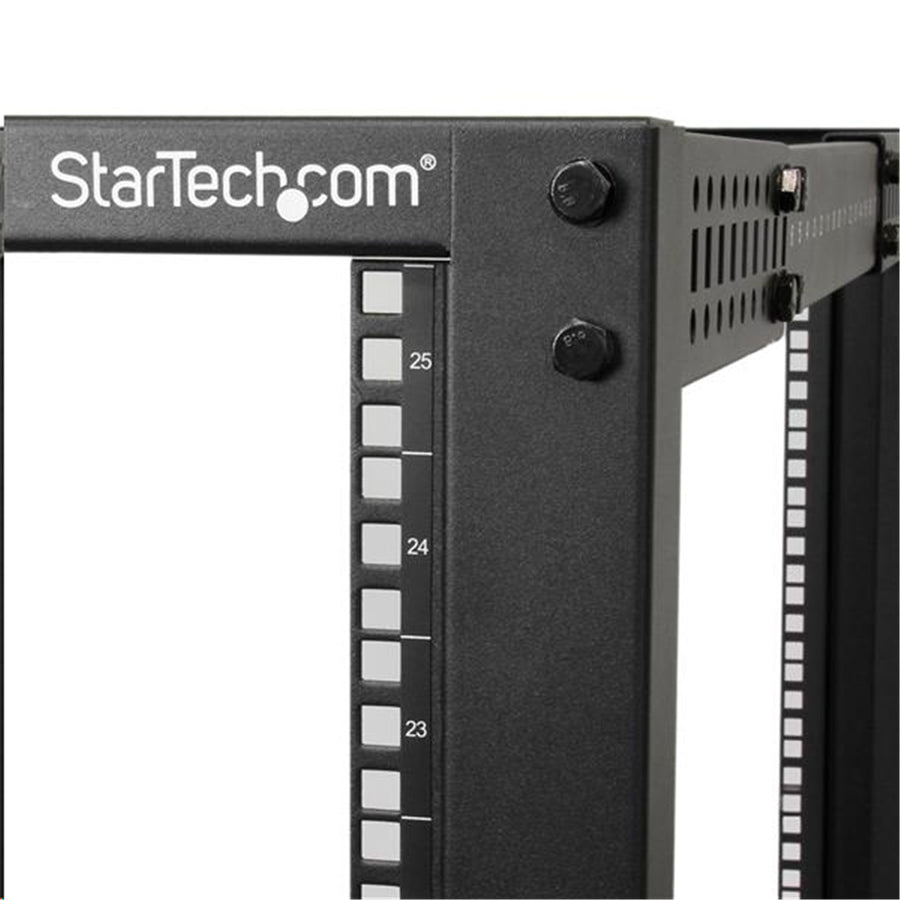

- Mount your equipment easily, with clearly marked rack units (U) and depth

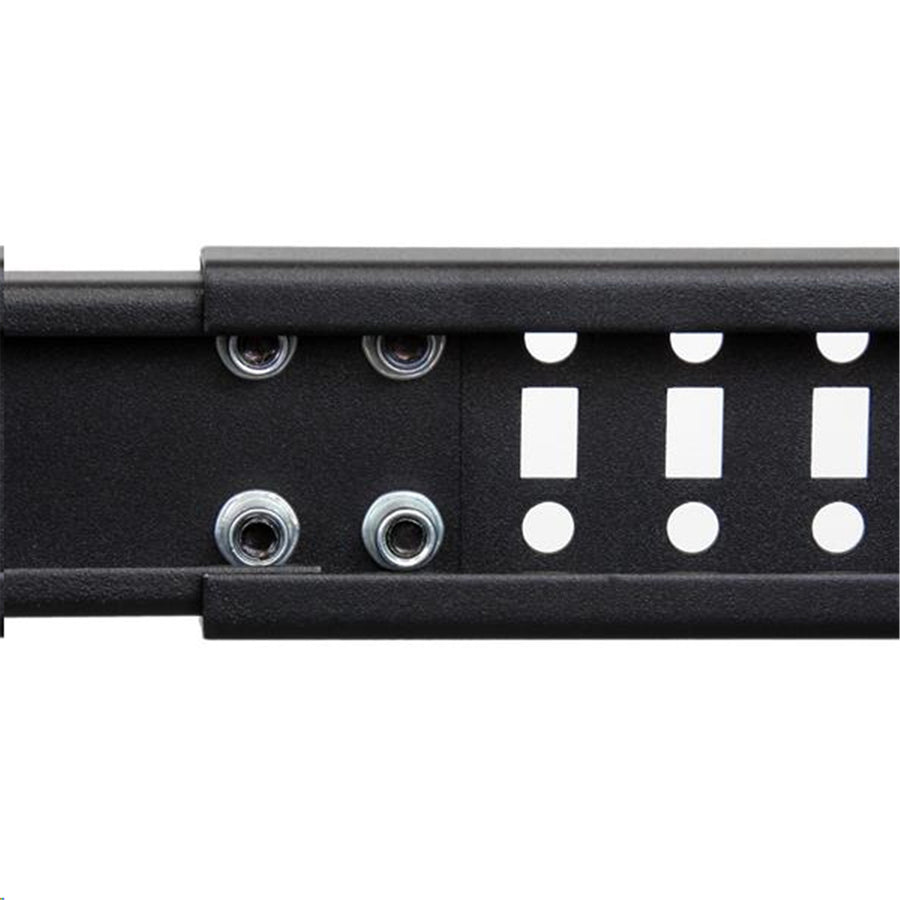

- Adapt the rack to your equipment easily, with an adjustable depth design

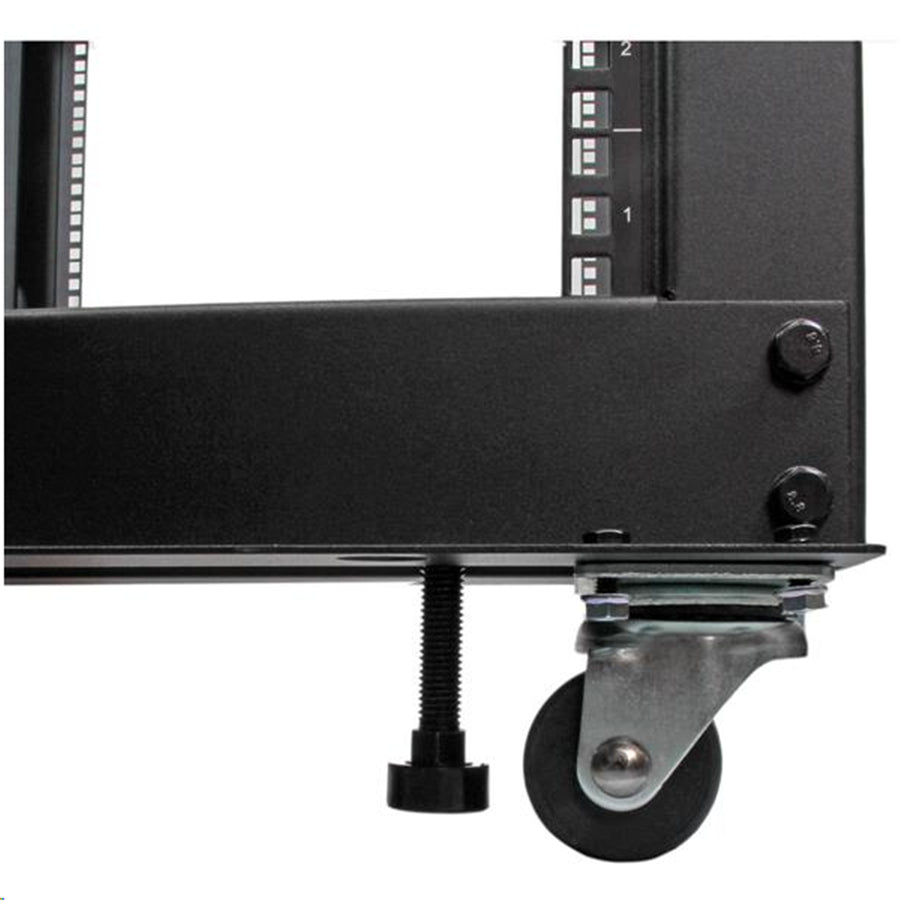

- Customize the rack to fit your environment using the included optional accessories
Specifications
Technical Specifications
| Casters | Included |
|---|---|
| Fan(s) | No |
| Frame Type | Open Frame |
| Front Door Type | Open |
| Industry Standards | DIN 41494EIA/ECA-310-EIEC 60297-3-100 |
| Key Lock | No |
| Rack Type | 4-Post |
| U Height | 25U |
| Weight Capacity | 1202.9 lb [544.3 kg] |
| Color | Black |
| Enclosure Type | Steel |
| External Depth | 26.1 in [661.8 mm] |
| External Height | 47.8 in [1215.3 mm] |
| External Width | 23.6 in [600 mm] |
| Height with Casters | 50.8 in [1290 mm] |
| Internal Height | 43.9 in [1115.8 mm] |
| Internal Width | 18.3 in [465 mm] |
| Maximum Mounting Depth | 40 in [1016 mm] |
| Minimum Mounting Depth | 22 in [558.8 mm] |
| Product Height | 43.9 in [1115.8 mm] |
| Product Length | 26.1 in [661.8 mm] |
| Product Weight | 65.5 lb [29.6 kg] |
| Product Width | 18.3 in [465 mm] |
| Included in Package | 2 - Left Vertical Rail2 - Right Vertical Rail2 - Base Bracket8 - Corner Section4 - Center Section2 - Top Bracket48 - M8 Bolt48 - M8 Washer1 - M8 (13mm) Wrench1 - M6 (10mm) Wrench1 - Phillips Screwdriver32 - M6 Cage Nut32 - PVC Cup Washer32 - M6 Phillips Head Screw12 - Cable Management Hook12 - Hook Mounting Screw4 - Casters4 - Leveling Feet16 - M6 Screw16 - M6 Flat Washer16 - M6 Flange Nut4 - Grounding Wires |
| Brand | StarTech.com |
|---|---|
| Product Type | Networking |
