StarTech.com

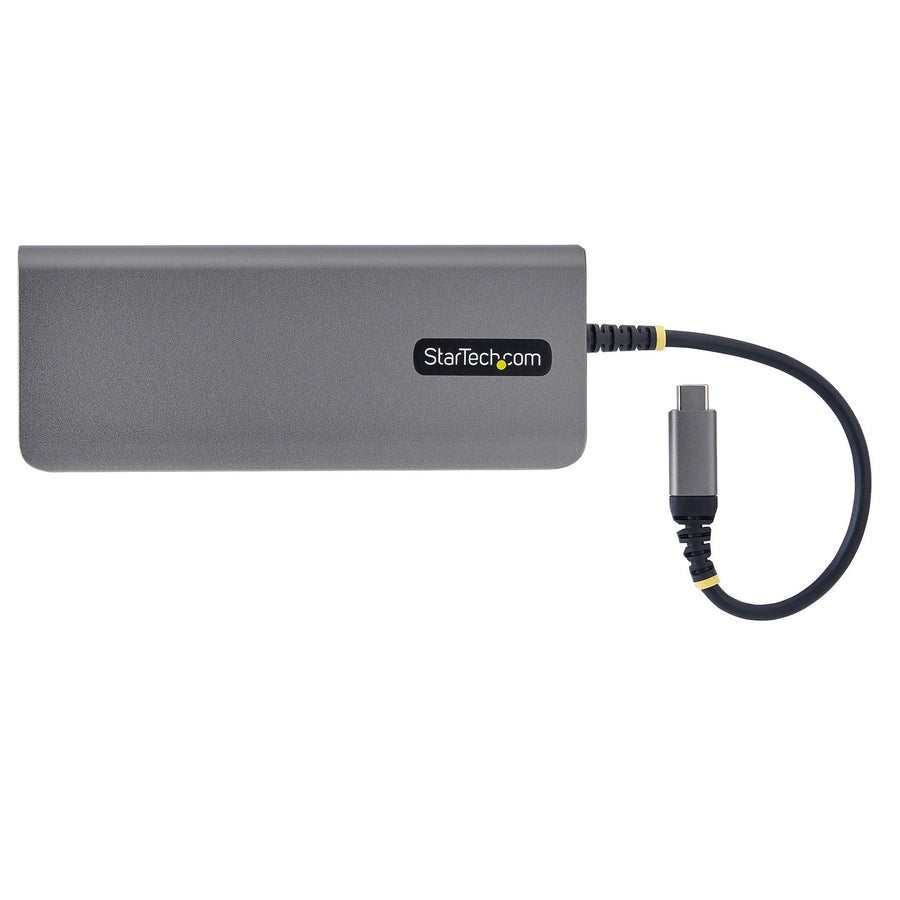

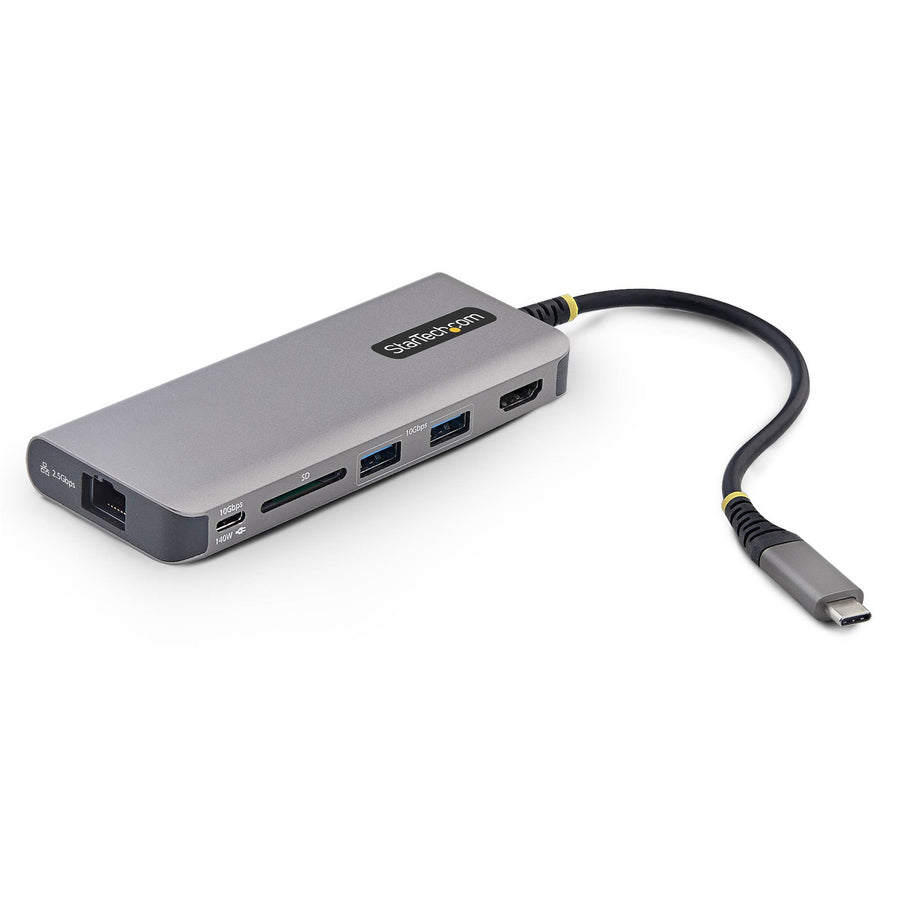

StarTech.com 6830106 USB-C HDMI Multiport Hub 4K 60Hz 140W
$93.04
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
StarTech.com 6830106 USB-C HDMI Multiport Hub 4K 60Hz 140W
Specifications
Technical Specifications
| Manufacturer part number | 177B-USBC-MULTIPORT |
|---|---|

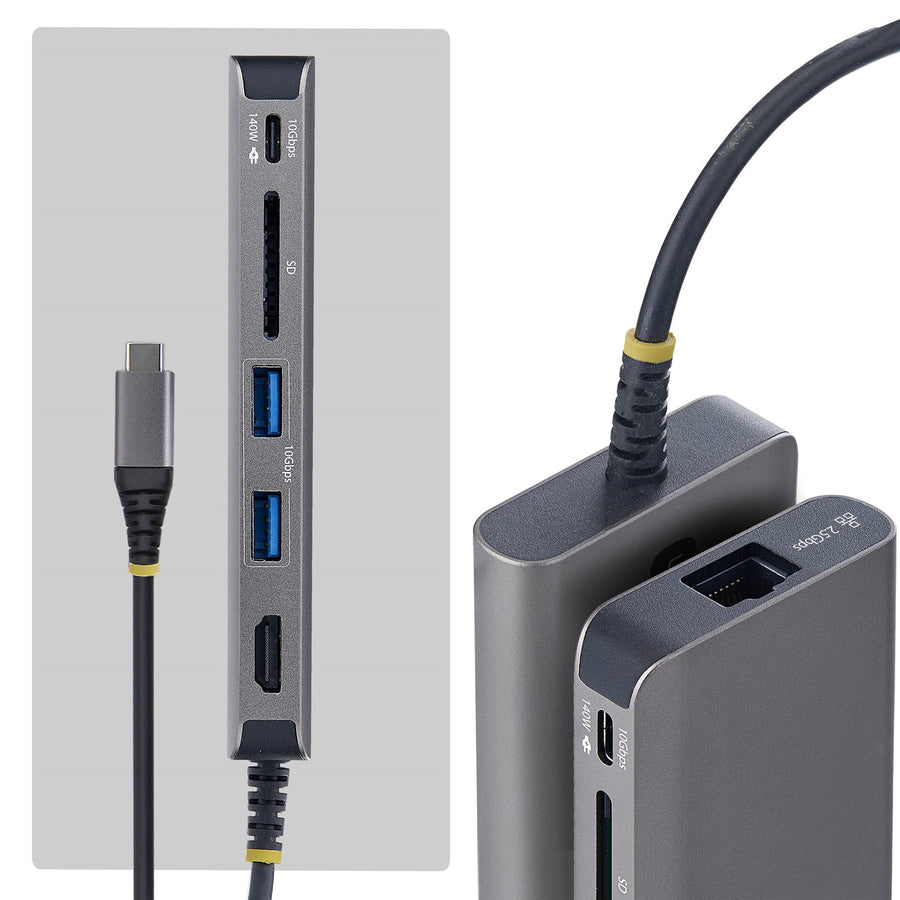

| Connector Type(s) | 1 - RJ-45 1 - USB 3.2 Gen 2 USB Type-C (Power Delivery + Data, 24 Pin, 10 Gbps) 1 - SD Slot 2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps) 1 - HDMI |
| Host Connectors | 1 - USB 3.2 Type-C (24 pin, 10Gbps, DP Alt-Mode Video) |
| Operating Temperature | 10°C to 45°C (14°F to 113°F) |
| Storage Temperature | 10°C to 70°C (14°F to 158°F) |
| Humidity | 10% ~ 90% RH |
| 4K Support | Yes |
| Displays Supported | 1 |
| # of Displays Supported | 1 |
| Audio | Yes |
| Bus Type | USB-C |
| Industry Standards | USB 3.2 Gen 2 (10Gbps) HDMI 2.0 USB Power Delivery Specification Rev. 3.2 |
| Chipset ID | VIA - VL600 VIA - VL109 VIA - VL822 Realtek - RTL8156BG Genesys Logic - GL3224 |
| Wake On Lan | Yes |
| Maximum Data Transfer Rate | 10Gbps |
| Maximum Digital Resolutions | 3840x2160 @ 60hz |
| Type and Rate | USB 10Gbps |
| UASP Support | Yes |
| Compatible Networks | 2.5G/1G/100Mbps/10Mbps |
| PXE | Yes |
| Full Duplex Support | Yes |
| MTBF | 28,434 Hours |
| Color | Space Gray |
| Material | Aluminum and Plastic |
| Cable Length | 8.0 in [20.3 cm] |
| Product Length | 4.9 in [125 mm] |
| Product Width | 2.0 in [50 mm] |
| Product Height | 0.6 in [15 mm] |
| Weight of Product | 0.2 lb [0.1 kg] |
| Power Source | Bus Powered and Host USB-C Power Adapter |
| Power Delivery | 140W |
| Output Voltage | 5 DC |
| Plug Type | USB Type-C (24 pin) USB Power Delivery Only |
| Power Consumption (In Watts) | SPR (Up to 100W): 15W EPR (Up to 140W): 20W |
| OS Compatibility | Windows 10, 11, 11 ARM macOS 13.0, 14.0, 15.0, 26.0 Linux Ubuntu 20.04 and up iPadOS iOS |
| System and Cable Requirements | A host device with an available USB-C port (to ensure full adapter functionality, the host device's USB-C port must support USB Power Delivery and DP alt mode). Optional: USB-C pow |
| Note | Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery and DP alt mode. If the USB-C Host does |
| Included in Package | 1 - Multiport Adapter 1 - Product Documentation |
| Product type | USB Hubs |
| Weight | 0.2 kg |
| Warranty | 12 months |
| Brand | StarTech.com |
|---|---|
| Product Type | USB Hubs |
| Weight | 0.2 kg |
| Warranty |
|---|
