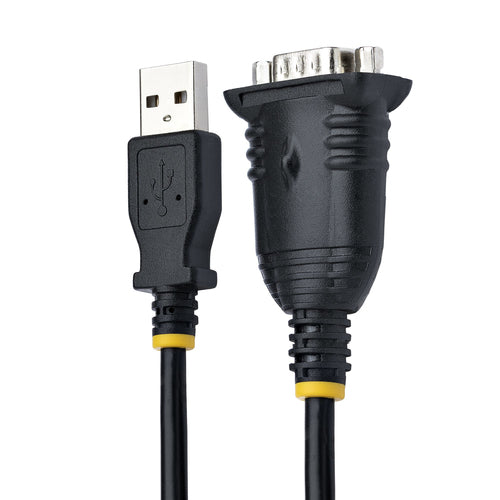

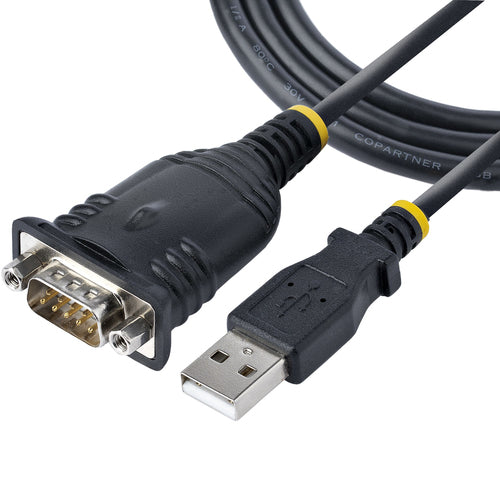

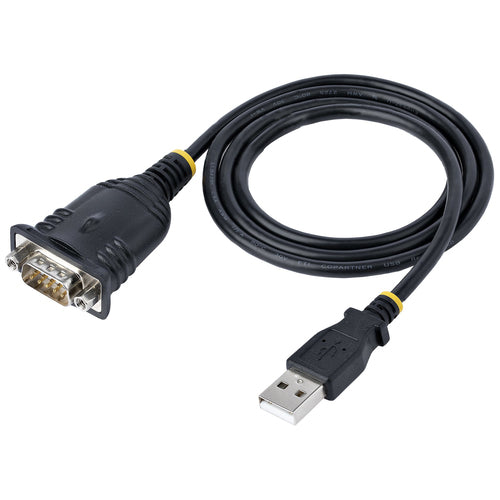

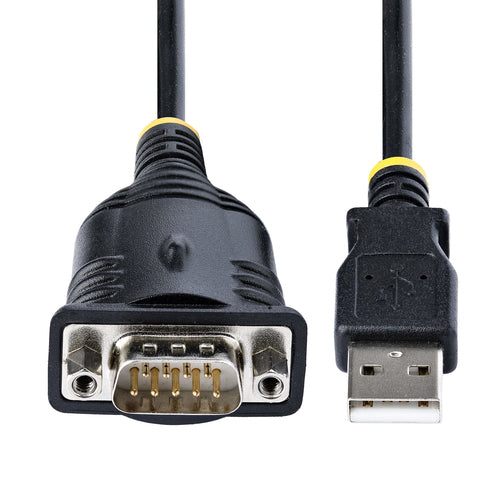

StarTech.com 1P3FP-USB-SERIAL - 3ft USB to Serial Cable/RS232 Adapter
Features
The 1P3FP-USB-SERIAL 1 Port USB to Serial Adapter lets you add an RS-232 DB9 serial COM port to your laptop or desktop computer, allowing it to control and communicate with a serial peripheral device.
Accessible Connectivity
The USB to RS232 cable is a convenient connectivity solution that bridges the gap between current and legacy technologies. The small footprint, data rate of up to 921.6 kbps, and 3 ft (0.91 m) cable length makes it the ideal solution for the IT industry, point of sales (POS), industrial applications, AV, and office setups.
Connect with Ease
This adapter cable allows you to add an RS-232 DB9 COM port by connecting it to the commonly found USB Type-A port, located on your host device. This USB 2.0 converter is compatible with other USB revisions. It supports Windows, macOS, and Linux (including the latest versions) for maximum compatibility.
1P3FP-USB-SERIAL is backed for 3-years by StarTech.com, including free lifetime 24/5 multilingual technical assistance.
Specifications
Technical Specifications
| Compatibility | Windows® 7, 8.1, 10, 11Windows Server® 2016, 2019macOS 10.11 to 10.15, 11.0, 12.0Linux 4.15.x LTS Versions OnlyChrome OS™ |
|---|---|
| Connector(s) | Connector Type(s):1 - DB-9 (9 pin, D-Sub)1 - USB 2.0 Type-A (4 pin, 480Mbps) |
| Environmental | Operating Temperature:0°C to 60°C (32°F to 140°F)Storage Temperature:-10°C to 70°C (14°F to 158°F)Humidity:50% to 90% RH Non-Condensing |
| Hardware | Ports:1Interface:SerialBus Type:USB 2.0Port Style:Cable AdaptersIndustry Standards:USB 1.1/2.0RS-232Chipset ID:Prolific - PL2303 |
| Packaging Information | Package Height:7.9 in [20.0 cm]Package Length:0.0 in [0.1 mm]Shipping (Package) Weight:3.2 oz [91.0 g]Package Width:8.7 in [22.0 cm] |
| Performance | Serial Protocol:RS-232Max Baud Rate:921.6 KbpsData Bits:5, 6, 7, 8FIFO:512 BytesFlow Control:None, CTS/RTS, DSR/DTR, XON/XOFFParity:Even, Odd, None, Space, and MarkStop Bits:1, 1.5, 2 |
| Physical Characteristics | Product Height:0.6 in [1.6 cm]Product Length:1.3 in [3.4 cm]Weight of Product:1.9 oz [55.0 g]Product Width:1.8 in [4.5 cm]Cable Length:36.0 in [914.4 mm] |
| Software | OS Compatibility:Windows® 7, 8.1, 10, 11Windows Server® 2016, 2019macOS 10.11 to 10.15, 11.0, 12.0Linux 4.15.x LTS Versions OnlyChrome OS™ |
| Special Notes / Requirements | System and Cable Requirements:Computer with an available USB Type A port version 1.1 or greater |
| What's in the Box | Included in Package:1 - USB to Serial Adapter |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Cables |
| Weight | 0.031 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
