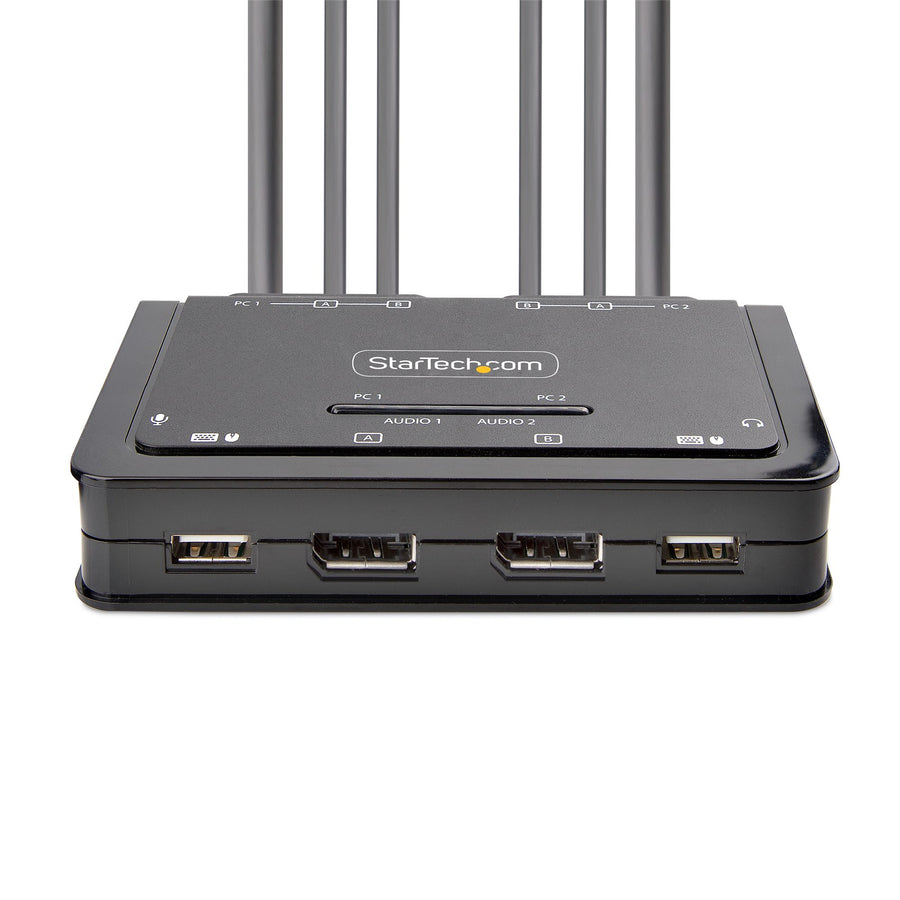

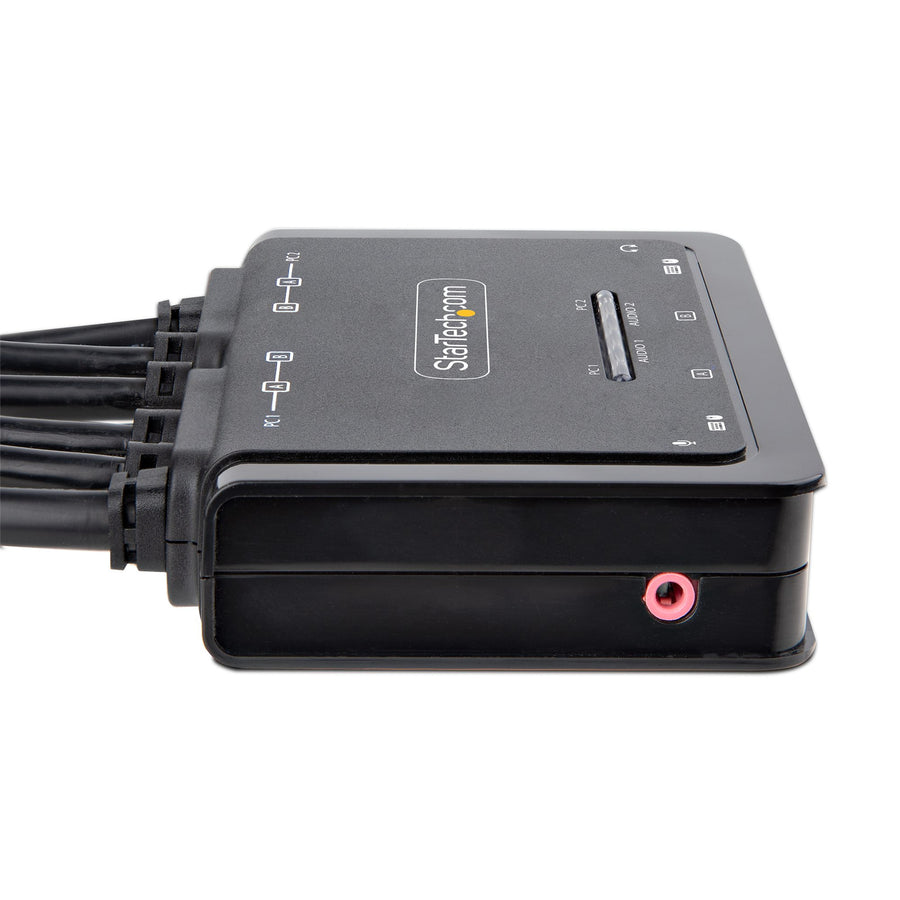

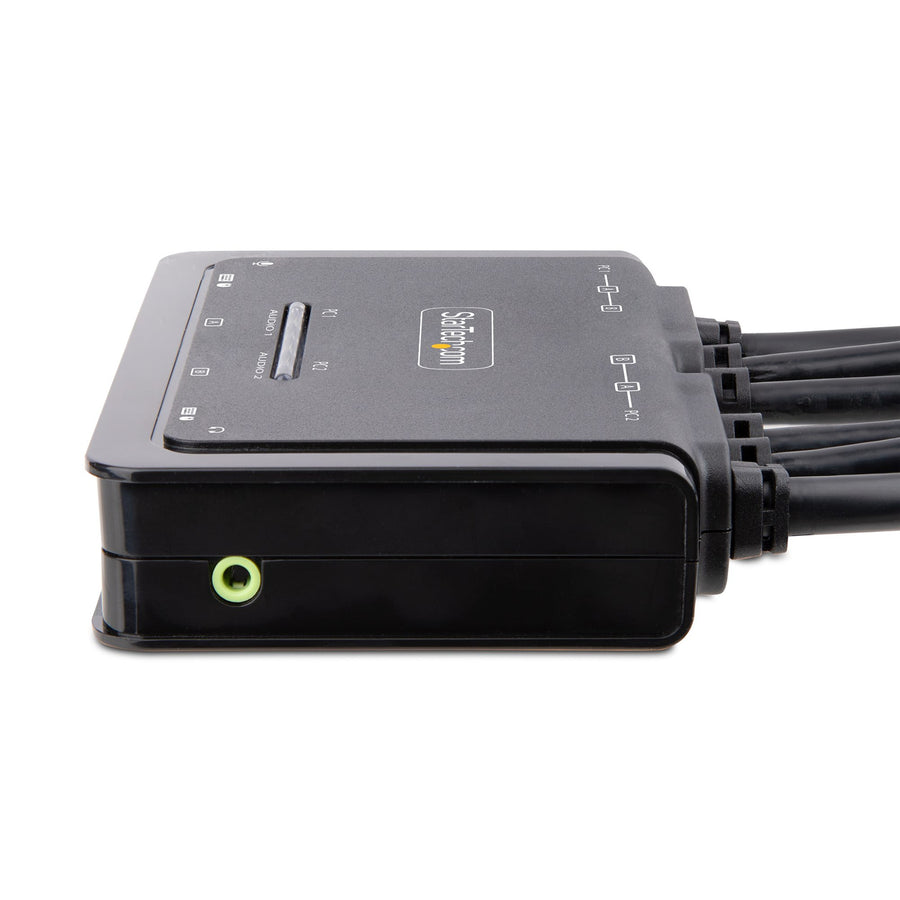

StarTech.com C2-DD46-UA2-CBL-KVM 2-Port Dual-Monitor Cable KVM Switch
Features

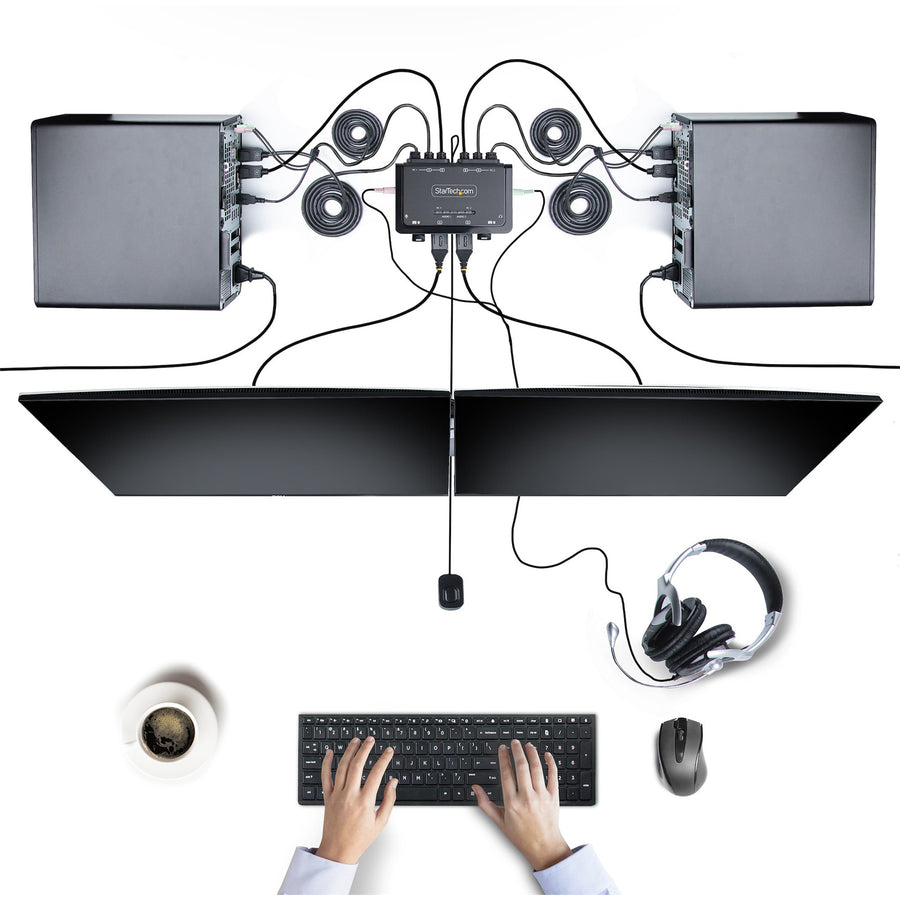

This Dual-Monitor KVM Switch enables users to switch between two USB-A and DisplayPort enabled desktops, sharing dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and audio input/output devices.
Hassle-Free Setup

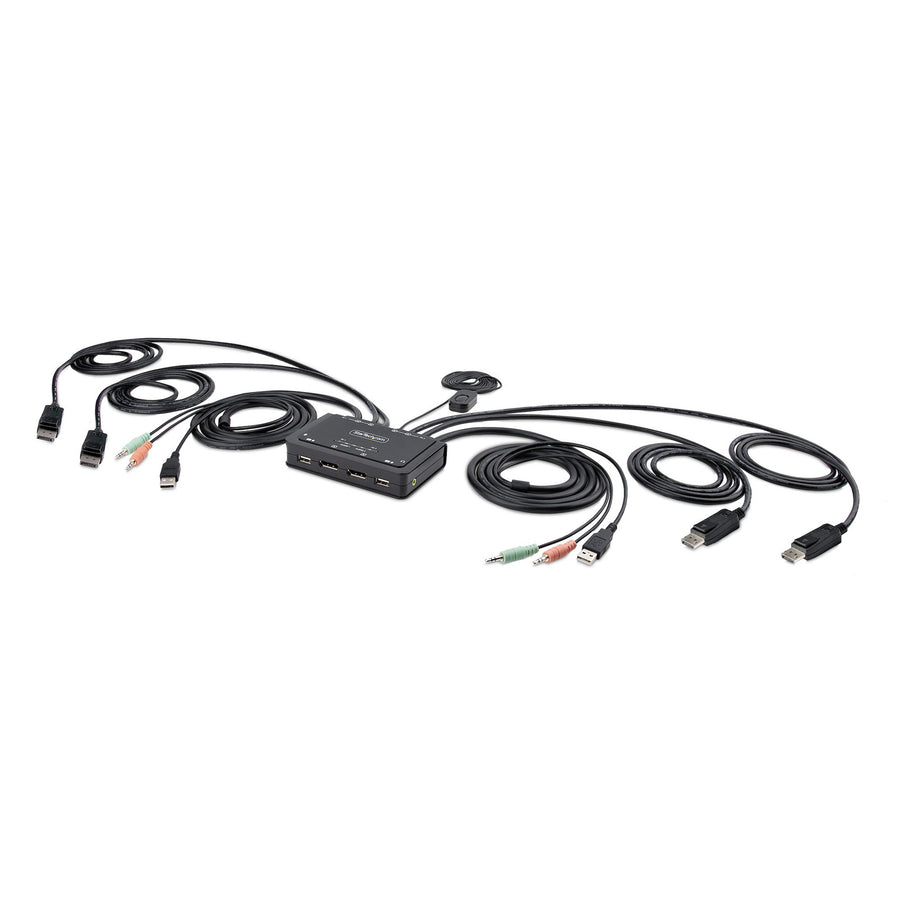

The KVM switch is bus powered and features built-in dual-DisplayPort, USB-A, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals - without the need to select and purchase the cables required for those connections.
Compatibility
The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2.
Intuitive Control
The KVM switch offers two options to switch between hosts - a remote push button or hotkey commands, using the downloadable software. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, utilizing keyboard shortcuts (i.e., hotkeys), ensuring uninterrupted audio when switching between host devices.
- DUAL 4K 60HZ MONITOR KVM SWITCH: Enables switching between two USB-A and DisplayPort-enabled desktops to share a mouse, keyboard, audio, and dual-4K 60Hz DisplayPort displays
- READY-TO-USE: Small form factor, integrated cables, and no external power adapter enable rapid deployment; Bus-powered KVM switch features integrated 5ft/1.5m host cables to allow for extended reach, reducing port and connector strain
- SWITCHING OPTIONS: Remote Push Button and Hotkey Commands enable switching between hosts; Remote push button has a 1.5m cable for ideal placement in the setup; Downloadable software allows listening to audio from one computer, while controlling the other
- COMPATIBILITY: 2-Port Dual-Monitor KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel and AMD
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts
Specifications
Technical Specifications
| Console Interface(s) | 1 - 3.5mm Stereo Female 3 pos1 - 3.5mm Stereo Female 3 pos2 - DisplayPort2 - USB 2.0 Type-A (4 pin, 480Mbps) |
|---|---|
| Host Connectors | 4 - DisplayPort2 - USB 2.0 Type-A (4 pin, 480Mbps)4 - 3.5mm Stereo Female 3 pos |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0% ~ 90% RH (non-condensing) |
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB |
| PC Video Type | DisplayPort |
| Number of Monitors Supported | 2 |
| Rack-Mountable | No |
| Cables Included | Yes |
| Chipset ID | SN8P2202SG |
| LED Indicators | 1 - Solid Green: Selected PC is Connected1 - Blinking Green: Selected PC is Not Detected1 - Amber LED: Selected Audio Source |
| Package Quantity | 1 |
| Package Length | 6.3 in [16.0 cm] |
| Package Width | 3.9 in [10.0 cm] |
| Package Height | 8.3 in [21.0 cm] |
| Shipping (Package) Weight | 2.0 lb [0.9 kg] |
| On-Screen Display | No |
| Video Revision | DisplayPort 1.2 |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Data Transfer Rate | 480Mbps (USB 2.0) |
| Supported Resolutions | 4096x2160 @60Hz3840x2160 @60Hz5120x1440 @60Hz3440x1440 @60Hz2560x1440 @60Hz2560x1080 @60Hz1920x1200 @60Hz1920x1080 @60HzOther resolutions may be supported |
| Wide Screen Supported | Yes |
| Audio Specifications | DisplayPort - 2 Channel AudioAnalog Stereo - 2 Channel Audio |
| Auto Scan | 10, 20, 30, 40, 50, and 60 seconds |
| Port Selection Support | Push Button and Hotkeys/Software |
| MTBF | 419,293 Hours |
| Color | Black |
| Product Length | 4.9 in [12.5 cm] |
| Product Width | 3.5 in [9.0 cm] |
| Product Height | 1.0 in [2.5 cm] |
| Weight of Product | 1.3 lb [0.6 kg] |
| Material | ABS |
| Cable Length | 4.9 ft [1.5 m] |
| Power Source | Bus Powered |
| OS Compatibility | Windows 7, 8/8.1, 10, 11macOS 10.12 - 10.15, 11, 12ChromeOS |
| Included in Package | 1 - KVM Switch1 - Quick-Start Guide |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals |
