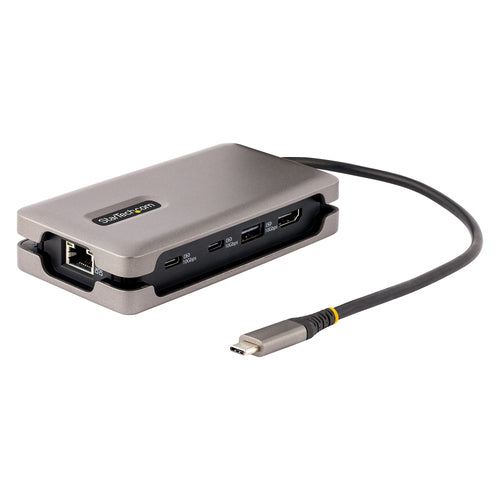

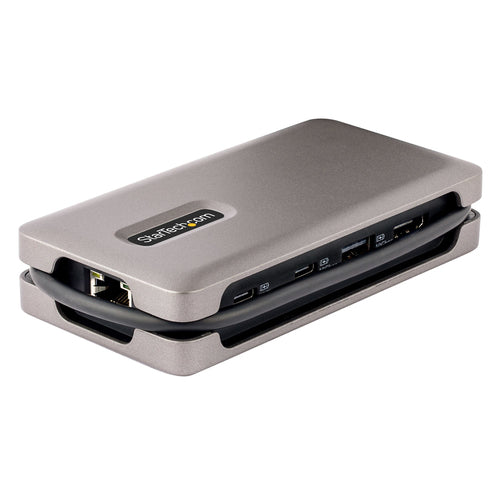

StarTech.com DKT31CH2CPD3 - USB-C Multiport Adapter 4K 60Hz HDMI PD
You May Also Like
Promate IHINGE-LT-GRY 2-in-1 Audio & Charging Adaptor Lightning Connector - Grey
StarTech.com US1GC301AU2R USB-C to Dual Gigabit Ethernet Adapter with USB Type-A Port
StarTech.com CDPVGDVHDMDP USB-C Multiport Video Adapter - Aluminum - USB-C to VGA/HDMI/Mini DisplayPort/DVI Adapter - Display Adapter
Features
This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns a USB-C™ laptop or tablet into a workstation, anywhere you go.
Enhance Productivity

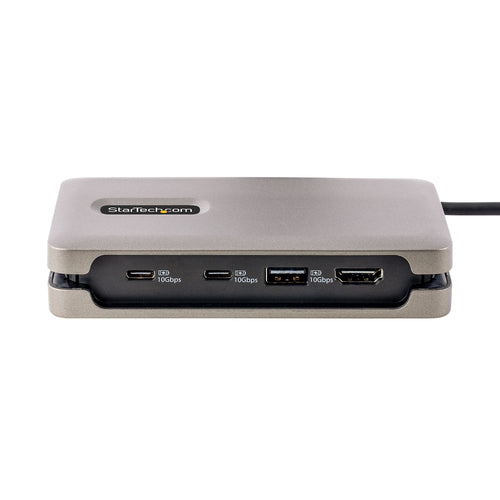

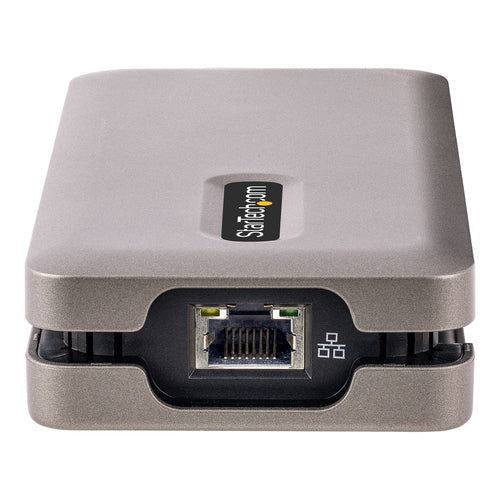

The portable docking station provides 4K 60Hz HDMI video output, two USB 3.2 Gen 2 Type-C (10Gbps) ports, one USB 3.2 Gen 2 Type-A (10Gbps) port, and a Gigabit Ethernet port (PXE and WoL support) all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. A USB-C DisplayPort 1.4 Alt-Mode port is required for 4K 60Hz HDMI output.
Connect and Charge Your USB Devices
The USB hub features two USB-C (10Gbps) ports and one USB-A (10Gbps) port for connecting up to three USB peripherals. The USB PD pass-through port enables charging of the host laptop. USB PD is only available when a USB-C power adapter is connected to the PD pass-through port. Connect a USB-C Power Adapter to use as a standalone USB peripheral charger. The extra-long attached 12inch (30cm) USB-C host cable enables an extended reach for setup flexibility.
Portable Connectivity

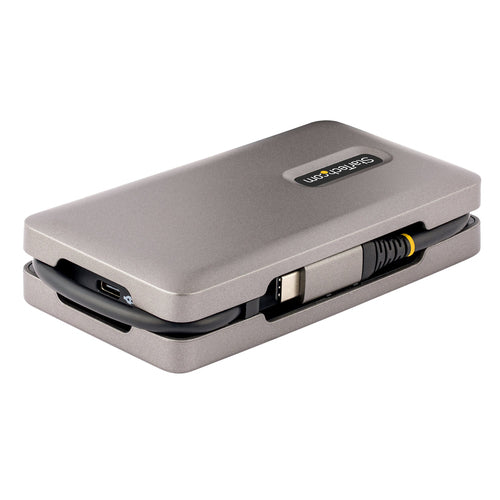

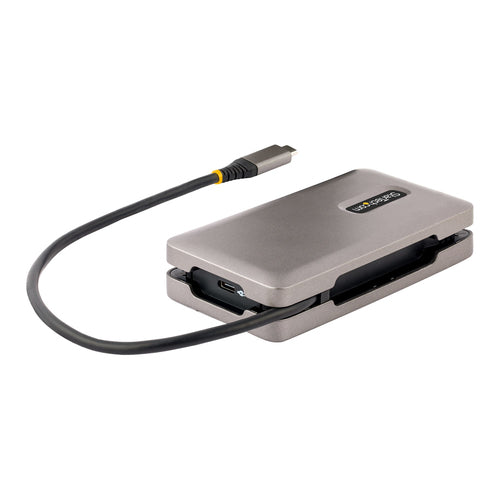

For use while travelling, the USB-C adapter can operate bus-powered alone, or with a USB-C power adapter to enable laptop and peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable.
- 6-IN-1 USB-C MULTIPORT ADAPTER: Features 4K 60Hz HDMI (HDR), 2x USB-C 3.2 Gen 2 (10Gbps), 1x USB-A 3.2 Gen 2 (10Gbps), Gigabit Ethernet, and a USB-C Port for 100W USB-C Power Delivery 3.0 Pass-Through - 4K 30Hz on DP 1.2 Alt-Mode hosts
- USB 3.2 GEN 2 HUB PLUS CHARGING: This USB-C Docking Station's 3-port 10 Gbps hub w/ charging has 2x USB-C ports and 1x USB-A port (high draw devices may require more power) - Connect a USB-C power adapter to enable device charging without host connection

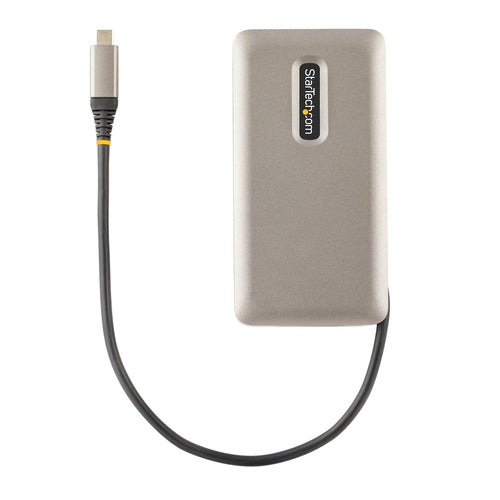

- BUILT-IN CABLE: USB-C Mini Dock with 12" (30 cm) attached cable extends reach to reduce port/connector strain on 2-in-1 devices: Surface Pro 7/iPad Pro/HP Elite x2/laptops on riser stands - Hideaway cable management feature hides cable during travel
- RELIABLE PERFORMANCE: USB bus powered or via external USB-C power adapter - 100W Power Delivery 3.0 pass through w/ 15W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs - up to 85W for host charging
- COMPATIBILITY: Mini dock is compatible with USB-C laptops, Ultrabooks, Chromebooks, USB4 and Thunderbolt 3/4 laptops from HP, Dell, Lenovo, MacBooks (Intel & M1 Pro/Max processors) and Surface - Works w/ Windows, macOS, iPadOS, Android, Linux & Chrome OS
- PORTABLE & COMPACT: Portable USB Type-C laptop docking station with wraparound cable is designed for transport in a laptop bag, convenient for on-the-go use between office, home office, shared office spaces, and business travel
Specifications
Technical Specifications
| External Ports | 2 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)1 - HDMI1 - RJ-451 - USB 3.2 Type-A (9 Pin, Gen 2, 10Gbps, 7.5W Power)1 - USB Type-C (24 pin) USB Power Delivery Only |
|---|---|
| Host Connectors | 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 0% to 85% (non-condensing) |
| 4K Support | Yes |
| Displays Supported | 1 |
| Interface | USB 3.2 Gen 2Bus TypeUSB-C |
| Chipset ID | Realtek - RTD2172LRealtek - RTL8153BVIA - VL822VIA - VL103 |
| LED Indicators | 1 - Connection state/activity LEDs under GbE port |
| Package Length | 6.8 in [17.2 cm] |
| Package Width | 5.6 in [14.3 cm] |
| Package Height | 1.2 in [3.0 cm] |
| Shipping (Package) Weight | 5.9 oz [166.0 g] |
| Maximum Data Transfer Rate | 10Gbps |
| Type and Rate | USB 3.2 Gen 2 - 10 Gbit/s |
| UASP Support | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| PXE | Yes |
| Full Duplex Support | Yes |
| Color | Space Gray |
| Product Length | 4.9 in [12.5 cm] |
| Product Width | 2.6 in [6.5 cm] |
| Product Height | 1.0 in [2.5 cm] |
| Weight of Product | 3.5 oz [98.0 g] |
| Material | Plastic |
| Cable Length | 11.8 in [30 cm] |
| Power Source | Bus Powered and Host USB-C Power Adapter |
| Power Delivery | 100W |
| Power Consumption (In Watts) | 15W |
| OS Compatibility | Windows® 10, 11macOS 10.15, 11.0, 12.0iPadOSAndroid™Linux® 4.x and up - LTS Versions onlyChrome OS™ |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Adapters |
| Weight | 0.068 kg |
