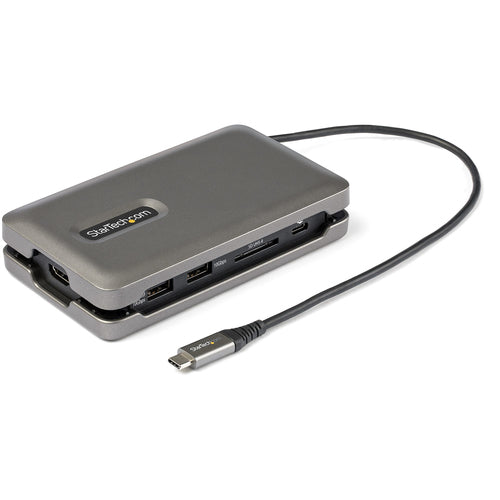

StarTech.com DKT31CSDHPD3 - USB C MULTIPORT ADAPTER W/ HUB HDMI PD
You May Also Like
Cruxtec CDK10-SG USB-C to Dual HDMI, Multi- Screen output 4K60hz - Mini Docking
Cruxtec CDK14-SG 14-in-1 USB-C 100W Docking Station with Built-in M.2 Slot support upto 4TB -
Cruxtec CDK06-SG USB-C to Dual HDMI Display Mini Dock with 100W PD
Features
https://www.startech.com/en-us/universal-laptop-docking-stations/dkt31csdhpd3
This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, two USB 3.1 Gen 2 Type-A (10Gbps) ports, an SD card reader and a Gigabit Ethernet port all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 10-inch (25 cm) host cable for an extended reach to offer more set up flexibility.
USB 3.1 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2x1 (10Gbps).
Enhance Productivity

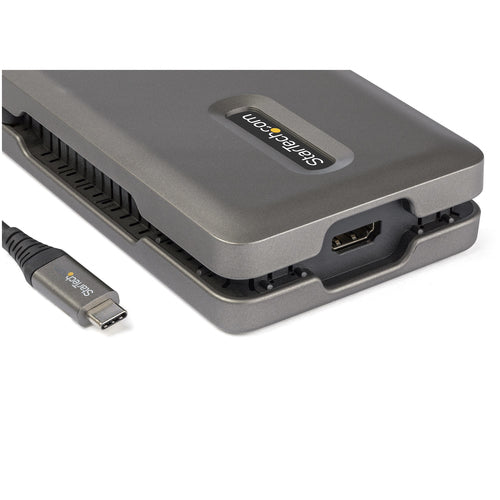

The portable docking station connects your laptop to a 4K 60Hz HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.
Connect Your Devices

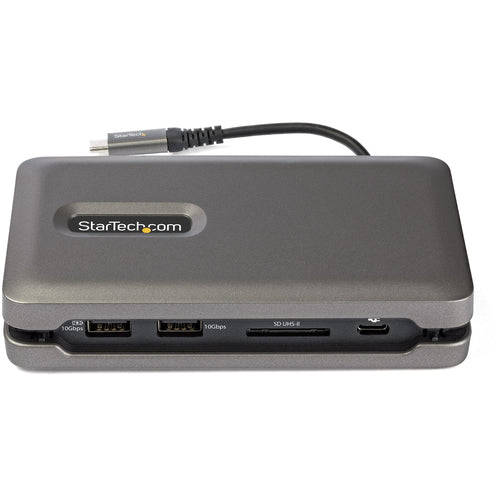

The USB-C to USB 3.1 Gen 2 hub gives you two USB-A (10Gbps) ports to connect your USB devices.
Easy Portability

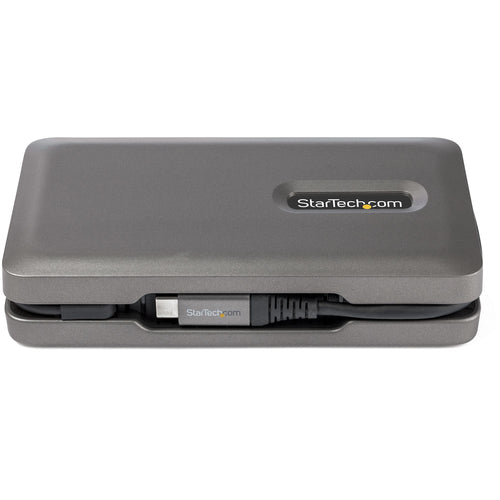

For mobile use, the USB-C adapter can operate with bus-power alone, or with a USB-C power adapter for laptop and BC 1.2 peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable.
Built-In SD Card Reader
Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD (uSD) cards.
Charge Your Laptop and Peripherals
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).
Reliable Network Connectivity

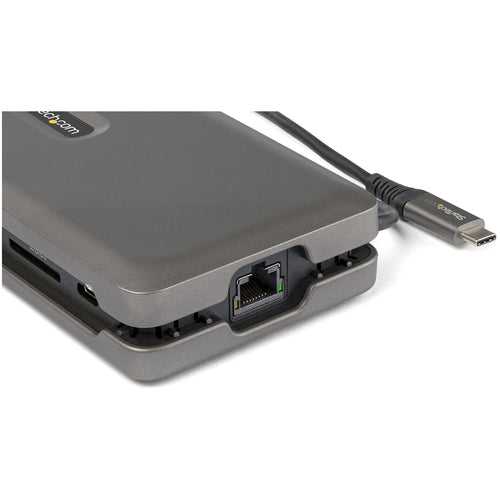

The Gigabit Ethernet port ensures reliable wired network access with support for PXE Boot and WoL.
Specifications
Technical Specifications
| 1 - Connector Type(s) | USB 3.1 Gen 2 USB Type-A (9 pin, 10 Gbps)USB 3.1 Gen 2 USB Type-C (Fast-Charge, 24 Pin, 10 Gbps)SD / MMC SlotUSB Type-C (24 pin) USB Power Delivery onlyHDMI (19 pin)RJ-45 |
|---|---|
| 1 - Host Connectors | USB 3.1 Gen 2 USB Type-C (24 pin, 10 Gbps) |
| Operating Temperature | 0? to 50? |
| Storage Temperature | -10? to 70? |
| Humidity | 5% to 95% RH (no condensation) |
| Fast-Charge Port(s) | Yes |
| Displays Supported | 1 |
| Interface | USB 3.1 Gen 2 - 10 Gbit/s |
| Bus Type | USB-C |
| Industry Standards | IEEE 802.3IEEE 802.3uIEEE 802.3abUSB Power Delivery Specification Rev. 3.0USB Battery Charging Specification Rev. 1.2DisplayPort 1.4USB 3.1 Gen 2 (10Gbps) |
| Chipset ID | Genesys Logic - GL9510Genesys Logic - GL3590Genesys Logic - GL3523Realek - RTL8153VCParade - PS186 |
| Shipping (Package) Weight | 9.5 oz [270.0 g] |
| Package Height | 1.6 in [4.0 cm] |
| Package Length | 5.7 in [14.4 cm] |
| Package Width | 8.3 in [21.0 cm] |
| Maximum Data Transfer Rate | 10Gbps |
| Maximum Digital Resolutions | 4K 60Hz |
| Type and Rate | USB 3.1 Gen 2 - 10 Gbit/s |
| UASP Support | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| PXE | Yes |
| Full Duplex Support | Yes |
| MTBF | 44758.902 Hours |
| Color | Space Gray |
| Product Height | 1.1 in [2.9 cm] |
| Weight of Product | 5.3 oz [150.0 g] |
| Product Length | 3.2 in [8.2 cm] |
| Product Width | 5.6 in [14.2 cm] |
| Material | Plastic |
| Cable Length | 9.8 in [25 cm] |
| Power Source | Bus Powered and Host USB-C Power Adapter |
| Power Delivery | 100W |
| Power Consumption (In Watts) | 15W |
| OS Compatibility | macOS High Sierra (10.13)macOS Mojave (10.14)macOS Catalina (10.15)macOS Big Sur (11.0)macOS Monterey (12.0)Windows 8Windows 10Windows 11Chrome OSiPadOSAndroid 9, 10, 11 |
| Brand | StarTech.com |
|---|---|
| Product Type | Computers & Tablets > Docking Stations |
| Weight | 0.091 kg |
| Warranty |
|---|
