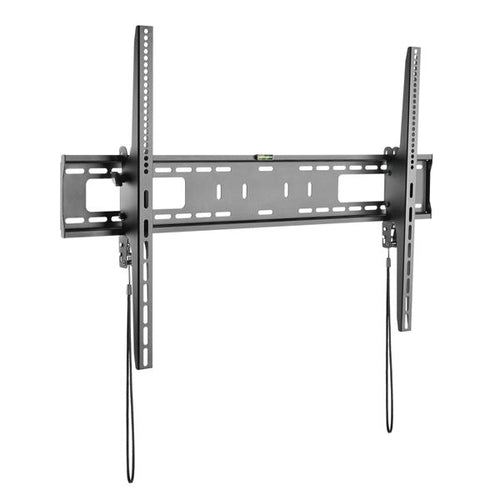

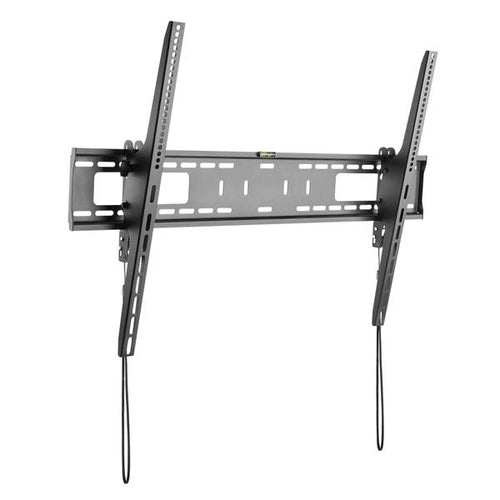

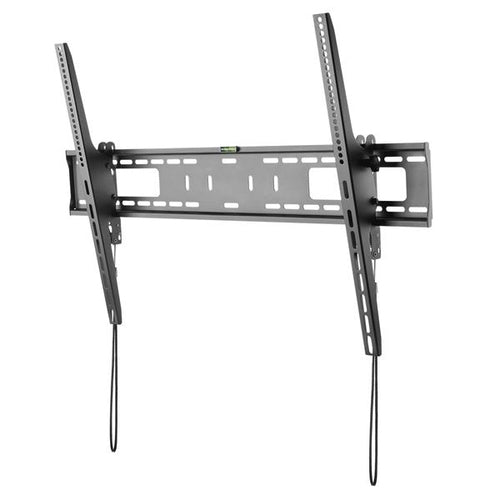

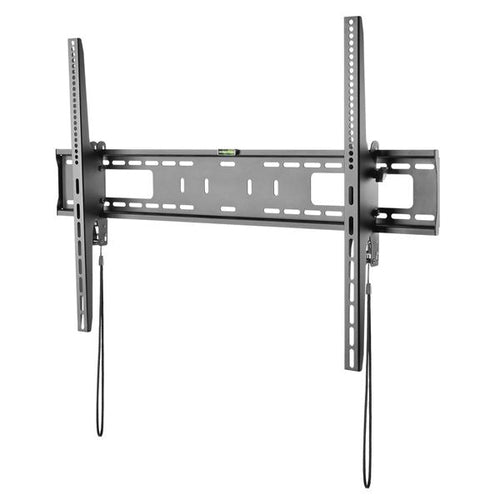

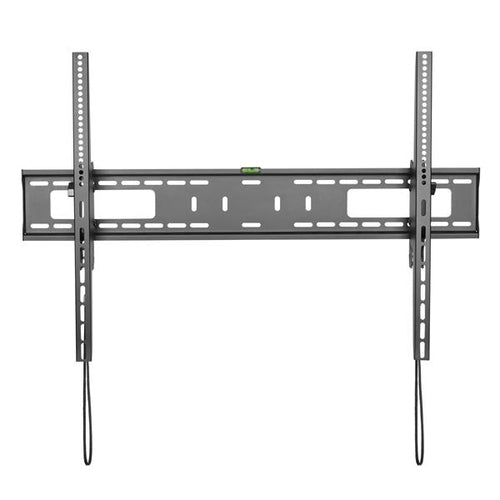

StarTech.com FPWTLTB1 - TV Wall Mount Tilt For 60in - 100in TVs
StarTech.com FPWTLTB1 - TV Wall Mount Tilt For 60in - 100in TVs
Overview
Display Wall Mount | Steel | For 60" to 100" TVs
Save space and create an impressive display by wall-mounting a large TV in a boardroom or customer-facing area. This tilting flat-screen TV wall mount securely supports a TV up to 100" and features an attractive low-profile design.
Create an Engaging Display for Digital Signage
Mount your large flat-screen TV in a location that's convenient for visitors, clients and employees. Create an engaging display to keep guests informed or entertained, ideal in lobbies, lecture halls, restaurants, health care centers and other meeting spaces.
The television wall mount supports most 60" to 100" (812.8 to 1778 mm) LED or LCD flat panel TVs weighing up to 165 lb. (75 kg). It also supports curved TVs, with a compatible VESA mount up to 900x600.
Tilting Design for Optimal Viewing
Find the ideal viewing angle. The tilting TV wall mount lets you tilt your display up (maximum 5 degrees) or down (maximum 10 degrees) with ease.
Low-Profile Design
Save space with this slim TV wall mount. With its low-profile design, your TV sits just 3.3" (85 mm) from the wall.
Robust Steel Construction and Easy Installation
The heavy-duty TV mounting bracket securely supports your large flat-screen TV and is easy to install. The spring locks allow quick attachment and release. The open architecture provides ventilation and easy access to wires.
FPWTLTB1 is backed by a StarTech.com 5-year warranty and free lifetime technical support.
- LARGE 100" TV WALL MOUNT: Heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 100inch (165lb/75kg) w/ a durable steel frame and a powder-coated finish
- EASY ADJUSTMENT: Tilting TV wall mount offers +5/-10Β° precise tilt; Tilt is adjustable by hand using the tilt adjustment knobs, making it easier to position larger displays for an ideal viewing angle
- COMPATIBILITY: Universal TV wall mount supports LG, Samsung and others (screws/spacers incl) & VESA hole patterns 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400, 600x600, 800x400, 800x600, 900x600
- EASY INSTALLATION: Features a hook-on bubble level for proper alignment; Click-in Spring Lock helps TV mounting brackets snap into place for added safety & can be released by pulling on the straps
- LOW PROFILE DESIGN: A low profile design that sits just 3.3" (85mm) from the wall to complement the professional look of ultra-thin flat screen LCD/LED televisions
Technical Specifications
| Maximum weight capacity | 75 |
|---|---|
| Minimum screen size | 60 |
| Number of displays supported | 1 |
| Maximum screen size | 100 |
| Minimum VESA mount | 100 x 100 |
| Maximum VESA mount | 900 x 600 |
| Panel mounting interface | 100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 400,600 x 600,600 x 300,800 x 400,800 x 600,900 x 600 |
| Mounting type | Wall |
| Tilt angle range | -10 - 5 |
| Cable management | N |
| Product colour | Black |
| Housing material | Plastic,Steel |
| Anti-theft function | N |
| Certification | CE, REACH |
| Compliance certificates | RoHS |

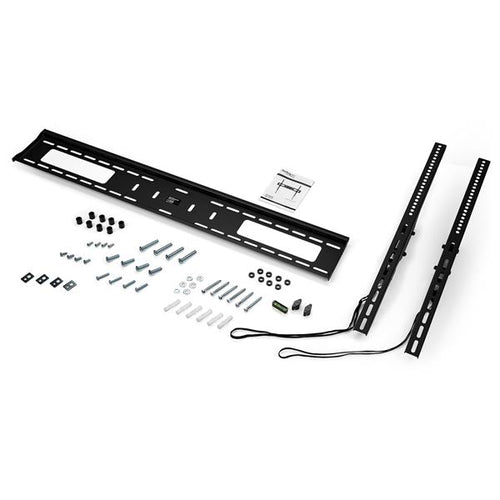

| Adapter bracket included | Y |
| Number of adapter brackets included | 2 |
| Anchors included | Y |
| Number of anchors included | 6 |
| Washers included | Y |
| Number of washers included | 10 |
| Spacer included | Y |
| Number of spacers included | 16 |
| Screws included | Y |
| Number of screws | 26 |
| Manual | Y |
| Width | 625 |
| Depth | 954 |
| Depth (max) | 954 |
| Height | 50 |
| Weight | 4500 |
| Package width | 160 |
| Package depth | 985 |
| Package height | 57 |
| Package weight | 4800 |
| Master (outer) case width | 182 |
| Master (outer) case length | 1007 |
| Master (outer) case height | 235 |
| Products per master (outer) case | 4 |
| Harmonized System (HS) code | 85299097 |
