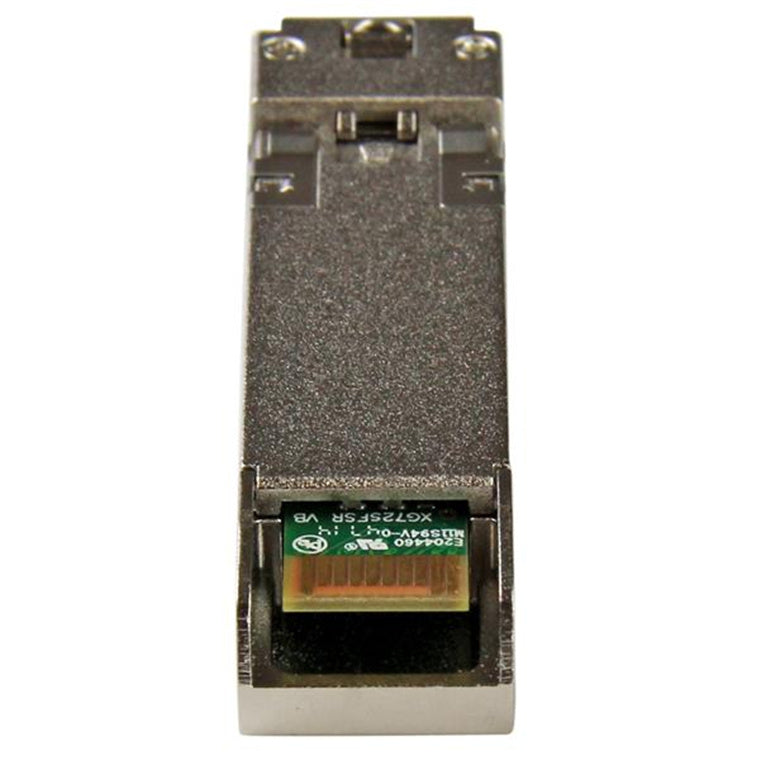

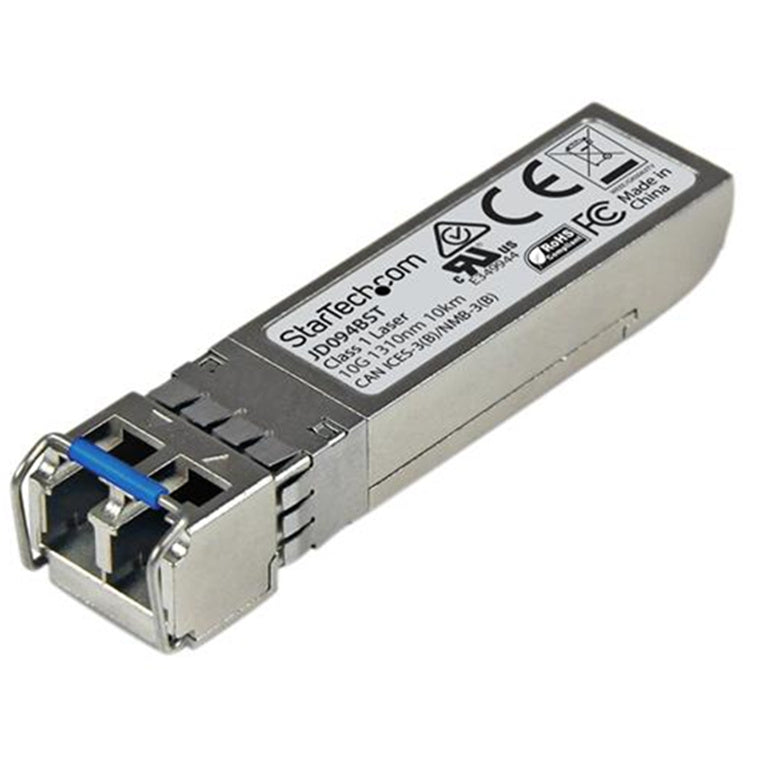

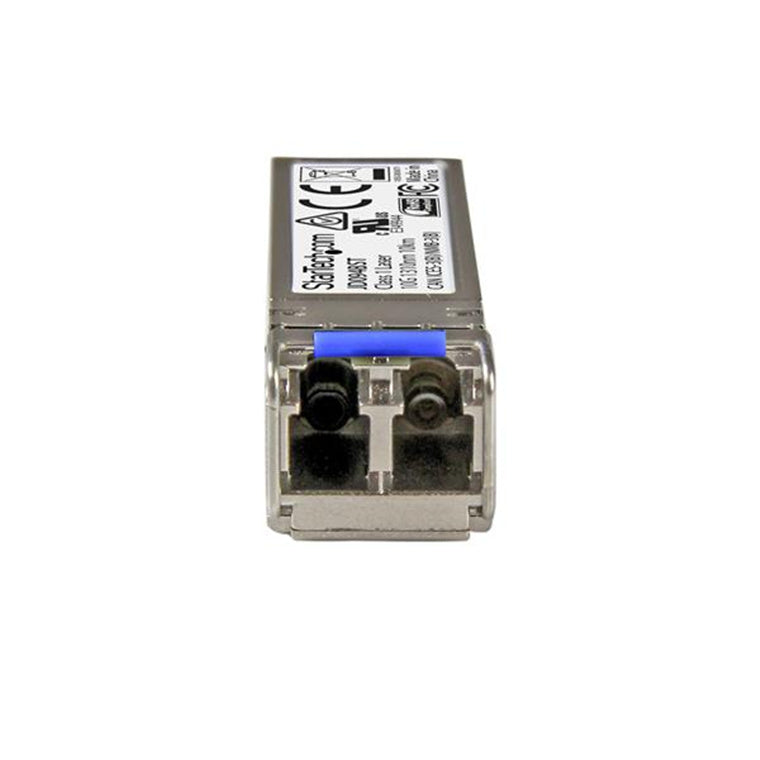

StarTech.com HPE JD094B Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode (SMF) Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE 5900, 12500, 5500
Features
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi)
- 100% HPE JD094B COMPATIBLE: Works with HPE switches like 5900, 12500, 5500, 5820, 5120 and others
- TECHNICAL SPECS: 10GBASE-LR | 10Gbps | Single Mode (SMF) | LC Connector | 1310nm | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
The JD094BST is an HPE JD094B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Applications
- Replacing defective or damaged SFP+ modules in HP switches and routers
- Expand your network to remote segments
Specifications
Technical Specifications
| Package Quantity | 1 |
|---|---|
| Industry Standards | IEEE 802.3ae 10GBASE-LR |
| Material | Aluminum |
| System and Cable Requirements | MSA or HP compliant SFP port |
| Local Unit Connectors | 1 - Fiber Optic LC Duplex |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5~95% RH |
| Compatible Brand | HPE |
| Package Height | 1.3 in [3.3 cm] |
| Package Length | 4.5 in [11.4 cm] |
| Shipping (Package) Weight | 1.7 oz [48.0 g] |
| Package Width | 3.6 in [9.1 cm] |
| Maximum Data Transfer Rate | 10 Gbps |
| Max Transfer Distance | 10 km (6.2 mi) |
| Type | Single Mode |
| Wavelength | 1310nm |
| Fiber Operating Mode | Full-Duplex |
| DDM | Yes |
| Compatible Networks | 10 Gbps |
| MTBF | 2,104,865 hours |
| Power Consumption (In Watts) | < 1.2 W |
| Weight of Product | 0.7 oz [20.0 g] |
| Color | Silver |
| Product Length | 2.3 in [58.4 mm] |
| Product Width | 0.5 in [1.4 cm] |
| Product Height | 0.5 in [1.3 cm] |
| Note | For use in 10 Gigabit fiber networking equipment and media converters |
| Included in Package | 1 - SFP+ transceiver |
| Brand | StarTech.com |
|---|---|
| Product Type | Networking |
