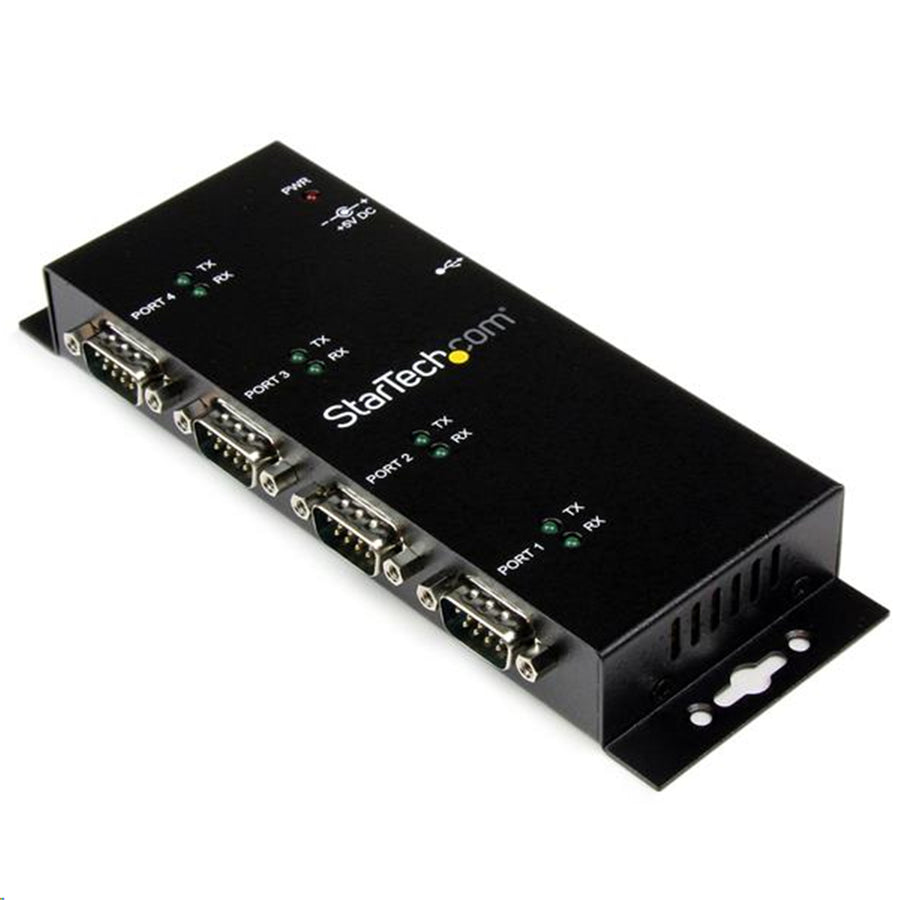

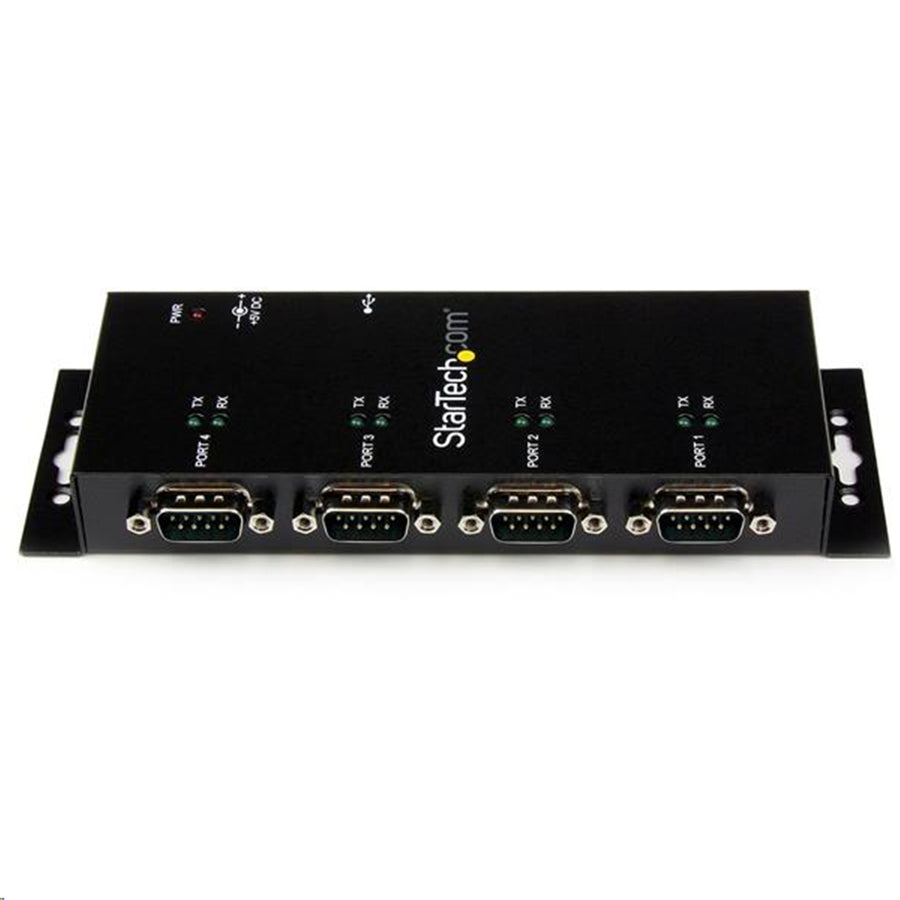

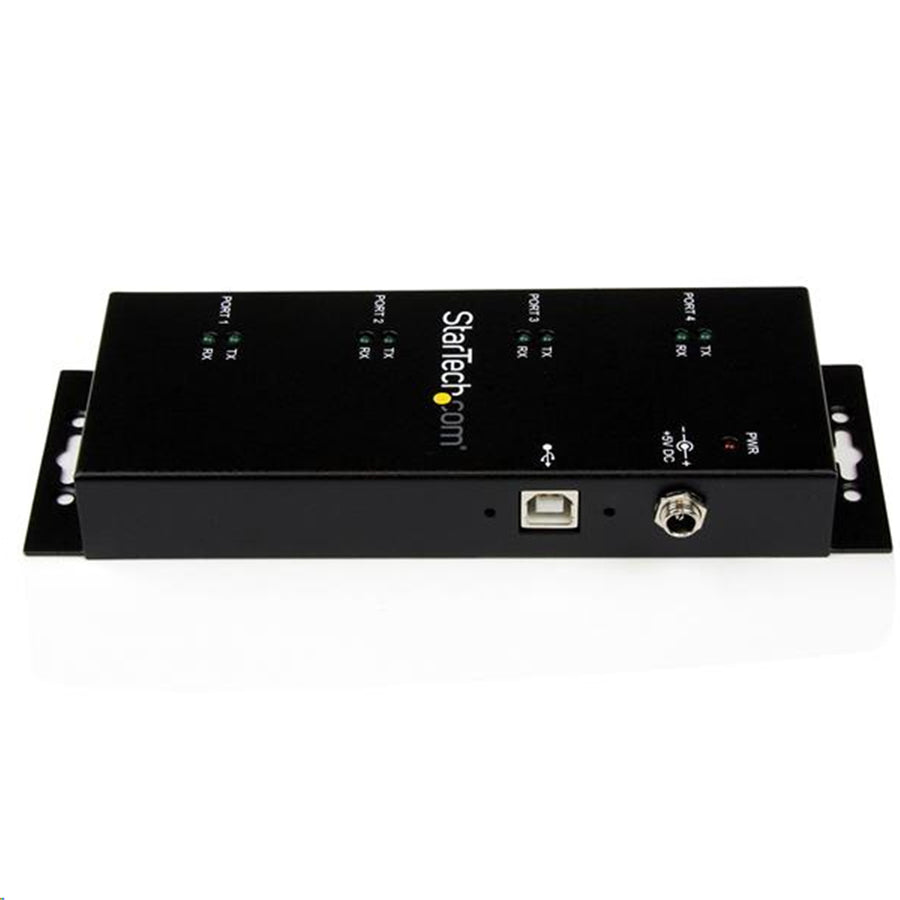

StarTech.com ICUSB2324I 4 Port USB to DB9 RS232 Serial Adapter
Features
4 Port USB to DB9 RS232 Serial Adapter Hub - Industrial DIN Rail and Wall Mountable
The ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into four RS232 serial ports, enabling you to connect to, monitor and control your serial devices. Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations. This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated wallmount brackets and included DIN Rail clips for versatile mounting options
- Rugged all-metal enclosure for added durability in harsh environments
- Easy plug and play installation, with our USB Powered adapter - no power outlet required
Specifications
Technical Specifications
| Bus Type | USB 2.0 |
|---|---|
| Chipset ID | FTDI FT4232HL |
| Interface | Serial |
| Port Style | External Hub |
| Ports | 4 |
| Data Bits | 7, 8 |
| FIFO | 256 Bytes |
| Max Baud Rate | 921.6 Kbps |
| Maximum Data Transfer Rate | 921.6Kbps |
| MTBF | 282713.5 hours |
| Parity | Odd, Even, Mark, Space, None |
| Serial Protocol | RS-232 |
| Stop Bits | 1, 2 |
| Connector Type(s) | 1 - USB B (4 pin) Female4 - DB-9 (9 pin, D-Sub) Male |
| OS Compatibility | Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016Mac OS® 10.6 to 10.12Linux 2.4.x to 4.4.x LTS Versions only |
| LED Indicators | 4 - Each, Tx/Rx Activity indicators |
| Plug Type | M |
| Power Source | USB-Powered |

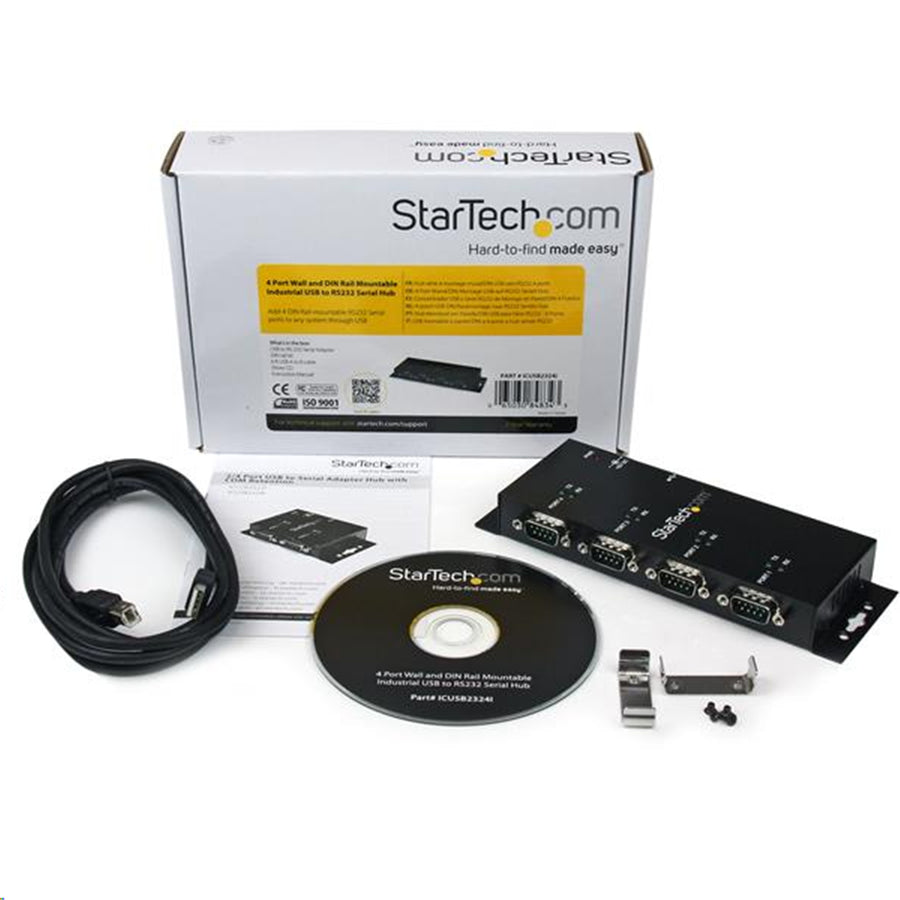

| Included in Package | 1 - USB to RS-232 Serial Adapter1 - DIN rail kit1 - 6 ft USB A to B cable1 - Driver CD1 - Instruction Manual |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals |
