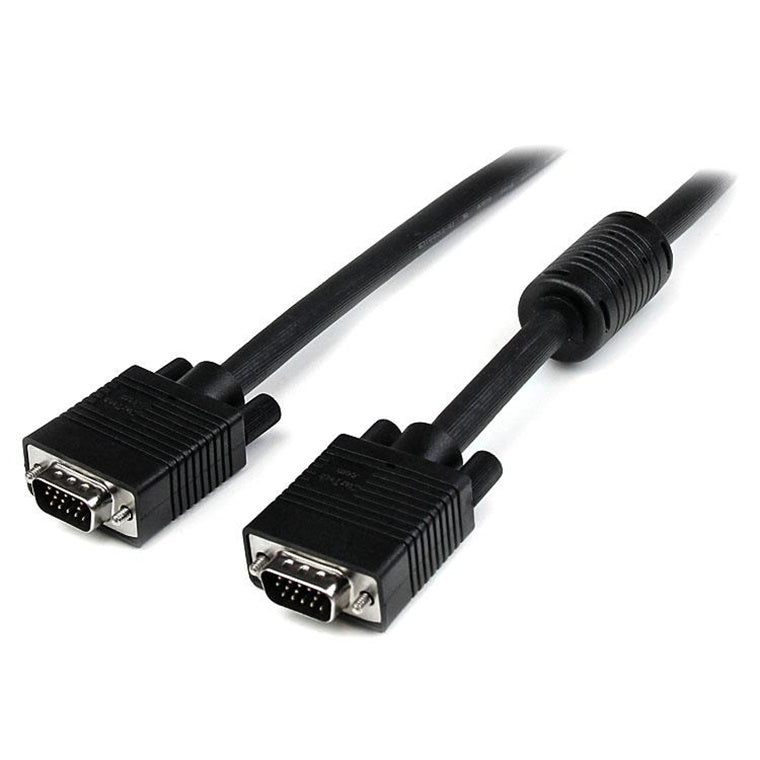

StarTech.com MXTMMHQ15M - 15m High Res Monitor VGA Cable

StarTech.com

StarTech.com MXTMMHQ15M - 15m High Res Monitor VGA Cable

SKU: MXTMMHQ15M ● In Stock

$83.30

Free shipping over $299 Genuine product 7-day returns

📄 Download Official Datasheet (PDF)

StarTech.com MXTMMHQ15M - 15m High Res Monitor VGA Cable

Overview

Connect your VGA monitor with the highest quality connection available

The MXTMMHQ15M High Resolution VGA Cable (15-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.

Triple coaxial + twisted-pair wire for crystal clear display
Durably constructed cable, with high quality HD15 connectors
Impedance matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor
High quality VGA connectors with molded PVC strain relief

Technical Specifications

Cable length	15
Connector 1	VGA (D-Sub)
Connector 2	VGA (D-Sub)
Connector 1 gender	Male connector
Connector 2 gender	Male connector
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Product colour	Black
Supported graphics resolutions	1920 x 1200 (WUXGA)
Cable shielding	Aluminum mylar foil
AWG wire size	28
Connector contacts plating	Nickel
Cable jacket material	Polyvinyl chloride (PVC)
Cable rating	CMG (CM)
Number of conductors	14
Impedance	75
Plug and Play	Y
Operating temperature (T-T)	0 - 60
Storage temperature (T-T)	-20 - 80
Operating relative humidity (H-H)	0 - 80
Compliance certificates	RoHS
Certification	CE, REACH
Weight	1400
Package width	255
Package depth	330
Package height	61
Package weight	1400
Quantity per pack	1
Harmonized System (HS) code	84733080
Master (outer) case width	370
Master (outer) case length	415
Master (outer) case height	275
Products per master (outer) case	12
