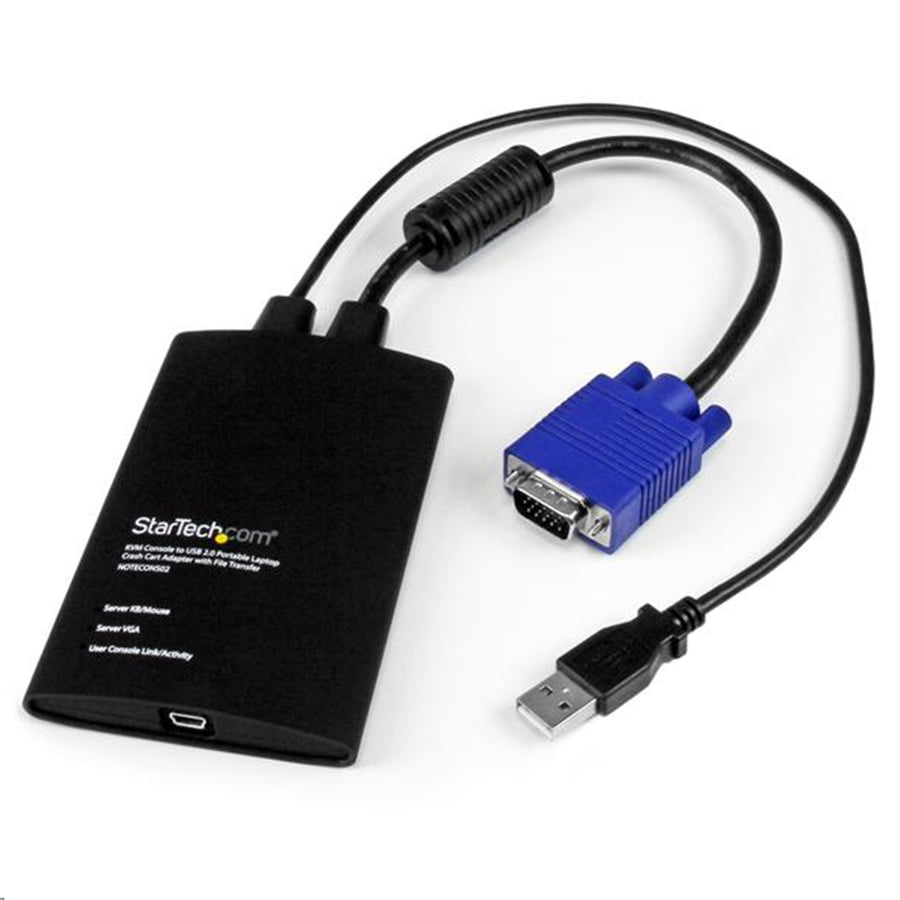

StarTech.com NOTECONS02 KVM Portable Crash Cart w/ File Transfer
Features
Portable KVM Console | VGA Video | 1920 x 1200 60Hz | Cables Included
- LAPTOP TO SERVER: USB crash cart adapter connects your laptop to a headless system, turning your laptop into a portable console for rack servers in your server room, PCs, ATMs, kiosks, etc
- EFFICIENT TROUBLESHOOTING: Easily transfer files, capture screenshots, and log activity using the crash cart adapter software; For optimal performance, install the latest drivers making sure to download the drivers specifically for the NOTECONS02
- SELF-POWERED: The KVM adapter is powered by the server-side USB connection, reducing strain on the laptop's battery and eliminating the need for an AC outlet, allowing you to connect to any PC or device with a VGA output port and USB connection
- COMPACT DESIGN: This TAA Compliant pocket-sized data center crash cart adapter requires no additional accessories, eliminating the need to carry around a traditional crash cart/trolley when troubleshooting and servicing your systems
- BIOS-LEVEL CONTROL: Connect the crash cart adapter to your laptop using the included USB cable, then connect the integrated USB & VGA cables to your server for instant BIOS-level control; Note: Mouse function may be limited in some BIOS/UEFI environments

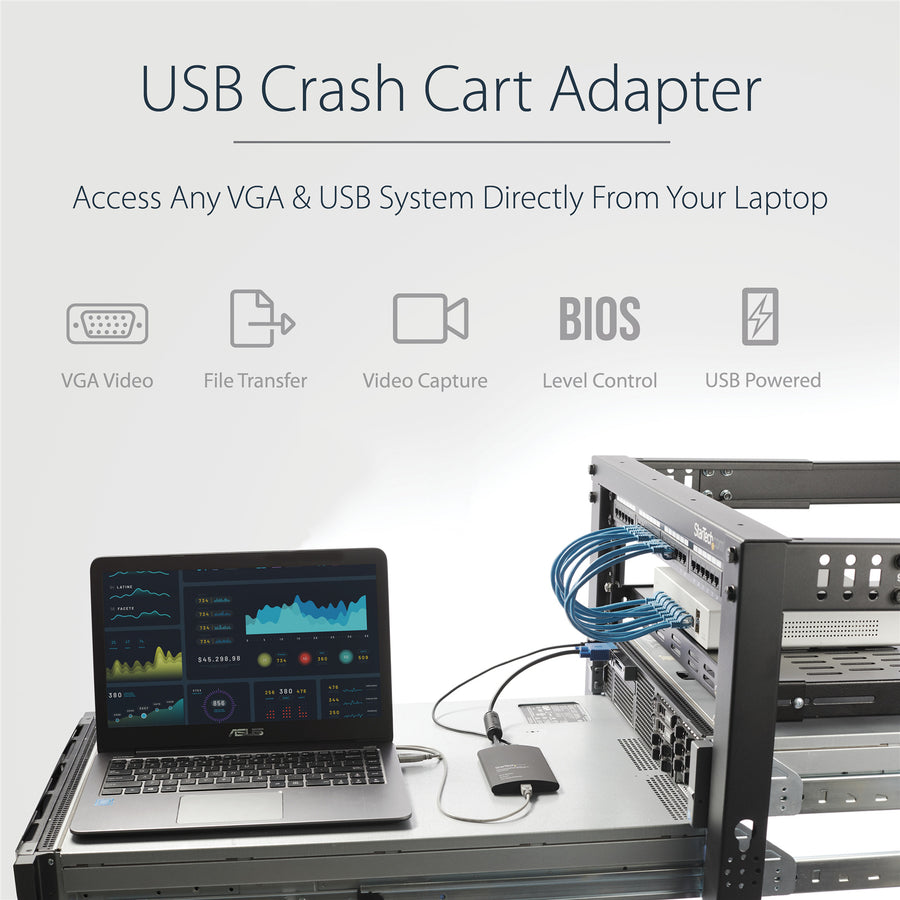

The USB crash cart adapter gives you control of a headless system, turning your laptop into a portable crash cart for rack servers, PCs, ATMs, kiosks, and more.

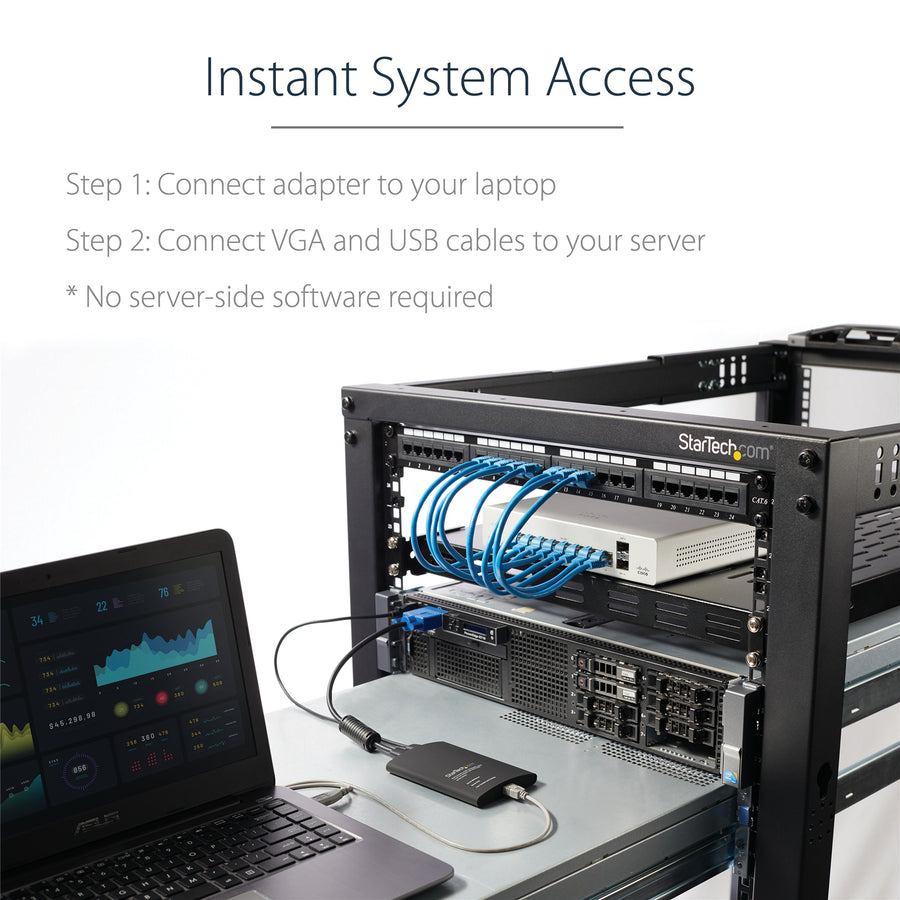

Instant System Access
Simply connect the laptop crash cart adapter to your computer using the included USB cable, then connect the integrated USB and VGA cables to your server for instant BIOS-level control. With no server-side software required, you can be up and running instantly.
*Please note that the mouse function may be limited in some BIOS/UEFI environments
Troubleshoot More Efficiently
With the flexible software interface, you can transfer files from your laptop to the server, capture videos for records or instructional purposes, take screenshots and scale the display window to full screen mode or smaller, with no scroll bars helping you to troubleshoot faster.
Self-Powered Reliability
Powered from the server-side USB connection, the KVM adapter doesn't require an AC outlet so you can connect to any PC or device that has a VGA and USB port, even if there's no power outlet available.
Take It Anywhere
This pocket-sized adapter features a compact design that easily fits inside your laptop bag and requires no additional accessories to connect, eliminating the need to lug around a large, awkward traditional crash cart to troubleshoot and service your systems.
StarTech.com offers a wide selection of high-quality KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors.
Applications
- ATM and VLT maintenance and repair
- Mobile systems and server repair
Specifications
Technical Specifications

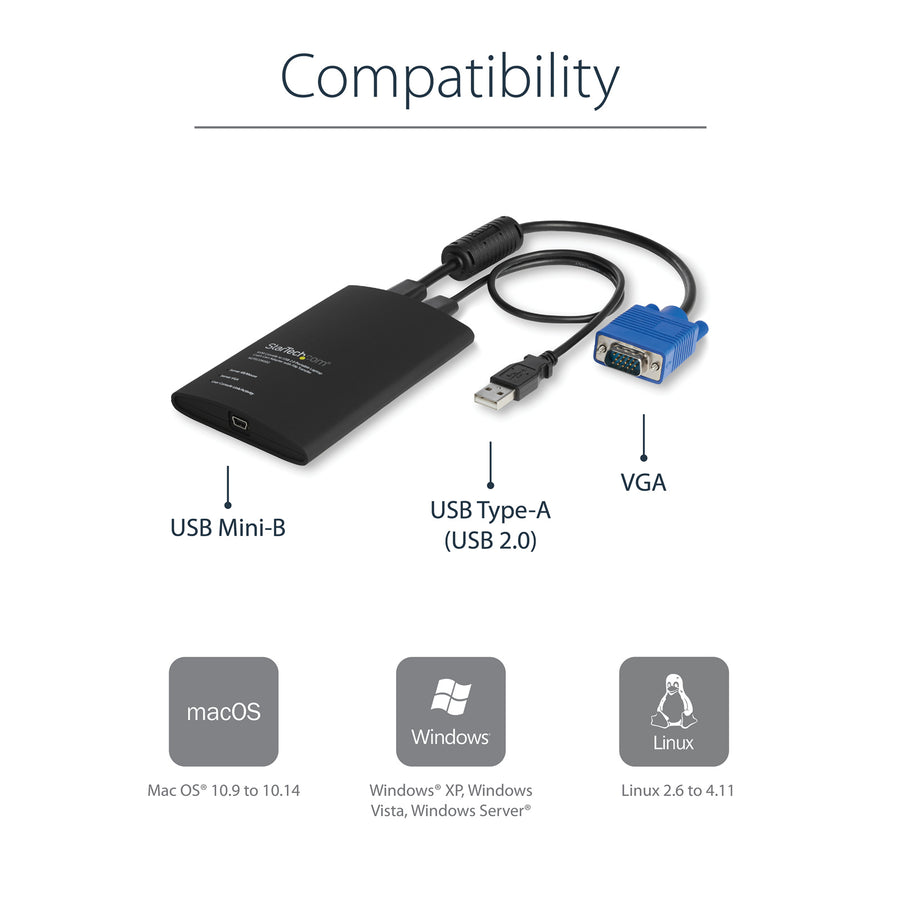

| Console Interface(s) | 1 - USB Mini-B (5 pin) |
|---|---|
| Host Connectors | 1 - VGA (15 pin, High Density D-Sub)1 - USB 2.0 Type-A (4 pin, 480Mbps) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 80% RH |
| Audio | No |
| KVM Ports | 1 |
| PC Interface | USB |
| PC Video Type | VGA |
| Number of Monitors Supported | 1 |
| Rack-Mountable | No |
| Cables Included | Yes |
| Daisy-Chain | No |
| LED Indicators | 1 - User Console/USB Link1 - Host/Server Video (VGA) Link1 - Host/Server Keyboard/Mouse USB Link |
| Package Height | 2.2 in [5.5 cm] |
| Package Length | 11.9 in [30.1 cm] |
| Package Width | 6.5 in [16.5 cm] |
| Package Quantity | 1 |
| Shipping (Package) Weight | 12.6 oz [358.0 g] |
| On-Screen Display | No |
| IP Control | No |
| Hot-Key Selection | No |
| Maximum Analog Resolutions | 1920x1200 @ 60Hz |
| Maximum Number of Users | 1 |
| MTBF | 909000 |
| Product Length | 5.2 in [13.3 cm] |
| Color | Black |
| Material | Plastic |
| Cable Length | 16.4 in [416 mm]1 x 15in (385mm) USB host cable1 x 11in (290mm) VGA host cable1 x 6ft (1.8m) USB Console cable |
| Product Width | 2.9 in [7.4 cm] |
| Product Height | 0.6 in [1.5 cm] |
| Product Depth | 4.5 in [115 mm] |
| Weight of Product | 6.0 oz [170.0 g] |
| Power Source | USB-Powered |
| OS Compatibility | Windows® XP, Vista, 7, 8, 8.1, 10, 11Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022, 2025macOS 10.9 to 10.15, 11.0, 12.0, 13.0, 14.0, 15.0, 26.1Linux 2.6 and up - LTS Versions only |
| Note | - If you're interfacing with a Linux device, this adapter is only compatible with standard QWERTY keyboards in U.S English configuration- Note: Mouse function may be limited or non-functional in some BIOS/UEFI environments |
| Included in Package | 1 - USB Crash Cart Adapter1 - USB A to Mini-B Cable |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals |
