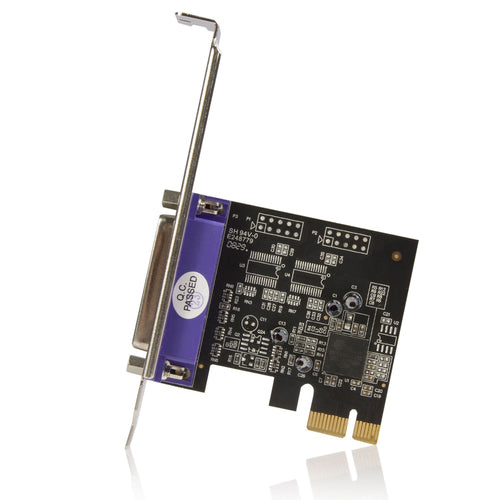

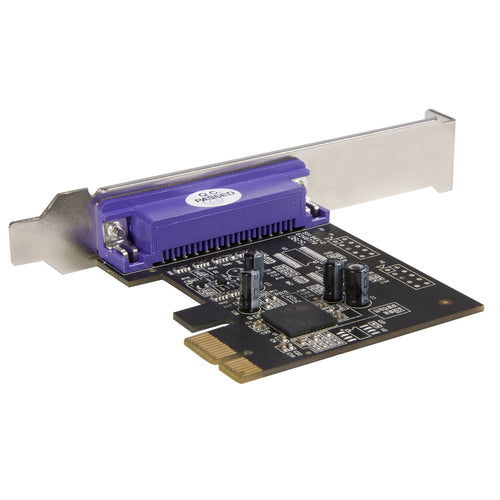

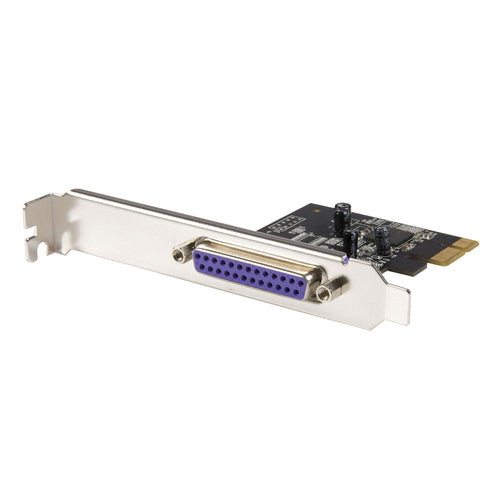

StarTech.com PEX1P2 - 1-Port Parallel PCIe Card/Printer LPT
You May Also Like
UGREEN UG-70504 M.2 NVME to PCI-E3.0 Express Card with M.2 SATA
631670-B21 - HP Smart Array P420 1Gb FBWC 6G 2-Port Int PCI-E 3.0x8 SAS Controller
462918-001 - HP Smart Array P411/ZM 6G 2-Port Ext PCI-E 2.0x8 SAS Controller
462828-B21 - HP Smart Array P212/ZM 6G 1-Port Int/1-Port Ext PCI-E 2.0x8 SAS Controller
Features
This PCIe Parallel controller card installs into an available PCI-Express x1 slot in your computer and enables you to add DB25 parallel communication port to your system.
Adds a Parallel Port to Your Desktop Computer
The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.
Wide Installation Compatibility

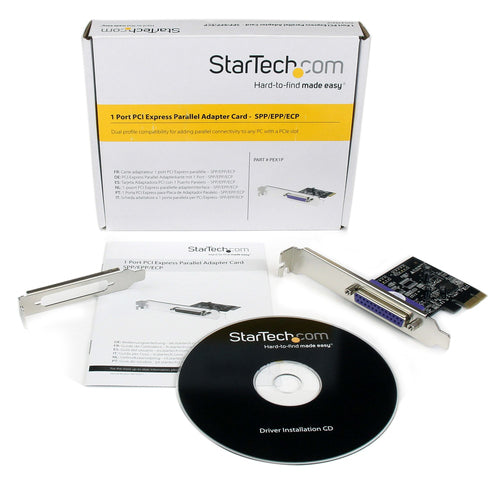

This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (XP or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher).
Applications
Connect printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes to your computer
Use in factories to control or automate equipment
Specifications
Technical Specifications
| 1 - Connector Type(s) | PCI Express x1 |
|---|---|

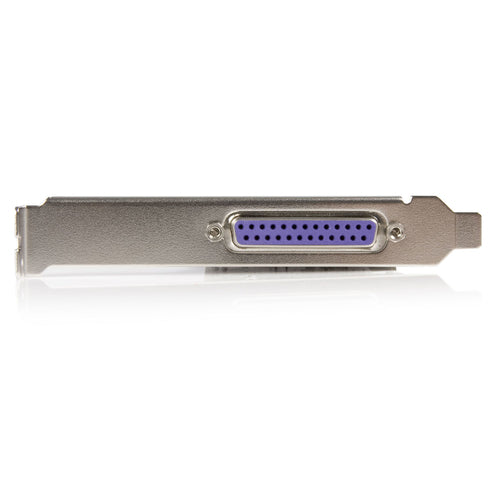

| 1 - External Ports | DB-25 (25 pin, D-Sub) |
| Ports | 1 |
| Interface | PCI Express |
| Bus Type | Parallel |
| Card Type | Standard Profile (LP bracket incl.) |
| Port Style | Integrated on Card |
| Industry Standards | PCI Express 2.0IEEE 1284 |
| Chipset ID | Asix - AX99100 |
| Maximum Data Transfer Rate | 2.5 Mbps |
| General Specifications | Supported Parallel Modes: SPP (Standard Printer Port), Nibble, Byte, and ECP (Extended Capabilities Port) |
| MTBF | 17,520 Hours |
| OS Compatibility | Windows® 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019Linux 2.6.x to 5.x LTS Versions only |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Parts > IO, SCSI, IDE Cards |
| Weight | 0.045 kg |
