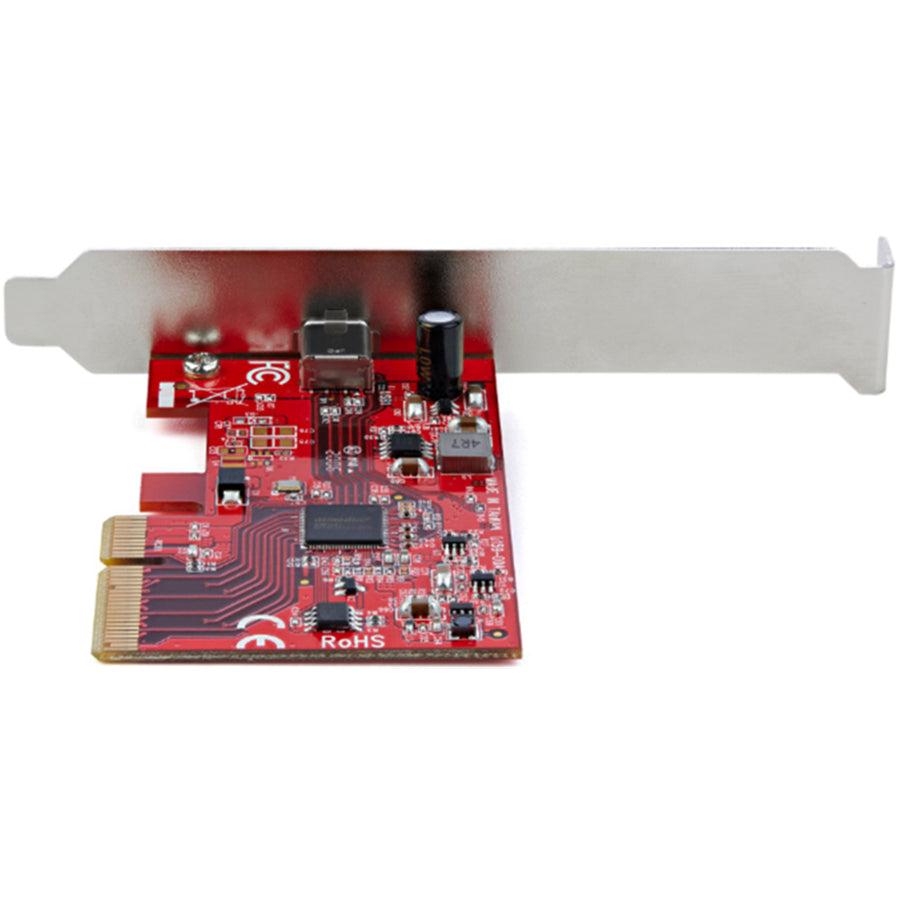

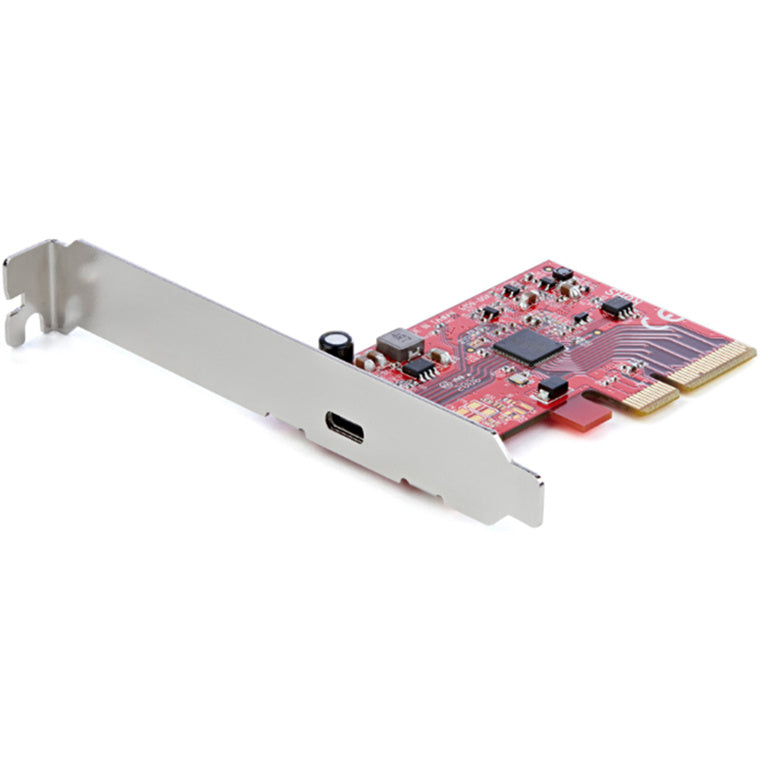

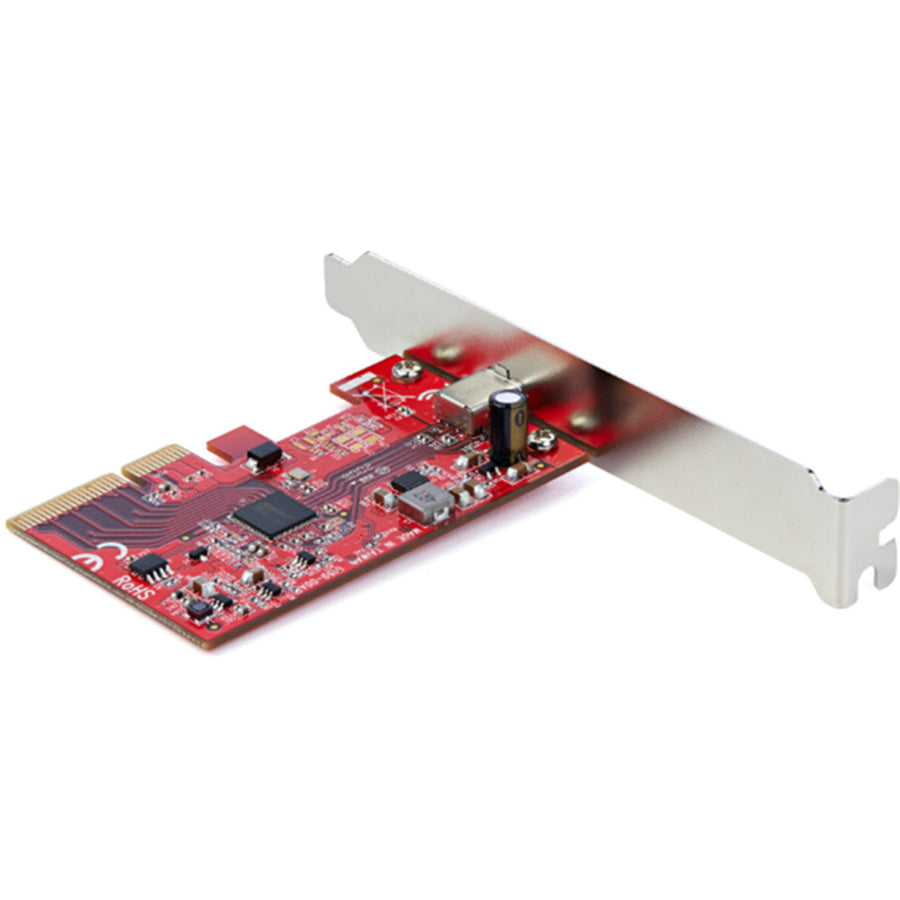

StarTech.com PEXUSB321C 1-Port USB 3.2 Gen 2x2 PCIe Card - USB-C SuperSpeed 20Gbps PCI Express 3.0 x4 Host Controller Card

StarTech.com

StarTech.com PEXUSB321C 1-Port USB 3.2 Gen 2x2 PCIe Card - USB-C SuperSpeed 20Gbps PCI Express 3.0 x4 Host Controller Card

SKU: PEXUSB321C ● In Stock

$99.62 ~~$132.54~~

Free shipping over $299 Genuine product 7-day returns

Features

This PCIe USB 3.2 Gen 2x2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding a USB-C™ (20Gbps) port.

Add a 20 Gbps USB Type-C Port to Your Desktop Computer

The controller card enables you to connect USB-C Gen 2x2 (20 Gbps) devices to your desktop computer. The USB-C port is ideal for connecting USB devices such as external hard drives and solid state drives or charging and syncing your mobile devices. The USB-C port provides up to 15W (5V/3A) of power and is backward compatible with USB 3.2 Gen 2 (10 Gbps) and USB 3.2 Gen 1 (5 Gbps) devices.

Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.0 and USB 3.1 (5 Gbps).

SuperSpeed USB 3.2 Gen 2x2 (20 Gbps) Performance

The USB 3.2 Gen 2x2 card features an ASMedia ASM3242 host controller that utilizes x4 lanes of the PCIe 3.0 bus, making the card capable of speeds up to 20Gbps and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller card supports Multiple INs to reduce bandwidth loss when multiple devices are connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices.

Wide Installation Compatibility

This add-on card includes both full-profile and low-profile installation brackets ensuring you can install it into either a full or low-profile PCIe 3.0 x4 slot (backward compatible w/PCIe 2.0). For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works w/USB 3.1/3.0/2.0 devices

Specifications

Technical Specifications

Connector Type(s)	1 - PCI Express x4
External Ports	1 - USB Type-C (24 pin, Gen 2x2, 20Gbps)
Operating Temperature	0°C to 85°C (32°F to 185°F)
Storage Temperature	-25°C to 85°C (-13°F to 185°F)
Humidity	15% ~ 90% RH
Ports	1
Interface	PCI Express x4
Bus Type	PCI Express

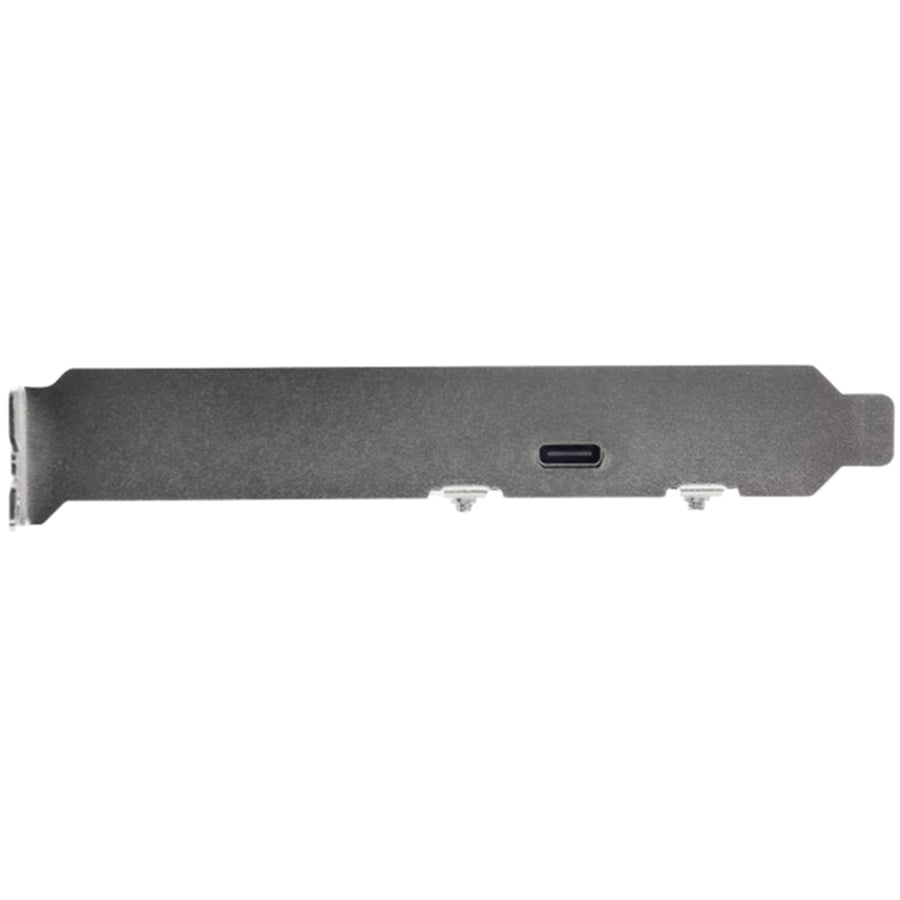

Card Type	Standard Profile (LP bracket incl.)
Industry Standards	USB 3.2 Specification Rev. 1.0PCI Express Base Specification Rev. 3.0Intel xHCI Specification Rev. 1.1UASP (USB Attached SCSI Protocol) Rev. 1.0
Chipset ID	ASMedia - ASM3242
Package Height	1.2 in [3.0 cm]
Package Length	6.7 in [17.0 cm]
Shipping (Package) Weight	3.6 oz [101.0 g]
Package Width	5.6 in [14.2 cm]
Maximum Data Transfer Rate	20Gbps
Type and Rate	USB 3.2 Gen 2x2 (20Gbps)
UASP Support	Yes
MTBF	3,126,209 Hours
Product Height	0.9 in [2.2 cm]
Product Length	2.0 in [5.1 cm]
Weight of Product	1.3 oz [37.0 g]
Product Width	3.1 in [8.0 cm]
Color	Red
OS Compatibility	Windows® 8, 8.1, 10, 11Windows Server® 2012 R2, 2016, 2019macOS 10.13 to 10.15, 11.0, 12.0Linux® 3.5 or later LTS version only
System and Cable Requirements	PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
Note	The card's USB-C ports are standard data throughput port. They do not support DP Alt Mode or USB Power Delivery.The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 10Gbps. A PCI Express Gen 2 or Gen 3 port is required to reach speeds up to 20Gbps.
Included in Package	1 - PCI Express USB Card1 - Full Profile Bracket (Installed)1 - Low Profile Bracket1 - Quick-Start Guide
