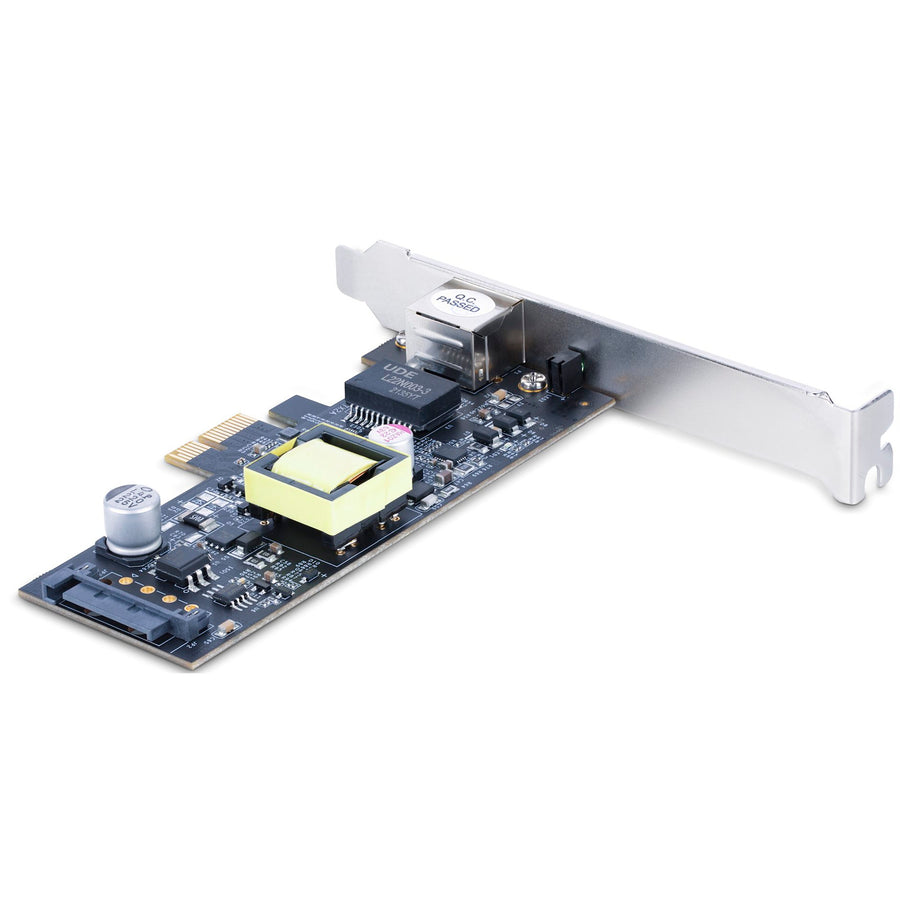

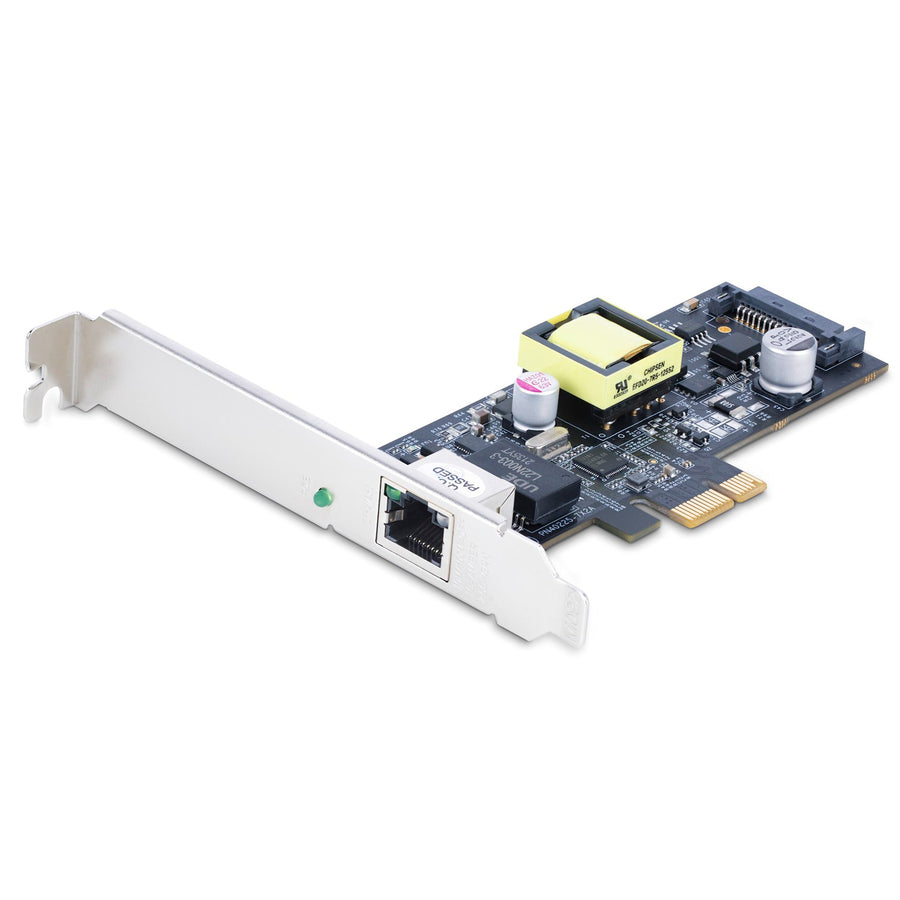

StarTech.com PR12GIP-NETWORK-CARD 1-Port 2.5Gbps PoE Network PCIe Card

SKU: PR12GIP-NETWORK-CARD ● In Stock
$196.52
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

StarTech.com

StarTech.com ST10GSPEXNDP2 2-Port 10Gbps PCIe Network Adapter Card

$302.61
inc GST ▲ +GST

Features

StarTech.com PR12GIP-NETWORK-CARD 1-Port 2.5Gbps PoE Network PCIe Card

Specifications

Technical Specifications

Connector Type(s) 1 - PCI Express x1
Internal Ports 1 - SATA Power (15 pin)
External Ports 1 - RJ-45 (PoE+)
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -10°C - 70°C (14°F - 158°F)
Humidity 5% - 90% RH
Ports 1
Interface RJ45 (2.5G Ethernet)
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Industry Standards IEEE 802.3at Power over Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3bz (2.5GBASE-T) IEEE 802.3ab (1000BASE-T ) IEEE 802.3u (100BASE-TX ) IEEE 802.3i (10BASE-TX) IEEE 802.1Q
Chipset ID Intel - I225-V
LED Indicators 1 - Left LED Indicator is Link Status Solid Green: Active Link Flashing Green: Activity 1 - Right LED Indicator is Link Speed Solid Green: 2.5 Gbps Solid Amber: 1.0 Gbps Off: 100 o
Package Height 1.3 in [3.3 cm]
Package Length 8.3 in [21.2 cm]
Shipping (Package) Weight 5.3 oz [150.0 g]
Package Width 5.6 in [14.2 cm]
Wake On Lan Yes
Maximum Data Transfer Rate 2.5Gbps
Compatible Networks 2.5G/1G/100Mbps/10Mbps
Auto MDIX Yes
PXE Yes
Full Duplex Support Yes
Jumbo Frame Support 9K max.
Promiscuous Mode Yes
Color Black
Product Height 0.6 in [1.6 cm]
Product Length 4.7 in [11.9 cm]
Weight of Product 2.2 oz [62.0 g]
Product Width 2.1 in [5.4 cm]
Power Source Bus Powered
Output Voltage 48 DC
OS Compatibility Windows® 10, 11 Windows Server® 2019, 2022 Linux 5.8.x and up - LTS Versions only VMware ESXi 7.0
Included in Package 1 - Network Card 1 - Low Profile Bracket 1 - Quick-Start Guide
Warranty 12 months
