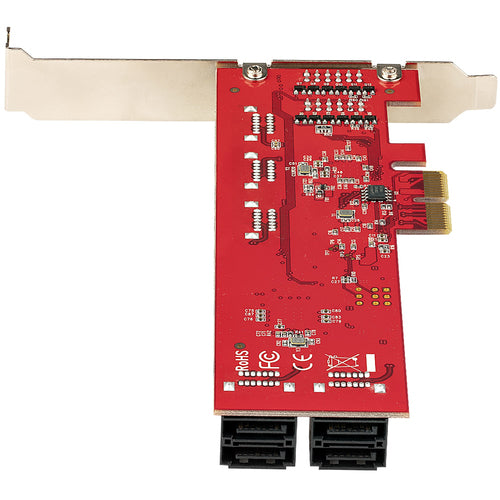

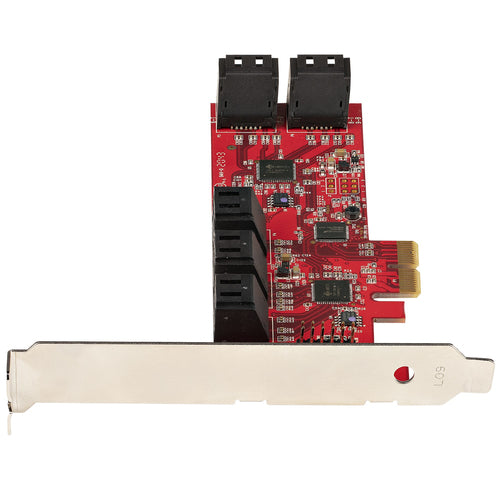

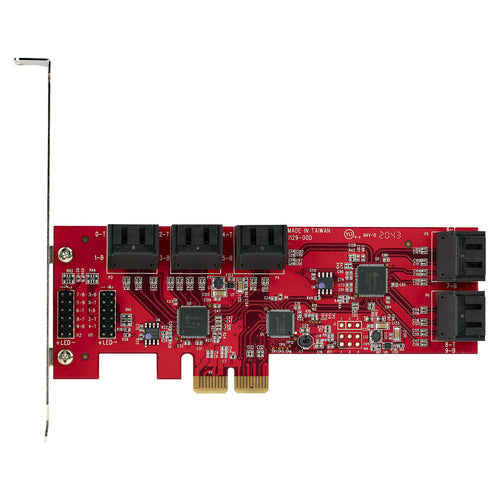

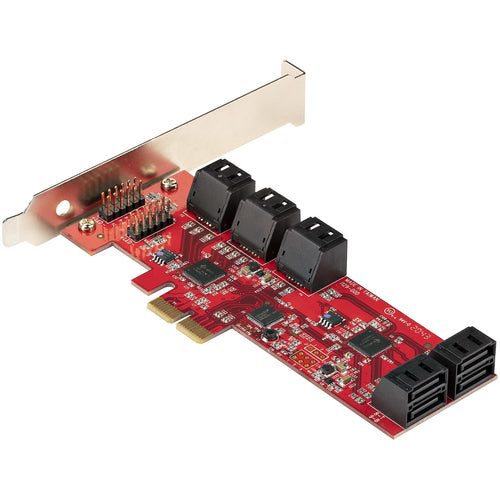

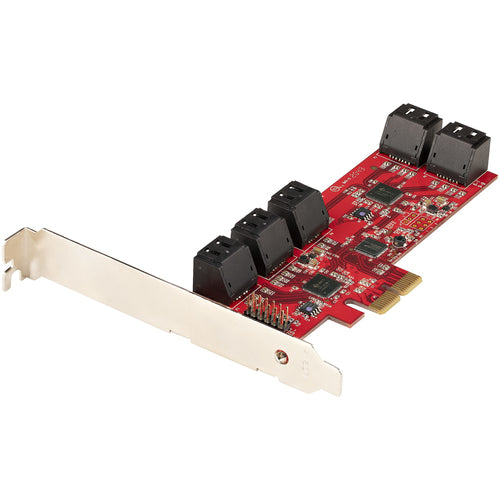

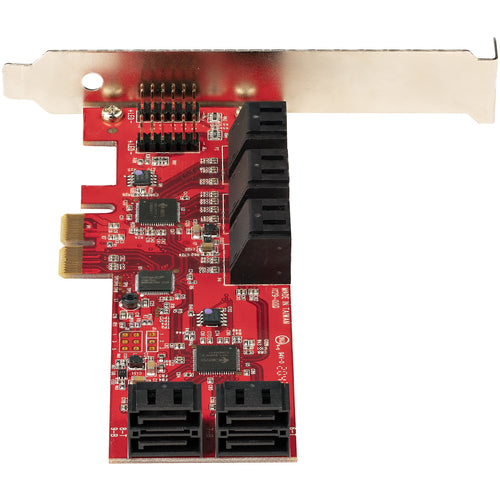

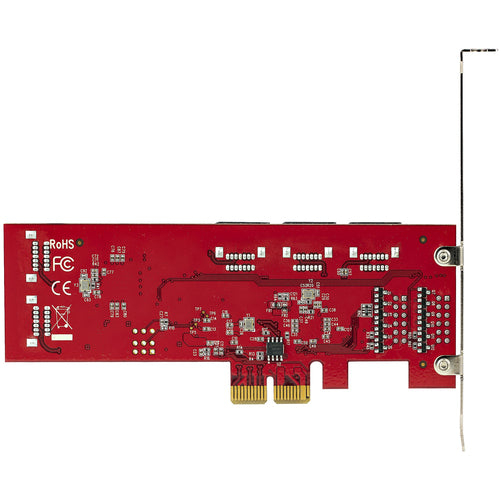

StarTech.com 10P6G-PCIE-SATA-CARD - SATA PCIe Card Controller Card 10 Ports
Features
This 10-port SATA III (6Gbps) controller enables you to add 10 SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.

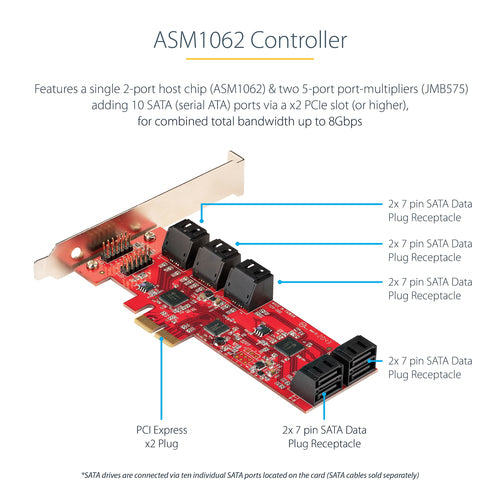

ASM1062 to Deliver 10-Port SATA 6Gbps Performance
Featuring the ASM1062 controller, this SATA card enables the connection of 10 high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via ten individual SATA ports located on the card (SATA cables sold separately).
Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7,8,10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.

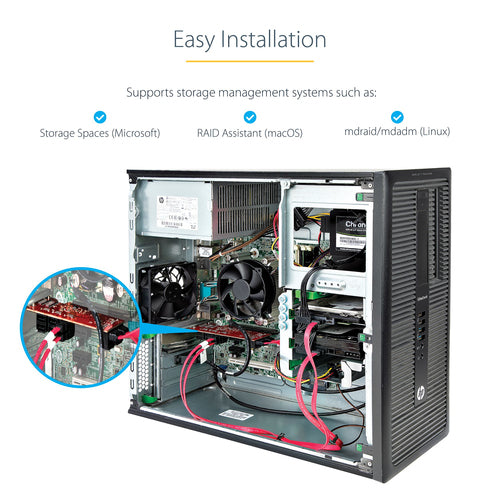

Hassle-Free Installation

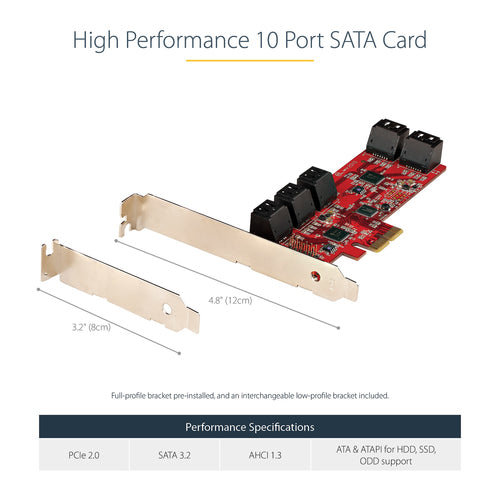

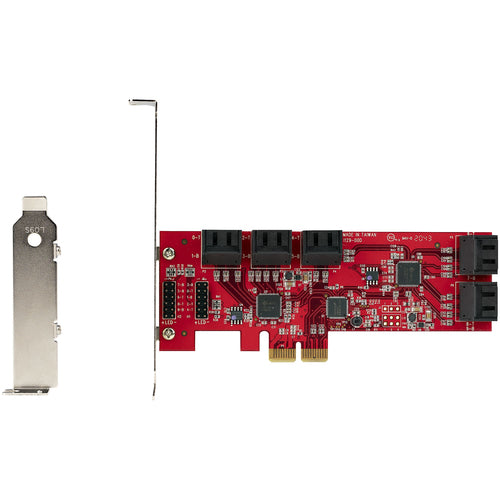

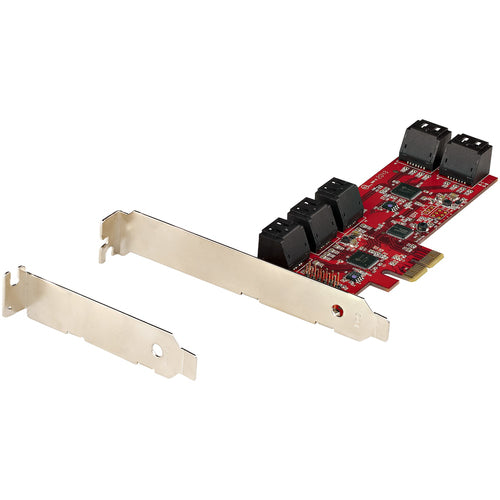

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
Specifications
Technical Specifications
| 1 - Connector Type(s) | PCI Express x2 |
|---|---|
| 10 - Internal Ports | SATA (7 pin, Data) |
| Operating Temperature | 0°C to 85°C (32°F to 185°F) |
| Storage Temperature | -25°C to 85°C (-13°F to 185°F) |
| Humidity | 20~80% RH |
| Ports | 10 |
| Interface | SATA |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Industry Standards | Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)PCI Express Base Specification Revision 2.0 |
| Chipset ID | ASMedia - ASM1062R |
| 2 - LED Indicators | Header, for drive activity LEDs |
| Package Width | 5.6 in [14.2 cm] |
| Package Length | 6.9 in [17.5 cm] |
| Package Height | 1.2 in [3.0 cm] |
| Shipping (Package) Weight | 3.9 oz [111.0 g] |
| Maximum Data Transfer Rate | 6 Gbps |
| TRIM Support | Yes |
| 4Kn Support | Yes |
| S.M.A.R.T. Support | Yes |
| Type and Rate | SATA III (6 Gbps) |
| Port Multiplier | Yes |
| Bootable | Yes |
| Hardware Raid Supported | Yes |
| Supported RAID Modes | RAID 0 (Striped Disks)RAID 1 (Mirrored Disks)BIG (Spanning or Concatenation)JBOD - (Just a Bunch of Disks) |
| ATAPI Support | Yes |
| Color | Red |

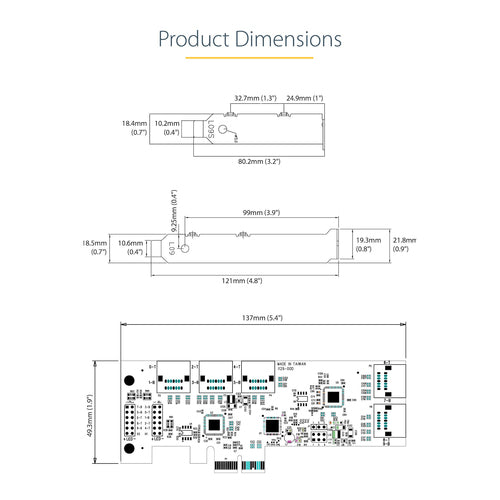

| Product Width | 0.7 in [1.8 cm] |
| Product Length | 2.8 in [7.1 cm] |
| Weight of Product | 1.2 oz [33.0 g] |
| Product Height | 4.8 in [12.1 cm] |
| OS Compatibility | Windows® 7, 8, 8.1, 10, 11Windows Server® 2012 R2, 2016, 2019macOS® 10.10 to 12Linux 2.6.32 and up |
| 1 - Included in Package | SATA Controller CardFull-Profile Bracket (Installed)Low-Profile BracketQuick-Start Guide |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Parts > IO, SCSI, IDE Cards |
| Weight | 0.204 kg |
| Warranty |
|---|
