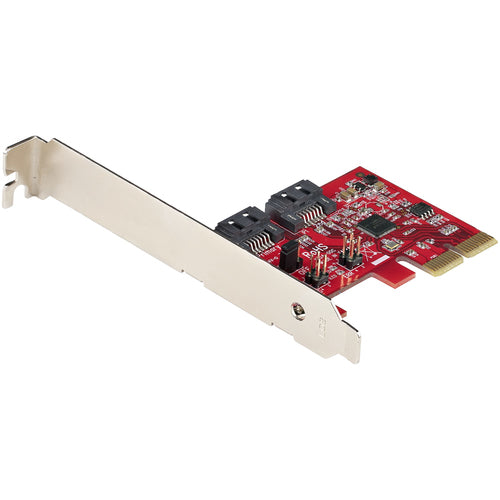

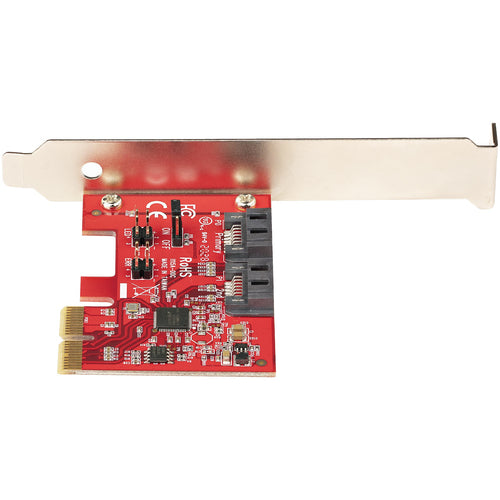

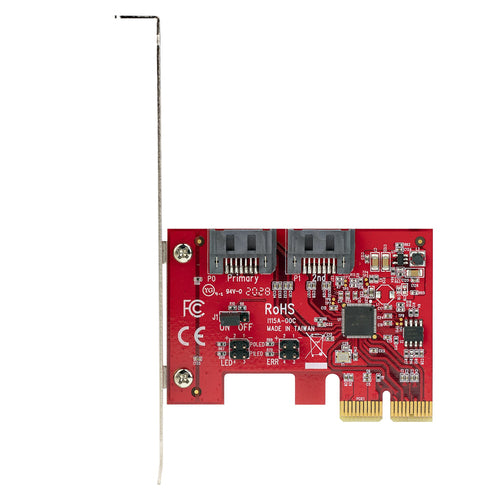

StarTech.com 2P6GR-PCIE-SATA-CARD - SATA PCIe Card 2 Ports 6Gbps SATA RAID
Features

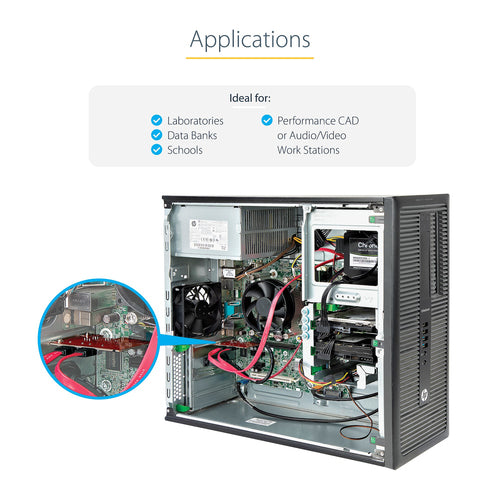

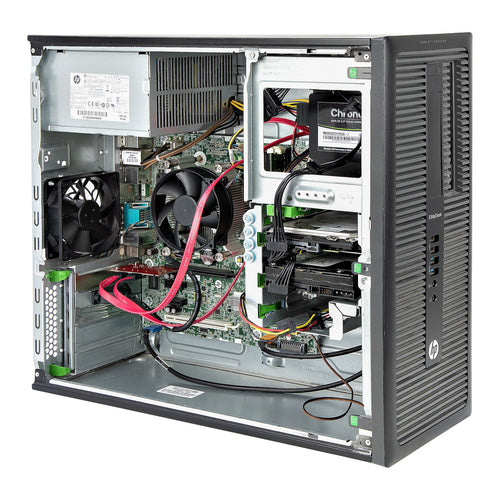

This 2-port SATA III (6Gbps) controller with RAID enables you to add two SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot, and build the disks into a hardware RAID array. The card supports SATA III and PCI-Express 2.0 Specifications, and can also be used to add optical disk drives (ODD) like CD/DVD/Blu-ray to your computer.

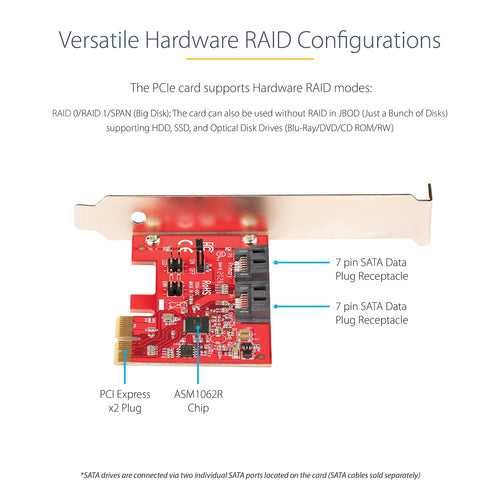

Versatile Hardware RAID Configurations
This RAID controller supports different hardware RAID configurations to meet your specific application:
RAID 0 (striped) - Splits your data evenly across both drives to increase read/write performance, while also increasing the size of your volume storage capacity to the combined total of both drives.
RAID 1 (mirrored) - Exactly copies your data on both drives to provide data redundancy, so your data will be safely backed-up should one of the drives fail.
SPAN (big) - Combines both drives into a single array to increase the size of your volume storage capacity to the combined total of both drives.
JBOD (Just a bunch of disks) - Exposes both drives as individual devices to be treated independently.
ASM1062R to Deliver 2-Port SATA 6Gbps Performance
Featuring the ASM1062R controller, this SATA card enables the connection of two high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via two individual SATA ports located on the card (SATA cables sold separately).
Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.
For managing and configuring RAID functionality, the card supports OS booting on Windows & Linux for BIOS level RAID setup & configuration, and includes an application on Windows for OS level RAID setup, configuration & monitoring. On macOS only software RAID is supported using RAID Assistant.
Hassle-Free Installation

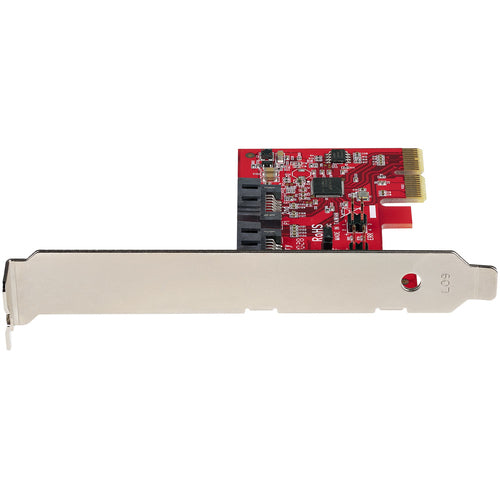

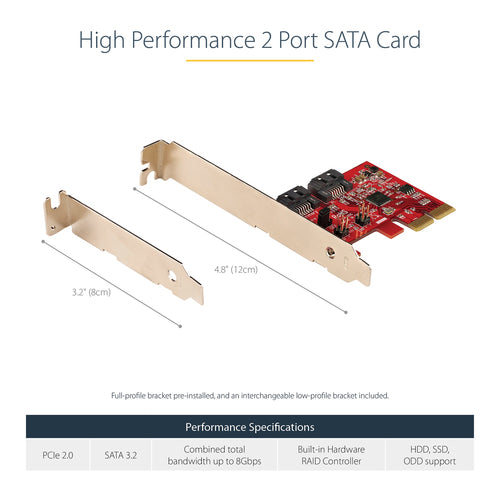

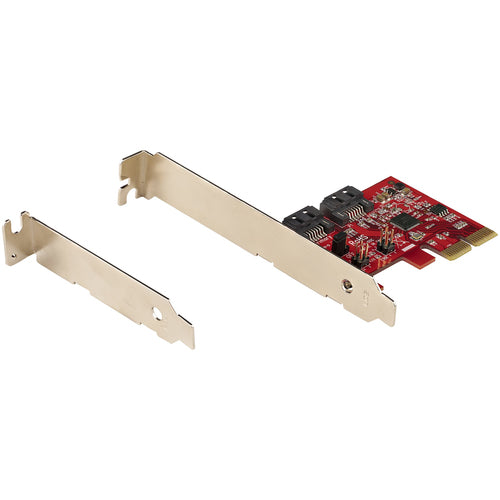

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included
Specifications
Technical Specifications
| 1 - Connector Type(s) | PCI Express x2 |
|---|---|
| 2 - Internal Ports | SATA (7 pin, Data) |
| Operating Temperature | 0°C to 85°C (32°F to 185°F) |
| Storage Temperature | -25°C to 85°C (-13°F to 185°F) |
| Humidity | 20~80% RH |
| Ports | 2 |
| Interface | SATA |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Industry Standards | Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)PCI Express Base Specification Revision 2.0 |
| Chipset ID | ASMedia - ASM1062R |
| 2 - LED Indicators | Header, for drive activity LEDs |
| Package Width | 5.6 in [14.2 cm] |
| Package Length | 6.9 in [17.5 cm] |
| Package Height | 1.2 in [3.0 cm] |
| Shipping (Package) Weight | 3.9 oz [111.0 g] |
| Maximum Data Transfer Rate | 6 Gbps |
| TRIM Support | Yes |
| 4K Support | Yes |
| S.M.A.R.T. Support | Yes |
| Type and Rate | SATA III (6 Gbps) |
| Port Multiplier | Yes |
| Bootable | Yes |
| Hardware Raid Supported | Yes |
| Supported RAID Modes | RAID 0 (Striped Disks)RAID 1 (Mirrored Disks)BIG (Spanning or Concatenation)JBOD - (Just a Bunch of Disks) |
| ATAPI Support | Yes |
| Color | Red |

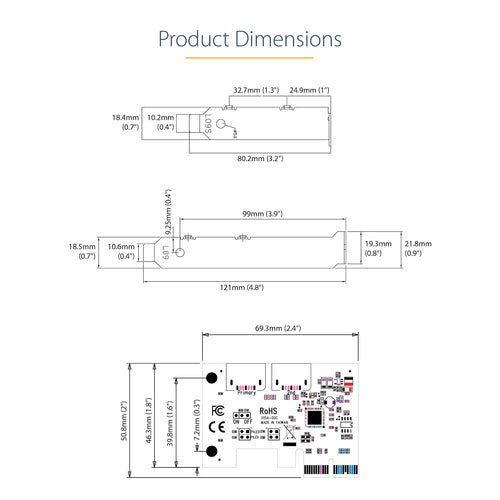

| Product Width | 0.7 in [1.8 cm] |
| Product Length | 2.8 in [7.1 cm] |
| Weight of Product | 1.2 oz [33.0 g] |
| Product Height | 4.8 in [12.1 cm] |
| OS Compatibility | Windows® 7, 8, 8.1, 10, 11Windows Server® 2012 R2, 2016, 2019macOS® 10.10 to 12Linux 2.6.32 and up |
| 1 - Included in Package | SATA Controller CardFull-Profile Bracket (Installed)Low-Profile BracketQuick-Start Guide |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Parts > IO, SCSI, IDE Cards |
| Weight | 0.045 kg |
| Warranty |
|---|
