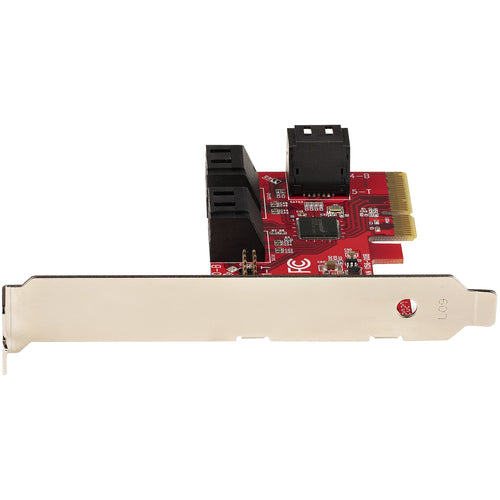

StarTech.com 6P6G-PCIE-SATA-CARD - SATA PCIe Card Controller Card 6 Ports
Features

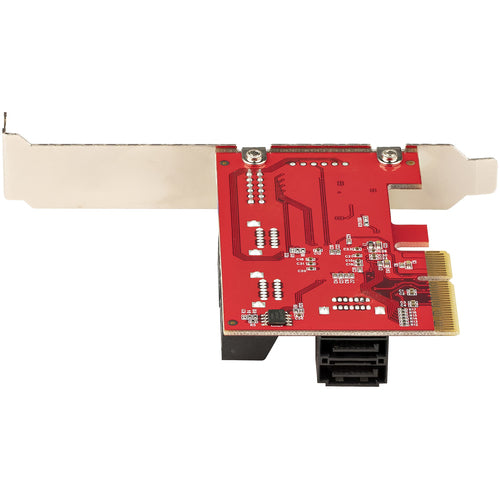

This 6-port SATA III (6Gbps) controller enables you to add six SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.

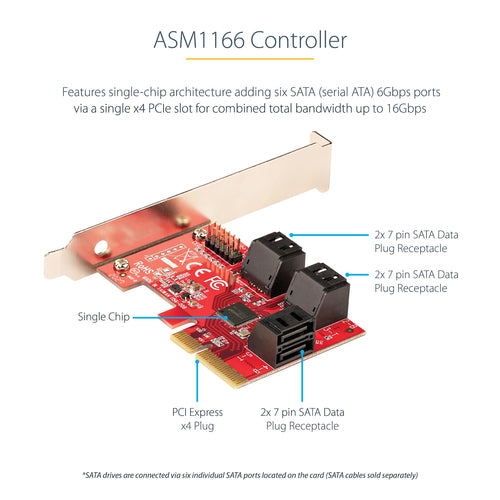

ASM1166 to Deliver 6-Port SATA 6Gbps Performance

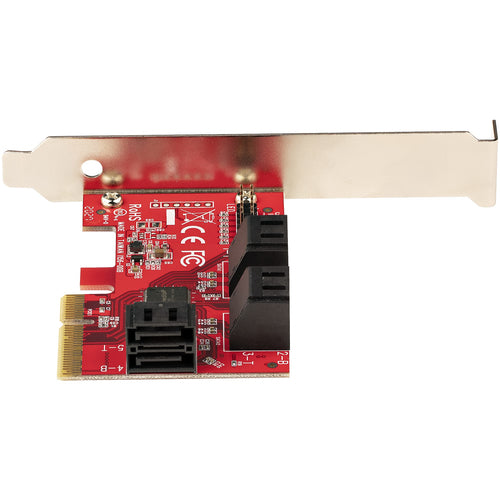

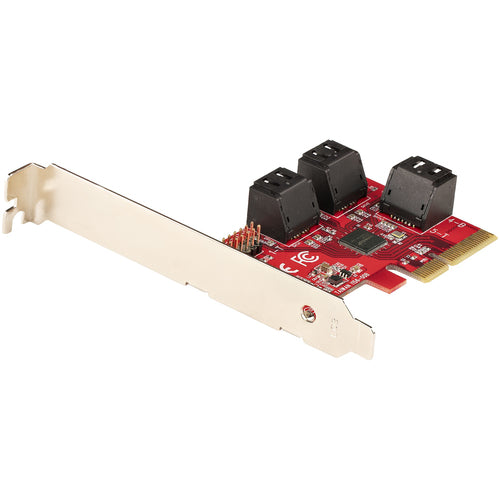

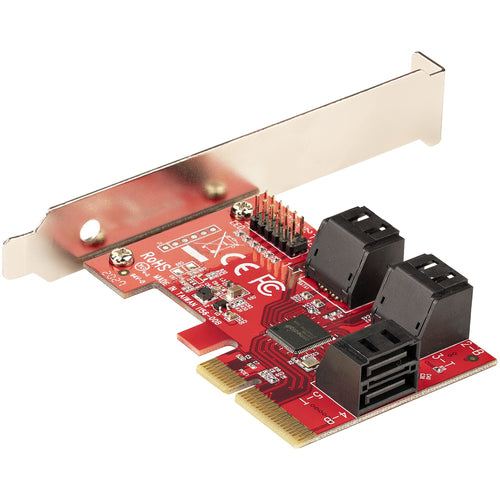

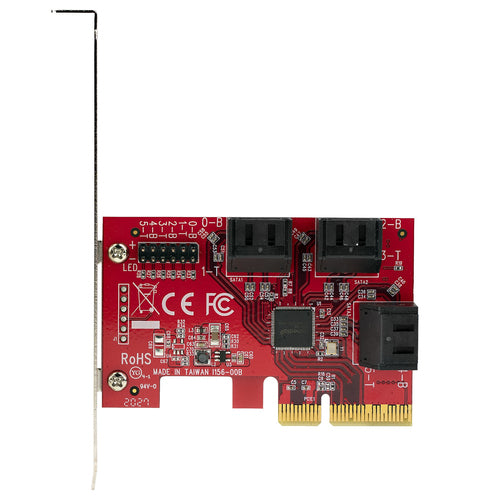

Featuring the ASM1166 controller, this SATA card enables the connection of six high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via six individual SATA ports located on the card (SATA cables sold separately).

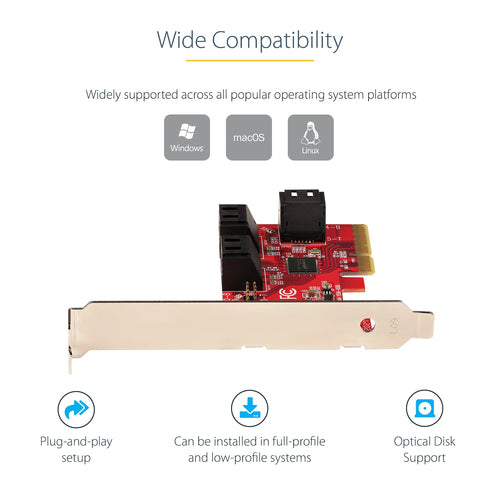

Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.
Hassle-Free Installation

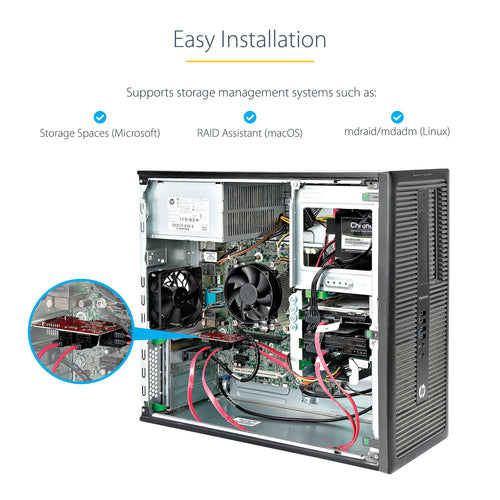

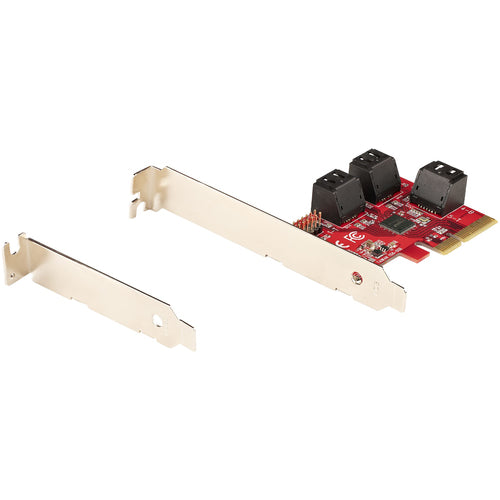

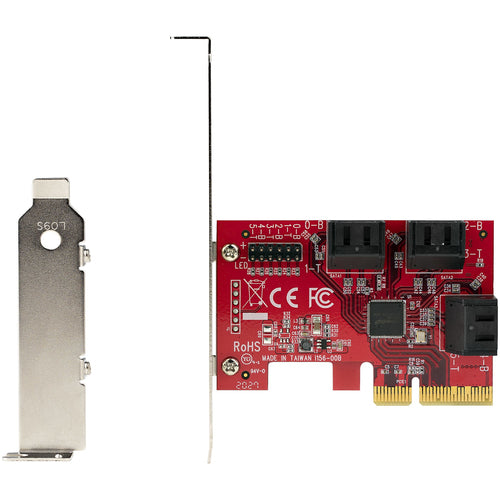

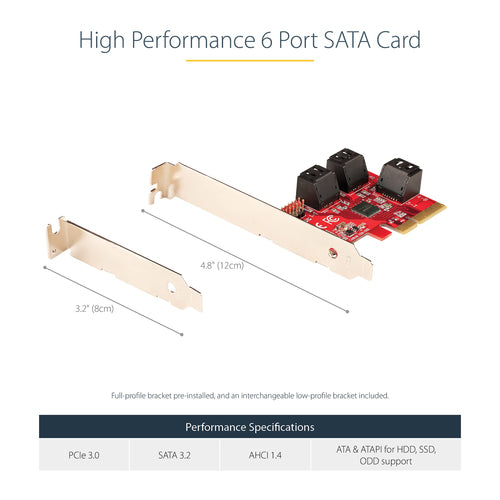

The SATA controller card features plug-and-play installation and can be installed in full-profile and low-profile computer systems with a full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
Specifications
Technical Specifications
| Connector Type(s) | 1 - PCI Express x4 |
|---|---|
| Internal Ports | 6 - SATA (7 pin, Data) |
| Operating Temperature | 0°C to 85°C (32°F to 185°F) |
| Storage Temperature | -25°C to 85°C (-13°F to 185°F) |
| Humidity | 20~80% RH |
| Ports | 6 |
| Interface | SATA |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Industry Standards | Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)PCI Express Base Specification Revision 3.0 |
| Chipset ID | ASMedia - ASM1166 |
| Shipping (Package) Weight | 119.0 g [4.2 oz] |
| Package Height | 3.0 cm [1.2 in] |
| Package Length | 17.0 cm [6.7 in] |
| Package Width | 14.2 cm [5.6 in] |
| Maximum Data Transfer Rate | 6 Gbps |
| TRIM Support | Yes |
| 4Kn Support | Yes |
| S.M.A.R.T. Support | Yes |
| Type and Rate | SATA III (6 Gbps) |
| Port Multiplier | Yes |
| Bootable | Yes |
| Hardware Raid Supported | No |
| ATAPI Support | Yes |
| Color | Red |

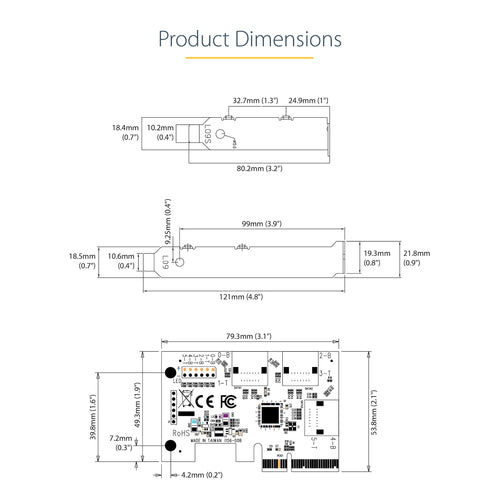

| Weight of Product | 29.0 g [1.0 oz] |
| Product Height | 1.7 cm [0.7 in] |
| Product Length | 8.2 cm [3.2 in] |
| Product Width | 5.4 cm [2.1 in] |
| OS Compatibility | Windows® 7, 8, 8.1, 10, 11Windows Server® 2012 R2, 2016, 2019macOS® 10.10 to 12Linux 2.6.32 and up |
| Included in Package | 1 - PCIe SATA Card1 - Full-Profile Bracket (Installed)1 - Low-Profile Bracket1 - Quick-Start Guide |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Parts > IO, SCSI, IDE Cards |
| Weight | 0.05 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
