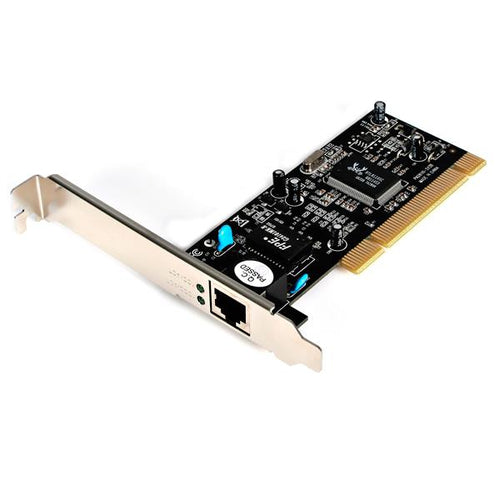

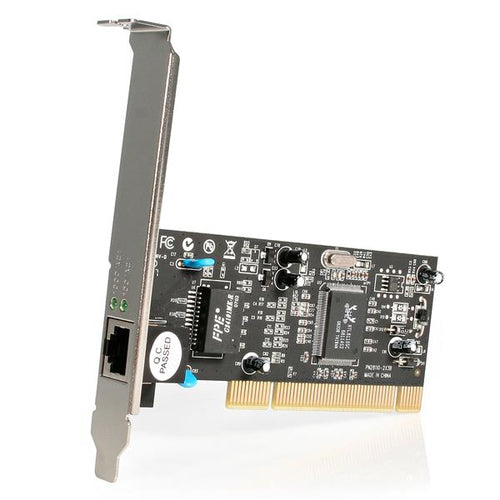

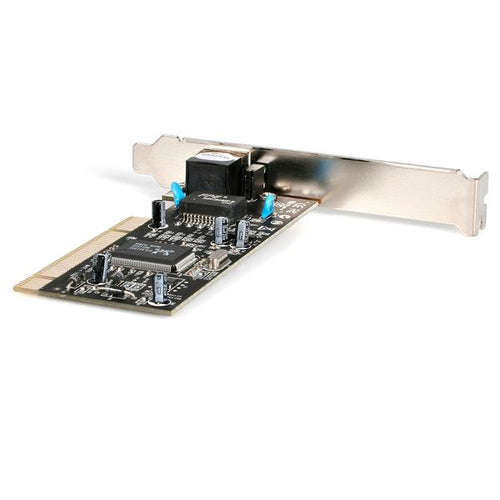

StarTech.com ST1000BT32 - 1 Port PCI Gigabit Ethernet Adapter Card

SKU: ST1000BT32 ● In Stock
$31.22
Free shipping over $299 Genuine product 7-day returns

StarTech.com ST1000BT32 - 1 Port PCI Gigabit Ethernet Adapter Card

Overview

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI slot

This PCI-based 10/100/1000 Mbps Gigabit Ethernet Network Adapter Card provides a simple connection to a Gigabit Ethernet network, and is fully compatible with IEEE 802.3, 802.3u, 802.3ab and 802.3x standards.

Suitable for any PCI-enabled client, server or workstation, the Gigabit Ethernet Network Adapter Card supports high performance dual channel networking and maximum data transfer speeds of 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

Compatible with a broad range of operating systems, including Linux, Windows 10, 8/8.1, 98SE, ME, 2000, XP, XP-64bit, Vista, Vista-64bit, 7, 7-64bit as well as Mac OS 10.4, this high quality PCI Gigabit NIC includes an optional low profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server.

The StarTech.com Advantage

- Add feature rich Gigabit networking through a PCI slot, suitable for a desktop, workstation or sever use
- Dual profile design to fit into Full or Low Profile/small form factor (SFF) systems
- Backed by a StarTech.com lifetime warranty and free lifetime technical support

Technical Specifications

Connectivity technology Wired
Host interface PCI
Interface Ethernet
Ethernet LAN (RJ-45) ports 1
PCI version 2.2
Maximum data transfer rate 1000
Networking standards IEEE 802.11u,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Ethernet LAN Y
Ethernet LAN data rates 10,100,1000
Wake-on-LAN ready Y
Auto MDIX IEEE Y
Full duplex Y
Supported network protocols CSMA/CD
VLAN tagging Y
Component for PC
Internal Y
Chipset Realtek - RTL8110SC

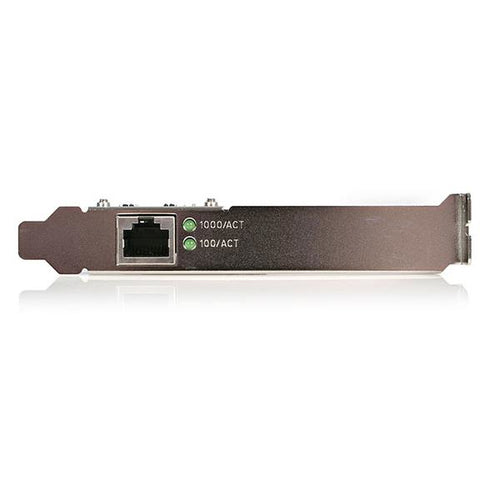

LED indicators 10/100/1000 Mbits/sec Link/Activity
Mean time between failures (MTBF) 36000
Certification CE, FCC, REACH
Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows ME,Windows NT,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported Mac OS X 10.4 Tiger
Linux operating systems supported Y
Server operating systems supported Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Operating temperature (T-T) 0 - 55
Operating relative humidity (H-H) 10 - 95
Width 20
Depth 123
Height 63
Weight 53

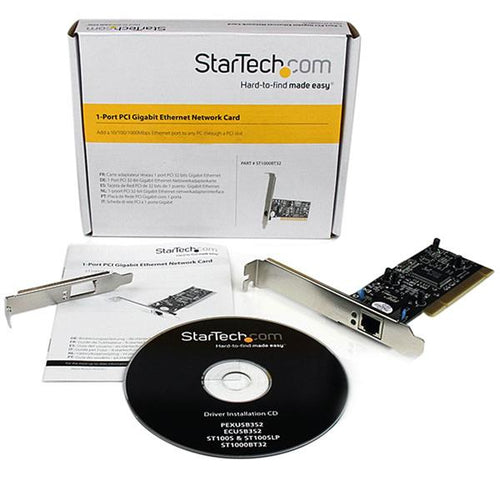

Drivers included Y
Low-profile bracket Y
Package width 170
Package depth 143
Package height 30
Package weight 142
Manual Y
Compliance certificates RoHS
Harmonized System (HS) code 85176990
