StarTech.com SV231TDPU34K 2 Pt DP KVM Switch 4K 60Hz Ultra HD

StarTech.com

StarTech.com SV231TDPU34K 2 Pt DP KVM Switch 4K 60Hz Ultra HD

SKU: SV231TDPU34K ● In Stock

$998.39 ~~$1,051.58~~

Free shipping over $299 Genuine product 7-day returns

Features

4K 60Hz Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives three large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

Windows, Mac & Linux Compatible

While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.

Easy to Operate

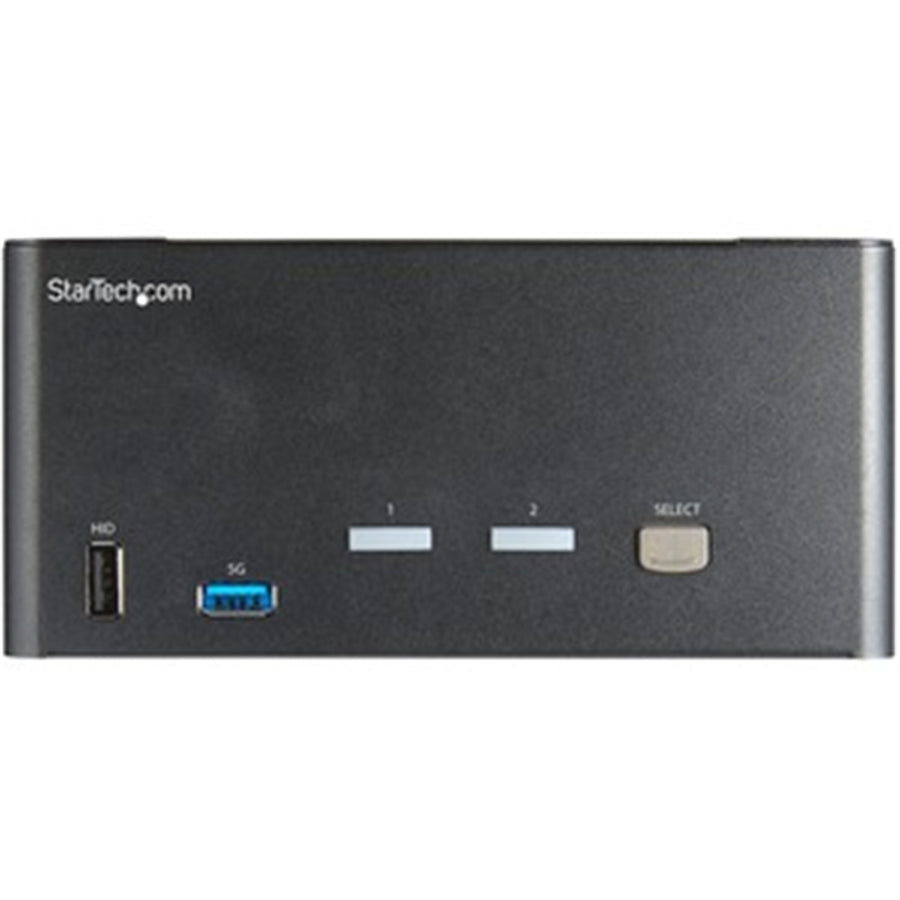

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

- IMPROVE EFFICIENCY: Switch between two computers with three monitors using USB and DisplayPort video from a single keyboard, monitor, and mouse using keyboard hotkeys or push buttons to switch between active computers

- TRIPLE MONITOR 4K 60Hz UHD: DisplayPort triple screen KVM switch supports up to 4K at 60Hz on three monitors for applications like CAD/CAM, video editing and content creation; works with major brands including Dell, HP, and Lenovo

- USER-FRIENDLY: KVM switch with compact & durable steel housing features large buttons & an easily accessible front-mounted integrated USB 3.0 port 5Gbps (USB 3.1/3.2 Gen 1) for sharing USB devices between connected computers

- THE STARTECH.COM ADVANTAGE: This KVM is TAA compliant, and StarTech.com offers a 2-year warranty and free lifetime 24/5 multilingual technical support based in North America

Specifications

Technical Specifications

Console Interface(s)	3 - 20 pin DisplayPort Female2 - 9 pin USB 3.0 A Female4 - USB Type-A (4 pin; HID Port) USB 1.11 - 3.5 mm Audio Female
Host Connectors	6 - 20 pin DisplayPort Female2 - 9 pin USB 3.0 B Female2 - 3.5mm Audio (4-Position, Speakers + Mic, CTIA)
Operating Temperature	0?~40?
Storage Temperature	-10?~60?
Humidity	0%~80%
Audio	Yes
Cables Included	No
Daisy-Chain	No
Number of Monitors Supported	3
KVM Ports	2
PC Interface	USB 3.2 Gen 1 (5Gbps)
PC Video Type	DisplayPort
Chipset ID	Genesys Logic - GL3523
LED Indicators	2 - Green (Power/Sync)2 - Red (Selected Host)
Package Height	3.6 in [9.1 cm]
Package Length	7.4 in [18.9 cm]
Shipping (Package) Weight	3.2 lb [1.4 kg]
Package Width	9.4 in [23.8 cm]
Package Quantity	1
Auto Scan	3, 8, 15 & 30 seconds
MTBF	156 000 hrs
Port Selection Support	Push Button and Hotkeys
On-Screen Display	No
Video Revision	DisplayPort 1.2
IP Control	No
Hot-Key Selection	Yes
Wide Screen Supported	Yes
Audio Specifications	DisplayPort - 5.1 Channel AudioDisplayPort - 2 Channel AudioAnalog Stereo - 2 Channel Audio
Color	Black
Product Height	2.9 in [7.5 cm]
Product Length	6.3 in [16.0 cm]
Weight of Product	1.9 lb [0.9 kg]
Product Width	4.7 in [12.0 cm]
Material	Steel
Power Source	AC Adapter Included
Input Voltage	100 - 240 AC
Input Current	1.0A
Output Voltage	12V DC
Output Current	3A
Center Tip Polarity	Positive
Plug Type	M
Power Consumption (In Watts)	36W
