Overview
DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio

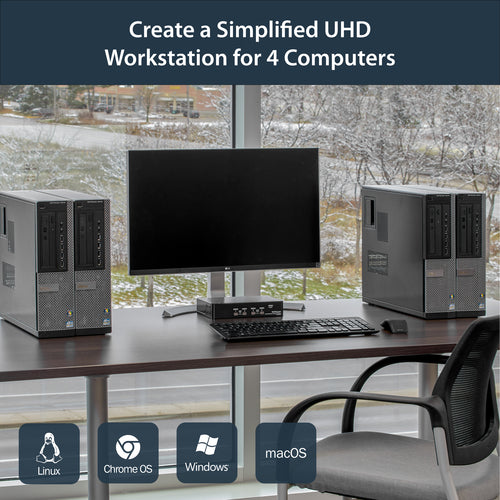

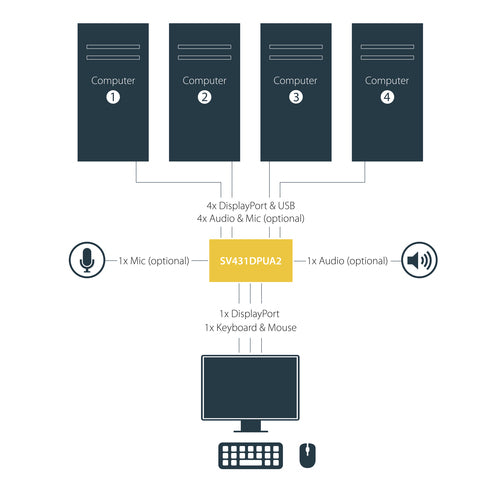

This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.
Simple to Operate

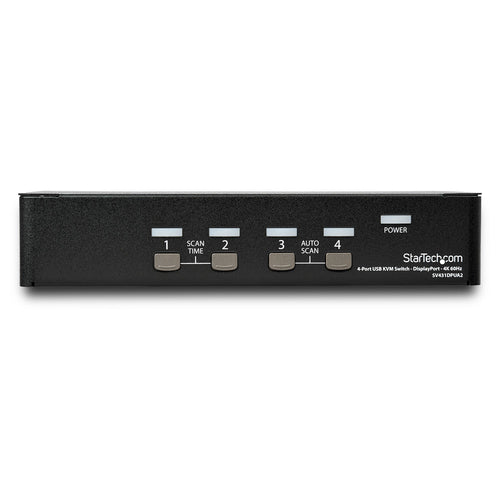

The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.
- IMPROVE EFFICIENCY: 4 Port DisplayPort KVM Switch with hotkey and manual switching to access 4 computers with DP video and USB hub; works with major brands including Dell, HP, and Lenovo
- 4K VIDEO QUALITY: DisplayPort KVM switch supports up to 4K at 60Hz on one large monitor / Supports MST Passthrough for multiple displays

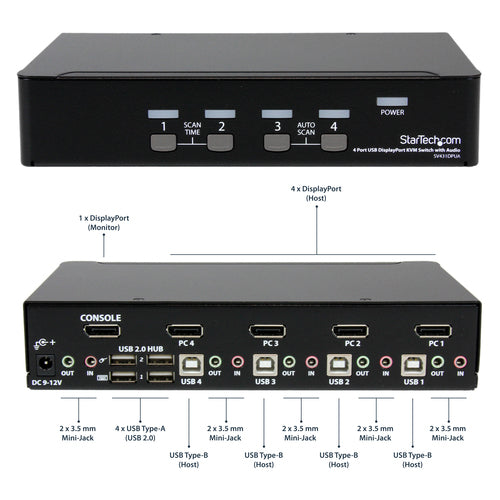

- TECH SPECS: 4 Port DP 1.2 KVM / 3840 x 2160 60Hz / 4K UHD / MST Passthrough / 2 Port USB 2.0 Hub / HDCP / 3.5mm Analog Audio / Switching: Hotkey & Push Button / OS Independent / TAA
- USER-FRIENDLY: KVM switch with compact & durable steel housing features large buttons & integrated USB 2.0 Hub for sharing USB drives & devices between connected computers
- THE STARTECH.COM ADVANTAGE: This KVM is TAA compliant, and StarTech.com offers a 3-year warranty and free lifetime 24/5 multilingual technical support based in North America
Technical Specifications
| Number of computers controlled | 4 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 5 |
| USB 2.0 Type-B ports quantity | 4 |

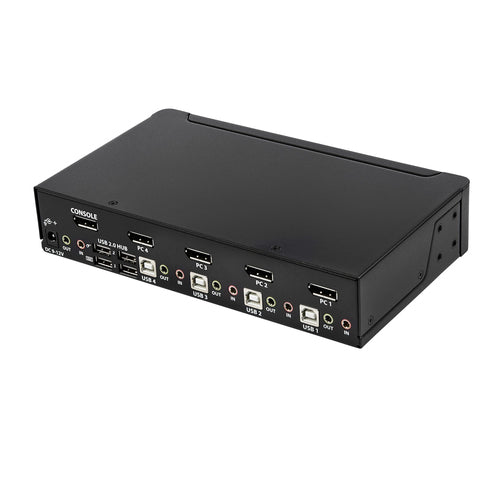

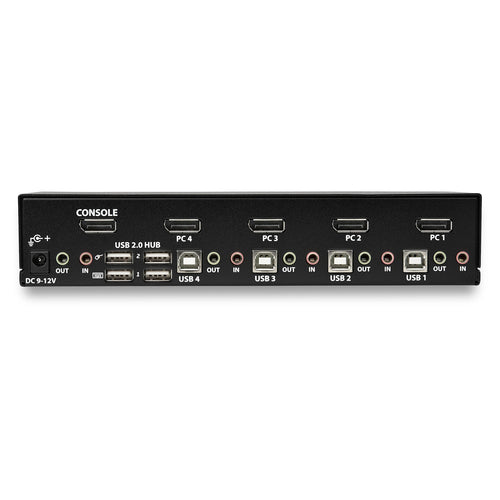

| Console ports | 3.5mm headphone,3.5mm mic,DisplayPort,USB A |
| Console USB ports quantity | 4 |
| Audio connections | Y |
| Headphone outputs | 5 |
| Number of microphone inputs | 5 |
| DC-in jack | Y |
| Ethernet LAN | N |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 |
| Data transfer rate (max) | 0.48 |
| Scan interval | 3,8,15,30 |
| Plug and Play | Y |
| Daisy chain | N |
| Number of users | 1 |
| Rack mounting | Y |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Y |
| Hot keys | Y |
| Mean time between failures (MTBF) | 138327 |
| Certification | CE, FCC, TAA, REACH |
| On Screen Display (OSD) | Y |
| Input voltage | 100 - 240 |
| Input current | 0.6 |
| Output voltage | 12 |
| Output current | 1.5 |
| Power consumption (typical) | 18 |
| External power adapter | Y |
| Power plug type | Type M |
| Compatible power plug types | AU,EU,JP,UK,US |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -10 - 60 |
| Operating relative humidity (H-H) | 0 - 40 |

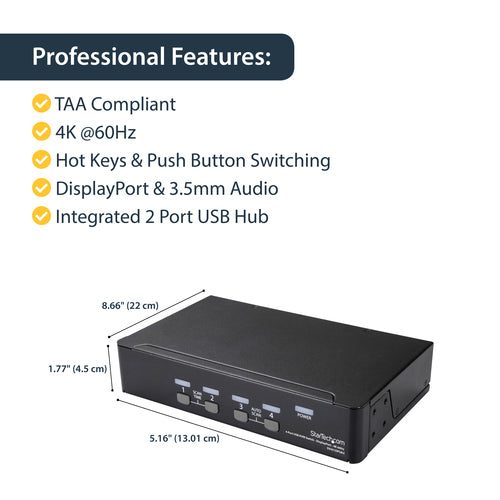

| Width | 131 |
| Depth | 220 |
| Height | 45 |
| Weight | 1000 |
| Package width | 412 |
| Package depth | 216 |
| Package height | 89 |
| Package weight | 1600 |

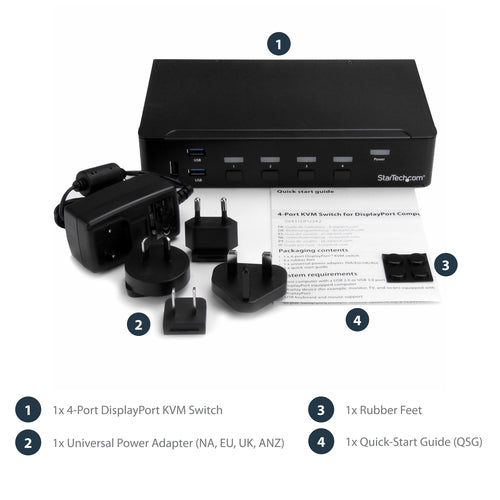

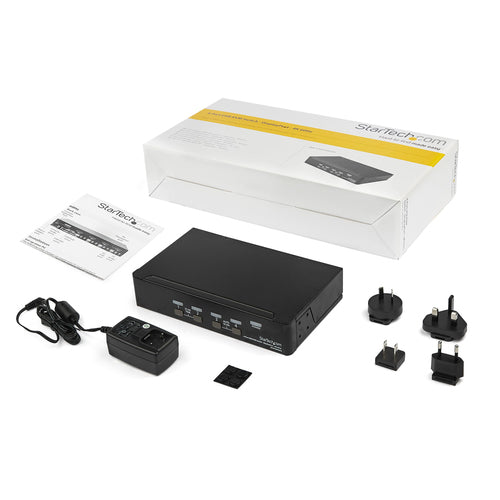

| Quick installation guide | Y |
| AC adapter included | Y |
| Rubber feet | Y |
| Audio support | Y |
| IP control | N |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 551 |
| Master (outer) case length | 436 |
| Master (outer) case height | 257 |
| Products per master (outer) case | 6 |
